BU60VH-QNFTF (1986)
Toyota Dyna/Toyoace Quick

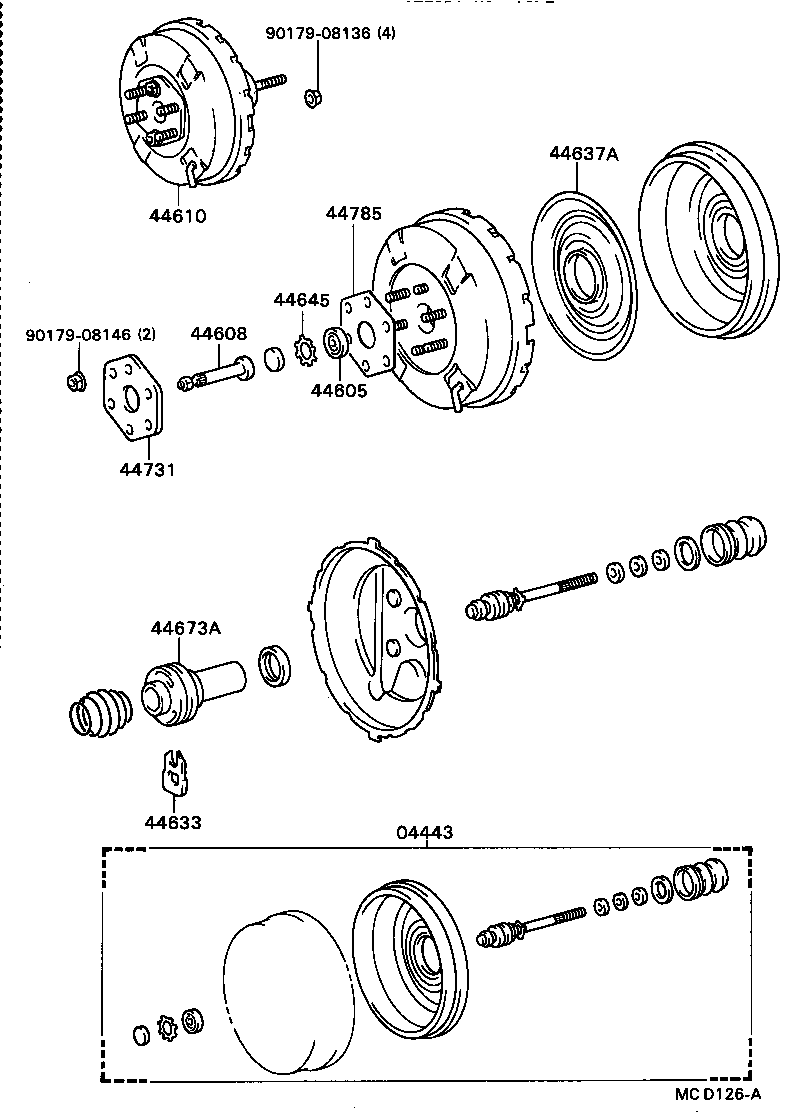

ILLUST NO. 1 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 44730-60040 |
BU60 |
1 | ||
| 04443-36120 |
BU60 |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-36220 |
BU60 |
1 | ||
| 44605-36220 |
BU60..D |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-25150 |
BU60 |
1 | ||
| 44608-25150 |
BU60..D |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36390 |
BU60 |
1 | ||
| 44610-37020 |
BU60 ｱﾘ(ﾌﾛﾝﾄ ﾃﾞｲｽｸﾌﾞﾚ-ｷ) |
1 | ||
| 44610-37020 |
BU60..N |
1 | ||
| 44610-36390 |
BU60..D |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
BU60 |
1 | ||
| 44633-28130 |
BU60..D |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-25150 |
BU60..D |
1 | ||
| 44637-25150 |
BU60 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-36220 |
BU60..D |
1 | ||
| 44645-36220 |
BU60 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-25150 |
BU60..D |
1 | ||
| 44673-25150 |
BU60 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44647-25150 |
BU60..D |
1 | ||
| 44647-25150 |
BU60 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 47275-36010 |
BU60 |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 90179-08146 | ||||

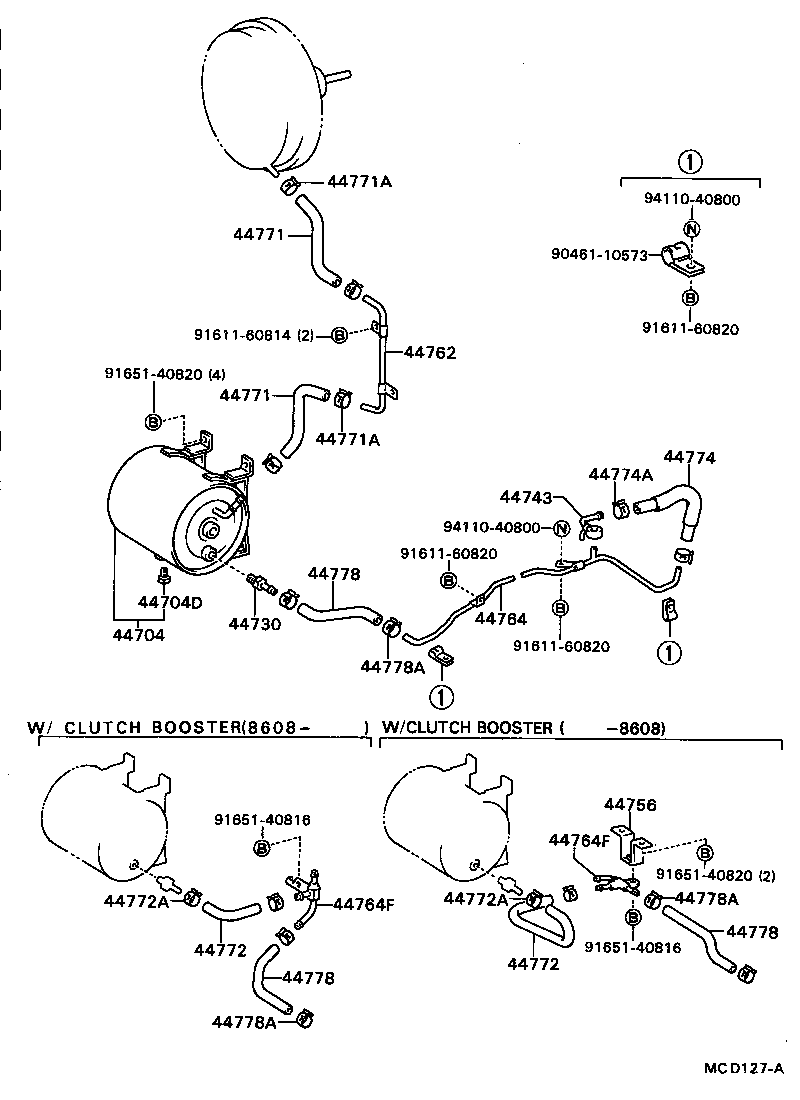

ILLUST NO. 2 OF 2(8601-8808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36190 |
BU60 |
1 | ||
| 44704-36191 |
BU60 |
1 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
BU60 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU60 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09129 |
BU60 ｱﾘ(ｴｱｺﾝ=M0P) OR ｱﾘ(ｴｱｺﾝ=D0P) |
1 | ||
| 90405-09084 |
BU60..D |
1 | ||
| 90405-09111 |
BU60 ｱﾘ(ｴｱｺﾝ=M0P) OR ｱﾘ(ｴｱｺﾝ=D0P) |
1 | ||
| 90405-09111 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 90405-09084 |
BU60 |
1 | ||
| 90405-09130 |
BU60 |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44757-36050 |
BU60 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-36090 |
BU60 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44912-36150 |
BU60 W/EXHAUST BRAKE |
1 | ||
| 44912-36150 |
BU60 ｱﾘ(*EB) |
1 | ||
| 44764-36440 |
BU60 |
1 | ||
| 44912-36151 |
BU60 ｱﾘ(*EB) |
1 | ||
| 44764-36441 |
BU60 |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90413-09034 |
BU60 |
1 | ||
| 90413-09028 |
BU60 |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90413-09034 |
BU60 |
1 | ||
| 90413-09028 |
BU60 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36110 |
BU60 |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36110 |
BU60 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
BU60 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
BU60 |
4 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36060 |
BU60 |
1 | ||
| 44772-36050 |
BU60 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36060 |
BU60 |
1 | ||
| 44772-36050 |
BU60 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-36170 |
BU60 NO.1 |
1 | ||
| 44774-36190 |
BU60 NO.2 |
1 | ||
| 44774-36090 |
BU60 |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36070 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36060 |
BU60..D |
1 | ||
| 44778-36080 |
BU60..N |
1 | ||
| 44778-36080 |
BU60..D ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 44778-36080 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36080 |
BU60 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36070 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36060 |
BU60..D |
1 | ||
| 44778-36080 |
BU60..N |
1 | ||
| 44778-36080 |
BU60..D ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 44778-36080 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36080 |
BU60 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36070 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36060 |
BU60..D |
1 | ||
| 44778-36080 |
BU60..N |
1 | ||
| 44778-36080 |
BU60..D ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 44778-36080 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36080 |
BU60 |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| Common parts | ||||
| 90461-10573 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||

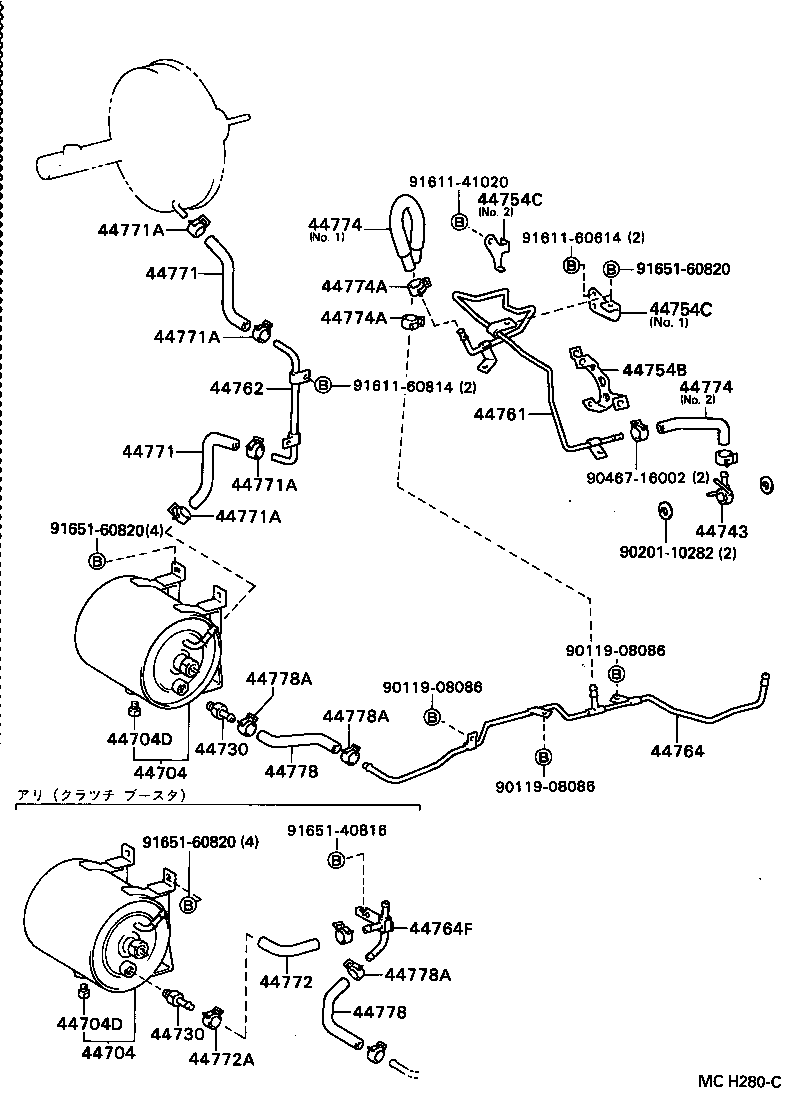

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36190 |
BU60 |
1 | ||
| 44704-36191 |
BU60 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36190 |
BU60 |
1 | ||
| 44704-36191 |
BU60 |
1 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
BU60 |
1 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
BU60 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU60 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU60 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09129 |
BU60 ｱﾘ(ｴｱｺﾝ=M0P) OR ｱﾘ(ｴｱｺﾝ=D0P) |
1 | ||
| 90405-09084 |
BU60..D |
1 | ||
| 90405-09111 |
BU60 ｱﾘ(ｴｱｺﾝ=M0P) OR ｱﾘ(ｴｱｺﾝ=D0P) |
1 | ||
| 90405-09111 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 90405-09084 |
BU60 |
1 | ||
| 90405-09130 |
BU60 |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-36050 |
BU60 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36080 |
BU60..N |
1 | ||
| 44754-36081 |
BU60..N |
1 | ||
| 44754-36081 |
BU60..D ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44754-36080 |
BU60..D NO.2 |
1 | ||
| 44754-36080 |
BU60..D ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44754-36081 |
BU60..D NO.2 |
1 | ||
| 44754-36082 |
BU60 |
1 | ||
| 44754-36082 |
BU60..D NO.2 |
1 | ||
| 44754-36082 |
BU60..D ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44754-36082 |
BU60..N |
1 | ||
| 44754-36070 |
BU60..D NO.1 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36080 |
BU60..N |
1 | ||
| 44754-36081 |
BU60..N |
1 | ||
| 44754-36081 |
BU60..D ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44754-36080 |
BU60..D NO.2 |
1 | ||
| 44754-36080 |
BU60..D ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44754-36081 |
BU60..D NO.2 |
1 | ||
| 44754-36082 |
BU60 |
1 | ||
| 44754-36082 |
BU60..D NO.2 |
1 | ||
| 44754-36082 |
BU60..D ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44754-36082 |
BU60..N |
1 | ||
| 44754-36070 |
BU60..D NO.1 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36111 |
BU60 |
1 | ||
| 44761-36112 |
BU60 |
1 | ||
| 44761-36110 |
BU60 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-36090 |
BU60 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44912-36150 |
BU60 W/EXHAUST BRAKE |
1 | ||
| 44912-36150 |
BU60 ｱﾘ(*EB) |
1 | ||
| 44764-36440 |
BU60 |
1 | ||
| 44912-36151 |
BU60 ｱﾘ(*EB) |
1 | ||
| 44764-36441 |
BU60 |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90413-09034 |
BU60 |
1 | ||
| 90413-09028 |
BU60 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36110 |
BU60 |
2 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36110 |
BU60 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
BU60 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
BU60 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
BU60 |
4 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
BU60 |
4 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36060 |
BU60 |
1 | ||
| 44772-36050 |
BU60 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-36170 |
BU60 NO.1 |
1 | ||
| 44774-36190 |
BU60 NO.2 |
1 | ||
| 44774-36090 |
BU60 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-36170 |
BU60 NO.1 |
1 | ||
| 44774-36190 |
BU60 NO.2 |
1 | ||
| 44774-36090 |
BU60 |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36070 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36060 |
BU60..D |
1 | ||
| 44778-36080 |
BU60..N |
1 | ||
| 44778-36080 |
BU60..D ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 44778-36080 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36080 |
BU60 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36070 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36060 |
BU60..D |
1 | ||
| 44778-36080 |
BU60..N |
1 | ||
| 44778-36080 |
BU60..D ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ) |
1 | ||
| 44778-36080 |
BU60 W/CLUTCH BOOSTER |
1 | ||
| 44778-36080 |
BU60 |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
BU60 |
2 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90201-10282 | ||||
| 90467-16002 | ||||
| 91611-41020 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
