BU60VH-QNFTF (1986)
Toyota Dyna/Toyoace Quick
Production
Jan 1986
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

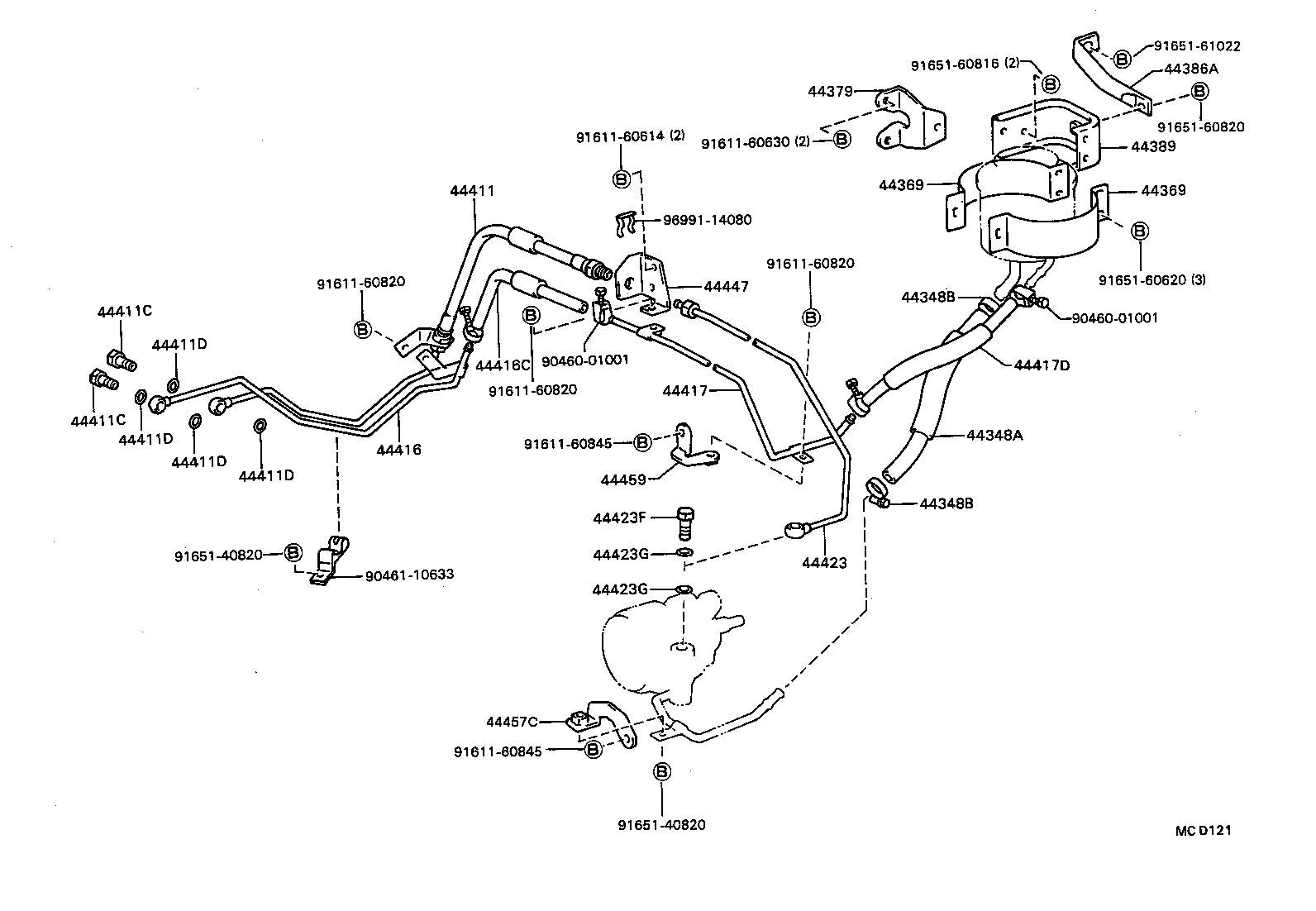

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36100 |
BU60 |
1 | ||
| 44348-36170 |
BU60 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
BU60 |
2 | ||
| 90460-26001 |
BU60 |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
BU60 |
2 | ||
| 90460-26001 |
BU60 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU60 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU60 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36150 |
BU60 |
1 | ||
| 44379-36031 |
BU60 |
1 | ||
| 44386A - SUPPORT, OIL RESERVOIR | ||||
| 44386-36100 |
BU60 |
1 | ||
| 44386-36011 |
BU60 |
1 | ||
| 44389 - BRACKET, OIL RESERVOIR, NO.3 | ||||
| 44389-36060 |
BU60 |
1 | ||
| 44389-36021 |
BU60 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36241 |
BU60 |
1 | ||
| 44411-36450 |
BU60 |
1 | ||
| 44411-36451 |
BU60 |
1 | ||
| 44411-36240 |
BU60 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU60 |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU60 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36151 |
BU60 |
1 | ||
| 44416-36150 |
BU60 |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18133 |
BU60 |
1 | ||
| 90447-18038 |
BU60 |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-36120 |
BU60 |
1 | ||
| 44417-36060 |
BU60 |
1 | ||
| 44417-36121 |
BU60 |
1 | ||
| 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) | ||||
| 90445-18139 |
BU60 |
1 | ||
| 90447-18022 |
BU60 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-36140 |
BU60 |
1 | ||
| 44423-36180 |
BU60 |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16004 |
BU60 |
1 | ||
| 90401-16027 |
BU60 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU60 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU60 |
2 | ||
| 44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT | ||||
| 44447-36161 |
BU60 |
1 | ||
| 44447-36120 |
BU60 |
1 | ||
| 44447-36160 |
BU60 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BU60 |
1 | ||
| 44457-36080 |
BU60 |
1 | ||
| 44459 - BRACKET, TUBE SUPPORT, NO.3 | ||||
| 44459-36070 |
BU60 |
1 | ||
| Common parts | ||||
| 90460-01001 | ||||
| 90461-10633 | ||||
| 91611-60614 | ||||
| 91611-60630 | ||||
| 91611-60820 | ||||
| 91611-60845 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 96991-14080 | ||||
(8808- )

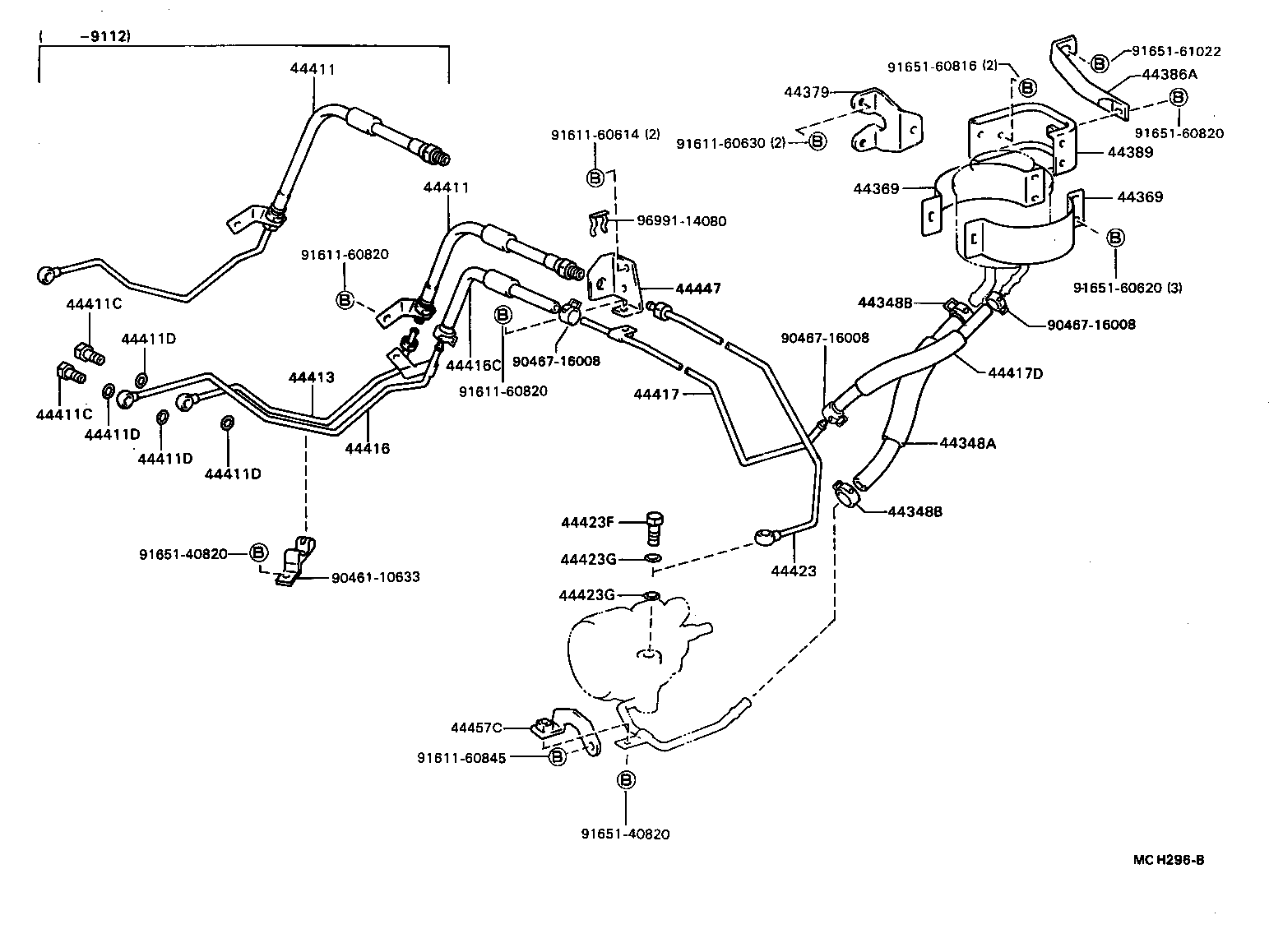

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36100 |
BU60 |
1 | ||
| 44348-36170 |
BU60 |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
BU60 |
2 | ||
| 90460-26001 |
BU60 |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90467-21005 |
BU60 |
2 | ||
| 90460-26001 |
BU60 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU60 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU60 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36150 |
BU60 |
1 | ||
| 44379-36031 |
BU60 |
1 | ||
| 44386A - SUPPORT, OIL RESERVOIR | ||||
| 44386-36100 |
BU60 |
1 | ||
| 44386-36011 |
BU60 |
1 | ||
| 44389 - BRACKET, OIL RESERVOIR, NO.3 | ||||
| 44389-36060 |
BU60 |
1 | ||
| 44389-36021 |
BU60 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36241 |
BU60 |
1 | ||
| 44411-36450 |
BU60 |
1 | ||
| 44411-36451 |
BU60 |
1 | ||
| 44411-36240 |
BU60 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36241 |
BU60 |
1 | ||
| 44411-36450 |
BU60 |
1 | ||
| 44411-36451 |
BU60 |
1 | ||
| 44411-36240 |
BU60 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU60 |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-14003 |
BU60 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-14235 |
BU60 |
4 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-36130 |
BU60 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36151 |
BU60 |
1 | ||
| 44416-36150 |
BU60 |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18133 |
BU60 |
1 | ||
| 90447-18038 |
BU60 |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-36120 |
BU60 |
1 | ||
| 44417-36060 |
BU60 |
1 | ||
| 44417-36121 |
BU60 |
1 | ||
| 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) | ||||
| 90445-18139 |
BU60 |
1 | ||
| 90447-18022 |
BU60 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-36140 |
BU60 |
1 | ||
| 44423-36180 |
BU60 |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16004 |
BU60 |
1 | ||
| 90401-16027 |
BU60 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU60 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16168 |
BU60 |
2 | ||
| 44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT | ||||
| 44447-36161 |
BU60 |
1 | ||
| 44447-36120 |
BU60 |
1 | ||
| 44447-36160 |
BU60 |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BU60 |
1 | ||
| 44457-36080 |
BU60 |
1 | ||
| Common parts | ||||
| 90461-10633 | ||||
| 90467-16008 | ||||
| 91611-60614 | ||||
| 91611-60630 | ||||
| 91611-60820 | ||||
| 91611-60845 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 96991-14080 | ||||
