BU60VH-QNFTF (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8601-8808)

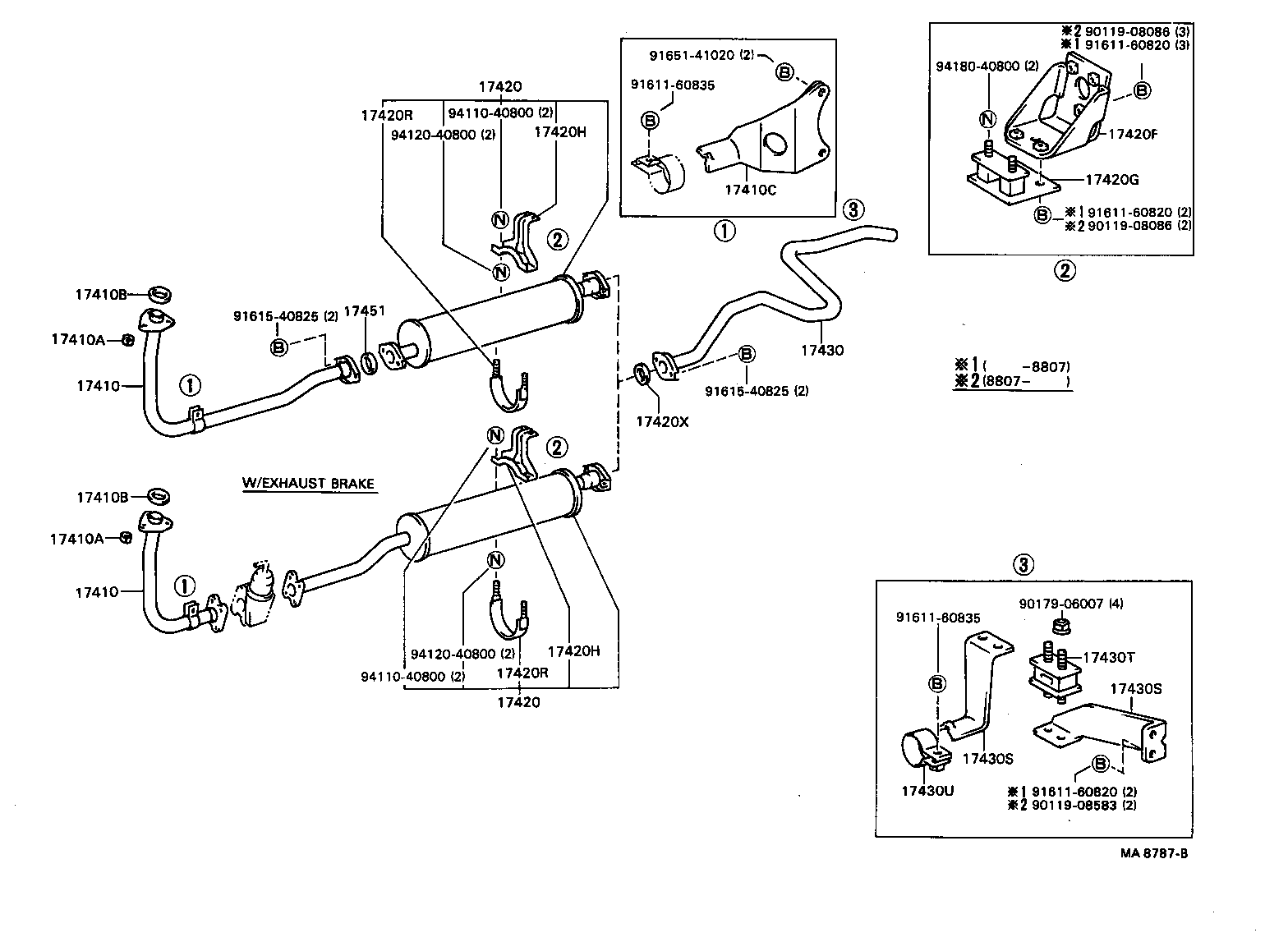

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17420 17420 17420F 17420G 17420H 17420H 17420R 17420R 17420X 17430 17430S 17430S 17430T 17430U 17451 9011908086 9011908086 9011908583 9017906007 9161160820 9161160820 9161160820 9161160835 9161160835 9161540825 9161540825 9165141020 9411040800 9411040800 9412040800 9412040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58060

B..BU60

W/EXHAUST BRAKE

 1
17410-58080

B..BU60

 1
17410-58060

B..BU60

W/EXHAUST BRAKE

 1
17401-58160

B..BU60

 1
17401-58171

B..BU60

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58060

B..BU60

W/EXHAUST BRAKE

 1
17410-58080

B..BU60

 1
17410-58060

B..BU60

W/EXHAUST BRAKE

 1
17401-58160

B..BU60

 1
17401-58171

B..BU60

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B..BU60

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B..BU60

 3
17410B - GASKET, EXHAUST PIPE
90917-06034

B..BU60

 1
90917-06012

B..BU60

 1
90917-06059

B..BU60

 1
17410B - GASKET, EXHAUST PIPE
90917-06034

B..BU60

 1
90917-06012

B..BU60

 1
90917-06059

B..BU60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58200

B..BU60

 1
17571-58140

B..BU60

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58220

B..BU60

W/EXHAUST BRAKE

 1
17420-58220

B..BU60

W/EXHAUST BRAKE

 1
17420-58130

B..BU60

 1
17420-58411

B..BU60

 1
17420-58410

B..BU60

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58220

B..BU60

W/EXHAUST BRAKE

 1
17420-58220

B..BU60

W/EXHAUST BRAKE

 1
17420-58130

B..BU60

 1
17420-58411

B..BU60

 1
17420-58410

B..BU60

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58040

B..BU60

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17563-58010

B..BU60

 1
17563-58010

B..BU60

 2
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56020

B..BU60

 1
17576-58020

B..BU60

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56020

B..BU60

 1
17576-58020

B..BU60

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56010

B..BU60

 1
17504-58010

B..BU60

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56010

B..BU60

 1
17504-58010

B..BU60

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06005

B..BU60

 1
90917-06008

B..BU60

 1
90917-06008

B..BU60

 2
90917-06042

B..BU60

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58270

B..BU60

 1
17430-58271

B..BU60

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

B..BU60

PIPE SIDE

 1
17561-56010

B..BU60

PIPE SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

B..BU60

PIPE SIDE

 1
17561-56010

B..BU60

PIPE SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

B..BU60

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

B..BU60

 1
17451 - GASKET, EXHAUST PIPE
90917-06008

B..BU60

 1
Common parts
90119-08086
90119-08583
90179-06007
91611-60820
91611-60835
91615-40825
91651-41020
94110-40800
94120-40800
94180-40800

(8808- )

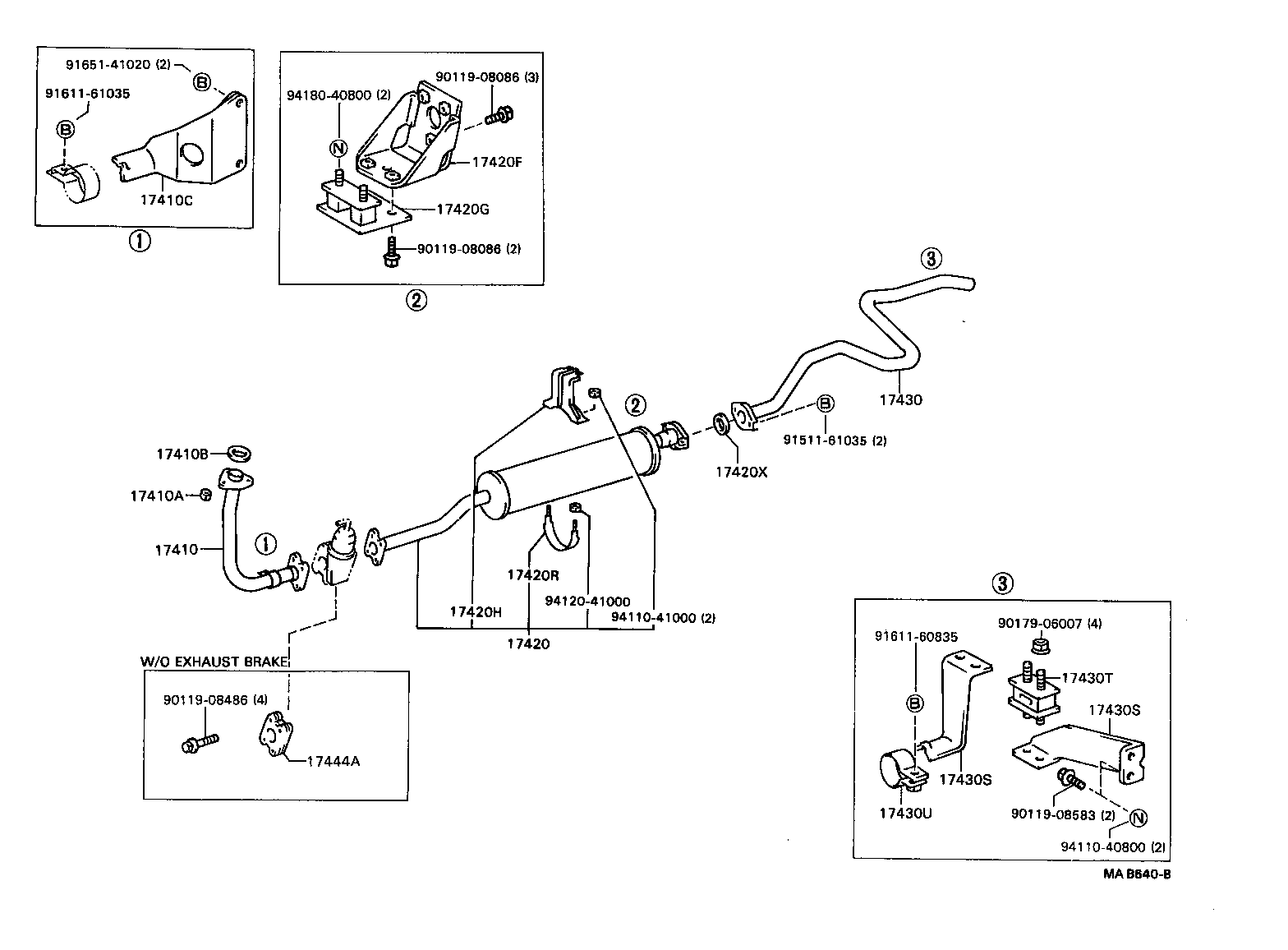

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420F 17420G 17420H 17420R 17420X 17430 17430S 17430S 17430T 17430U 17444A 9011908086 9011908086 9011908486 9011908583 9017906007 9151161035 9161160835 9161161035 9165141020 9411040800 9411041000 9412041000 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-58060

B..BU60

W/EXHAUST BRAKE

 1
17410-58080

B..BU60

 1
17410-58060

B..BU60

W/EXHAUST BRAKE

 1
17401-58160

B..BU60

 1
17401-58171

B..BU60

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B..BU60

 3
17410B - GASKET, EXHAUST PIPE
90917-06034

B..BU60

 1
90917-06012

B..BU60

 1
90917-06059

B..BU60

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-58200

B..BU60

 1
17571-58140

B..BU60

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58220

B..BU60

W/EXHAUST BRAKE

 1
17420-58220

B..BU60

W/EXHAUST BRAKE

 1
17420-58130

B..BU60

 1
17420-58411

B..BU60

 1
17420-58410

B..BU60

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17573-58040

B..BU60

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17563-58010

B..BU60

 1
17563-58010

B..BU60

 2
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-56020

B..BU60

 1
17576-58020

B..BU60

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-56010

B..BU60

 1
17504-58010

B..BU60

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06042

B..BU60

 1
90917-06005

B..BU60

 1
90917-06008

B..BU60

 1
90917-06008

B..BU60

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-58270

B..BU60

 1
17430-58271

B..BU60

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

B..BU60

PIPE SIDE

 1
17561-56010

B..BU60

PIPE SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-56010

B..BU60

PIPE SIDE

 1
17561-56010

B..BU60

PIPE SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17574-58040

B..BU60

BODY SIDE

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

B..BU60

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-32005

B..BU60

 1
17444A - SPACER, EXHAUST FRONT PIPE
17404-58030

B..BU60

 1
Common parts
90119-08086
90119-08486
90119-08583
90179-06007
91511-61035
91611-60835
91611-61035
91651-41020
94110-40800
94110-41000
94120-41000
94180-40800
