Toyota Dyna/toyoace quick BU60 CYLINDER BLOCK

BU60VH-QNFTF (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

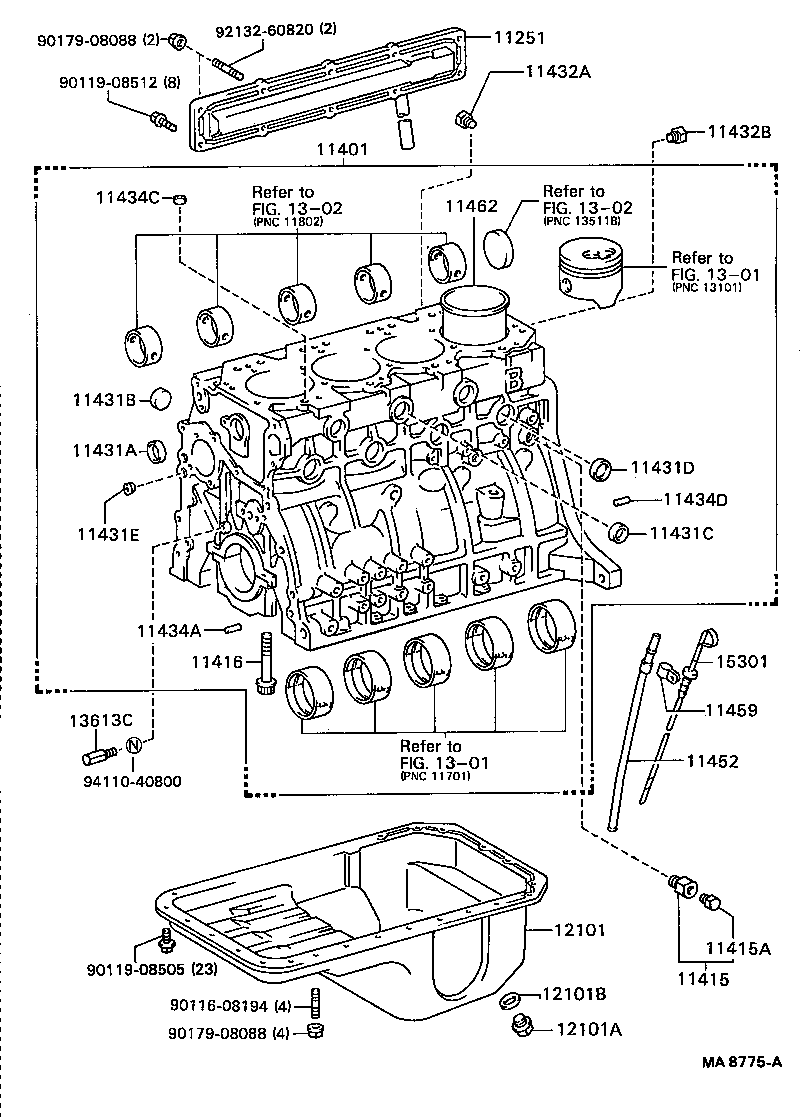

(8601-8808)

Click highlighted areas on diagram

Part #	Description	Period	Qty
11251 - COVER, VALVE PUSH ROD
11203-56041	B..BU60	01/1986 - 08/1988	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59375	B..BU60	08/1988 - 02/1995	1
11401-59376	B..BU60	02/1995 - 05/1995	1
11401-59265	B..BU60	01/1986 - 08/1988	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828	B..BU60	01/1986 - 05/1995	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814	B..BU60	01/1986 - 05/1995	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02082	B..BU60 *16−2.0PX93.5−32	08/1988 - 05/1995	5
90109-16001	B..BU60	05/1988 - 08/1988	10
90109-16001	B..BU60 *16-2PX88.5-32	01/1986 - 05/1988	10
90910-02083	B..BU60 *16−2.0PX129.5−32	08/1988 - 05/1995	5
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032	B..BU60 OD=51	01/1986 - 05/1988	2
90331-51032	B..BU60	05/1988 - 08/1988	2
96411-14500	B..BU60	08/1988 - 05/1995	1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003	B..BU60 外径=50,厚さ=1.2,高さ=9	11/1994 - 05/1995	1
96411-42800	B..BU60	05/1988 - 08/1988	4
96411-42800	B..BU60 OD=28	01/1986 - 05/1988	4
96411-45000	B..BU60 外径=50,厚さ=1.6,高さ=12	11/1994 - 05/1995	3
96411-45000	B..BU60	08/1988 - 11/1994	5
96411-65000	B..BU60 外径=50,厚さ=1.2,高さ=12	11/1994 - 05/1995	1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-63000	B..BU60	11/1994 - 05/1995	4
96411-43000	B..BU60	05/1988 - 11/1994	4
96411-43000	B..BU60 OD=30	01/1986 - 05/1988	4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500	B..BU60	05/1988 - 08/1988	4
96411-43500	B..BU60 OD=35	01/1986 - 05/1988	4
96411-63500	B..BU60	11/1994 - 05/1995	5
96411-43500	B..BU60	08/1988 - 11/1994	5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-11400	B..BU60	08/1988 - 02/1989	3
96411-41400	B..BU60 OD=14,WATER JACKET	01/1986 - 05/1988	2
96411-41400	B..BU60	05/1988 - 08/1988	2
96411-41400	B..BU60	02/1989 - 11/1994	3
90331-14006	B..BU60	11/1994 - 05/1995	3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027	B..BU60	01/1986 - 08/1988	4
90345-51007	B..BU60 (9309−)O/CCASE=1,B=3	08/1988 - 05/1995	4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001	B..BU60	01/1986 - 08/1988	1
90345-53004	B..BU60	08/1988 - 05/1995	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	B..BU60 長さ=18,外径=8	05/1988 - 05/1995	4
90250-08120	B..BU60 長さ=18,外径=8	01/1986 - 05/1988	4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005	B..BU60 長さ=7,外径=14.5	01/1986 - 05/1988	2
90253-15005	B..BU60 長さ=7,外径=14.5	05/1988 - 05/1995	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120	B..BU60 長さ=18,外径=8	01/1986 - 05/1988	2
90250-08120	B..BU60 長さ=18,外径=8	05/1988 - 05/1995	2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050	B..BU60	01/1986 - 05/1995	1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040	B..BU60	01/1986 - 05/1995	1
11462 - LINER, CYLINDER
11461-56030	B..BU60	01/1986 - 08/1988	4
12101 - PAN SUB-ASSY, OIL
12101-56101	B..BU60	09/1990 - 05/1995	1
12101-56060	B..BU60	01/1986 - 08/1988	1
12101-56100	B..BU60	10/1989 - 09/1990	1
12101-56080	B..BU60	08/1988 - 10/1989	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	B..BU60	09/1990 - 12/1992	1
90341-12026	B..BU60	12/1992 - 05/1995	1
90341-18089	B..BU60	01/1986 - 09/1990	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244	B..BU60	01/1986 - 08/1988	1
90430-18026	B..BU60	04/1990 - 09/1990	1
90430-18018	B..BU60	08/1988 - 04/1990	1
90430-12027	B..BU60	09/1990 - 12/1993	1
90430-12031	B..BU60	12/1993 - 05/1995	1
13613C - NOZZLE, OIL
90915-01015	B..BU60	01/1986 - 05/1995	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56060	B..BU60	10/1989 - 05/1995	1
15301-56050	B..BU60	08/1988 - 10/1989	1
15301-56040	B..BU60	01/1986 - 08/1988	1
Common parts
90116-08194
90119-08505
90119-08512
90179-08088
92132-60820
94110-40800
Linked diagrams
1301
1302

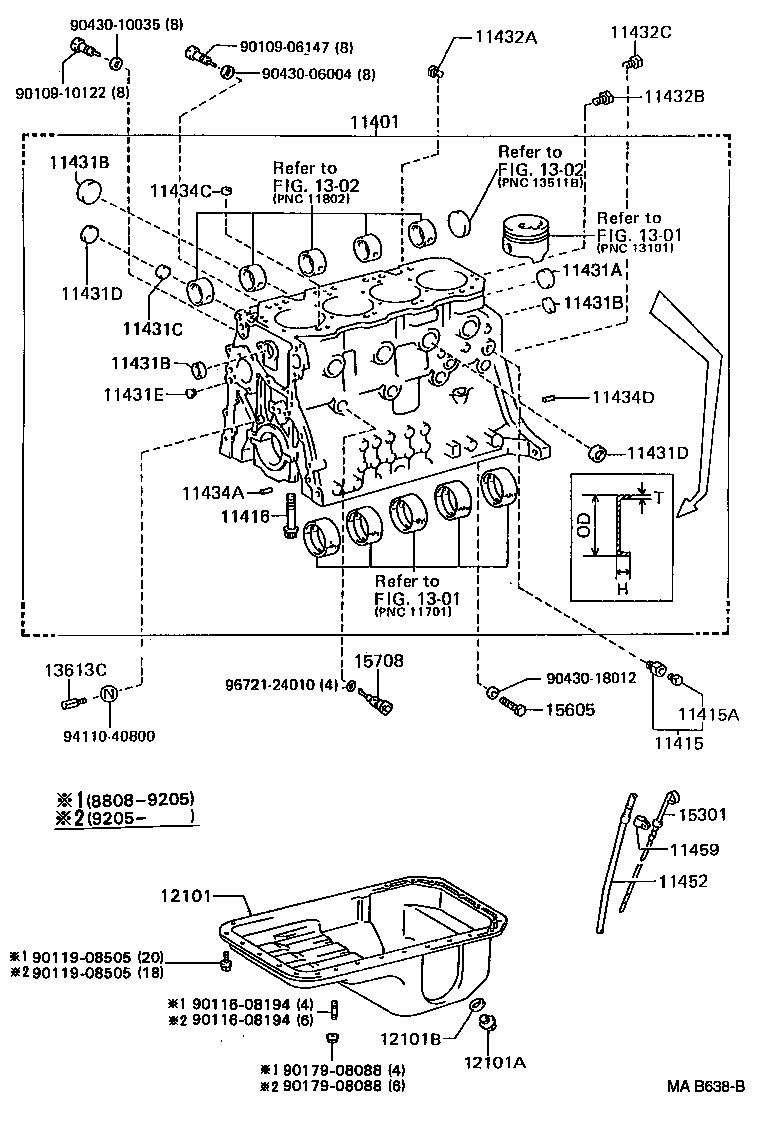

(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59375	B..BU60	08/1988 - 02/1995	1
11401-59376	B..BU60	02/1995 - 05/1995	1
11401-59265	B..BU60	01/1986 - 08/1988	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828	B..BU60	01/1986 - 05/1995	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814	B..BU60	01/1986 - 05/1995	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02082	B..BU60 *16−2.0PX93.5−32	08/1988 - 05/1995	5
90109-16001	B..BU60	05/1988 - 08/1988	10
90109-16001	B..BU60 *16-2PX88.5-32	01/1986 - 05/1988	10
90910-02083	B..BU60 *16−2.0PX129.5−32	08/1988 - 05/1995	5
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-51032	B..BU60 OD=51	01/1986 - 05/1988	2
90331-51032	B..BU60	05/1988 - 08/1988	2
96411-14500	B..BU60	08/1988 - 05/1995	1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003	B..BU60 外径=50,厚さ=1.2,高さ=9	11/1994 - 05/1995	1
96411-42800	B..BU60	05/1988 - 08/1988	4
96411-42800	B..BU60 OD=28	01/1986 - 05/1988	4
96411-45000	B..BU60 外径=50,厚さ=1.6,高さ=12	11/1994 - 05/1995	3
96411-45000	B..BU60	08/1988 - 11/1994	5
96411-65000	B..BU60 外径=50,厚さ=1.2,高さ=12	11/1994 - 05/1995	1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003	B..BU60 外径=50,厚さ=1.2,高さ=9	11/1994 - 05/1995	1
96411-42800	B..BU60	05/1988 - 08/1988	4
96411-42800	B..BU60 OD=28	01/1986 - 05/1988	4
96411-45000	B..BU60 外径=50,厚さ=1.6,高さ=12	11/1994 - 05/1995	3
96411-45000	B..BU60	08/1988 - 11/1994	5
96411-65000	B..BU60 外径=50,厚さ=1.2,高さ=12	11/1994 - 05/1995	1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003	B..BU60 外径=50,厚さ=1.2,高さ=9	11/1994 - 05/1995	1
96411-42800	B..BU60	05/1988 - 08/1988	4
96411-42800	B..BU60 OD=28	01/1986 - 05/1988	4
96411-45000	B..BU60 外径=50,厚さ=1.6,高さ=12	11/1994 - 05/1995	3
96411-45000	B..BU60	08/1988 - 11/1994	5
96411-65000	B..BU60 外径=50,厚さ=1.2,高さ=12	11/1994 - 05/1995	1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43000	B..BU60 OD=30	01/1986 - 05/1988	4
96411-63000	B..BU60	11/1994 - 05/1995	4
96411-43000	B..BU60	05/1988 - 11/1994	4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500	B..BU60	05/1988 - 08/1988	4
96411-43500	B..BU60 OD=35	01/1986 - 05/1988	4
96411-63500	B..BU60	11/1994 - 05/1995	5
96411-43500	B..BU60	08/1988 - 11/1994	5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500	B..BU60	05/1988 - 08/1988	4
96411-43500	B..BU60 OD=35	01/1986 - 05/1988	4
96411-63500	B..BU60	11/1994 - 05/1995	5
96411-43500	B..BU60	08/1988 - 11/1994	5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-11400	B..BU60	08/1988 - 02/1989	3
96411-41400	B..BU60 OD=14,WATER JACKET	01/1986 - 05/1988	2
96411-41400	B..BU60	05/1988 - 08/1988	2
96411-41400	B..BU60	02/1989 - 11/1994	3
90331-14006	B..BU60	11/1994 - 05/1995	3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90043-45027	B..BU60	01/1986 - 08/1988	4
90345-51007	B..BU60 (9309−)O/CCASE=1,B=3	08/1988 - 05/1995	4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53001	B..BU60	01/1986 - 08/1988	1
90345-53004	B..BU60	08/1988 - 05/1995	1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001	B..BU60	08/1988 - 05/1995	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	B..BU60 長さ=18,外径=8	05/1988 - 05/1995	4
90250-08120	B..BU60 長さ=18,外径=8	01/1986 - 05/1988	4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005	B..BU60 長さ=7,外径=14.5	01/1986 - 05/1988	2
90253-15005	B..BU60 長さ=7,外径=14.5	05/1988 - 05/1995	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120	B..BU60 長さ=18,外径=8	01/1986 - 05/1988	2
90250-08120	B..BU60 長さ=18,外径=8	05/1988 - 05/1995	2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050	B..BU60	01/1986 - 05/1995	1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040	B..BU60	01/1986 - 05/1995	1
12101 - PAN SUB-ASSY, OIL
12101-56101	B..BU60	09/1990 - 05/1995	1
12101-56060	B..BU60	01/1986 - 08/1988	1
12101-56100	B..BU60	10/1989 - 09/1990	1
12101-56080	B..BU60	08/1988 - 10/1989	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	B..BU60	09/1990 - 12/1992	1
90341-12026	B..BU60	12/1992 - 05/1995	1
90341-18089	B..BU60	01/1986 - 09/1990	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244	B..BU60	01/1986 - 08/1988	1
90430-18026	B..BU60	04/1990 - 09/1990	1
90430-18018	B..BU60	08/1988 - 04/1990	1
90430-12027	B..BU60	09/1990 - 12/1993	1
90430-12031	B..BU60	12/1993 - 05/1995	1
13613C - NOZZLE, OIL
90915-01015	B..BU60	01/1986 - 05/1995	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56060	B..BU60	10/1989 - 05/1995	1
15301-56050	B..BU60	08/1988 - 10/1989	1
15301-56040	B..BU60	01/1986 - 08/1988	1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-56010	B..BU60	08/1988 - 05/1995	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-58020	B..BU60	08/1988 - 05/1995	1
Common parts
90109-06147
90109-10122
90116-08194
90119-08505
90179-08088
90430-06004
90430-10035
90430-18012
94110-40800
96721-24010
Linked diagrams
1301
1302
