BU60VH-QNFT (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

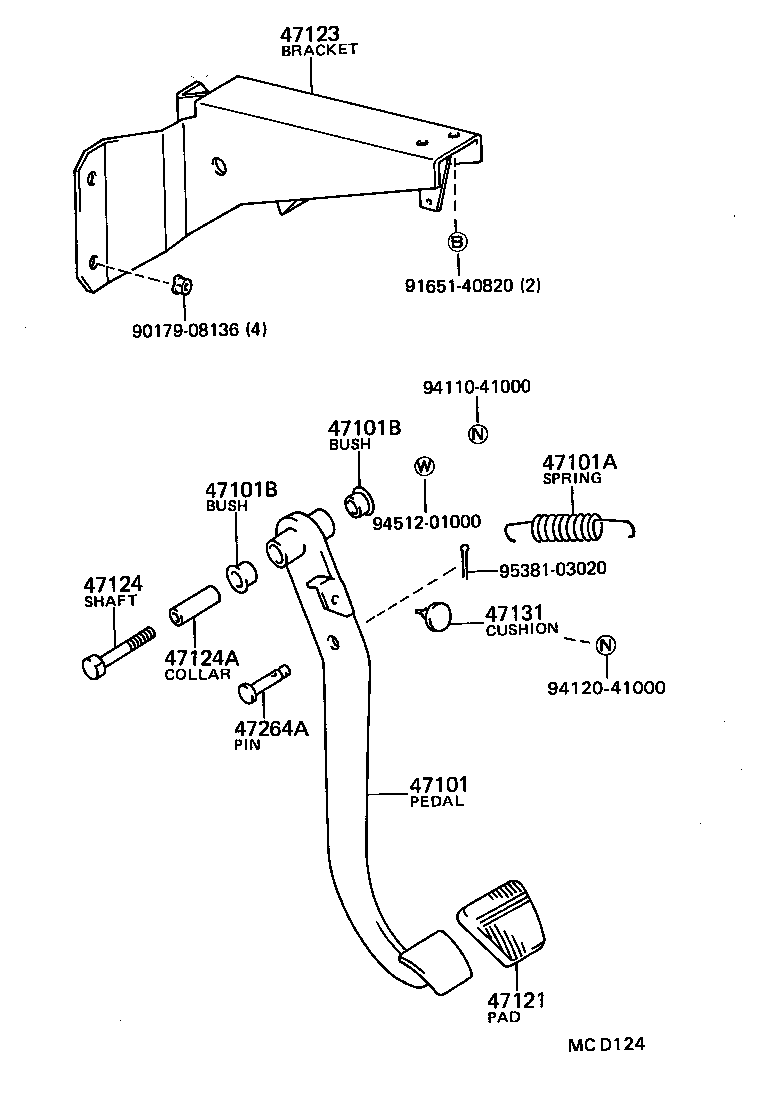

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9017908136 9165140820 9411041000 9412041000 9451201000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35150

BU60

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16021

BU60

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BU60

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BU60

 2
47121 - PAD, BRAKE PEDAL
31321-14020

BU60

 1
47123 - BRACKET, BRAKE PEDAL
55155-90F00

BU60

 1
47124 - SHAFT, BRAKE PEDAL
91121-51065

BU60

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

BU60

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

BU60

 1
47264A - PIN(FOR PUSH ROD)
90249-10048

BU60

 1
Common parts
90179-08136
91651-40820
94110-41000
94120-41000
94512-01000
95381-03020
