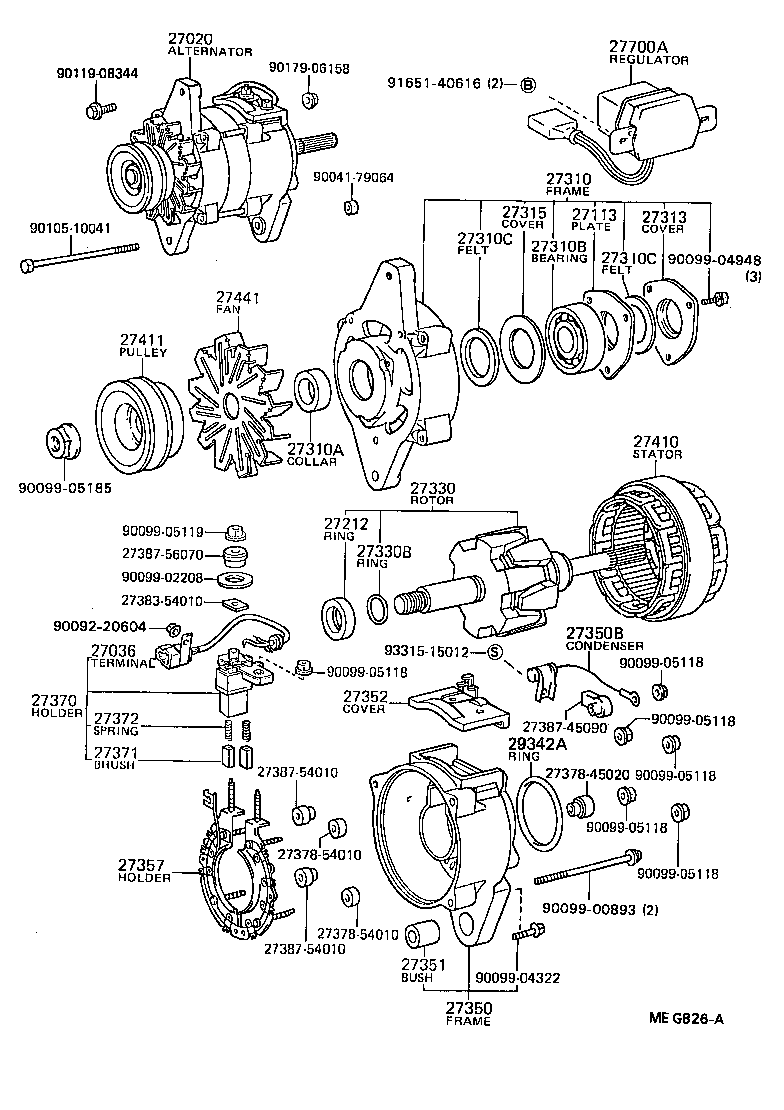

BU60VH-QNFT (1986)
Toyota Dyna/Toyoace Quick
(8601-8808)
24V 25A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56431 |
B..BU60..N..3D 24V 40A,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27060-58220 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58020 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58230 |
B..BU60..N 24V 50A |
1 | ||
| 27060-58030 |
B..BU60..N 24V 50A |
1 | ||
| 27020-56360 |
B..BU60 24V 25A,24V 25A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57080 |
B..BU60 24V 25A |
1 | ||
| 27036-56390 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27312-57060 |
B..BU60 24V 25A |
1 | ||
| 27312-70200 |
B..BU60..D |
1 | ||
| 27312-42010 |
B..BU60..N |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
B..BU60 24V 25A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
B..BU60 24V 25A |
1 | ||
| 27310-54300 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310-58040 |
B..BU60..D |
1 | ||
| 27310-58050 |
B..BU60..N |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
B..BU60 24V 25A |
1 | ||
| 90099-19251 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
B..BU60 24V 25A |
1 | ||
| 90099-10178 |
B..BU60..D |
1 | ||
| 90099-10160 |
B..BU60..N |
1 | ||
| 90099-10120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
B..BU60 24V 25A |
2 | ||
| 90099-02207 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
B..BU60 24V 25A |
2 | ||
| 90099-02207 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
B..BU60 24V 25A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
B..BU60 24V 25A |
1 | ||
| 27315-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56360 |
B..BU60 24V 25A |
1 | ||
| 27330-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330-58050 |
B..BU60..N |
1 | ||
| 27330-58040 |
B..BU60..D |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
B..BU60 24V 25A |
1 | ||
| 90099-07108 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56431 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27350-56110 |
B..BU60 24V 25A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
B..BU60 24V 25A |
1 | ||
| 90099-52082 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 90099-52094 |
B..BU60..N |
1 | ||
| 90099-52103 |
B..BU60..N |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
B..BU60 24V 25A |
1 | ||
| 27351-56013 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27388-57060 |
B..BU60 24V 25A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58050 |
B..BU60..N |
1 | ||
| 27357-54190 |
B..BU60 24V 25A |
1 | ||
| 27357-63020 |
B..BU60..D |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
B..BU60..N |
1 | ||
| 27373-57120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27370-63021 |
B..BU60..D |
1 | ||
| 27370-70300 |
B..BU60..D |
1 | ||
| 27370-57080 |
B..BU60 24V 25A |
1 | ||
| 27370-42010 |
B..BU60..N |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
B..BU60..D |
2 | ||
| 27371-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
2 | ||
| 27371-63020 |
B..BU60..D |
2 | ||
| 27371-56070 |
B..BU60 24V 25A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
B..BU60 24V 25A |
2 | ||
| 27372-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
2 | ||
| 27372-63020 |
B..BU60..D |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56110 |
B..BU60 24V 25A |
1 | ||
| 27410-68150 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57060 |
B..BU60 24V 25A |
1 | ||
| 27411-57061 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411-58040 |
B..BU60..D |
1 | ||
| 27411-58050 |
B..BU60..N |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
B..BU60 24V 25A |
1 | ||
| 27441-54070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700-58040 |
B..BU60 |
1 | ||
| 27700-57040 |
B..BU60 24V 25A |
1 | ||
| 27700-58020 |
B..BU60 |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 90099-14055 |
B..BU60 24V 25A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90092-20604 | ||||
| 90099-00893 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90105-10041 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||
| 93315-15012 | ||||

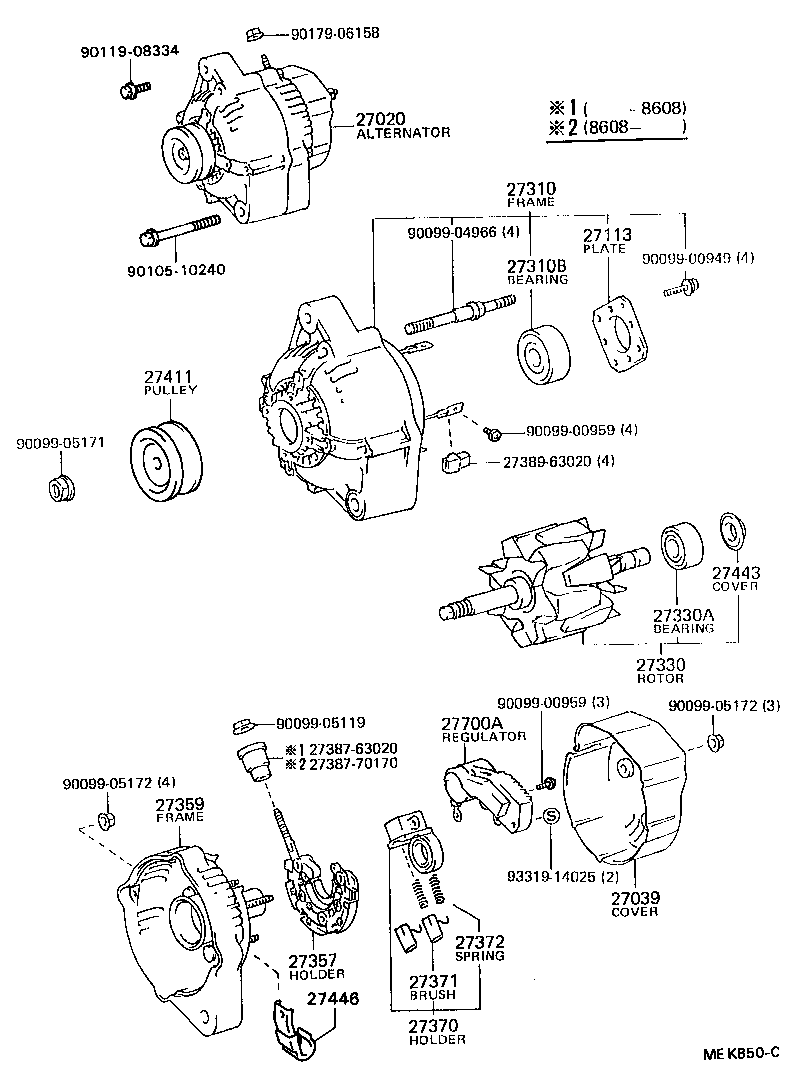

(8808- )B..D
24V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56431 |
B..BU60..N..3D 24V 40A,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27060-58220 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58020 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58230 |
B..BU60..N 24V 50A |
1 | ||
| 27060-58030 |
B..BU60..N 24V 50A |
1 | ||
| 27020-56360 |
B..BU60 24V 25A,24V 25A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
B..BU60..D |
1 | ||
| 27039-50090 |
B..BU60..N |
1 | ||
| 27039-73020 |
B..BU60..D |
1 | ||
| 27039-42020 |
B..BU60..N |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27312-57060 |
B..BU60 24V 25A |
1 | ||
| 27312-70200 |
B..BU60..D |
1 | ||
| 27312-42010 |
B..BU60..N |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
B..BU60 24V 25A |
1 | ||
| 27310-54300 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310-58040 |
B..BU60..D |
1 | ||
| 27310-58050 |
B..BU60..N |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
B..BU60 24V 25A |
1 | ||
| 90099-10178 |
B..BU60..D |
1 | ||
| 90099-10160 |
B..BU60..N |
1 | ||
| 90099-10120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56360 |
B..BU60 24V 25A |
1 | ||
| 27330-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330-58050 |
B..BU60..N |
1 | ||
| 27330-58040 |
B..BU60..D |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
B..BU60 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58050 |
B..BU60..N |
1 | ||
| 27357-54190 |
B..BU60 24V 25A |
1 | ||
| 27357-63020 |
B..BU60..D |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
B..BU60..N |
1 | ||
| 27359-16180 |
B..BU60..D |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
B..BU60..N |
1 | ||
| 27373-57120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27370-63021 |
B..BU60..D |
1 | ||
| 27370-70300 |
B..BU60..D |
1 | ||
| 27370-57080 |
B..BU60 24V 25A |
1 | ||
| 27370-42010 |
B..BU60..N |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
B..BU60..D |
2 | ||
| 27371-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
2 | ||
| 27371-63020 |
B..BU60..D |
2 | ||
| 27371-56070 |
B..BU60 24V 25A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
B..BU60 24V 25A |
2 | ||
| 27372-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
2 | ||
| 27372-63020 |
B..BU60..D |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57060 |
B..BU60 24V 25A |
1 | ||
| 27411-57061 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411-58040 |
B..BU60..D |
1 | ||
| 27411-58050 |
B..BU60..N |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
B..BU60 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58050 |
B..BU60 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700-58040 |
B..BU60 |
1 | ||
| 27700-57040 |
B..BU60 24V 25A |
1 | ||
| 27700-58020 |
B..BU60 |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00940 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10240 | ||||
| 90119-08334 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

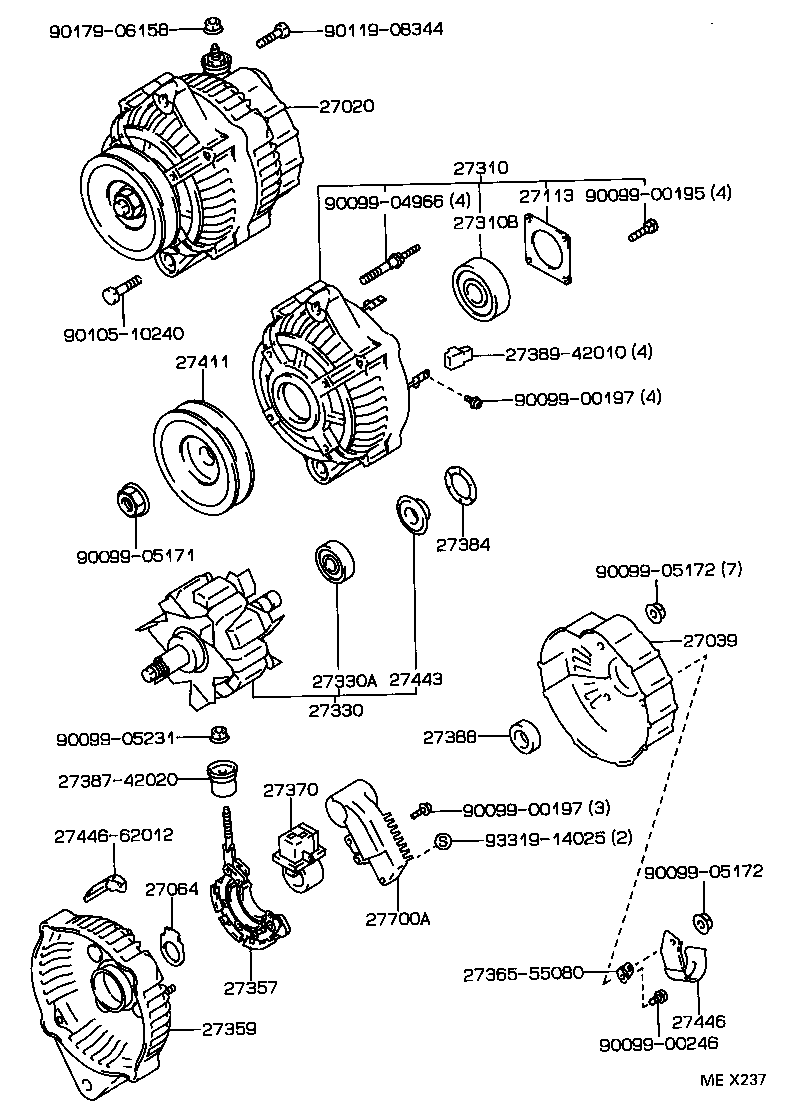

(8808-9309)B..N
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56431 |
B..BU60..N..3D 24V 40A,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27060-58220 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58020 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58230 |
B..BU60..N 24V 50A |
1 | ||
| 27060-58030 |
B..BU60..N 24V 50A |
1 | ||
| 27020-56360 |
B..BU60 24V 25A,24V 25A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
B..BU60..D |
1 | ||
| 27039-50090 |
B..BU60..N |
1 | ||
| 27039-73020 |
B..BU60..D |
1 | ||
| 27039-42020 |
B..BU60..N |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
B..BU60..N |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27312-57060 |
B..BU60 24V 25A |
1 | ||
| 27312-70200 |
B..BU60..D |
1 | ||
| 27312-42010 |
B..BU60..N |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
B..BU60 24V 25A |
1 | ||
| 27310-54300 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310-58040 |
B..BU60..D |
1 | ||
| 27310-58050 |
B..BU60..N |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
B..BU60 24V 25A |
1 | ||
| 90099-10178 |
B..BU60..D |
1 | ||
| 90099-10160 |
B..BU60..N |
1 | ||
| 90099-10120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56360 |
B..BU60 24V 25A |
1 | ||
| 27330-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330-58050 |
B..BU60..N |
1 | ||
| 27330-58040 |
B..BU60..D |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
B..BU60 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
B..BU60 24V 25A |
1 | ||
| 90099-52082 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 90099-52094 |
B..BU60..N |
1 | ||
| 90099-52103 |
B..BU60..N |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58050 |
B..BU60..N |
1 | ||
| 27357-54190 |
B..BU60 24V 25A |
1 | ||
| 27357-63020 |
B..BU60..D |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
B..BU60..N |
1 | ||
| 27359-16180 |
B..BU60..D |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
B..BU60..N |
1 | ||
| 27373-57120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27370-63021 |
B..BU60..D |
1 | ||
| 27370-70300 |
B..BU60..D |
1 | ||
| 27370-57080 |
B..BU60 24V 25A |
1 | ||
| 27370-42010 |
B..BU60..N |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
B..BU60..N |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
B..BU60..N |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57060 |
B..BU60 24V 25A |
1 | ||
| 27411-57061 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411-58040 |
B..BU60..D |
1 | ||
| 27411-58050 |
B..BU60..N |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
B..BU60 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58050 |
B..BU60 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700-58040 |
B..BU60 |
1 | ||
| 27700-57040 |
B..BU60 24V 25A |
1 | ||
| 27700-58020 |
B..BU60 |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10240 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

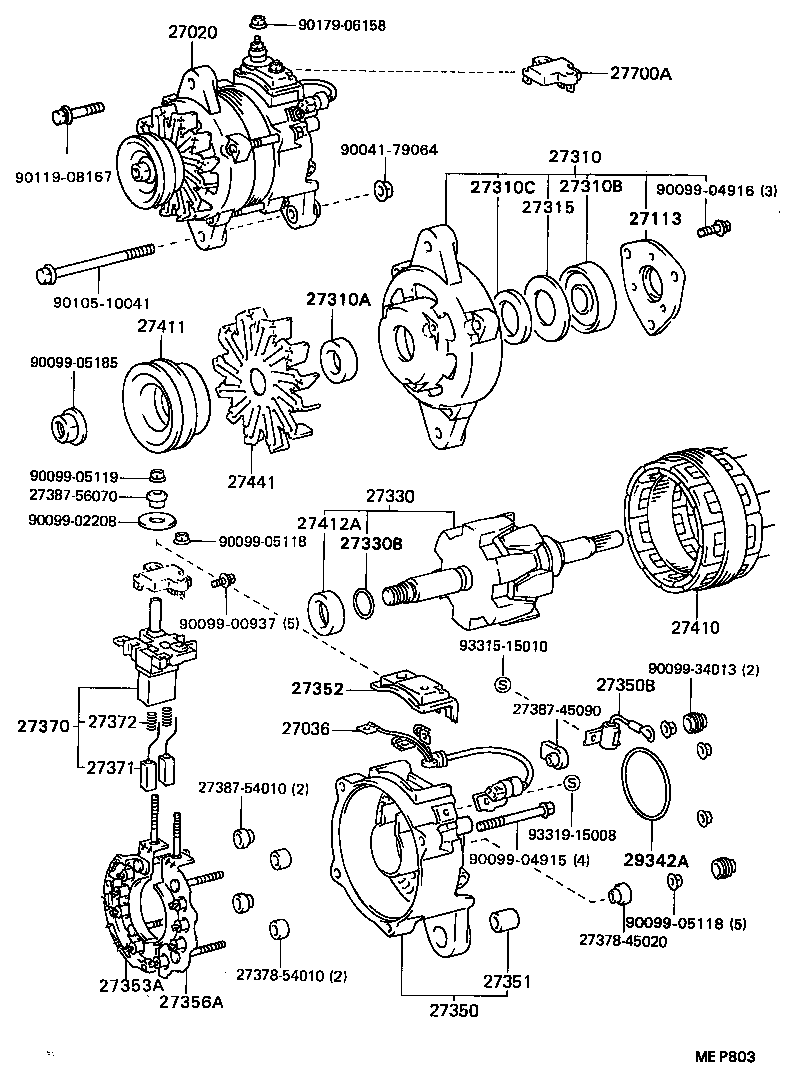

(8710-8808)B..N..3D
ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56431 |
B..BU60..N..3D 24V 40A,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27060-58220 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58020 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58230 |
B..BU60..N 24V 50A |
1 | ||
| 27060-58030 |
B..BU60..N 24V 50A |
1 | ||
| 27020-56360 |
B..BU60 24V 25A,24V 25A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-57080 |
B..BU60 24V 25A |
1 | ||
| 27036-56390 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27312-57060 |
B..BU60 24V 25A |
1 | ||
| 27312-70200 |
B..BU60..D |
1 | ||
| 27312-42010 |
B..BU60..N |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
B..BU60 24V 25A |
1 | ||
| 27310-54300 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310-58040 |
B..BU60..D |
1 | ||
| 27310-58050 |
B..BU60..N |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
B..BU60 24V 25A |
1 | ||
| 90099-19251 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
B..BU60 24V 25A |
1 | ||
| 90099-10178 |
B..BU60..D |
1 | ||
| 90099-10160 |
B..BU60..N |
1 | ||
| 90099-10120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
B..BU60 24V 25A |
2 | ||
| 90099-02207 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
B..BU60 24V 25A |
1 | ||
| 27315-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56360 |
B..BU60 24V 25A |
1 | ||
| 27330-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330-58050 |
B..BU60..N |
1 | ||
| 27330-58040 |
B..BU60..D |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
B..BU60 24V 25A |
1 | ||
| 90099-07108 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56431 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27350-56110 |
B..BU60 24V 25A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
B..BU60 24V 25A |
1 | ||
| 90099-52082 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 90099-52094 |
B..BU60..N |
1 | ||
| 90099-52103 |
B..BU60..N |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
B..BU60 24V 25A |
1 | ||
| 27351-56013 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27388-57060 |
B..BU60 24V 25A |
1 | ||
| 27353A - HOLDER, W/RECTIFIER | ||||
| 27353-68150 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27356A - HOLDER SUB-ASSY, RECTIFIER | ||||
| 27356-68150 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
B..BU60..N |
1 | ||
| 27373-57120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27370-63021 |
B..BU60..D |
1 | ||
| 27370-70300 |
B..BU60..D |
1 | ||
| 27370-57080 |
B..BU60 24V 25A |
1 | ||
| 27370-42010 |
B..BU60..N |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
B..BU60..D |
2 | ||
| 27371-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
2 | ||
| 27371-63020 |
B..BU60..D |
2 | ||
| 27371-56070 |
B..BU60 24V 25A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
B..BU60 24V 25A |
2 | ||
| 27372-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
2 | ||
| 27372-63020 |
B..BU60..D |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-56110 |
B..BU60 24V 25A |
1 | ||
| 27410-68150 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57060 |
B..BU60 24V 25A |
1 | ||
| 27411-57061 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411-58040 |
B..BU60..D |
1 | ||
| 27411-58050 |
B..BU60..N |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-54040 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
B..BU60 24V 25A |
1 | ||
| 27441-54070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700-58040 |
B..BU60 |
1 | ||
| 27700-57040 |
B..BU60 24V 25A |
1 | ||
| 27700-58020 |
B..BU60 |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 90099-14055 |
B..BU60 24V 25A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90041-79064 | ||||
| 90099-00937 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-34013 | ||||
| 90105-10041 | ||||
| 90119-08167 | ||||
| 90179-06158 | ||||
| 93315-15010 | ||||
| 93319-15008 | ||||
(9309- )B..N
24V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-56431 |
B..BU60..N..3D 24V 40A,ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27060-58220 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58020 |
B..BU60..D 24V 30A |
1 | ||
| 27060-58230 |
B..BU60..N 24V 50A |
1 | ||
| 27060-58030 |
B..BU60..N 24V 50A |
1 | ||
| 27020-56360 |
B..BU60 24V 25A,24V 25A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
B..BU60..D |
1 | ||
| 27039-50090 |
B..BU60..N |
1 | ||
| 27039-73020 |
B..BU60..D |
1 | ||
| 27039-42020 |
B..BU60..N |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
B..BU60..N |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27312-57060 |
B..BU60 24V 25A |
1 | ||
| 27312-70200 |
B..BU60..D |
1 | ||
| 27312-42010 |
B..BU60..N |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-56110 |
B..BU60 24V 25A |
1 | ||
| 27310-54300 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27310-58040 |
B..BU60..D |
1 | ||
| 27310-58050 |
B..BU60..N |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
B..BU60 24V 25A |
1 | ||
| 90099-10178 |
B..BU60..D |
1 | ||
| 90099-10160 |
B..BU60..N |
1 | ||
| 90099-10120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-56360 |
B..BU60 24V 25A |
1 | ||
| 27330-56430 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27330-58050 |
B..BU60..N |
1 | ||
| 27330-58040 |
B..BU60..D |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
B..BU60 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58050 |
B..BU60..N |
1 | ||
| 27357-54190 |
B..BU60 24V 25A |
1 | ||
| 27357-63020 |
B..BU60..D |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
B..BU60..N |
1 | ||
| 27359-16180 |
B..BU60..D |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
B..BU60..N |
1 | ||
| 27373-57120 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27370-63021 |
B..BU60..D |
1 | ||
| 27370-70300 |
B..BU60..D |
1 | ||
| 27370-57080 |
B..BU60 24V 25A |
1 | ||
| 27370-42010 |
B..BU60..N |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
B..BU60..N |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
B..BU60..N |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-57060 |
B..BU60 24V 25A |
1 | ||
| 27411-57061 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27411-58040 |
B..BU60..D |
1 | ||
| 27411-58050 |
B..BU60..N |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
B..BU60 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58050 |
B..BU60 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57051 |
B..BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 27700-58040 |
B..BU60 |
1 | ||
| 27700-57040 |
B..BU60 24V 25A |
1 | ||
| 27700-58020 |
B..BU60 |
1 | ||

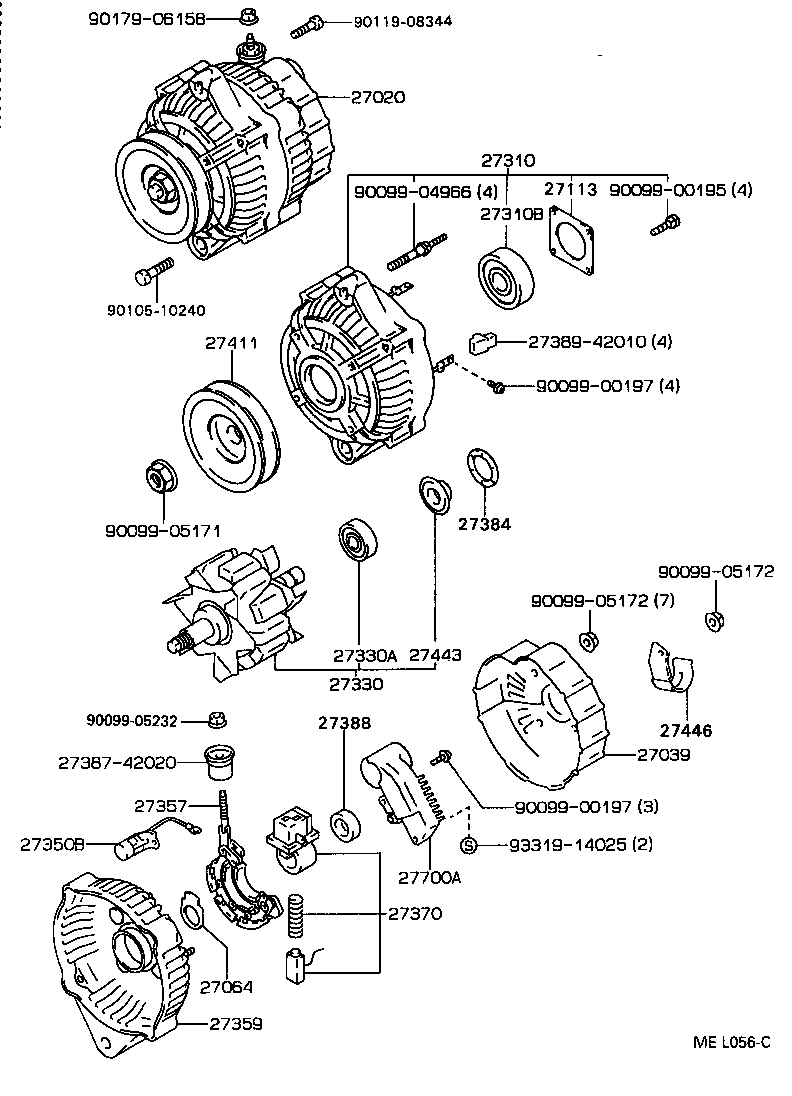

| Common parts | ||||
| 27365-55080 | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 27446-62012 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90105-10240 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
