BU60VH-QDFTJ (1986)
Toyota Dyna/Toyoace Quick
Production
Jan 1986
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

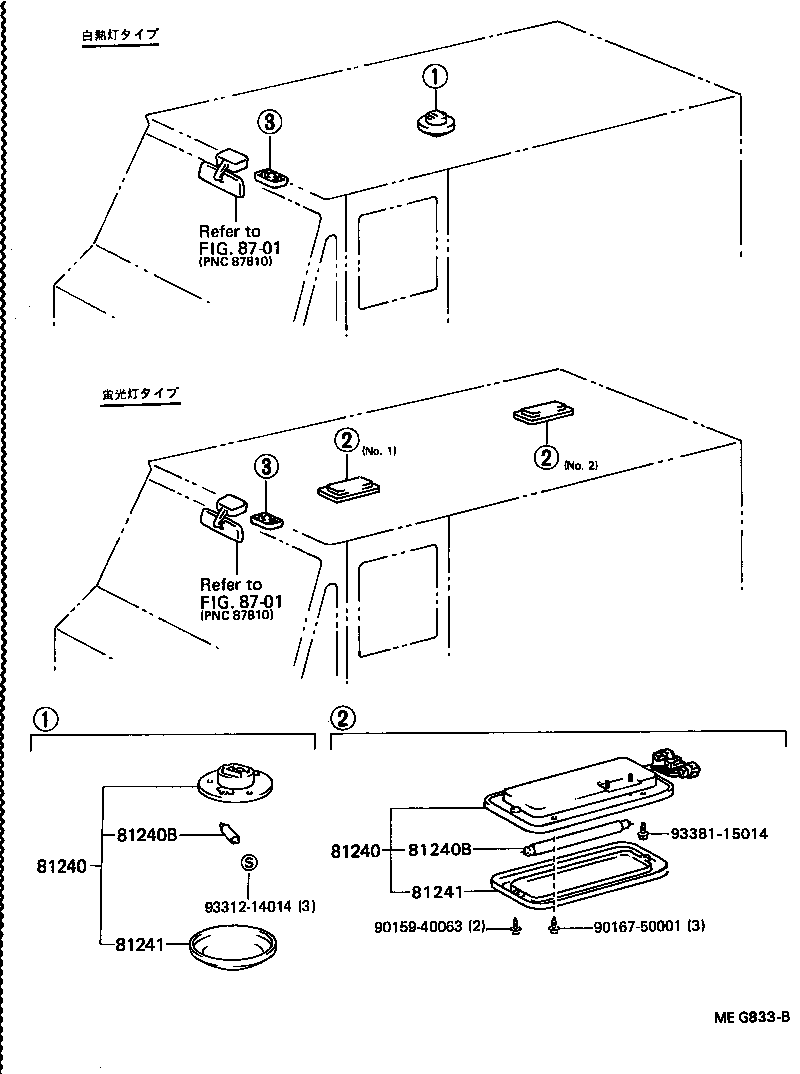

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-95A20 |
BU60..D |
1 | ||
| 81201-90B01 |
BU60 W/*FL |
2 | ||
| 81201-90B01 |
BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ) |
2 | ||
| 81240-95A20 |
BU60..D..CBU |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-95A20 |
BU60..D |
1 | ||
| 81201-90B01 |
BU60 W/*FL |
2 | ||
| 81201-90B01 |
BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ) |
2 | ||
| 81240-95A20 |
BU60..D..CBU |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11032 |
BU60 100V 10W(ﾏｰｸ FL10D),W/*FL |
1 | ||
| 90981-16019 |
BU60..D 24V 10W |
1 | ||
| 90981-11032 |
BU60..D..CBU 100V 10W(ﾏｰｸ FL10D) |
2 | ||
| 90981-11032 |
BU60 100V 10W(ﾏｰｸ FL10D) |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11032 |
BU60 100V 10W(ﾏｰｸ FL10D),W/*FL |
1 | ||
| 90981-16019 |
BU60..D 24V 10W |
1 | ||
| 90981-11032 |
BU60..D..CBU 100V 10W(ﾏｰｸ FL10D) |
2 | ||
| 90981-11032 |
BU60 100V 10W(ﾏｰｸ FL10D) |
2 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-95705 |
BU60..D |
1 | ||
| 81241-90B00 |
BU60 W/*FL |
1 | ||
| 81241-95705 |
BU60..D..CBU |
1 | ||
| 81241-90B00 |
BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ) |
2 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-95705 |
BU60..D |
1 | ||
| 81241-90B00 |
BU60 W/*FL |
1 | ||
| 81241-95705 |
BU60..D..CBU |
1 | ||
| 81241-90B00 |
BU60..D..CBU ｱﾘ(ｹｲｺｳﾄｳ) |
2 | ||
| Common parts | ||||
| 90159-40063 | ||||
| 90167-50001 | ||||
| 93312-14014 | ||||
| 93381-15014 | ||||
| Linked diagrams | ||||
| 8701 | ||||

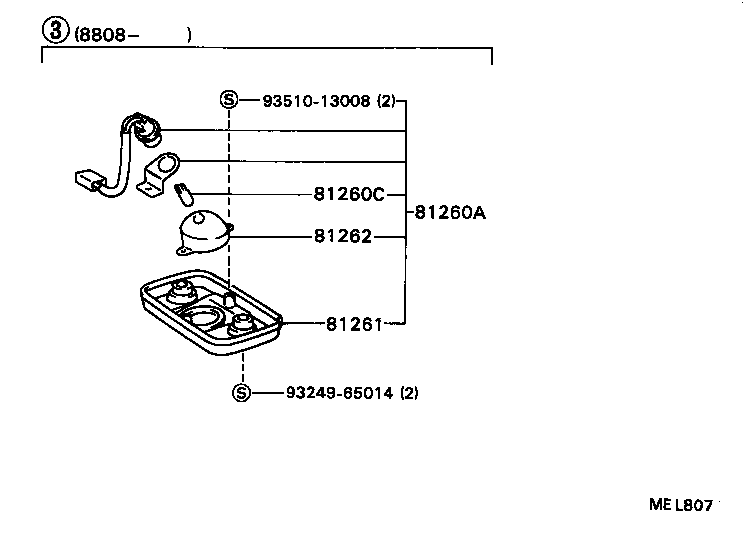

(8808- )N ; (8901- )D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-90F00 |
BU60 |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-16023 |
BU60 24V 5W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-90D00 |
BU60 |
1 | ||
| 81262 - LENS, MAP LAMP | ||||
| 81262-90D00 |
BU60 |
1 | ||
| Common parts | ||||
| 93249-65014 | ||||
| 93510-13008 | ||||
