BU60VH-QDFTJ (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )D ; (9001-8808)

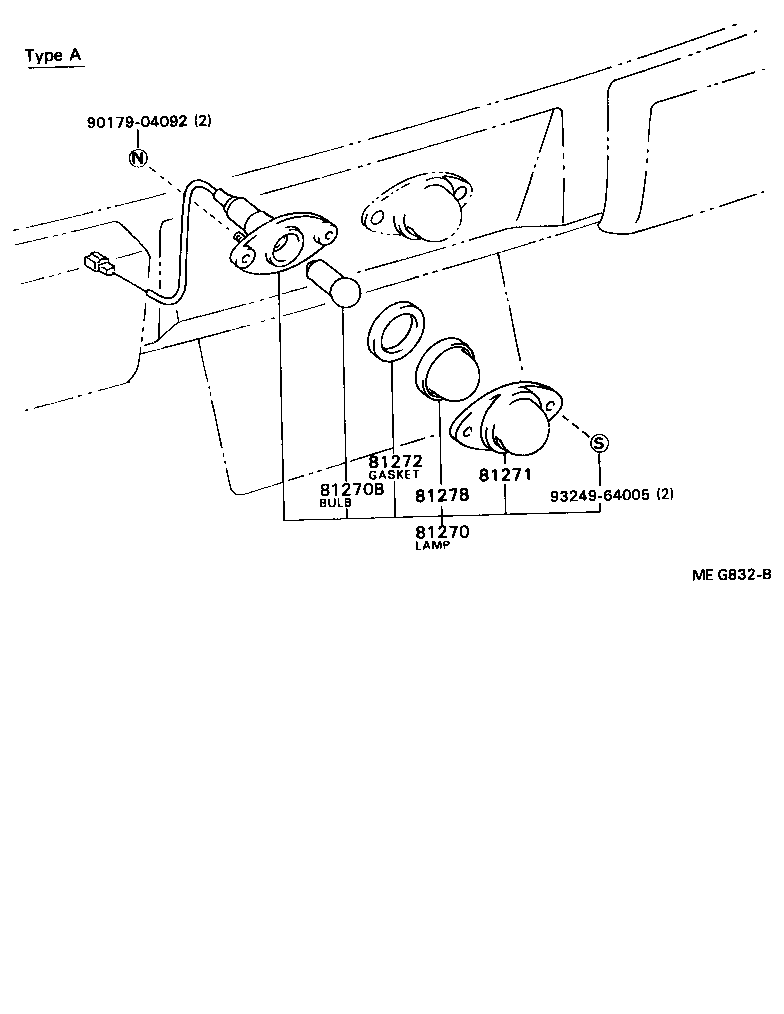

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9017904092 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-90F01

BU60

TYPE A

 2
81690-90F00

BU60

LH,TYPE B

 1
81270-90F01

BU60

ﾀｲﾌﾟ A

 2
81270-90F00

BU60

RH,TYPE B

 1
81270-90F01

BU60..D

ﾀｲﾌﾟ A

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-16016

BU60

24V 5W,TYPE B

 2
99132-11120

BU60

12V 12W,TYPE A

 2
90981-16016

BU60

24V 5W,24V 5W,TYPE B

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

BU60

 2
81271-10011

BU60

TYPE A

 2
81271-10010

BU60..D

 2
81271-10010

BU60

TYPE A

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

BU60..D

 2
81272-10010

BU60

TYPE A

 2
81272-10010

BU60

 2
81278 - COVER, LICENSE PLATE LAMP
81278-27010

BU60

TYPE A

 2
81278-10011

BU60

ﾀｲﾌﾟ A

 2
81278-10011

BU60..D

ﾀｲﾌﾟ A

 2
Common parts
90179-04092
93249-64005
