BU60VH-QDFTJ (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

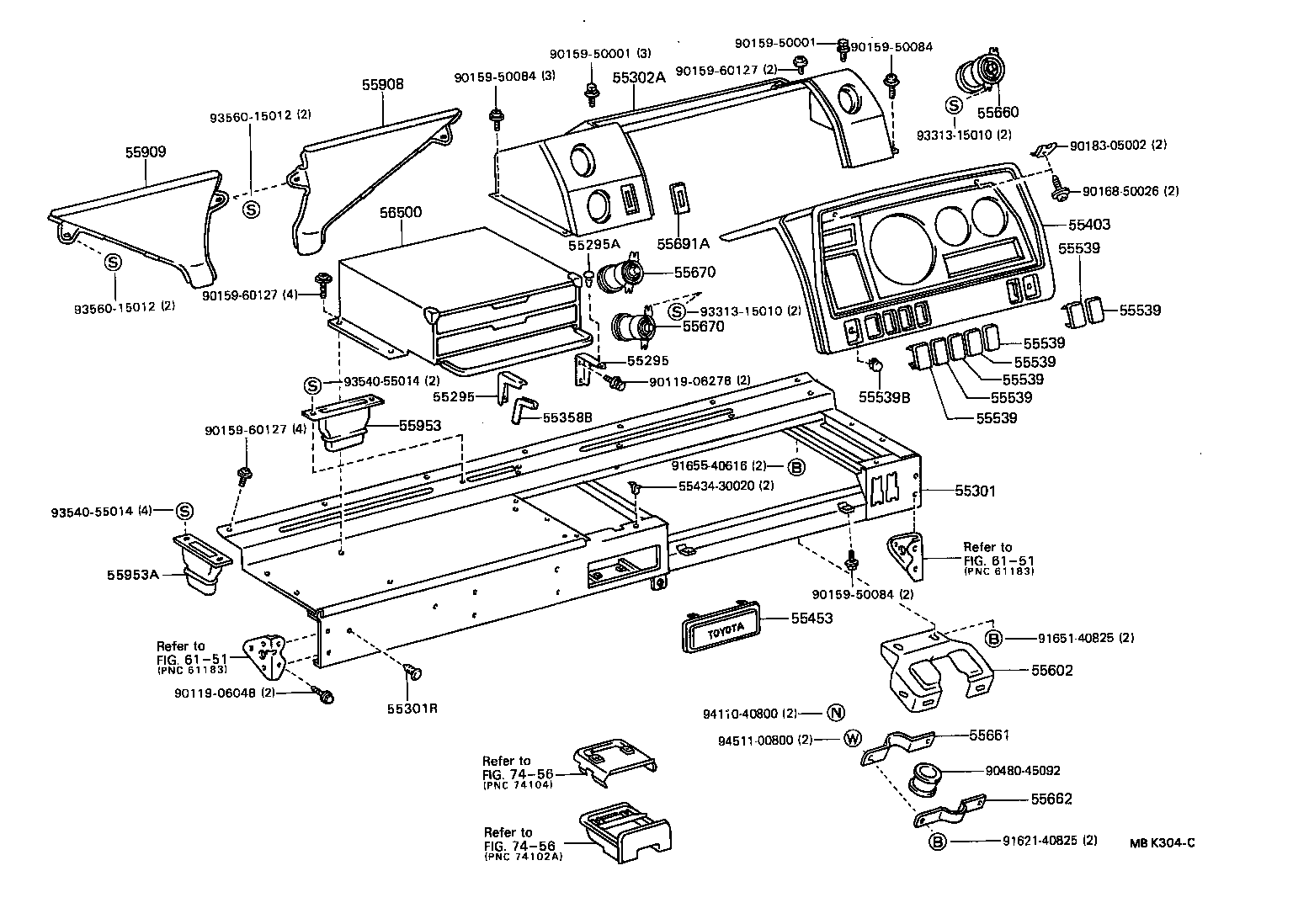

Click highlighted areas on diagram

diagram 55295 55295 55295A 55301 55301R 55302A 55358B 55403 5543430020 55453 55539 55539 55539 55539 55539 55539 55539 55539B 55602 55660 55661 55662 55670 55670 55691A 55908 55909 55953 55953A 56500 6151 6151 7456 7456 9011906048 9011906278 9015950001 9015950001 9015950084 9015950084 9015950084 9015960127 9015960127 9015960127 9016850026 9018305002 9048045092 9162140825 9165140825 9165540616 9331315010 9331315010 9354055014 9354055014 9356015012 9356015012 9411040800 9451100800
Part # Description Qty Price
55295 - STAY, TABLE, NO.1
55295-90D02

BU60

 2
55295 - STAY, TABLE, NO.1
55295-90D02

BU60

 2
55295A - CLIP(FOR TABLE STAY)
90467-1004502

BU60

MAROON,RED/MAROON

 2
90467-1004512

BU60

MAROON,TRIM4#

 2
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-90F00

BU60..D

 1
55301R - PLUG, HOLE(FOR INSTRUMENT PANEL)
90467-0604905

BU60

BEIGE,BEIGE

 2
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-90D02

BU60

 1
55302-90D03

BU60

 1
55358B - PROTECTOR, KNEE
55358-90D04

BU60

 1
55358-90D04

BU60

 2
55358-90D04

BU60..D

ｱﾘ(ｼﾖﾙｲ ｹ-ｽ)

 2
55403 - HOOD SUB-ASSY, METER
55403-90D0106

BU60

ｱﾘ(ﾀｺ ｸﾞﾗﾌ),BROWN,BROWN

 1
55403-90D0106

BU60..D

ｱﾘ(ﾀｺ ｸﾞﾗﾌ),BROWN,TRIM4#

 1
55403-90D0006

BU60..D

BROWN,TRIM4#

 1
55403-90D0006

BU60..D

BROWN,BROWN

 1
55453 - COVER, RADIO TUNER OPENING
55522-14070

BU60..D

 1
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539 - COVER, SPARE SWITCH HOLE
55539-3201001

BU60..D

BLACK,BLACK

 7
55539-3201011

BU60..D

BLACK,TRIM4#

 7
55539-32010C0

BU60..D

BLACK,TRIM4#

 7
55539B - COVER, SPARE SWITCH HOLE, NO.2
55537-9501006

BU60

BROWN,TRIM4#

 1
55537-9501006

BU60

BROWN,BROWN

 1
55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER
55602-90500

BU60

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-90K0001

BU60

BLACK,BLACK

 1
55660-60060

BU60

 1
55660-90K0001

BU60

BLACK,TRIM4#

 1
55661 - CLAMP, STEERING COLUMN, UPPER
55601-90500

BU60

 1
55612-90501

BU60

 1
55662 - CLAMP, STEERING COLUMN, LOWER
55612-90501

BU60

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-90K0001

BU60

BLACK,TRIM4#

 2
55670-90K0001

BU60

BLACK,BLACK

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-90K0001

BU60

BLACK,TRIM4#

 2
55670-90K0001

BU60

BLACK,BLACK

 2
55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1
55692-90D00

BU60

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-90F00

BU60

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-90F00

BU60

 1
55953 - REGISTER, DEFROSTER, CENTER
55953-95408

BU60

 3
55953-95408

BU60

 1
55953A - REGISTER, DEFROSTER, CENTER
55953-95408

BU60

 2
56500 - CABINET ASSY
56500-90D03

BU60

 1
56500-90D02

BU60

 1
Common parts
55434-30020
90119-06048
90119-06278
90159-50001
90159-50084
90159-60127
90168-50026
90183-05002
90480-45092
91621-40825
91651-40825
91655-40616
93313-15010
93540-55014
93560-15012
94110-40800
94511-00800
Linked diagrams
6151
7456
