BU60VH-QDFTJ (1986)
Toyota Dyna/Toyoace Quick
Production
Jan 1986
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

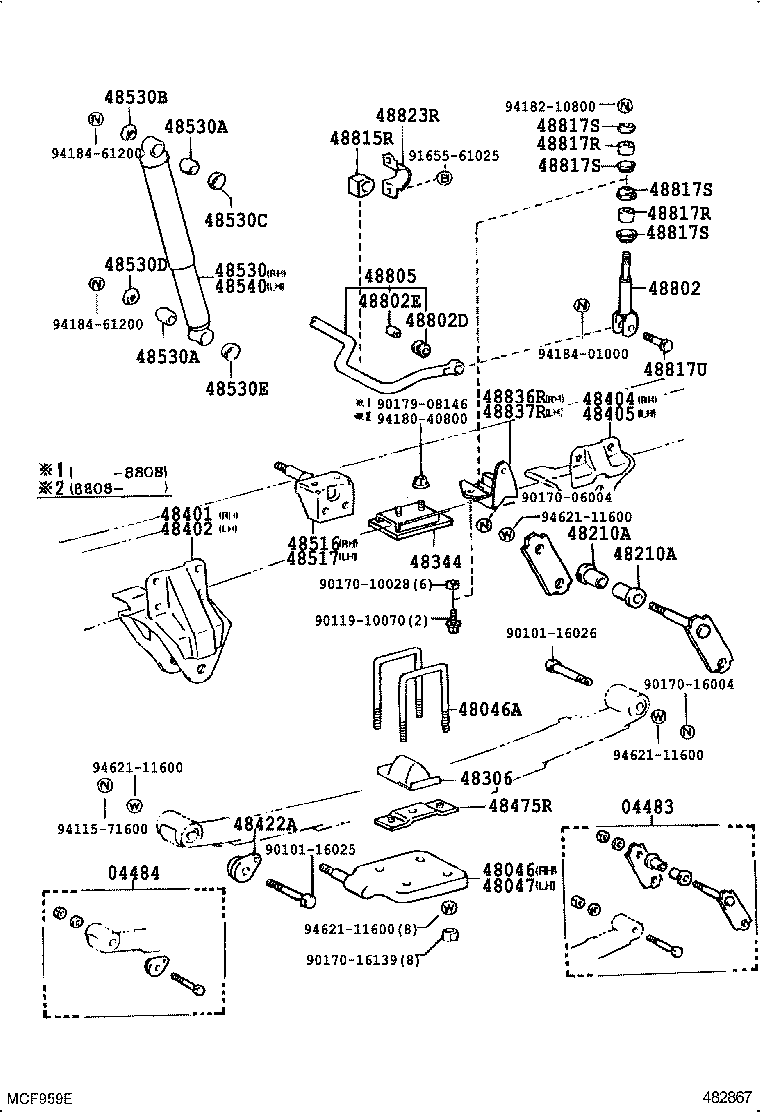

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
BU60 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
BU60 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36201 |
BU60 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16238 |
BU60 長さ=225 |
4 | ||
| 90117-16014 |
BU60 長さ=225 |
4 | ||
| 90117-16014 |
BU60 長さ=225 |
4 | ||
| 90117-16011 |
BU60 長さ=220 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36201 |
BU60 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
BU60 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
BU60 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-36040 |
BU60 |
2 | ||
| 48306-36041 |
BU60 |
2 | ||
| 48306-36042 |
BU60 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36320 |
BU60 |
2 | ||
| 48344-36230 |
BU60 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36180 |
BU60 |
1 | ||
| 48414-36250 |
BU60 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36250 |
BU60 |
1 | ||
| 48414-36180 |
BU60 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36240 |
BU60 |
1 | ||
| 48416-36200 |
BU60 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-36120 |
BU60 |
1 | ||
| 48417-36080 |
BU60 |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU60 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU60 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU60 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-36130 |
BU60 ﾏｰｸ 48531−36130 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU60 |
4 | ||
| 90385-16011 |
BU60 |
4 | ||
| 90385-16004 |
BU60 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU60 |
4 | ||
| 90385-16011 |
BU60 |
4 | ||
| 90385-16004 |
BU60 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU60 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU60 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU60 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU60 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-36130 |
BU60 ﾏｰｸ 48531−36130 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-36040 |
BU60 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13004 |
BU60 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
BU60 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-36022 |
BU60 |
1 | ||
| 48805-36021 |
BU60 |
1 | ||
| 48805-36021 |
BU60 |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48818-36020 |
BU60 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-36010 |
BU60 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-36010 |
BU60 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 91121-71045 |
BU60 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-36030 |
BU60 |
2 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-36022 |
BU60 |
1 | ||
| 48836-36021 |
BU60 |
1 | ||
| 48836-36023 |
BU60 |
1 | ||
| 48836-36021 |
BU60 |
2 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48836-36021 |
BU60 |
1 | ||
| 48836-36023 |
BU60 |
1 | ||
| 48836-36021 |
BU60 |
2 | ||
| 48836-36022 |
BU60 |
1 | ||
| Common parts | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90119-10070 | ||||
| 90170-06004 | ||||
| 90170-10028 | ||||
| 90170-16004 | ||||
| 90170-16139 | ||||
| 90179-08146 | ||||
| 91655-61025 | ||||
| 94115-71600 | ||||
| 94180-40800 | ||||
| 94182-10800 | ||||
| 94184-01000 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||

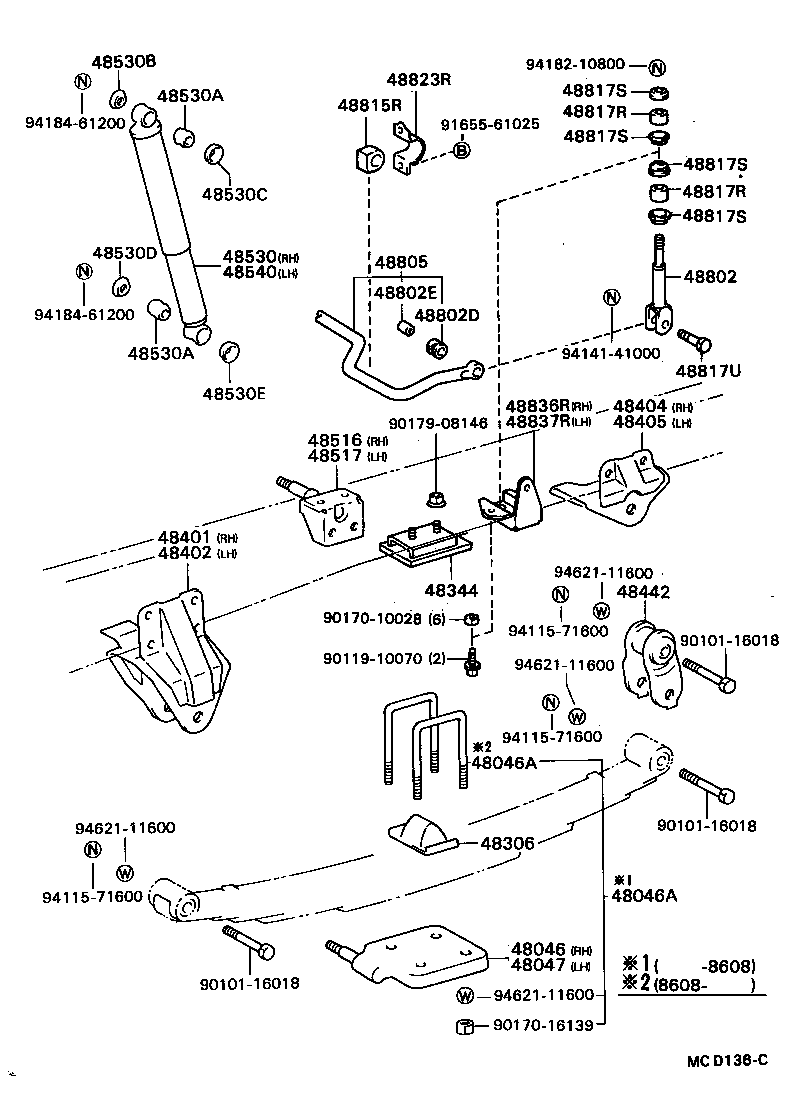

ILLUST NO. 1 OF 2(8601-8708)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36201 |
BU60 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16238 |
BU60 長さ=225 |
4 | ||
| 90117-16014 |
BU60 長さ=225 |
4 | ||
| 90117-16014 |
BU60 長さ=225 |
4 | ||
| 90117-16011 |
BU60 長さ=220 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16238 |
BU60 長さ=225 |
4 | ||
| 90117-16014 |
BU60 長さ=225 |
4 | ||
| 90117-16014 |
BU60 長さ=225 |
4 | ||
| 90117-16011 |
BU60 長さ=220 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36201 |
BU60 |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-36040 |
BU60 |
2 | ||
| 48306-36041 |
BU60 |
2 | ||
| 48306-36042 |
BU60 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36320 |
BU60 |
2 | ||
| 48344-36230 |
BU60 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-36180 |
BU60 |
1 | ||
| 48414-36250 |
BU60 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-36250 |
BU60 |
1 | ||
| 48414-36180 |
BU60 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-36240 |
BU60 |
1 | ||
| 48416-36200 |
BU60 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-36120 |
BU60 |
1 | ||
| 48417-36080 |
BU60 |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
BU60 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU60 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU60 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-36130 |
BU60 ﾏｰｸ 48531−36130 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU60 |
4 | ||
| 90385-16011 |
BU60 |
4 | ||
| 90385-16004 |
BU60 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
BU60 |
4 | ||
| 90385-16011 |
BU60 |
4 | ||
| 90385-16004 |
BU60 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU60 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU60 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU60 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU60 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-36130 |
BU60 ﾏｰｸ 48531−36130 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-36040 |
BU60 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13004 |
BU60 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
BU60 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-36022 |
BU60 |
1 | ||
| 48805-36021 |
BU60 |
1 | ||
| 48805-36021 |
BU60 |
2 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48818-36020 |
BU60 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-36010 |
BU60 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-36010 |
BU60 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
BU60 T=1.2 |
4 | ||
| 90948-02032 |
BU60 T=1.6 |
4 | ||
| 90948-02015 |
BU60 厚さ=1.2 |
4 | ||
| 90948-02032 |
BU60 厚さ=1.6 |
4 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 91121-71045 |
BU60 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-36030 |
BU60 |
2 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-36022 |
BU60 |
1 | ||
| 48836-36021 |
BU60 |
1 | ||
| 48836-36023 |
BU60 |
1 | ||
| 48836-36021 |
BU60 |
2 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48836-36021 |
BU60 |
1 | ||
| 48836-36023 |
BU60 |
1 | ||
| 48836-36021 |
BU60 |
2 | ||
| 48836-36022 |
BU60 |
1 | ||
| Common parts | ||||
| 90101-16018 | ||||
| 90119-10070 | ||||
| 90170-10028 | ||||
| 90170-16139 | ||||
| 90179-08146 | ||||
| 91655-61025 | ||||
| 94115-71600 | ||||
| 94141-41000 | ||||
| 94182-10800 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||

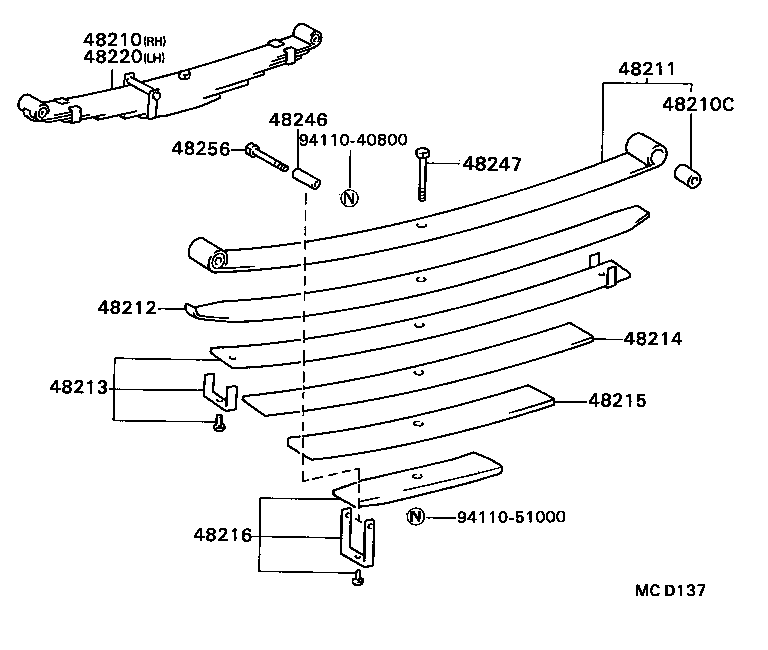

ILLUST NO. 2 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B120 |
BU60 # |
1 | ||
| 48210-3B122 |
BU60 6枚ﾘｰﾌ |
1 | ||
| 48210-3B121 |
BU60 # |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16003 |
BU60 |
4 | ||
| 90389-16013 |
BU60 |
8 | ||
| 90389-16013 |
BU60 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B121 |
BU60 右側 |
1 | ||
| 48201-3B120 |
BU60 |
2 | ||
| 48201-36061 |
BU60 LH |
1 | ||
| 48201-36061 |
BU60 左側 |
1 | ||
| 48201-3B121 |
BU60 RH |
1 | ||
| 48201-36062 |
BU60 左側 |
1 | ||
| 48201-3B122 |
BU60 右側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48222-36061 |
BU60 LH |
1 | ||
| 48212-3B122 |
BU60 右側 |
1 | ||
| 48212-3B121 |
BU60 RH |
1 | ||
| 48212-3B120 |
BU60 |
2 | ||
| 48212-3B121 |
BU60 |
1 | ||
| 48222-36062 |
BU60 左側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B120 |
BU60 |
2 | ||
| 48203-36061 |
BU60 LH |
1 | ||
| 48203-36062 |
BU60 左側 |
1 | ||
| 48202-3B121 |
BU60 右側 |
1 | ||
| 48202-3B121 |
BU60 RH |
1 | ||
| 48203-36061 |
BU60 左側 |
1 | ||
| 48202-3B122 |
BU60 右側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48224-36061 |
BU60 LH |
1 | ||
| 48214-3B121 |
BU60 RH |
1 | ||
| 48214-3B120 |
BU60 |
2 | ||
| 48224-36061 |
BU60 左側 |
1 | ||
| 48224-36062 |
BU60 左側 |
1 | ||
| 48214-3B122 |
BU60 右側 |
1 | ||
| 48214-3B121 |
BU60 右側 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B120 |
BU60 |
2 | ||
| 48215-3B122 |
BU60 右側 |
1 | ||
| 48225-36061 |
BU60 左側 |
1 | ||
| 48215-3B121 |
BU60 RH |
1 | ||
| 48215-3B121 |
BU60 右側 |
1 | ||
| 48225-36061 |
BU60 LH |
1 | ||
| 48225-36062 |
BU60 左側 |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B121 |
BU60 RH |
1 | ||
| 48203-3B121 |
BU60 右側 |
1 | ||
| 48204-3B120 |
BU60 LH |
1 | ||
| 48204-36061 |
BU60 LH |
1 | ||
| 48204-36062 |
BU60 左側 |
1 | ||
| 48204-36061 |
BU60 左側 |
1 | ||
| 48203-3B122 |
BU60 右側 |
1 | ||
| 48203-3B120 |
BU60 RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-36060 |
BU60 |
1 | ||
| 48220-36061 |
BU60 |
1 | ||
| 48220-36062 |
BU60 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
BU60 |
2 | ||
| 48146-60070 |
BU60 |
2 | ||
| 48146-60070 |
BU60 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36720 |
BU60 |
2 | ||
| 48247-36500 |
BU60 |
2 | ||
| 48247-36720 |
BU60 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
