BU60VH-QDFTF (1986)

Toyota Dyna/Toyoace Quick

Production Jan 1986 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )N

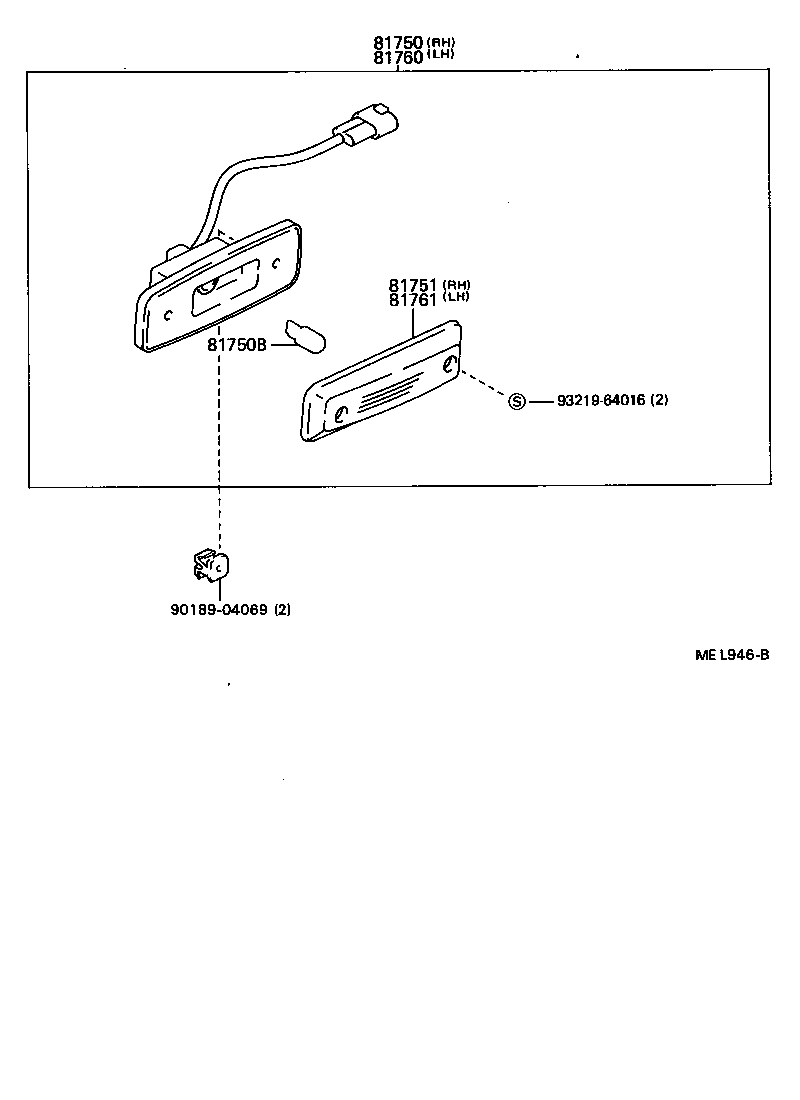

Click highlighted areas on diagram

diagram 81750 81750B 81751 81760 81761 9018904069 9321964016
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-90F00

BU60..N

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-12015

BU60..N

24V 5W

 1
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-90D00

BU60..N

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-90F00

BU60..N

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-90D00

BU60..N

 1
Common parts
90189-04069
93219-64016
