BU60VH-QDFTF (1986)
Toyota Dyna/Toyoace Quick
(9008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61024A - PILLAR SUB-ASSY, NO.4 LH | ||||
| 61024-90F02 |
BU60..N |
1 | ||
| 61024-36020 |
BU60..N |
1 | ||
| 61014-90D24 |
BU60..D..CBU |
1 | ||
| 61024-36020 |
BU60..D..CBU ｱﾘ(ﾋﾀﾞﾘﾏｴﾊﾒｺﾞﾛｼ ｻﾕｳ ｽﾗｲﾄﾞ) |
1 | ||
| 61014-26010 |
BU60..D..CBU |
1 | ||
| 61024-90F02 |
BU60..D..CBU ｱﾘ(ﾋﾀﾞﾘﾏｴﾊﾒｺﾞﾛｼ ｻﾕｳ ｽﾗｲﾄﾞ) |
1 | ||
| 61063D - RAIL SUB-ASSY, NO.1 CENTER, INNER LH | ||||
| 61063-90F00 |
BU60..CBU |
1 | ||
| 61063-36030 |
BU60..CBU |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61085-90F00 |
BU60 |
1 | ||
| 61171B - STIFFENER, SIDE PANEL, LOWER NO.2 | ||||
| 61168-90F00 |
BU60..CBU LWR,L=1770 |
1 | ||
| 61168-90F00 |
BU60..CBU 上側 |
1 | ||
| 61175-90F00 |
BU60..CBU LWR,L=2712.5 |
2 | ||
| 61175-90F00 |
BU60..CBU LWR,L=2712.5 |
3 | ||
| 61174-90F00 |
BU60..D..CBU UPR,LH |
3 | ||
| 61173-90F01 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),上側 |
3 | ||
| 61173-90F02 |
BU60..4D RR-UPR X3,RR-LWR X3 |
6 | ||
| 61173-90F01 |
BU60..N 上側 |
3 | ||
| 61168-37010 |
BU60..CBU 下側 |
1 | ||
| 61171-90F01 |
BU60..4D FR-UPR X3,FR-LWR X3 |
6 | ||
| 61175-90F00 |
BU60..CBU LWR,L=2712.5 |
2 | ||
| 61302F - RAIL SUB-ASSY, NO.1 CENTER, OUTER LH | ||||
| 61302-90F01 |
BU60..CBU |
1 | ||
| 61302-36010 |
BU60..CBU |
1 | ||
| 61344B - RAIL, NO.3 UPPER INNER, LH | ||||
| 61344-90F00 |
BU60 |
1 | ||
| 61366A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-90F02 |
BU60 |
1 | ||
| 65058 - REINFORCEMENT SUB-ASSY, SIDE PANEL, C LH | ||||
| 65058-90F02 |
BU60..D..CBU ﾌﾛﾝﾄ |
1 | ||
| 65058-90F03 |
BU60..CBU ﾘﾔ |
1 | ||
| 65057-90F08 |
BU60..D..CBU CTR |
1 | ||

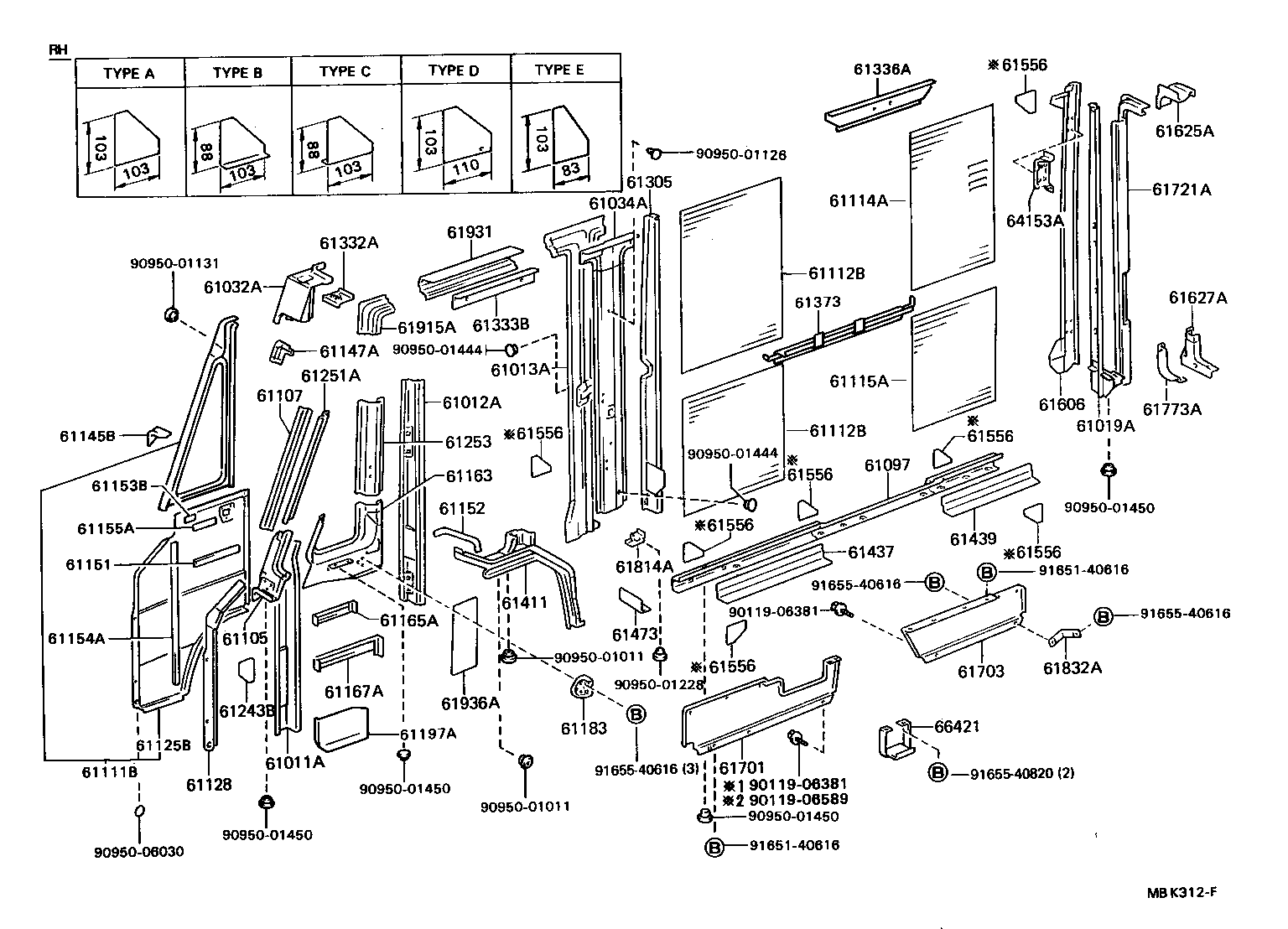

(8601- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011A - PILLAR SUB-ASSY, NO.1 RH | ||||
| 61011-90D02 |
BU60 |
1 | ||
| 61012A - PILLAR SUB-ASSY, NO.2 RH | ||||
| 61012-25010 |
BU60..CBU |
1 | ||
| 61012-90D05 |
BU60..N W/*EL |
1 | ||
| 61012-90D04 |
BU60 |
1 | ||
| 61012-90D07 |
BU60..CBU |
1 | ||
| 61012-25020 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61012-90D08 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61012-90D05 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-90D04 |
BU60 |
1 | ||
| 61013-90D05 |
BU60..CBU |
1 | ||
| 61013-90D03 |
BU60 |
1 | ||
| 61019A - PILLAR SUB-ASSY, NO.9 RH | ||||
| 61019-90D08 |
BU60 |
1 | ||
| 61019-90D09 |
BU60..CBU |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-90F00 |
BU60 |
1 | ||
| 61032-90D03 |
BU60 |
1 | ||
| 61034A - PILLAR SUB-ASSY, NO.3 INNER, RH | ||||
| 61034-90F07 |
BU60..4D W/SEPARATION DOOR |
1 | ||
| 61034-90F00 |
BU60..D |
1 | ||
| 61034-90F06 |
BU60..D..4D |
1 | ||
| 61034-90F07 |
BU60..N..4D |
1 | ||
| 61034-90F01 |
BU60 W/SEPARATION DOOR |
1 | ||
| 61034-90F07 |
BU60..D..4D ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
1 | ||
| 61034-90F06 |
BU60..D..4D |
1 | ||
| 61097 - RAIL SUB-ASSY, NO.5 LOWER OUTER, RH | ||||
| 61097-90F01 |
BU60..4D |
1 | ||
| 61097-90F01 |
BU60..4D |
1 | ||
| 61097-90F05 |
BU60..4D |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61108-90D01 |
BU60 |
1 | ||
| 61108-90D03 |
BU60..CBU |
1 | ||
| 61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH | ||||
| 61211-90D02 |
BU60 |
1 | ||
| 61111B - PANEL, NO.1 SIDE, RH | ||||
| 61101-90D06 |
BU60..D |
1 | ||
| 61101-90D10 |
BU60 |
1 | ||
| 61101-90D07 |
BU60..N |
1 | ||
| 61101-90D07 |
BU60..D ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 61101-90D13 |
BU60..CBU |
1 | ||
| 61101-90D07 |
BU60 W/RADIO |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90F01 |
BU60..4D UPR |
1 | ||
| 61113-90F01 |
BU60..D..4D LWR |
1 | ||
| 61113-90F01 |
BU60..4D LWR |
1 | ||
| 61113-90F01 |
BU60..D..4D 下側 |
1 | ||
| 61113-90F03 |
BU60..N..4D LWR |
1 | ||
| 61113-90F03 |
BU60..N..4D 下側 |
1 | ||
| 61112-90F07 |
BU60..4D 上側 |
1 | ||
| 61113-90F07 |
BU60..4D 下側 |
1 | ||
| 61112-90F01 |
BU60..4D 上側 |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90F01 |
BU60..4D UPR |
1 | ||
| 61113-90F01 |
BU60..D..4D LWR |
1 | ||
| 61113-90F01 |
BU60..4D LWR |
1 | ||
| 61113-90F01 |
BU60..D..4D 下側 |
1 | ||
| 61113-90F03 |
BU60..N..4D LWR |
1 | ||
| 61113-90F03 |
BU60..N..4D 下側 |
1 | ||
| 61112-90F07 |
BU60..4D 上側 |
1 | ||
| 61113-90F07 |
BU60..4D 下側 |
1 | ||
| 61112-90F01 |
BU60..4D 上側 |
1 | ||
| 61114A - PANEL, NO.3 SIDE, RH | ||||
| 61114-90F01 |
BU60..4D |
1 | ||
| 61114-90F00 |
BU60..4D |
1 | ||
| 61114-90F02 |
BU60..4D |
1 | ||
| 61114-90F01 |
BU60..4D |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-90F00 |
BU60..4D |
1 | ||
| 61115-90F01 |
BU60..N..4D |
1 | ||
| 61115-90F03 |
BU60..4D |
1 | ||
| 61115-90F00 |
BU60..D..4D |
1 | ||
| 61125B - PANEL, COWL SIDE, FRONT RH | ||||
| 61125-90D04 |
BU60 |
1 | ||
| 61101-26010 |
BU60..CBU |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61127-90D03 |
BU60 |
1 | ||
| 61127-90D02 |
BU60 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-90D03 |
BU60..CBU |
1 | ||
| 61145-90D01 |
BU60 |
1 | ||
| 61147A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER | ||||
| 61147-90D03 |
BU60 右側 |
1 | ||
| 61148-90D02 |
BU60 左側 |
1 | ||
| 61147-90D03 |
BU60 RH |
1 | ||
| 61148-90D02 |
BU60 LH |
1 | ||
| 61151 - CUSHION, SIDE PANEL STIFFENER, NO.1 | ||||
| 61151-26010 |
BU60 |
1 | ||
| 61151-90D01 |
BU60 |
2 | ||
| 61151-90D01 |
BU60 |
1 | ||
| 61152 - CUSHION, SIDE PANEL STIFFENER, NO.2 | ||||
| 61152-90D01 |
BU60..D ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 61152-90D01 |
BU60 |
2 | ||
| 61152-90D01 |
BU60..N |
1 | ||
| 61153-26010 |
BU60..D |
1 | ||
| 61153-26010 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61153-26010 |
BU60 |
1 | ||
| 61153B - CUSHION, SIDE PANEL STIFFENER, NO.3 | ||||
| 61153-90D00 |
BU60 |
2 | ||
| 61153-26010 |
BU60 |
1 | ||
| 61154A - CUSHION, SIDE PANEL STIFFENER, NO.4 | ||||
| 61153-26010 |
BU60 |
1 | ||
| 61154-90D00 |
BU60..D ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 61154-90D00 |
BU60..N |
1 | ||
| 61154-90D00 |
BU60 |
2 | ||
| 61155A - CUSHION, SIDE PANEL STIFFENER, NO.5 | ||||
| 61151-26010 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61155-90D01 |
BU60 |
1 | ||
| 61155-90D01 |
BU60..D ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 61151-26010 |
BU60..D |
1 | ||
| 61151-26010 |
BU60 |
1 | ||
| 61155-90D01 |
BU60..N |
1 | ||
| 61163 - PILLAR, FRONT BODY, INNER RH | ||||
| 61033-90D03 |
BU60..CBU |
1 | ||
| 61033-90D03 |
BU60 |
1 | ||
| 61165A - STIFFENER, SIDE PANEL, UPPER NO.5 | ||||
| 61205-90D00 |
BU60 |
1 | ||
| 61167A - STIFFENER, SIDE PANEL, LOWER RH | ||||
| 61201-90D01 |
BU60 |
1 | ||
| 61201-90D01 |
BU60..CBU |
1 | ||
| 61183 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61184-90A00 |
BU60 LH |
1 | ||
| 61183-90A01 |
BU60 RH |
1 | ||
| 61183-90A01 |
BU60 右側 |
1 | ||
| 61184-90A00 |
BU60 左側 |
1 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90D00 |
BU60 |
1 | ||
| 61243B - PLATE, FRONT BODY PILLAR END, RH | ||||
| 61243-90D01 |
BU60 |
1 | ||
| 61251A - PILLAR, NO.1 INNER, RH | ||||
| 61251-90D01 |
BU60 |
1 | ||
| 61253 - PILLAR, NO.2 INNER, RH | ||||
| 61253-90D04 |
BU60..CBU |
1 | ||
| 61253-90D04 |
BU60 |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-90D05 |
BU60..N |
1 | ||
| 61305-90D05 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
1 | ||
| 61305-90D05 |
BU60 W/SEPARATION DOOR |
1 | ||
| 61305-90D04 |
BU60..D |
1 | ||
| 61332A - RAIL, NO.1 UPPER INNER, REAR RH | ||||
| 61332-90F02 |
BU60 |
1 | ||
| 61332-90F00 |
BU60 |
1 | ||
| 61332-90F01 |
BU60 |
1 | ||
| 61333B - RAIL, NO.2 UPPER INNER, RH | ||||
| 61333-90D02 |
BU60 |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61336-90F00 |
BU60..4D |
1 | ||
| 61373 - RAIL, NO.3 CENTER, INNER | ||||
| 61058-90F01 |
BU60..4D RH |
1 | ||
| 61058-90F00 |
BU60 LH |
1 | ||
| 61058-90F01 |
BU60..4D RH |
1 | ||
| 61058-90F00 |
BU60 LH |
1 | ||
| 61058-90F00 |
BU60..CBU LH |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-90D01 |
BU60 |
1 | ||
| 61401-90D03 |
BU60 |
1 | ||
| 61401-90D06 |
BU60..CBU |
1 | ||
| 61437 - RAIL, NO.7 LOWER INNER, RH | ||||
| 61437-90F00 |
BU60..4D |
1 | ||
| 61437-90F00 |
BU60..4D |
1 | ||
| 61439 - RAIL, NO.5 LOWER INNER, RH | ||||
| 61439-90F01 |
BU60..4D |
1 | ||
| 61439-90F01 |
BU60..4D |
1 | ||
| 61473 - PLATE, PILLAR NO.3, LOWER | ||||
| 61473-90D00 |
BU60 |
1 | ||
| 61473-90D00 |
BU60 |
2 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61601-90F00 |
BU60..4D |
1 | ||
| 61601-90F01 |
BU60..4D W/*RW |
1 | ||
| 61601-90F01 |
BU60..N..4D ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61601-90F02 |
BU60..N..4D ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61601-90F01 |
BU60..D..4D ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 61601-90F00 |
BU60..4D |
1 | ||
| 61601-90F03 |
BU60..4D |
1 | ||
| 61601-90F04 |
BU60..N..4D ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61601-90F02 |
BU60..D..4D ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 61601-90F05 |
BU60..4D |
1 | ||
| 61601-90F04 |
BU60..D..4D ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 61625A - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61625-90D02 |
BU60..CBU |
1 | ||
| 61625-90D02 |
BU60 |
1 | ||
| 61627A - EXTENSION, QUARTER PANEL, LOWER RH | ||||
| 61627-90D02 |
BU60..CBU |
1 | ||
| 61627-90D01 |
BU60 |
1 | ||
| 61701 - SKIRT SUB-ASSY, QUARTER PANEL, FRONT RH | ||||
| 61412-90F04 |
BU60..4D |
1 | ||
| 61412-90F00 |
BU60..4D |
1 | ||
| 61412-90F00 |
BU60..4D |
1 | ||
| 61703 - SKIRT SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 61413-90F00 |
BU60 |
1 | ||
| 61413-90F01 |
BU60..N |
1 | ||
| 61413-90F00 |
BU60..D |
1 | ||
| 61413-90F04 |
BU60..D..4D |
1 | ||
| 61413-90F05 |
BU60..N..4D |
1 | ||
| 61721A - PANEL, QUARTER INNER CORNER, RH | ||||
| 61703-90D08 |
BU60..4D |
1 | ||
| 61703-90D10 |
BU60..4D |
1 | ||
| 61703-90D12 |
BU60..4D |
1 | ||
| 61703-90D10 |
BU60..4D |
1 | ||
| 61773A - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61773-90D01 |
BU60 |
1 | ||
| 61773-90D02 |
BU60..CBU |
1 | ||
| 61814A - PLATE, DUST PROOF, NO.2 RH | ||||
| 61814-90D01 |
BU60 |
1 | ||
| 61814-90D00 |
BU60 |
1 | ||
| 61832A - STAY, SIDE PANEL, NO.2 RH | ||||
| 61832-90D01 |
BU60 |
1 | ||
| 61832-90D02 |
BU60..D..CBU |
1 | ||
| 61832-90D02 |
BU60..CBU |
1 | ||
| 61915A - PILLAR, NO.2 OUTER, UPPER RH | ||||
| 61915-90D01 |
BU60 |
1 | ||
| 61931 - STRENGTH, UPPER RAIL, NO.1 RH | ||||
| 61931-90D01 |
BU60 |
1 | ||
| 61936A - PILLAR, NO.2 INNER, LOWER | ||||
| 61936-90D02 |
BU60..CBU |
1 | ||
| 61936-90D02 |
BU60 |
1 | ||
| 64153A - REINFORCEMENT, BACK FRAME | ||||
| 64153-90D01 |
BU60 |
4 | ||
| 64153-90D01 |
BU60..CBU |
2 | ||
| 66421 - STEP, SIDE | ||||
| 66421-90F00 |
BU60..4D |
1 | ||
| 66421-90F00 |
BU60..4D |
1 | ||
| Common parts | ||||
| 90119-06381 | ||||
| 90119-06589 | ||||
| 90950-01011 | ||||
| 90950-01126 | ||||
| 90950-01131 | ||||
| 90950-01228 | ||||
| 90950-01444 | ||||
| 90950-01450 | ||||
| 90950-06030 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 91655-40820 | ||||

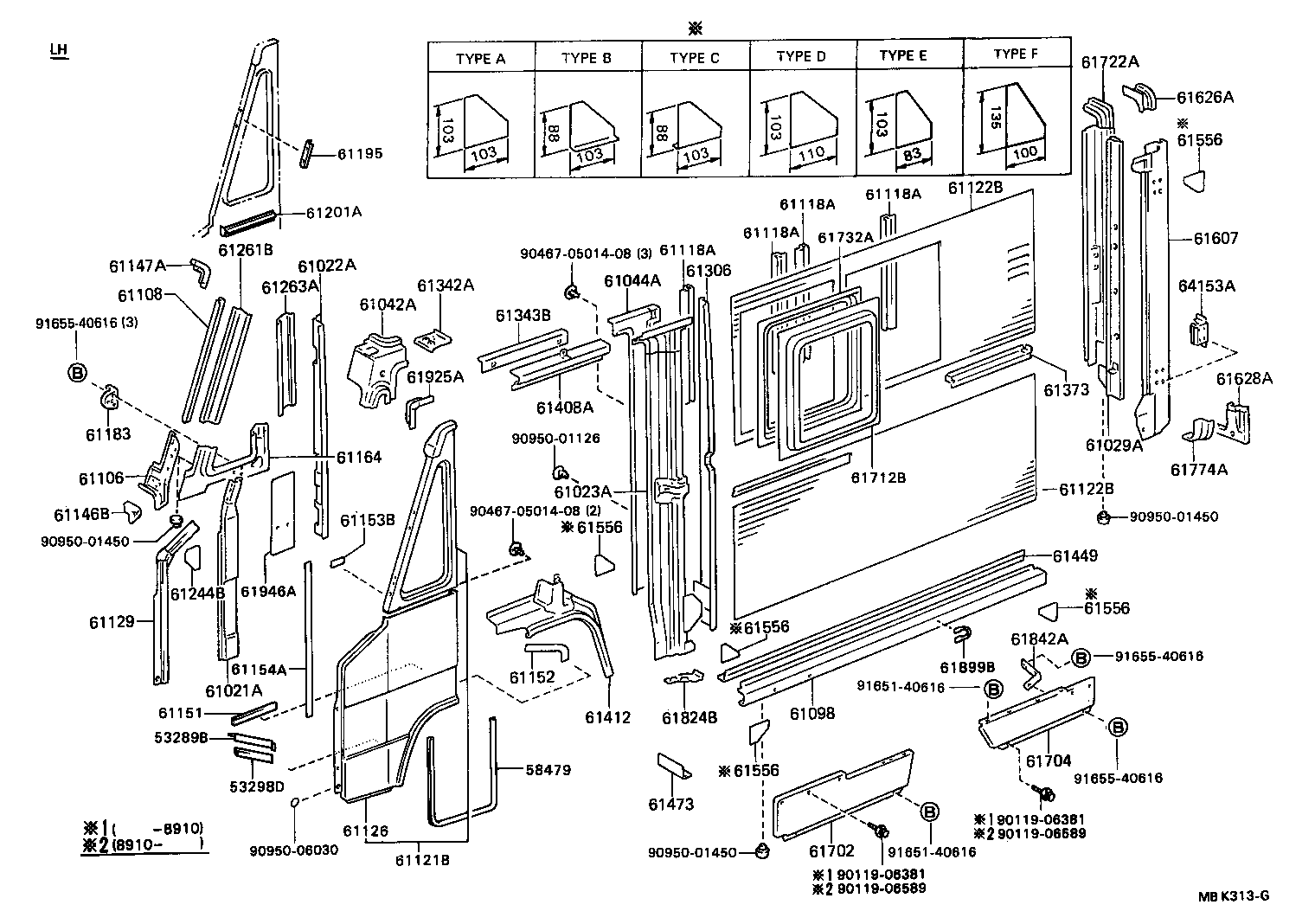

(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53289B - BRACKET, COOL AIR INTAKE GUARD, NO.3 | ||||
| 53289-90D00 |
BU60 |
1 | ||
| 53289-90D01 |
BU60..CBU |
1 | ||
| 53298D - CUSHION, COOL AIR INTAKE BRACKET | ||||
| 61153-26010 |
BU60 |
1 | ||
| 58479 - PROTECTOR, TOOL BAG | ||||
| 58479-90D00 |
BU60 |
1 | ||
| 58479-90D01 |
BU60 |
1 | ||
| 61021A - PILLAR SUB-ASSY, NO.1 LH | ||||
| 61021-90D01 |
BU60 |
1 | ||
| 61021-90F01 |
BU60 |
1 | ||
| 61021-90D02 |
BU60 |
1 | ||
| 61021-90F00 |
BU60 |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-90D04 |
BU60 |
1 | ||
| 61022-90D05 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61022-90D09 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61022-25020 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61022-25010 |
BU60..CBU |
1 | ||
| 61022-90D05 |
BU60..N W/*EL |
1 | ||
| 61022-90D08 |
BU60..CBU |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-90F01 |
BU60 |
1 | ||
| 61023-90F02 |
BU60..CBU |
1 | ||
| 61023-90F00 |
BU60 |
1 | ||
| 61029A - PILLAR SUB-ASSY, NO.9 LH | ||||
| 61029-90D07 |
BU60..CBU |
1 | ||
| 61029-90D06 |
BU60 |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-90D03 |
BU60 |
1 | ||
| 61044A - PILLAR SUB-ASSY, NO.3 INNER, LH | ||||
| 61044-90F00 |
BU60..D..4D |
1 | ||
| 61044-90F03 |
BU60..N..4D |
1 | ||
| 61044-90F03 |
BU60..D..4D ｱﾘ(ﾙ-ﾑ ｾﾊﾟﾚ-ﾀ=ｽﾗｲﾄﾞｼｷ) |
1 | ||
| 61044-90F01 |
BU60..4D W/SEPARATION DOOR |
1 | ||
| 61044-90F03 |
BU60..4D W/SEPARATION DOOR |
1 | ||
| 61044-90F02 |
BU60..D..4D |
1 | ||
| 61044-90F02 |
BU60..D..4D |
1 | ||
| 61098 - RAIL SUB-ASSY, NO.5 LOWER OUTER, LH | ||||
| 61098-90F02 |
BU60..D..4D |
1 | ||
| 61098-90F03 |
BU60..N..4D |
1 | ||
| 61098-90F06 |
BU60..4D |
1 | ||
| 61098-90F03 |
BU60..N..4D |
1 | ||
| 61098-90F02 |
BU60..D..4D |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61109-90D02 |
BU60..CBU |
1 | ||
| 61109-90D01 |
BU60 |
1 | ||
| 61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH | ||||
| 61211-90D02 |
BU60 |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90D00 |
BU60 |
4 | ||
| 61117-90D00 |
BU60..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
2 | ||
| 61117-90D00 |
BU60..D |
4 | ||
| 61117-90D00 |
BU60..N ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
4 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90D00 |
BU60 |
4 | ||
| 61117-90D00 |
BU60..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
2 | ||
| 61117-90D00 |
BU60..D |
4 | ||
| 61117-90D00 |
BU60..N ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
4 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90D00 |
BU60 |
4 | ||
| 61117-90D00 |
BU60..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
2 | ||
| 61117-90D00 |
BU60..D |
4 | ||
| 61117-90D00 |
BU60..N ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
4 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61117-90D00 |
BU60 |
4 | ||
| 61117-90D00 |
BU60..D ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
2 | ||
| 61117-90D00 |
BU60..D |
4 | ||
| 61117-90D00 |
BU60..N ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ) |
4 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61102-90D04 |
BU60 |
1 | ||
| 61102-90D09 |
BU60..CBU |
1 | ||
| 61102-90D06 |
BU60 |
1 | ||
| 61102-90D02 |
BU60 |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90F01 |
BU60 UPR,W/SIDE WINDOW 2 |
1 | ||
| 61122-90F03 |
BU60..D UPR,W/SIDE WINDOW 1 |
1 | ||
| 61123-90F00 |
BU60..D LWR |
1 | ||
| 61122-90F04 |
BU60..N 上側 |
1 | ||
| 61122-90F05 |
BU60..D..CBU 上側 |
1 | ||
| 61123-90F00 |
BU60 LWR |
1 | ||
| 61123-90F00 |
BU60..D 下側 |
1 | ||
| 61122-90F00 |
BU60..D UPR,W/SIDE WINDOW 1 |
1 | ||
| 61122-90F04 |
BU60..D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),上側 |
1 | ||
| 61122-90F03 |
BU60..D 上側 |
1 | ||
| 61122-90F06 |
BU60..N 上側 |
1 | ||
| 61123-90F01 |
BU60..N 下側 |
1 | ||
| 61122-90F04 |
BU60 UPR,W/SIDE WINDOW 2 |
1 | ||
| 61122-90F06 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),上側 |
1 | ||
| 61123-90F03 |
BU60..CBU 下側 |
1 | ||
| 61122-37010 |
BU60..N 上側 |
1 | ||
| 61123-90F01 |
BU60..N LWR |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90F01 |
BU60 UPR,W/SIDE WINDOW 2 |
1 | ||
| 61122-90F03 |
BU60..D UPR,W/SIDE WINDOW 1 |
1 | ||
| 61123-90F00 |
BU60..D LWR |
1 | ||
| 61122-90F04 |
BU60..N 上側 |
1 | ||
| 61122-90F05 |
BU60..D..CBU 上側 |
1 | ||
| 61123-90F00 |
BU60 LWR |
1 | ||
| 61123-90F00 |
BU60..D 下側 |
1 | ||
| 61122-90F00 |
BU60..D UPR,W/SIDE WINDOW 1 |
1 | ||
| 61122-90F04 |
BU60..D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),上側 |
1 | ||
| 61122-90F03 |
BU60..D 上側 |
1 | ||
| 61122-90F06 |
BU60..N 上側 |
1 | ||
| 61123-90F01 |
BU60..N 下側 |
1 | ||
| 61122-90F04 |
BU60 UPR,W/SIDE WINDOW 2 |
1 | ||
| 61122-90F06 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),上側 |
1 | ||
| 61123-90F03 |
BU60..CBU 下側 |
1 | ||
| 61122-37010 |
BU60..N 上側 |
1 | ||
| 61123-90F01 |
BU60..N LWR |
1 | ||
| 61126 - PANEL, COWL SIDE, FRONT LH | ||||
| 61126-90D04 |
BU60 |
1 | ||
| 61102-26010 |
BU60..CBU |
1 | ||
| 61126-90D02 |
BU60 |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61128-90D02 |
BU60 |
1 | ||
| 61104-90F00 |
BU60 |
1 | ||
| 61104-90F02 |
BU60..CBU |
1 | ||
| 61104-90F01 |
BU60 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-90D00 |
BU60 |
1 | ||
| 61146-90D02 |
BU60..CBU |
1 | ||
| 61147A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER | ||||
| 61147-90D03 |
BU60 右側 |
1 | ||
| 61148-90D02 |
BU60 左側 |
1 | ||
| 61147-90D03 |
BU60 RH |
1 | ||
| 61148-90D02 |
BU60 LH |
1 | ||
| 61151 - CUSHION, SIDE PANEL STIFFENER, NO.1 | ||||
| 61151-26010 |
BU60 |
1 | ||
| 61151-90D01 |
BU60 |
2 | ||
| 61151-90D01 |
BU60 |
1 | ||
| 61152 - CUSHION, SIDE PANEL STIFFENER, NO.2 | ||||
| 61152-90D01 |
BU60 |
2 | ||
| 61152-90D01 |
BU60..D ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 61152-90D01 |
BU60..N |
1 | ||
| 61153-26010 |
BU60..D |
1 | ||
| 61153-26010 |
BU60..N ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61153-26010 |
BU60 |
1 | ||
| 61153B - CUSHION, SIDE PANEL STIFFENER, NO.3 | ||||
| 61153-90D00 |
BU60 |
2 | ||
| 61153-26010 |
BU60 |
1 | ||
| 61154A - CUSHION, SIDE PANEL STIFFENER, NO.4 | ||||
| 61153-26010 |
BU60 |
1 | ||
| 61154-90D00 |
BU60..D ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 61154-90D00 |
BU60..N |
1 | ||
| 61154-90D00 |
BU60 |
2 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61043-90D02 |
BU60..CBU |
1 | ||
| 61043-90D01 |
BU60 |
1 | ||
| 61043-90D02 |
BU60 |
1 | ||
| 61183 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61184-90A00 |
BU60 LH |
1 | ||
| 61183-90A01 |
BU60 RH |
1 | ||
| 61183-90A01 |
BU60 右側 |
1 | ||
| 61184-90A00 |
BU60 左側 |
1 | ||
| 61195 - RETAINER, OUTER SIDE MIRROR, LH | ||||
| 61195-90D00 |
BU60 |
1 | ||
| 61201A - STIFFENER SUB-ASSY, SIDE PANEL, NO.1 | ||||
| 61201-90D02 |
BU60 |
1 | ||
| 61244B - PLATE, FRONT BODY PILLAR END, LH | ||||
| 61243-90D01 |
BU60 |
1 | ||
| 61261B - PILLAR, NO.1 INNER, LH | ||||
| 61251-90D01 |
BU60 |
1 | ||
| 61263A - PILLAR, NO.2 INNER, LH | ||||
| 61263-90D02 |
BU60 |
1 | ||
| 61041-90D00 |
BU60 |
1 | ||
| 61041-90D00 |
BU60..CBU |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-90F00 |
BU60 |
1 | ||
| 61306-90F01 |
BU60 |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-90F01 |
BU60 |
1 | ||
| 61342-36010 |
BU60 |
1 | ||
| 61342-90F02 |
BU60 |
1 | ||
| 61342-90F00 |
BU60 |
1 | ||
| 61343B - RAIL, NO.2 UPPER INNER, LH | ||||
| 61343-90D02 |
BU60 |
1 | ||
| 61373 - RAIL, NO.3 CENTER, INNER | ||||
| 61058-90F01 |
BU60..4D RH |
1 | ||
| 61058-90F00 |
BU60 LH |
1 | ||
| 61058-90F01 |
BU60..4D RH |
1 | ||
| 61058-90F00 |
BU60 LH |
1 | ||
| 61058-90F00 |
BU60..CBU LH |
1 | ||
| 61408A - RAIL SUB-ASSY, NO.1 UPPER OUTER, LH | ||||
| 61408-90D00 |
BU60 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-90F03 |
BU60 |
1 | ||
| 61402-90F00 |
BU60 |
1 | ||
| 61402-90F01 |
BU60 |
1 | ||
| 61449 - RAIL, NO.5 LOWER INNER, LH | ||||
| 61449-90F01 |
BU60..4D |
1 | ||
| 61449-90F01 |
BU60..4D |
1 | ||
| 61473 - PLATE, PILLAR NO.3, LOWER | ||||
| 61473-90D00 |
BU60 |
1 | ||
| 61473-90D00 |
BU60 |
2 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61556 - GUSSET, PILLAR TO RAIL, NO.1 | ||||
| 61556-90D00 |
BU60 TYPE A |
10 | ||
| 61558-90F00 |
BU60..4D TYPE D |
1 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F00 |
BU60..4D TYPE B |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
3 | ||
| 61557-90F00 |
BU60..4D TYPE C |
1 | ||
| 61556-90F01 |
BU60..4D TYPE E |
1 | ||
| 61556-90F00 |
BU60..4D TYPE D |
1 | ||
| 61556-90D02 |
BU60 TYPE F |
1 | ||
| 61556-90D00 |
BU60 TYPE A |
2 | ||
| 61556-90D00 |
BU60 TYPE A |
1 | ||
| 61556-90D00 |
BU60..4D TYPE A |
4 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61602-90D07 |
BU60..N |
1 | ||
| 61602-90D11 |
BU60..D..CBU |
1 | ||
| 61602-90D06 |
BU60..D |
1 | ||
| 61602-90D10 |
BU60..N |
1 | ||
| 61602-90D09 |
BU60..D |
1 | ||
| 61602-90D08 |
BU60..N |
1 | ||
| 61626A - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61626-90D01 |
BU60 |
1 | ||
| 61626-90D01 |
BU60..CBU |
1 | ||
| 61628A - EXTENSION, QUARTER PANEL, LOWER LH | ||||
| 61628-90D01 |
BU60 |
1 | ||
| 61628-90D02 |
BU60..CBU |
1 | ||
| 61702 - SKIRT SUB-ASSY, QUARTER PANEL, FRONT LH | ||||
| 61422-90F00 |
BU60 |
1 | ||
| 61422-90F03 |
BU60..CBU |
1 | ||
| 61704 - SKIRT SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 61423-90F00 |
BU60..D |
1 | ||
| 61423-90F02 |
BU60..D..CBU |
1 | ||
| 61423-90F00 |
BU60 |
1 | ||
| 61423-90F01 |
BU60..N |
1 | ||
| 61423-90F03 |
BU60..N |
1 | ||
| 61712B - PANEL, SIDE WINDOW, OUTER LH | ||||
| 61711-90D05 |
BU60 |
2 | ||
| 61711-90D05 |
BU60..N ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
2 | ||
| 61711-90D06 |
BU60..N ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
2 | ||
| 61711-90D06 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 2) |
2 | ||
| 61711-90D05 |
BU60..D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 2) |
2 | ||
| 61711-90D06 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
1 | ||
| 61711-90D05 |
BU60..D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
1 | ||
| 61722A - PANEL, QUARTER INNER CORNER, LH | ||||
| 61704-90D04 |
BU60 |
1 | ||
| 61704-90D06 |
BU60..CBU |
1 | ||
| 61704-90D05 |
BU60 |
1 | ||
| 61732A - PANEL, SIDE WINDOW, INNER LH | ||||
| 61732-90F00 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 2),右側 |
1 | ||
| 61731-90D05 |
BU60..D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
1 | ||
| 61732-90F00 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
1 | ||
| 61734-90F00 |
BU60..N ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1),左側 |
1 | ||
| 61732-90F00 |
BU60..N ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1),右側 |
1 | ||
| 61731-90D05 |
BU60 |
2 | ||
| 61731-90D05 |
BU60..D ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 2) |
2 | ||
| 61731-90D05 |
BU60..N ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 1) |
2 | ||
| 61734-90F00 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ 2),左側 |
1 | ||
| 61774A - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61774-90D02 |
BU60..CBU |
1 | ||
| 61774-90D01 |
BU60 |
1 | ||
| 61824B - PLATE, DUST PLOOF, NO.2 LH | ||||
| 61824-90D00 |
BU60 |
1 | ||
| 61842A - STAY, SIDE PANEL, NO.2 LH | ||||
| 61842-90D02 |
BU60..CBU |
1 | ||
| 61842-90D02 |
BU60..D..CBU |
1 | ||
| 61842-90D01 |
BU60 |
1 | ||
| 61899B - BRACKET, SIDE CATCH DOOR STAY | ||||
| 61899-90D05 |
BU60..CBU |
1 | ||
| 61925A - PILLAR, NO.2 OUTER, UPPER LH | ||||
| 61925-90D01 |
BU60 |
1 | ||
| 61946A - PILLAR, NO.2 INNER, LOWER LH | ||||
| 61946-90D01 |
BU60..CBU |
1 | ||
| 61946-90D01 |
BU60 |
1 | ||
| 64153A - REINFORCEMENT, BACK FRAME | ||||
| 64153-90D01 |
BU60 |
4 | ||
| 64153-90D01 |
BU60..CBU |
2 | ||
| Common parts | ||||
| 90119-06381 | ||||
| 90119-06589 | ||||
| 90467-0501408 | ||||
| 90950-01126 | ||||
| 90950-01450 | ||||
| 90950-06030 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
(9008- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57396 - PLATE, FRONT STEP, NO.2 LH | ||||
| 57396-90D01 |
BU60..4D |
2 | ||
| 57396 - PLATE, FRONT STEP, NO.2 LH | ||||
| 57396-90D01 |
BU60..4D |
2 | ||

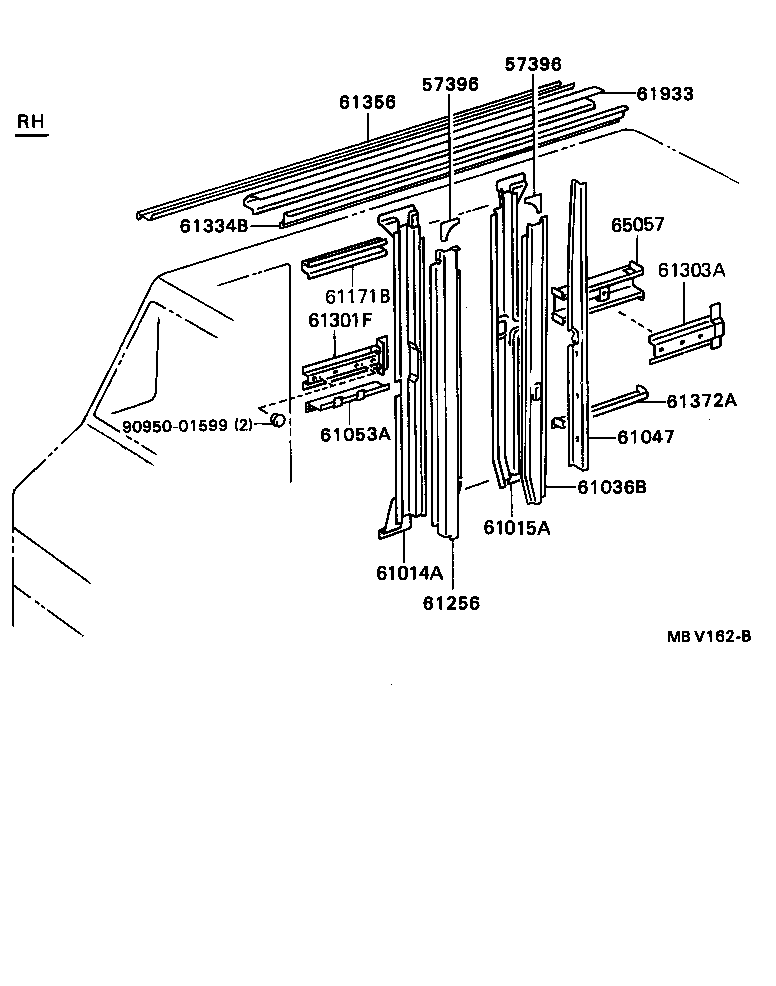

| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-90D25 |
BU60..4D |
1 | ||
| 61014-90D26 |
BU60..N..4D ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ｷ-) |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-90F01 |
BU60..4D |
1 | ||
| 61036B - PILLAR SUB-ASSY, NO.5 INNER, RH | ||||
| 61036-90F00 |
BU60..4D |
1 | ||
| 61047 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, CENTER | ||||
| 61047-90D00 |
BU60..4D |
1 | ||
| 61053A - RAIL SUB-ASSY, NO.1 CENTER, INNER | ||||
| 61053-90F01 |
BU60..D..4D |
1 | ||
| 61053-90F06 |
BU60..4D |
1 | ||
| 61053-90F06 |
BU60..N..4D |
1 | ||
| 61171B - STIFFENER, SIDE PANEL, LOWER NO.2 | ||||
| 61168-90F00 |
BU60..CBU LWR,L=1770 |
1 | ||
| 61168-90F00 |
BU60..CBU 上側 |
1 | ||
| 61175-90F00 |
BU60..CBU LWR,L=2712.5 |
2 | ||
| 61175-90F00 |
BU60..CBU LWR,L=2712.5 |
3 | ||
| 61174-90F00 |
BU60..D..CBU UPR,LH |
3 | ||
| 61173-90F01 |
BU60..D..CBU ｱﾘ(ﾘﾔ ｻｲﾄﾞ ｳｲﾝﾄﾞｳ),上側 |
3 | ||
| 61173-90F02 |
BU60..4D RR-UPR X3,RR-LWR X3 |
6 | ||
| 61173-90F01 |
BU60..N 上側 |
3 | ||
| 61168-37010 |
BU60..CBU 下側 |
1 | ||
| 61171-90F01 |
BU60..4D FR-UPR X3,FR-LWR X3 |
6 | ||
| 61175-90F00 |
BU60..CBU LWR,L=2712.5 |
2 | ||
| 61256 - PILLAR, NO.4 INNER, RH | ||||
| 61256-90F00 |
BU60..4D |
1 | ||
| 61301F - RAIL SUB-ASSY, NO.1 CENTER, OUTER RH | ||||
| 61301-90F06 |
BU60..4D |
1 | ||
| 61303A - RAIL SUB-ASSY, NO.2 CENTER, OUTER RH | ||||
| 61307-90F01 |
BU60..4D |
1 | ||
| 61334B - RAIL, NO.3 UPPER INNER, RH | ||||
| 61334-90F01 |
BU60..4D |
1 | ||
| 61356 - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-90F02 |
BU60 |
1 | ||
| 61372A - RAIL, NO.2 CENTER, INNER RH | ||||
| 61055-90F00 |
BU60..D..CBU |
1 | ||
| 61055-90F00 |
BU60..CBU |
1 | ||
| 61933 - STRENGTH, UPPER RAIL, NO.3 RH | ||||
| 61907-90F00 |
BU60..4D |
1 | ||
| 65057 - REINFORCEMENT SUB-ASSY, SIDE PANEL, C RH | ||||
| 65057-90F04 |
BU60..D..4D ﾌﾛﾝﾄ |
1 | ||
| 65057-90F05 |
BU60..4D ﾘﾔ |
1 | ||
| Common parts | ||||
| 90950-01599 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
