BU60VH-QDFT3 (1990)
Toyota Dyna/Toyoace Quick
(8601-9210)

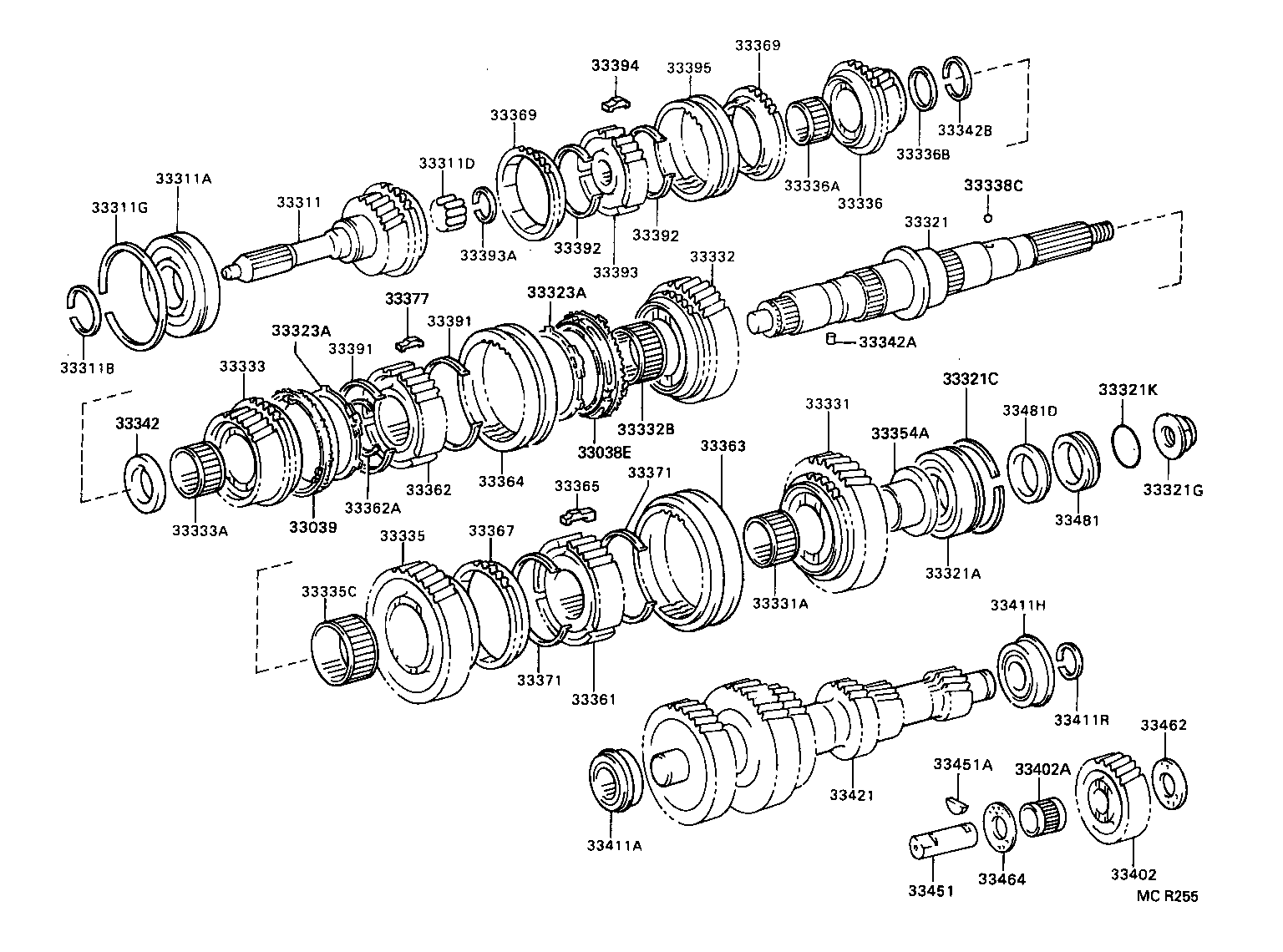

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-36110 |
BU60 |
1 | ||
| 33301-36030 |
BU60 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45010 |
BU60 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42002 |
BU60 厚さ=2.50−2.55,MARK 2,T=2.50-2.55 |
1 | ||
| 90520-42003 |
BU60 厚さ=2.55−2.60,MARK 3,T=2.55-2.60 |
1 | ||
| 90520-42007 |
BU60 厚さ=2.75−2.80,MARK 7,T=2.75-2.80 |
1 | ||
| 90520-42006 |
BU60 厚さ=2.70−2.75,MARK 6,T=2.70-2.75 |
1 | ||
| 90520-42005 |
BU60 厚さ=2.65−2.70,MARK 5,T=2.65-2.70 |
1 | ||
| 90520-42004 |
BU60 厚さ=2.60−2.65,MARK 4,T=2.60-2.65 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
BU60 |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-96001 |
BU60 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36070 |
BU60 |
1 | ||
| 33321-36100 |
BU60 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-40034 |
BU60 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
BU60 厚さ=2.36−2.46 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24002 |
BU60 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-36010 |
BU60 |
1 | ||
| 33031-36030 |
BU60 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-54004 |
BU60 |
1 | ||
| 90364-47004 |
BU60 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36060 |
BU60 |
1 | ||
| 33033-36030 |
BU60 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54003 |
BU60 |
1 | ||
| 90364-54001 |
BU60 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-36060 |
BU60 |
1 | ||
| 33034-36010 |
BU60 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-47007 |
BU60 |
1 | ||
| 90364-47004 |
BU60 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-36050 |
BU60 |
1 | ||
| 33032-36050 |
BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄ ﾌﾞﾚ-ｷ) |
1 | ||
| 33335-37030 |
BU60 |
1 | ||
| 33032-36030 |
BU60 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58001 |
BU60 |
1 | ||
| 90364-58005 |
BU60 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-36020 |
BU60 |
1 | ||
| 33036-36040 |
BU60 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37012 |
BU60 |
1 | ||
| 90364-37008 |
BU60 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37001 |
BU60 |
1 | ||
| 33342 - WASHER, GEAR THRUST | ||||
| 33342-36020 |
BU60 |
1 | ||
| 33342-36021 |
BU60 |
1 | ||
| 33342-36010 |
BU60 |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
BU60 |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-33016 |
BU60 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 90520-33013 |
BU60 厚さ=1.90−1.95,T=1.90-1.95 |
1 | ||
| 90520-33017 |
BU60 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-33015 |
BU60 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-33014 |
BU60 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 33351 - WASHER, REVERSE GEAR THRUST | ||||
| 33351-36010 |
BU60 |
1 | ||
| 33351A - PIN, STRAIGHT (FOR REVERSE GEAR THRUST WASHER) | ||||
| 90250-04056 |
BU60 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36030 |
BU60 |
1 | ||
| 33361-36020 |
BU60 |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-43004 |
BU60 厚さ=2.00,ﾏｰｸ=4,T=2.00 |
1 | ||
| 90520-43006 |
BU60 厚さ=2.10,ﾏｰｸ=6,T=2.10 |
1 | ||
| 90520-43002 |
BU60 厚さ=1.90,ﾏｰｸ=2,T=1.90 |
1 | ||
| 90520-43005 |
BU60 厚さ=2.05,ﾏｰｸ=5,T=2.05 |
1 | ||
| 90520-43003 |
BU60 厚さ=1.95,ﾏｰｸ=3,T=1.95 |
1 | ||
| 90520-43007 |
BU60 厚さ=2.15,ﾏｰｸ=7,T=2.15 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36040 |
BU60 |
1 | ||
| 33362-36030 |
BU60 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-43004 |
BU60 厚さ=2.00,ﾏｰｸ=4,T=2.00 |
1 | ||
| 90520-43005 |
BU60 厚さ=2.05,ﾏｰｸ=5,T=2.05 |
1 | ||
| 90520-43007 |
BU60 厚さ=2.15,ﾏｰｸ=7,T=2.15 |
1 | ||
| 90520-43009 |
BU60 厚さ=1.85,ﾏｰｸ=8 |
1 | ||
| 90520-43006 |
BU60 厚さ=2.10,ﾏｰｸ=6,T=2.10 |
1 | ||
| 90520-43002 |
BU60 厚さ=1.90,ﾏｰｸ=2,T=1.90 |
1 | ||
| 90520-43003 |
BU60 厚さ=1.95,ﾏｰｸ=3,T=1.95 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-36020 |
BU60 |
1 | ||
| 33363-36030 |
BU60 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36080 |
BU60 |
1 | ||
| 33364-36060 |
BU60 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36030 |
BU60 |
3 | ||
| 33365-36020 |
BU60 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36030 |
BU60 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36040 |
BU60 |
1 | ||
| 33367-36050 |
BU60 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36040 |
BU60 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36040 |
BU60 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU60 |
2 | ||
| 33369-36010 |
BU60 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU60 |
2 | ||
| 33369-36010 |
BU60 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU60 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU60 |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-22020 |
BU60 |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-22020 |
BU60 |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-36040 |
BU60 |
3 | ||
| 33366-20011 |
BU60 |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU60 |
2 | ||
| 33371-36030 |
BU60 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU60 |
2 | ||
| 33371-36030 |
BU60 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36040 |
BU60 |
1 | ||
| 33393-36060 |
BU60 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-28056 |
BU60 厚さ=2.00−2.05,ﾏｰｸ 6,T=2.00-2.05 |
1 | ||
| 90520-28059 |
BU60 厚さ=2.15−2.20,ﾏｰｸ 9,T=2.15-2.20 |
1 | ||
| 90520-28055 |
BU60 厚さ=1.95−2.00,ﾏｰｸ 5,T=1.95-2.00 |
1 | ||
| 90520-28057 |
BU60 厚さ=2.05−2.10,ﾏｰｸ 7,T=2.05-2.10 |
1 | ||
| 90520-28058 |
BU60 厚さ=2.10−2.15,ﾏｰｸ 8,T=2.10-2.15 |
1 | ||
| 90520-28054 |
BU60 厚さ=1.90−1.95,ﾏｰｸ 4,T=1.90-1.95 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36030 |
BU60 |
1 | ||
| 33395-36020 |
BU60 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-36090 |
BU60 |
1 | ||
| 33402-36060 |
BU60 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-37002 |
BU60 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-30048 |
BU60 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26030 |
BU60 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 90520-26034 |
BU60 厚さ=2.15−2.20,T=2.15-2.20 |
1 | ||
| 90520-26031 |
BU60 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-26032 |
BU60 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 90520-26033 |
BU60 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-26035 |
BU60 厚さ=2.20−2.25,T=2.20-2.25 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36180 |
BU60 |
1 | ||
| 33421-36130 |
BU60 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36040 |
BU60 |
1 | ||
| 33451-36050 |
BU60 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
BU60 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
BU60 |
1 | ||
| 33462-36010 |
BU60 |
2 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
BU60 |
1 | ||
| 33462-36010 |
BU60 |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36160 |
BU60 歯数=6,ﾏｰｸ 6X23−25 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36070 |
BU60 |
1 | ||

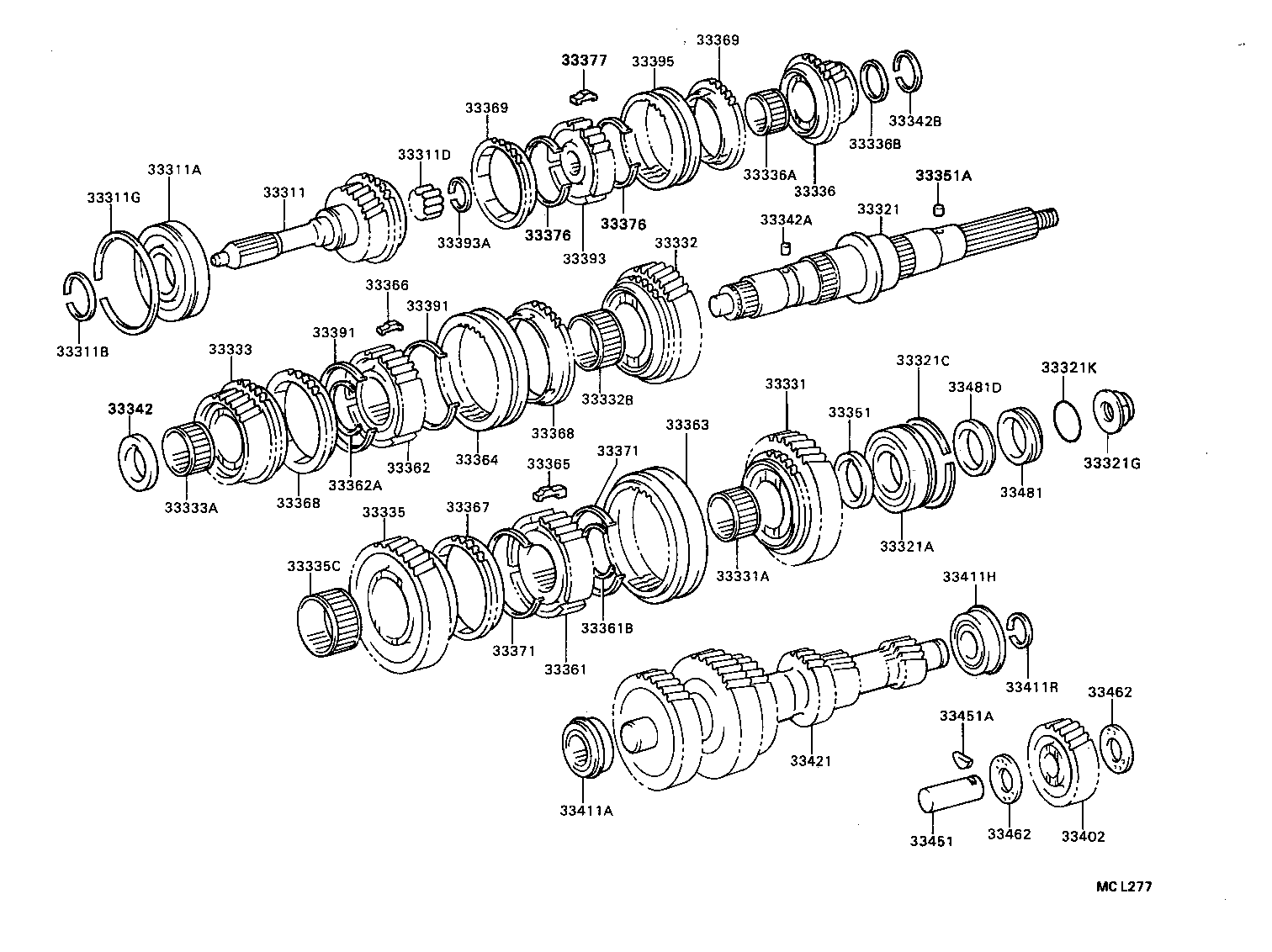

(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-36010 |
BU60 |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-36010 |
BU60 |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-36110 |
BU60 |
1 | ||
| 33301-36030 |
BU60 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45010 |
BU60 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42002 |
BU60 厚さ=2.50−2.55,MARK 2,T=2.50-2.55 |
1 | ||
| 90520-42003 |
BU60 厚さ=2.55−2.60,MARK 3,T=2.55-2.60 |
1 | ||
| 90520-42007 |
BU60 厚さ=2.75−2.80,MARK 7,T=2.75-2.80 |
1 | ||
| 90520-42006 |
BU60 厚さ=2.70−2.75,MARK 6,T=2.70-2.75 |
1 | ||
| 90520-42005 |
BU60 厚さ=2.65−2.70,MARK 5,T=2.65-2.70 |
1 | ||
| 90520-42004 |
BU60 厚さ=2.60−2.65,MARK 4,T=2.60-2.65 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
BU60 |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-96001 |
BU60 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36070 |
BU60 |
1 | ||
| 33321-36100 |
BU60 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-40034 |
BU60 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
BU60 厚さ=2.36−2.46 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24002 |
BU60 |
1 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-36010 |
BU60 |
2 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-36010 |
BU60 |
2 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-36010 |
BU60 |
1 | ||
| 33031-36030 |
BU60 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-54004 |
BU60 |
1 | ||
| 90364-47004 |
BU60 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36060 |
BU60 |
1 | ||
| 33033-36030 |
BU60 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54003 |
BU60 |
1 | ||
| 90364-54001 |
BU60 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-36060 |
BU60 |
1 | ||
| 33034-36010 |
BU60 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-47007 |
BU60 |
1 | ||
| 90364-47004 |
BU60 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-36050 |
BU60 |
1 | ||
| 33032-36050 |
BU60 ｱﾘ(ｴｷｿﾞ-ｽﾄ ﾌﾞﾚ-ｷ) |
1 | ||
| 33335-37030 |
BU60 |
1 | ||
| 33032-36030 |
BU60 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58001 |
BU60 |
1 | ||
| 90364-58005 |
BU60 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-36020 |
BU60 |
1 | ||
| 33036-36040 |
BU60 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37012 |
BU60 |
1 | ||
| 90364-37008 |
BU60 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37001 |
BU60 |
1 | ||
| 33338C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
BU60 |
1 | ||
| 33342 - WASHER, GEAR THRUST | ||||
| 33342-36020 |
BU60 |
1 | ||
| 33342-36021 |
BU60 |
1 | ||
| 33342-36010 |
BU60 |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
BU60 |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-33016 |
BU60 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 90520-33013 |
BU60 厚さ=1.90−1.95,T=1.90-1.95 |
1 | ||
| 90520-33017 |
BU60 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-33015 |
BU60 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-33014 |
BU60 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| 33354-36010 |
BU60 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36030 |
BU60 |
1 | ||
| 33361-36020 |
BU60 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36040 |
BU60 |
1 | ||
| 33362-36030 |
BU60 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-43004 |
BU60 厚さ=2.00,ﾏｰｸ=4,T=2.00 |
1 | ||
| 90520-43005 |
BU60 厚さ=2.05,ﾏｰｸ=5,T=2.05 |
1 | ||
| 90520-43007 |
BU60 厚さ=2.15,ﾏｰｸ=7,T=2.15 |
1 | ||
| 90520-43009 |
BU60 厚さ=1.85,ﾏｰｸ=8 |
1 | ||
| 90520-43006 |
BU60 厚さ=2.10,ﾏｰｸ=6,T=2.10 |
1 | ||
| 90520-43002 |
BU60 厚さ=1.90,ﾏｰｸ=2,T=1.90 |
1 | ||
| 90520-43003 |
BU60 厚さ=1.95,ﾏｰｸ=3,T=1.95 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-36020 |
BU60 |
1 | ||
| 33363-36030 |
BU60 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36080 |
BU60 |
1 | ||
| 33364-36060 |
BU60 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36030 |
BU60 |
3 | ||
| 33365-36020 |
BU60 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36040 |
BU60 |
1 | ||
| 33367-36050 |
BU60 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU60 |
2 | ||
| 33369-36010 |
BU60 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU60 |
2 | ||
| 33369-36010 |
BU60 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU60 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU60 |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-36040 |
BU60 |
3 | ||
| 33366-20011 |
BU60 |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU60 |
2 | ||
| 33371-36030 |
BU60 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU60 |
2 | ||
| 33371-36030 |
BU60 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
BU60 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
BU60 |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36040 |
BU60 |
1 | ||
| 33393-36060 |
BU60 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-28056 |
BU60 厚さ=2.00−2.05,ﾏｰｸ 6,T=2.00-2.05 |
1 | ||
| 90520-28059 |
BU60 厚さ=2.15−2.20,ﾏｰｸ 9,T=2.15-2.20 |
1 | ||
| 90520-28055 |
BU60 厚さ=1.95−2.00,ﾏｰｸ 5,T=1.95-2.00 |
1 | ||
| 90520-28057 |
BU60 厚さ=2.05−2.10,ﾏｰｸ 7,T=2.05-2.10 |
1 | ||
| 90520-28058 |
BU60 厚さ=2.10−2.15,ﾏｰｸ 8,T=2.10-2.15 |
1 | ||
| 90520-28054 |
BU60 厚さ=1.90−1.95,ﾏｰｸ 4,T=1.90-1.95 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-36020 |
BU60 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36030 |
BU60 |
1 | ||
| 33395-36020 |
BU60 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33461-36090 |
BU60 |
1 | ||
| 33402-36060 |
BU60 |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28019 |
BU60 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-37002 |
BU60 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-30048 |
BU60 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26030 |
BU60 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 90520-26034 |
BU60 厚さ=2.15−2.20,T=2.15-2.20 |
1 | ||
| 90520-26031 |
BU60 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-26032 |
BU60 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 90520-26033 |
BU60 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-26035 |
BU60 厚さ=2.20−2.25,T=2.20-2.25 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36180 |
BU60 |
1 | ||
| 33421-36130 |
BU60 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36040 |
BU60 |
1 | ||
| 33451-36050 |
BU60 |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
BU60 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
BU60 |
1 | ||
| 33462-36010 |
BU60 |
2 | ||
| 33464 - WASHER, REVERSE IDLER THRUST, NO.2 | ||||
| 33464-60010 |
BU60 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36160 |
BU60 歯数=6,ﾏｰｸ 6X23−25 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36070 |
BU60 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
