BU60VH-QDFT (1986)
Toyota Dyna/Toyoace Quick
(8601- )

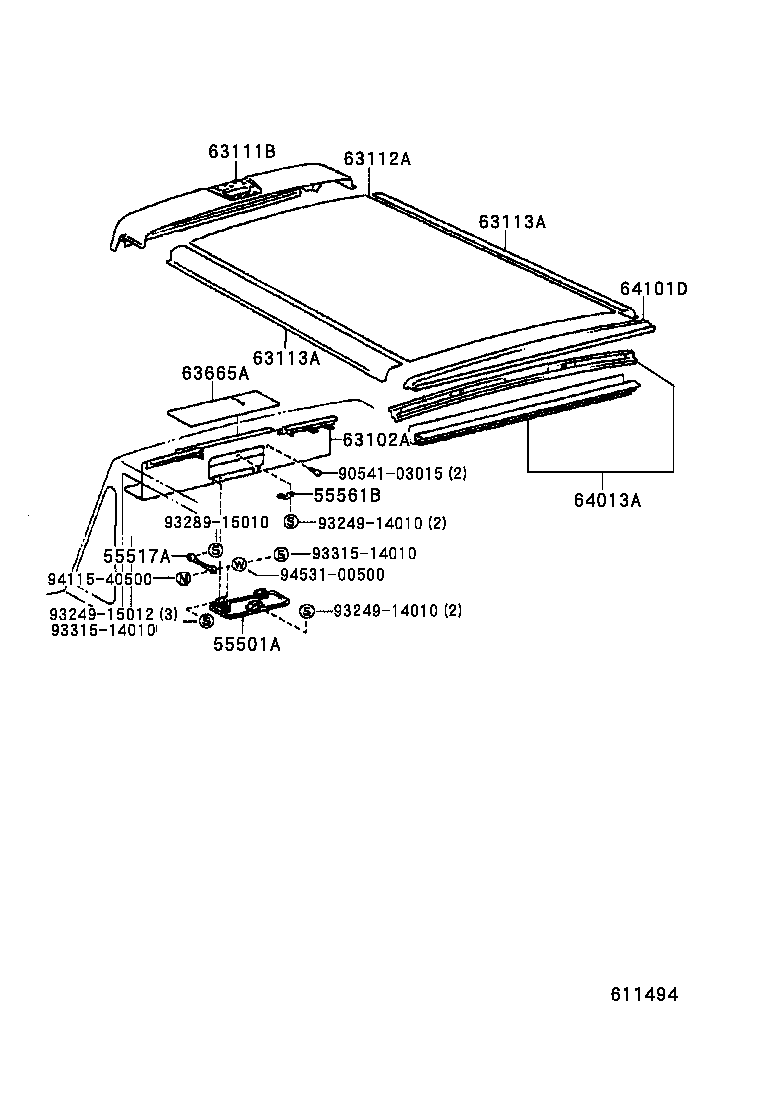

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-90D00 |
BU60 |
1 | ||
| 55517A - STOPPER, GLOVE COMPARTMENT DOOR | ||||
| 55517-90D00 |
BU60 |
1 | ||
| 55561B - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-90800 |
BU60 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90F00 |
BU60..D |
1 | ||
| 63102-90F02 |
BU60..D ｱﾘ(ｵ-ﾊﾞ- ﾍﾂﾄﾞ ｸﾞﾗﾌﾞ ﾎﾞﾂｸｽ & ｽﾎﾟﾂﾄ ﾗﾝﾌﾟ) |
1 | ||
| 63102-90F01 |
BU60 W/OVER HEAD GLOVE BOX |
1 | ||
| 63102-90F01 |
BU60..N |
1 | ||
| 63102-90F02 |
BU60..N |
1 | ||
| 63102-90F01 |
BU60..D..3D ｱﾘ(ｵ-ﾊﾞ- ﾍﾂﾄﾞ ｸﾞﾗﾌﾞ ﾎﾞﾂｸｽ) |
1 | ||
| 63102-90F01 |
BU60..D ｱﾘ(ｵ-ﾊﾞ- ﾍﾂﾄﾞ ｸﾞﾗﾌﾞ ﾎﾞﾂｸｽ) |
1 | ||
| 63102-90F03 |
BU60..D..3D ｱﾘ(ｽﾎﾟﾂﾄ ﾗﾝﾌﾟ) |
1 | ||
| 63102-90F06 |
BU60..D..3D ｱﾘ(ｵ-ﾊﾞ- ﾍﾂﾄﾞ ｸﾞﾗﾌﾞ ﾎﾞﾂｸｽ) |
1 | ||
| 63102-90F05 |
BU60..D |
1 | ||
| 63102-90F07 |
BU60..N |
1 | ||
| 63102-90F07 |
BU60..D ｱﾘ(ｵ-ﾊﾞ- ﾍﾂﾄﾞ ｸﾞﾗﾌﾞ ﾎﾞﾂｸｽ & ｽﾎﾟﾂﾄ ﾗﾝﾌﾟ) |
1 | ||
| 63102-90F08 |
BU60..D..3D ｱﾘ(ｽﾎﾟﾂﾄ ﾗﾝﾌﾟ) |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-90F04 |
BU60..D..CBU ｱﾘ(ﾗｼﾞｵ) |
1 | ||
| 63111-90F04 |
BU60..N |
1 | ||
| 63111-90F03 |
BU60..D..CBU |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90F00 |
BU60 |
2 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63113-90F00 |
BU60 右側 |
1 | ||
| 63114-90F00 |
BU60 左側 |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63113-90F00 |
BU60 右側 |
1 | ||
| 63114-90F00 |
BU60 左側 |
1 | ||
| 63665A - MAT, ROOF CONSOLE BOX | ||||
| 63665-90D00 |
BU60 |
1 | ||
| 63665-90D00 |
BU60..N;BU60..IV3 |
1 | ||
| 63665-90D00 |
BU60..D..CBU |
1 | ||
| 64013A - RAIL SUB-ASSY, BACK | ||||
| 64013-90F02 |
BU60..3D W/COURTESY SWITCH |
1 | ||
| 64013-90F02 |
BU60..N..3D |
1 | ||
| 64013-90F00 |
BU60..D..3D..CBU |
1 | ||
| 64013-90F02 |
BU60..D..3D..CBU ｱﾘ(ｶ-ﾃｼ ｽｲﾂﾁ) |
1 | ||
| 64013-90F00 |
BU60..D..3D |
1 | ||
| 64101D - RAIL SUB-ASSY, UPPER BACK, OUTER | ||||
| 64101-90F00 |
BU60 |
1 | ||
| 64101-90F01 |
BU60 |
1 | ||
| Common parts | ||||
| 90541-03015 | ||||
| 93249-14010 | ||||
| 93249-15012 | ||||
| 93289-15010 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| 94531-00500 | ||||

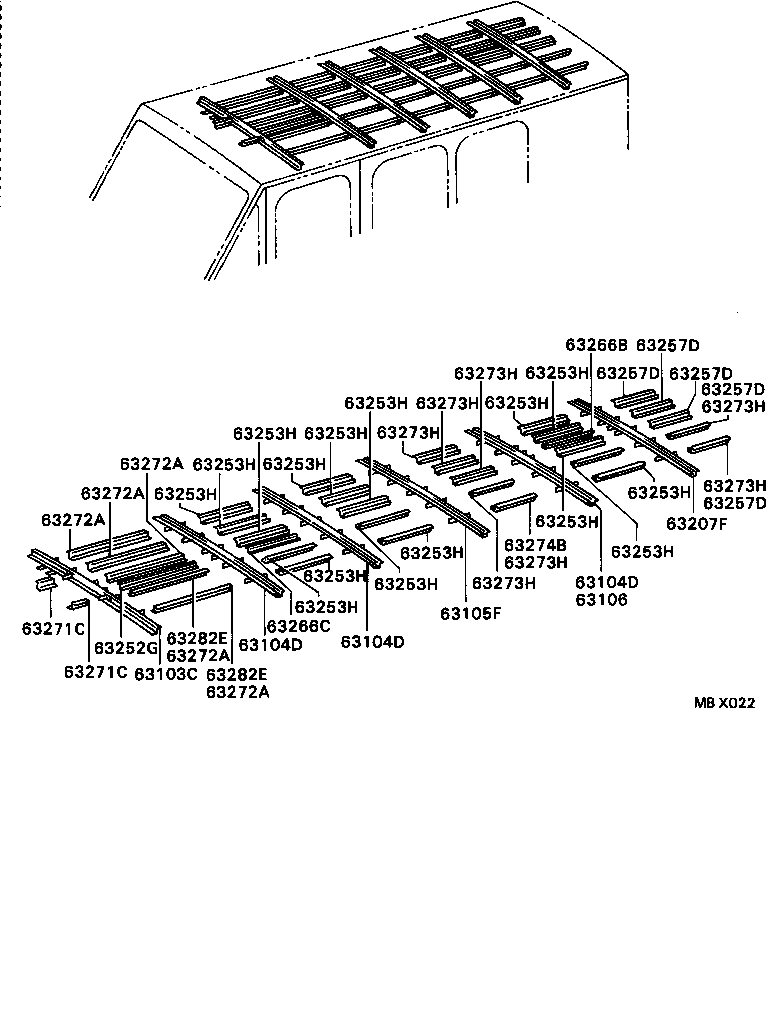

(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63103C - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-90F01 |
BU60..N |
1 | ||
| 63103-90F00 |
BU60..D |
1 | ||
| 63103-90F01 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-90F01 |
BU60..D..CBU NO.2 |
1 | ||
| 63104-90F01 |
BU60..N NO.2 |
1 | ||
| 63104-90F03 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63104-90F02 |
BU60..D..CBU NO.3 |
1 | ||
| 63104-90F02 |
BU60..D NO.3,5 |
2 | ||
| 63104-90F02 |
BU60..D NO.2 |
1 | ||
| 63104-90F02 |
BU60..N NO.3 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-90F01 |
BU60..D..CBU NO.2 |
1 | ||
| 63104-90F01 |
BU60..N NO.2 |
1 | ||
| 63104-90F03 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63104-90F02 |
BU60..D..CBU NO.3 |
1 | ||
| 63104-90F02 |
BU60..D NO.3,5 |
2 | ||
| 63104-90F02 |
BU60..D NO.2 |
1 | ||
| 63104-90F02 |
BU60..N NO.3 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-90F01 |
BU60..D..CBU NO.2 |
1 | ||
| 63104-90F01 |
BU60..N NO.2 |
1 | ||
| 63104-90F03 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63104-90F02 |
BU60..D..CBU NO.3 |
1 | ||
| 63104-90F02 |
BU60..D NO.3,5 |
2 | ||
| 63104-90F02 |
BU60..D NO.2 |
1 | ||
| 63104-90F02 |
BU60..N NO.3 |
1 | ||
| 63105F - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63105-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63105-90F00 |
BU60 |
1 | ||
| 63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63106-90F00 |
BU60..CBU |
1 | ||
| 63207F - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7 | ||||
| 63207-90F00 |
BU60..N |
1 | ||
| 63207-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
1 | ||
| 63207-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90D02 |
BU60..CBU |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
9 | ||
| 63256-90F00 |
BU60..D..CBU RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..D |
15 | ||
| 63253-90F00 |
BU60..D..CBU FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F00 |
BU60..N RR-CTR=1 |
1 | ||
| 63253-90F00 |
BU60..N FR=5 CTR=5 RR-RH=1 |
11 | ||
| 63256-90F04 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,RR-LH |
2 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63277-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
3 | ||
| 63277-90F00 |
BU60..N |
3 | ||
| 63257-90F00 |
BU60..D |
5 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63277-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
3 | ||
| 63277-90F00 |
BU60..N |
3 | ||
| 63257-90F00 |
BU60..D |
5 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63277-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
3 | ||
| 63277-90F00 |
BU60..N |
3 | ||
| 63257-90F00 |
BU60..D |
5 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63277-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
3 | ||
| 63277-90F00 |
BU60..N |
3 | ||
| 63257-90F00 |
BU60..D |
5 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63277-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
3 | ||
| 63277-90F00 |
BU60..N |
3 | ||
| 63257-90F00 |
BU60..D |
5 | ||
| 63266B - STRENGTH, ROOF PANEL, CENTER NO.6 LH | ||||
| 63266-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸｰﾙﾎﾞﾂｸｽ ｼﾖｳ |
3 | ||
| 63266-90F00 |
BU60..CBU |
3 | ||
| 63266C - STRENGTH, ROOF PANEL, CENTER NO.6 LH | ||||
| 63266-90F00 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 63271C - STRENGTH, ROOF PANEL, NO.1 RH | ||||
| 63271-90D02 |
BU60 |
2 | ||
| 63271C - STRENGTH, ROOF PANEL, NO.1 RH | ||||
| 63271-90D02 |
BU60 |
2 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90D02 |
BU60..N 右側 |
2 | ||
| 63272-90D02 |
BU60..D..CBU 右側 |
2 | ||
| 63282-90D00 |
BU60..N 左側 |
2 | ||
| 63272-90D02 |
BU60..D |
5 | ||
| 63282-90D00 |
BU60..D..CBU 左側 |
2 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90D02 |
BU60..N 右側 |
2 | ||
| 63272-90D02 |
BU60..D..CBU 右側 |
2 | ||
| 63282-90D00 |
BU60..N 左側 |
2 | ||
| 63272-90D02 |
BU60..D |
5 | ||
| 63282-90D00 |
BU60..D..CBU 左側 |
2 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90D02 |
BU60..N 右側 |
2 | ||
| 63272-90D02 |
BU60..D..CBU 右側 |
2 | ||
| 63282-90D00 |
BU60..N 左側 |
2 | ||
| 63272-90D02 |
BU60..D |
5 | ||
| 63282-90D00 |
BU60..D..CBU 左側 |
2 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90D02 |
BU60..N 右側 |
2 | ||
| 63272-90D02 |
BU60..D..CBU 右側 |
2 | ||
| 63282-90D00 |
BU60..N 左側 |
2 | ||
| 63272-90D02 |
BU60..D |
5 | ||
| 63282-90D00 |
BU60..D..CBU 左側 |
2 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90D02 |
BU60..N 右側 |
2 | ||
| 63272-90D02 |
BU60..D..CBU 右側 |
2 | ||
| 63282-90D00 |
BU60..N 左側 |
2 | ||
| 63272-90D02 |
BU60..D |
5 | ||
| 63282-90D00 |
BU60..D..CBU 左側 |
2 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90D03 |
BU60..N |
5 | ||
| 63273-90F00 |
BU60..N |
2 | ||
| 63273-90F00 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
2 | ||
| 63273-90D03 |
BU60..D..CBU ｱﾘ(ﾙ-ﾑ ﾗﾝﾌﾟ) |
5 | ||
| 63273-90D03 |
BU60..D |
4 | ||
| 63274B - STRENGTH, ROOF PANEL, NO.4 RH | ||||
| 63274-90D01 |
BU60..D |
1 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-90D00 |
BU60..CBU |
2 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-90D00 |
BU60..CBU |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
