BU60VH-QDFT (1986)
Toyota Dyna/Toyoace Quick
Production
Jan 1986
-
May 1995
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

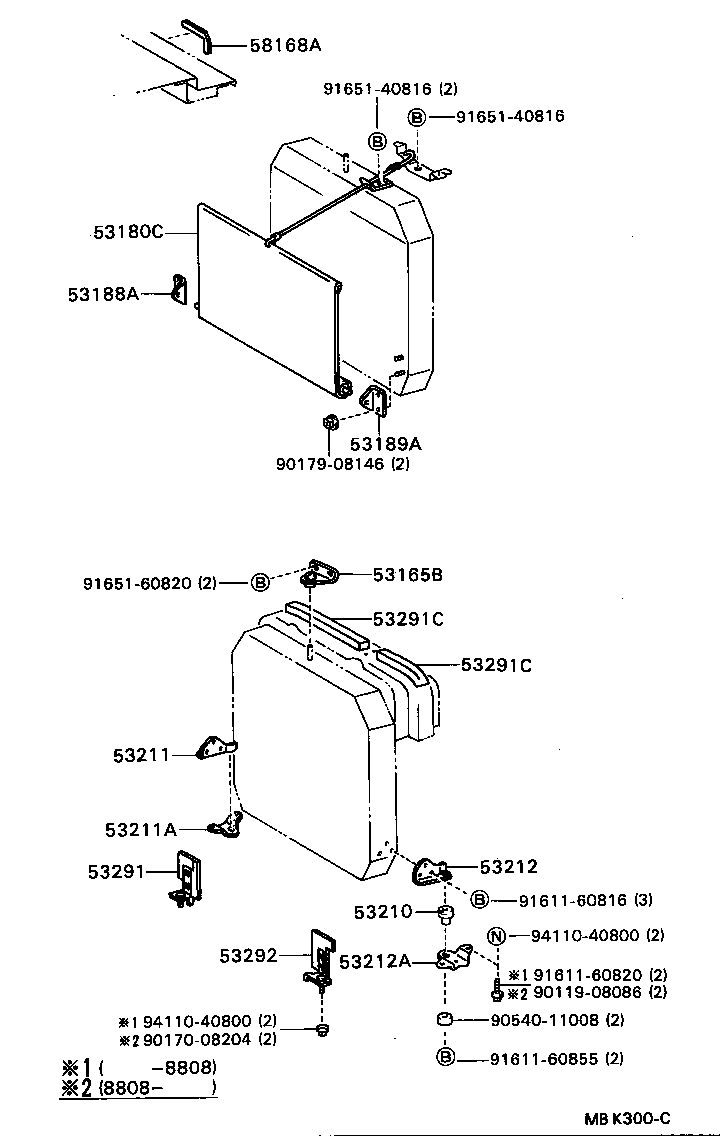

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53165B - SUPPORT, RADIATOR, CENTER | ||||
| 53165-36050 |
BU60 |
1 | ||
| 53180C - SHUTTER ASSY, RADIATOR | ||||
| 53180-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 53180-90F01 |
BU60 |
1 | ||
| 53180-90F00 |
BU60 |
1 | ||
| 53180-90F03 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ |
1 | ||
| 53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH | ||||
| 53188-95405 |
BU60 |
1 | ||
| 53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH | ||||
| 53189-95403 |
BU60 |
1 | ||
| 53210 - SUPPORT ASSY, RADIATOR | ||||
| 53210-36010 |
BU60 |
2 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-36020 |
BU60 |
1 | ||
| 53211-36060 |
BU60 |
1 | ||
| 53211A - BRACKET, RADIATOR SUPPORT, RH | ||||
| 51411-36090 |
BU60 |
1 | ||
| 51411-36120 |
BU60 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-36020 |
BU60 |
1 | ||
| 53212A - BRACKET, RADIATOR SUPPORT, LH | ||||
| 51412-36090 |
BU60 |
1 | ||
| 53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-36030 |
BU60 |
1 | ||
| 53291-36050 |
BU60..D |
1 | ||
| 53291-36050 |
BU60 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53292-90F01 |
BU60 左側 |
1 | ||
| 53292-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,左側 |
1 | ||
| 53291-90F00 |
BU60 右側 |
1 | ||
| 53291-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,右側 |
1 | ||
| 53291-90F01 |
BU60 右側 |
1 | ||
| 53292-90F00 |
BU60 LH |
1 | ||
| 53291-90F00 |
BU60 RH |
1 | ||
| 53292-90F00 |
BU60 左側 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53292-90F01 |
BU60 左側 |
1 | ||
| 53292-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,左側 |
1 | ||
| 53291-90F00 |
BU60 右側 |
1 | ||
| 53291-90F01 |
BU60..N..3D ﾔﾏﾄｳﾝﾕ ｸ-ﾙﾎﾞﾂｸｽ ｼﾖｳ,右側 |
1 | ||
| 53291-90F01 |
BU60 右側 |
1 | ||
| 53292-90F00 |
BU60 LH |
1 | ||
| 53291-90F00 |
BU60 RH |
1 | ||
| 53292-90F00 |
BU60 左側 |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-36060 |
BU60 |
1 | ||
| 58168A - PROTECTOR, FLOOR WIRE | ||||
| 58168-90D01 |
BU60 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90170-08204 | ||||
| 90179-08146 | ||||
| 90540-11008 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60855 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
| 94110-40800 | ||||
