XKU722-TKVRY3 (2021)
Toyota Dyna/Toyoace Hv
Production
Mar 2021
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )DCWDO

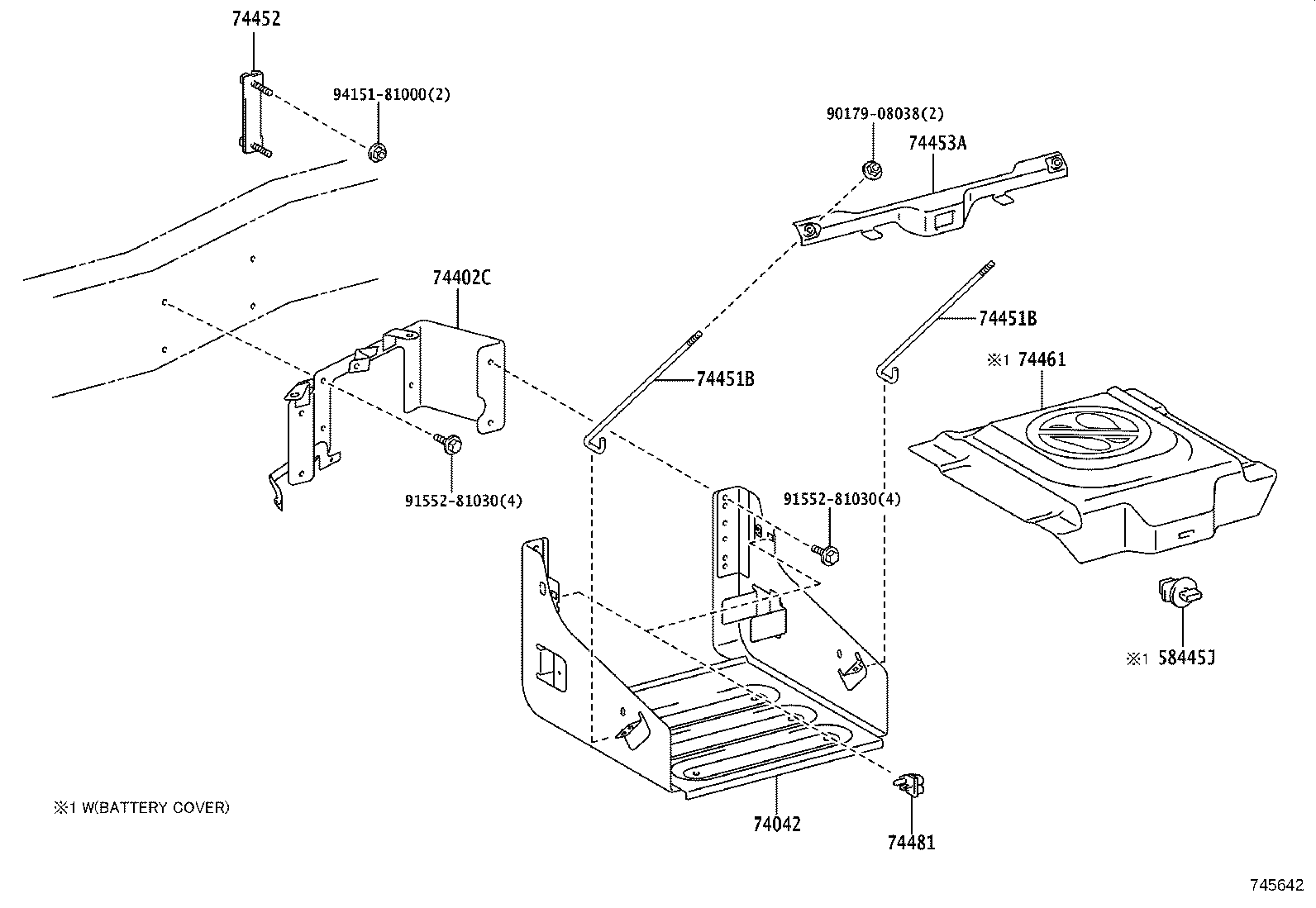

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58445J - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-37020 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-37450 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74042-37420 |
XKU702,71#,72#..DCWDO..IV3 ﾊﾞｯﾃﾘ−80D26L X 2 |
1 | ||
| 74402C - BRACKET SUB-ASSY, BATTERY CARRIER, REAR | ||||
| 74402-37130 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37022 |
XKU702,71#,72#..DCWDO |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-37022 |
XKU702,71#,72#..DCWDO |
2 | ||
| 74452 - PLATE, BATTERY SET | ||||
| 74452-37033 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74452-37200 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-37090 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74461-37130 |
XKU702,71#,72#..DCWDO |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74481-37020 |
XKU702,71#,72#..DCWDO |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91552-81030 | ||||
| 94151-81000 | ||||
