XKU722-TKVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1905- )

Click highlighted areas on diagram

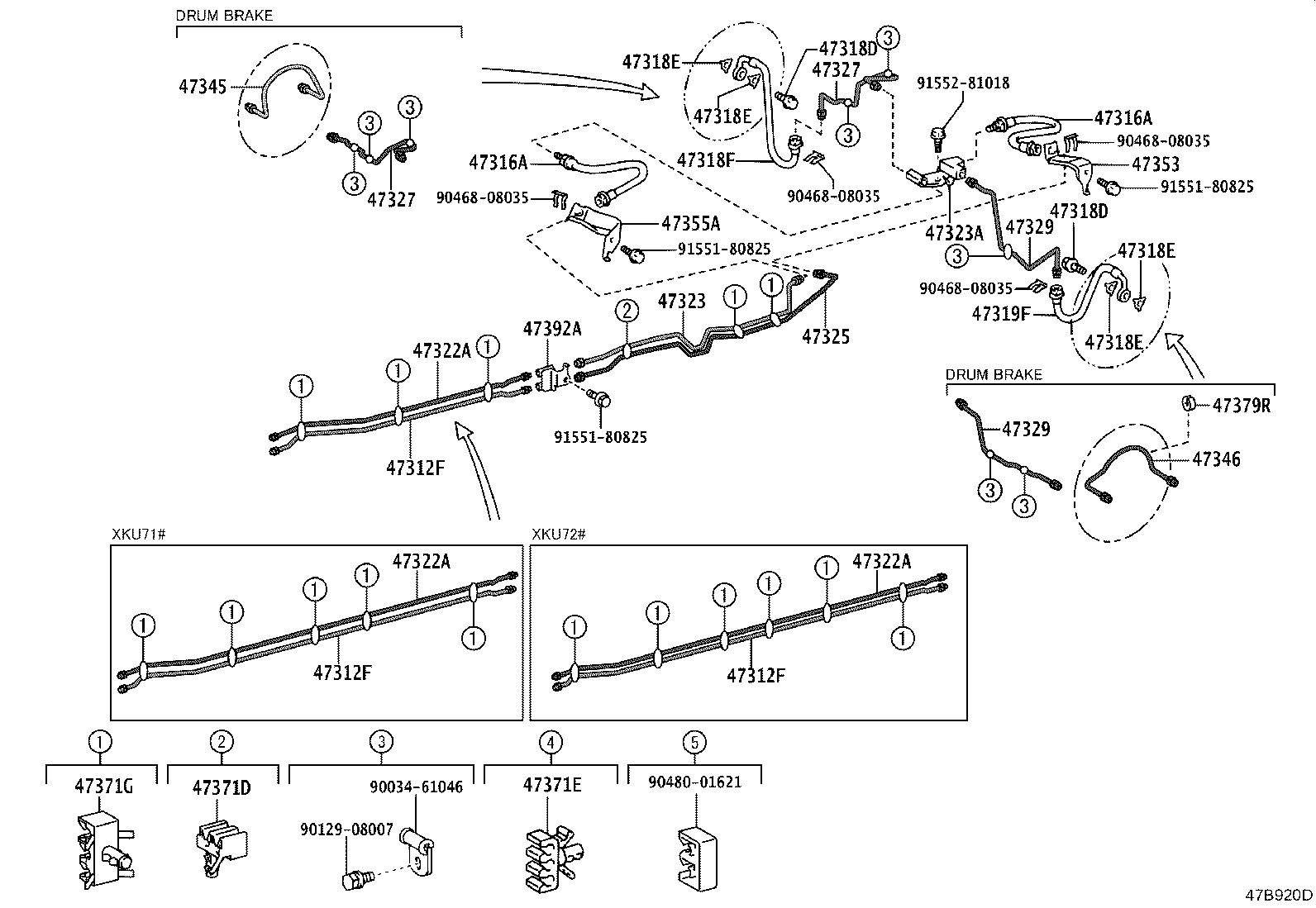

diagram 47312F 47312F 47312F 47316A 47316A 47318D 47318D 47318E 47318E 47318E 47318E 47318F 47319F 47322A 47322A 47322A 47323 47323A 47325 47327 47327 47329 47329 47345 47346 47353 47355A 47371D 47371E 47371G 47379R 47392A 9003461046 9012908007 9046808035 9046808035 9046808035 9046808035 9048001621 9155180825 9155180825 9155180825 9155281018
Part # Description Qty Price
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XKU72#..DCRWD

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XKU72#..DCRWD

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37G60

XKU72#..DCRWD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B78

XKU702,71#,72#..DCRWD

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B78

XKU702,71#,72#..DCRWD

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

XKU702,71#,72#..DCRWD

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

XKU702,71#,72#..DCRWD

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

XKU702,71#,72#..DCRWD

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

XKU702,71#,72#..DCRWD

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

XKU702,71#,72#..DCRWD

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

XKU702,71#,72#..DCRWD

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E74

XKU702,712,722..DCRWD

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02D85

XKU702,712,722..DCRWD

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XKU72#..DCRWD

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XKU72#..DCRWD

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37J40

XKU72#..DCRWD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-37C20

XKU702,71#,72#..DCRWD

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
47391-37090

XKU702,71#,72#..DCRWD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-37690

XKU702,71#,72#..DCRWD

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-37811

XKU702,712,722..DCRWD

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-37811

XKU702,712,722..DCRWD

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-37591

XKU702,712,722..DCRWD

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-37591

XKU702,712,722..DCRWD

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37250

XKU702,71#,72#..DCRWD

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47354-37230

XKU702,71#,72#..DCRWD

 1
47371D - CLAMP, BRAKE TUBE, NO.8
47371-37250

XKU702,71#,72#..DCRWD

 1
47371G - CLAMP, BRAKE TUBE, NO.11
47371-37240

XKU72#..DCRWD

 6
47392A - WAY, BRAKE TUBE, NO.2
47391-37680

XKU702,71#,72#..DCRWD

NO.2

 1
47391-37410

XKU702,71#,72#..DCRWD

NO.1

 1
Common parts
90034-61046
90129-08007
90468-08035
90480-01621
91551-80825
91552-81018
