XKU720-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv
Production
May 2019
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)

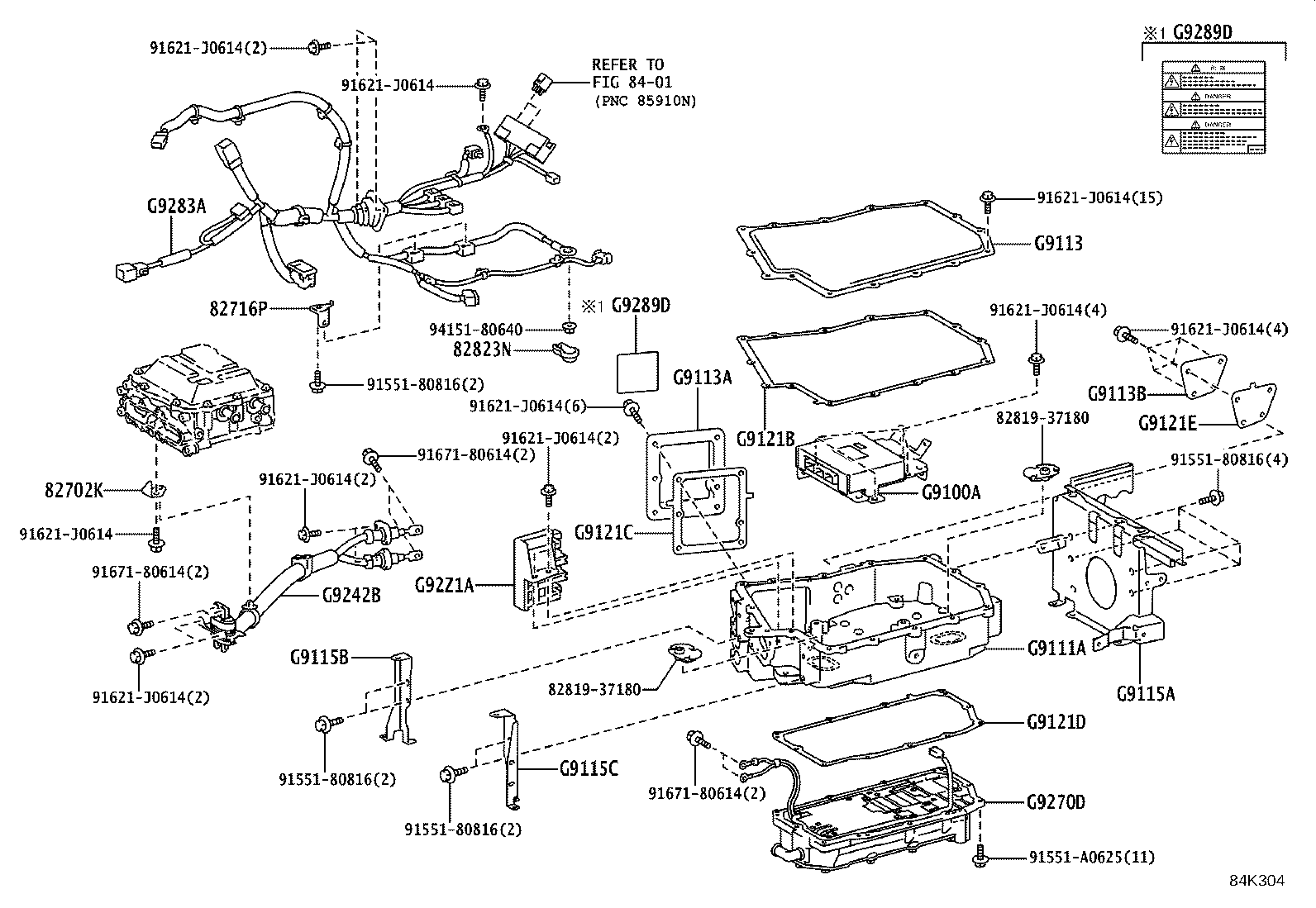

ILLUST NO. 2 OF 2(1905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82702K - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82702-37A40 |
XKU702,71#,72#..DCRWD |
1 | ||
| 82716P - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-95J21 |
XKU702,71#,72#..DCRWD |
2 | ||
| 82823N - CAP, TERMINAL | ||||
| 82823-22050 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9100A - CONTROLLER ASSY, EV UNIT | ||||
| G9100-37131 |
XKU702,71#,72# |
1 | ||
| G9100-37135 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9100-37132 |
XKU702,71#,72# |
1 | ||
| G9100-37130 |
XKU702,71#,72# |
1 | ||
| G9100-37133 |
XKU702,71#,72# |
1 | ||
| G9100-37134 |
XKU702,71#,72# |
1 | ||
| G9111A - CASE, EV UNIT CONTROLLER | ||||
| G9111-37021 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9113 - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER | ||||
| G9113-37011 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9113A - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.2 | ||||
| G9113-37021 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9113B - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.3 | ||||
| G9113-37030 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9115A - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER | ||||
| G9115-37050 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9115B - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.2 | ||||
| G9115-37070 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9115C - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.3 | ||||
| G9115-37060 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9121B - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER | ||||
| G9121-37010 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9121C - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.2 | ||||
| G9121-37020 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9121D - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.3 | ||||
| G9121-37040 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9121E - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.4 | ||||
| G9121-37030 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9242B - CABLE, MAIN BATTERY | ||||
| G9242-37040 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9270D - CONVERTER ASSY, EV | ||||
| G9270-37010 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9283A - WIRE, HYBRID BATTERY | ||||
| G9283-37060 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9289D - LABEL, BATTERY CAUTION | ||||
| G9289-37040 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9289D - LABEL, BATTERY CAUTION | ||||
| G9289-37040 |
XKU702,71#,72#..DCRWD |
1 | ||
| G92Z1A - BLOCK, HV BATTERY JUNCTION | ||||
| G92Z1-37020 |
XKU702,71#,72#..DCRWD |
1 | ||
| Common parts | ||||
| 82819-37180 | ||||
| 91551-80816 | ||||
| 91551-A0625 | ||||
| 91621-J0614 | ||||
| 91671-80614 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||

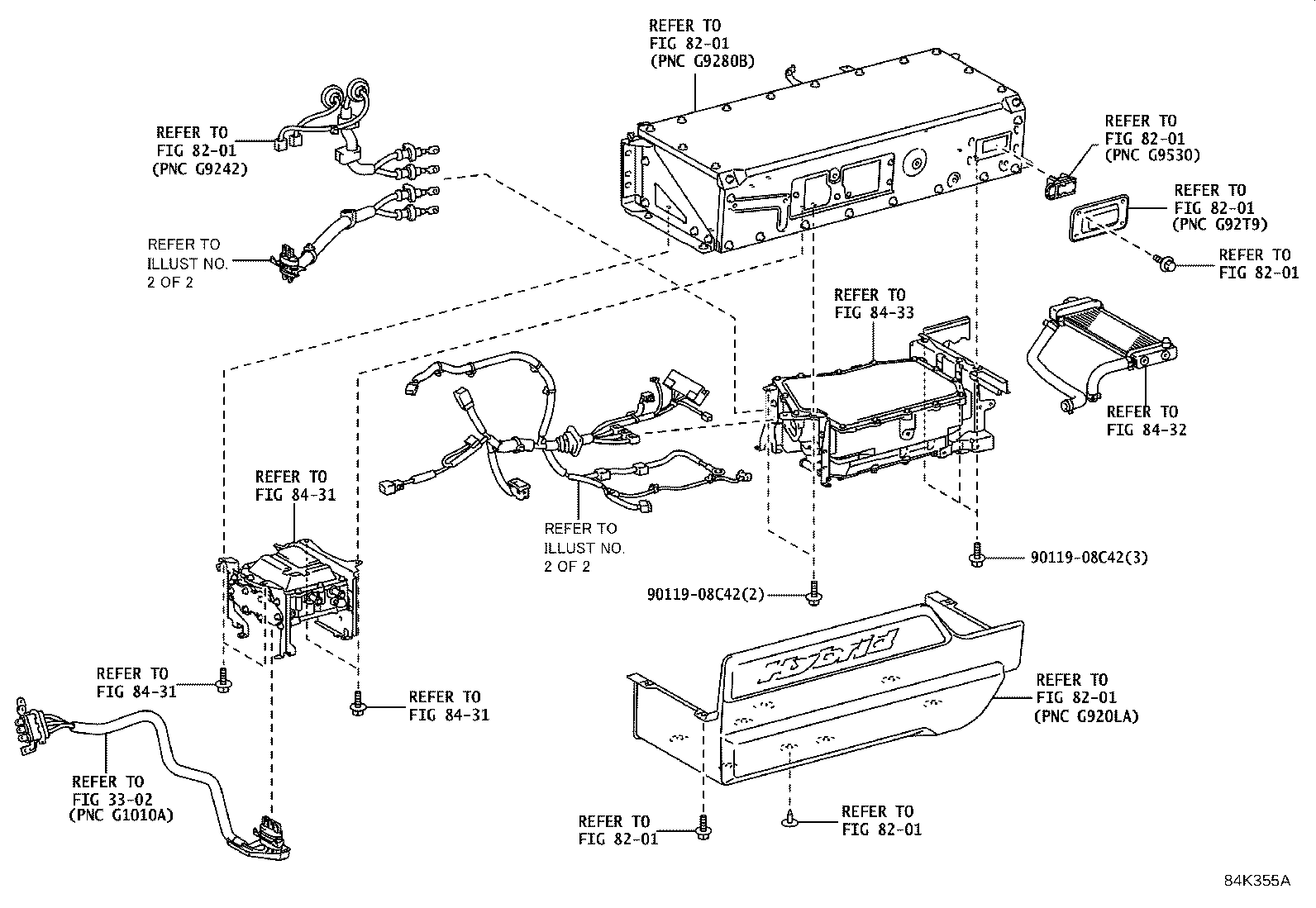

ILLUST NO. 1 OF 2(1905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C42 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 8201 | ||||
| 8431 | ||||
| 8432 | ||||
| 8433 | ||||
