XKU720-TQVMX3 (2019)
Toyota Dyna/Toyoace Hv

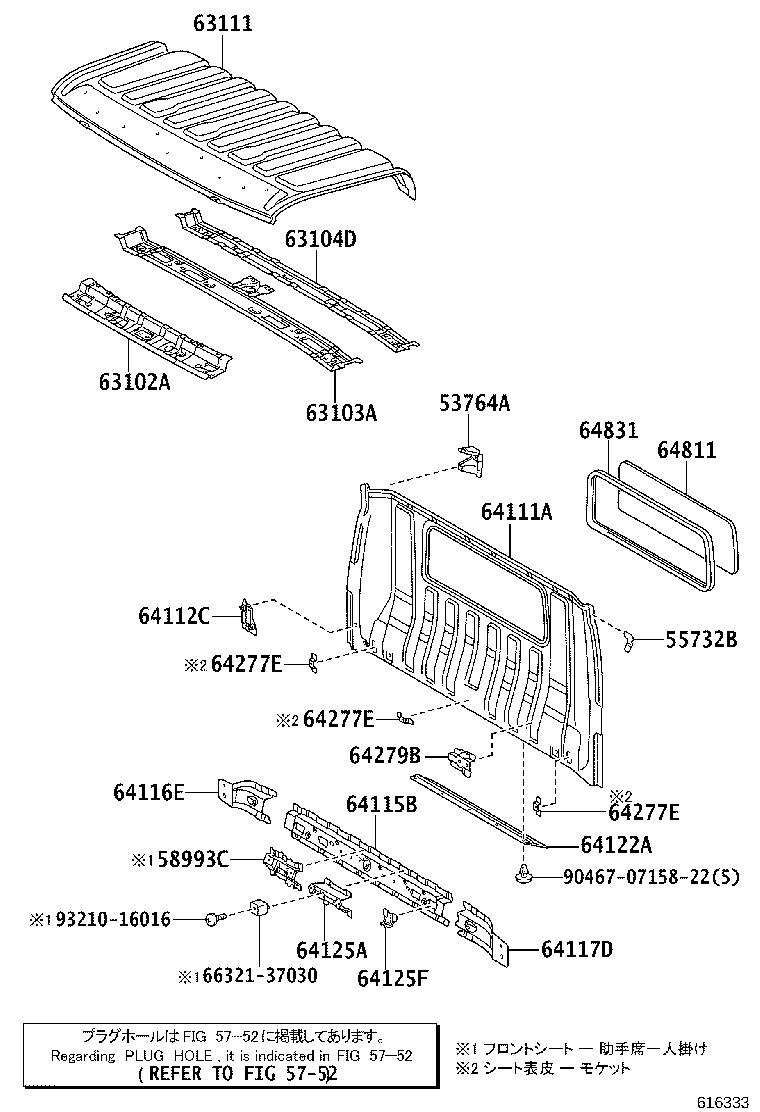

ILLUST NO. 1 OF 3(1905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53764A - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53764-37120 |
XKU702,71#,72#..DCRWD |
1 | ||
| 55732B - BRACKET, FRONT PANEL, NO.2 | ||||
| 55732-37060 |
XKU702,71#,72#..DCRWD |
2 | ||
| 58993C - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-37060 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄｼｰﾄ−助手席:1人掛けｼｰﾄ |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-37080 |
XKU702,71#,72#..DCRWD |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-37070 |
XKU702,71#,72#..DCRWD |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-37060 |
XKU702,71#,72#..DCRWD |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37270 |
XKU702,71#,72#..DCRWD..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼｮｰﾄﾀｲﾌﾟ) |
1 | ||
| 63111-37260 |
XKU702,71#,72#..DCRWD |
1 | ||
| 63111-37270 |
XKU702,71#,72#..DCRWD..IV3 ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ−有り(ｼﾝﾌﾟﾙﾀｲﾌﾟ(ﾎﾜｲﾄ)) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37570 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64112C - PANEL, UPPER BACK, INNER | ||||
| 64112-37040 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄｼｰﾄ−助手席:1人掛けｼｰﾄ |
1 | ||
| 64112-37040 |
XKU702,71#,72#..DCRWD ｼｰﾄ表皮−ﾓｹｯﾄ |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-37210 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64116E - REINFORCEMENT, UPPER BACK, RH | ||||
| 64116-37040 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64117D - REINFORCEMENT, UPPER BACK, LH | ||||
| 64117-37070 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-37200 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64125A - BRACKET, UPPER BACK PANEL, RH | ||||
| 64125-37060 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64125F - BRACKET, UPPER BACK PANEL | ||||
| 64125-37030 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
XKU702,71#,72#..DCRWD ｼｰﾄ表皮−ﾓｹｯﾄ |
3 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
XKU702,71#,72#..DCRWD ｼｰﾄ表皮−ﾓｹｯﾄ |
3 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37010 |
XKU702,71#,72#..DCRWD ｼｰﾄ表皮−ﾓｹｯﾄ |
3 | ||
| 64279B - BRACKET, BACK PANEL TRIM, LOWER NO.2 | ||||
| 64279-37010 |
XKU702,71#,72#..DCRWD |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37180 |
XKU702,71#,72#..DCRWD..IV3 |
3 | ||
| 64811-37180 |
XKU702,71#,72#..DCRWD..IV3 |
1 | ||
| 64811-37180 |
XKU702,71#,72#..DCRWD..IV3 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37070 |
XKU702,71#,72#..DCRWD..IV3 |
1 | ||
| 64831-37070 |
XKU702,71#,72#..DCRWD..IV3 |
3 | ||
| 64831-37070 |
XKU702,71#,72#..DCRWD..IV3 |
1 | ||
| Common parts | ||||
| 66321-37030 | ||||
| 90467-0715822 | ||||
| 93210-16016 | ||||
| Linked diagrams | ||||
| 5752 | ||||
