XKU720-TQVMC3 (2017)

Toyota Dyna/Toyoace Hv

Production Nov 2017 - May 2019
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1711- )N04C..XKU702,71#,72#..6F..DCRTK

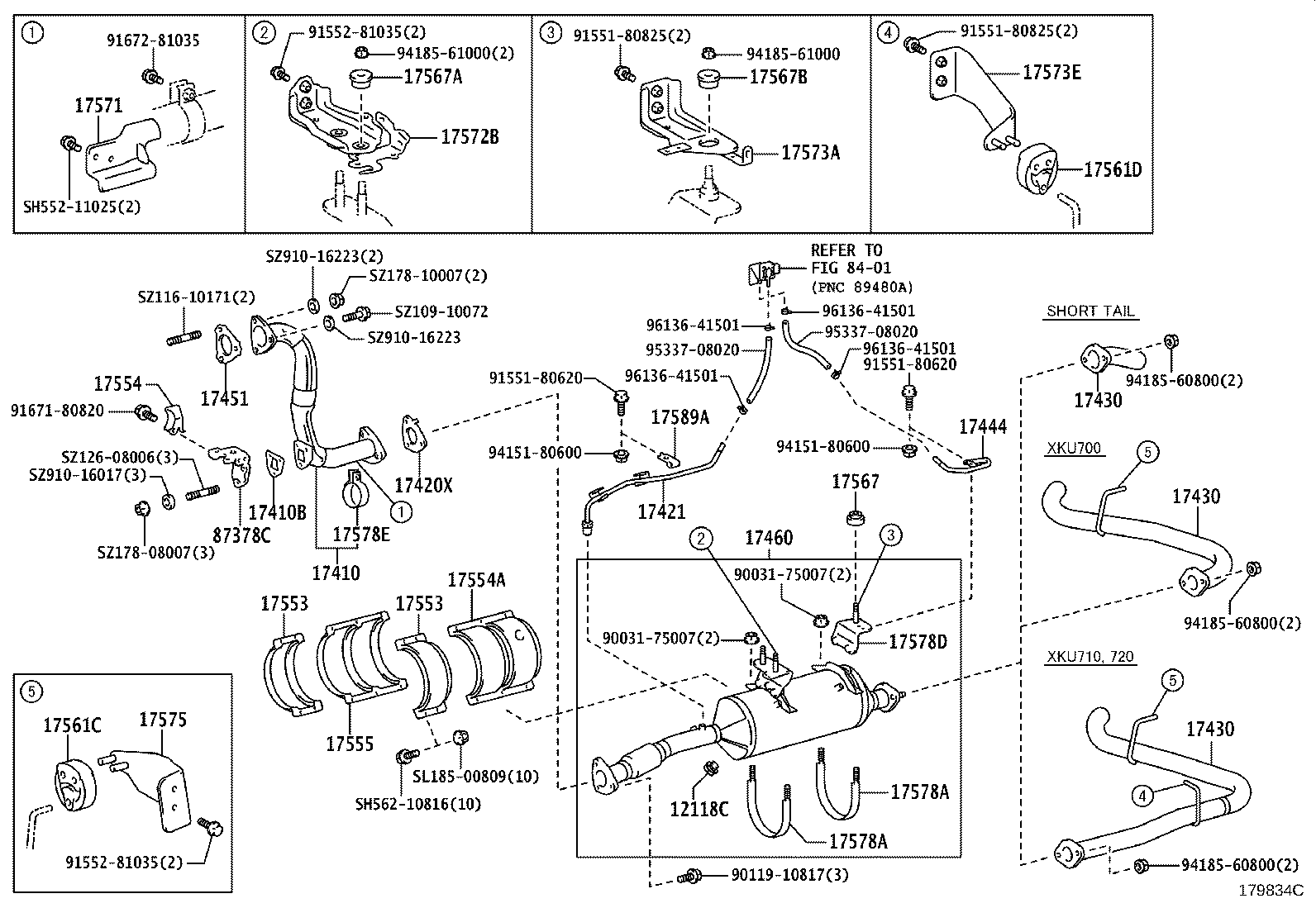

Click highlighted areas on diagram

diagram 12118C 17410 17410B 17420X 17421 17430 17430 17430 17444 17451 17460 17553 17553 17554 17554A 17555 17561C 17561D 17567 17567A 17567B 17571 17572B 17573A 17573E 17575 17578A 17578A 17578D 17578E 17589A 8401 87378C 9003175007 9003175007 9011910817 9155180620 9155180620 9155180825 9155180825 9155281035 9155281035 9167180820 9167281035 9415180600 9415180600 9418560800 9418560800 9418560800 9418561000 9418561000 9533708020 9533708020 9613641501 9613641501 9613641501 9613641501 SH55211025 SH56210816 SL18500809 SZ10910072 SZ11610171 SZ12608006 SZ17808007 SZ17810007 SZ91016017 SZ91016223 SZ91016223
Part # Description Qty Price
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17406-78721

N04C..XKU702,71#,72#..6F

 1
17578A - CLAMP, MUFFLER
17578-78110

N04C..XKU702,71#,72#..6F

 2
17578A - CLAMP, MUFFLER
17578-78110

N04C..XKU702,71#,72#..6F

 2
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78350

N04C..XKU702,71#,72#..6F

 1
Common parts
90031-75007
90119-10817
91551-80620
91551-80825
91552-81035
91671-80820
91672-81035
94151-80600
94185-60800
94185-61000
95337-08020
96136-41501
SH552-11025
SH562-10816
SL185-00809
SZ109-10072
SZ116-10171
SZ126-08006
SZ178-08007
SZ178-10007
SZ910-16017
SZ910-16223
Linked diagrams
8401
