XKU720-TQUMC3 (2011)
Toyota Dyna/Toyoace Hv
Production
Jul 2011
-
May 2017
Engine
N04C
Transmission
5F AMT
Displacement
2500cc
Power
168 HP (125 kW)

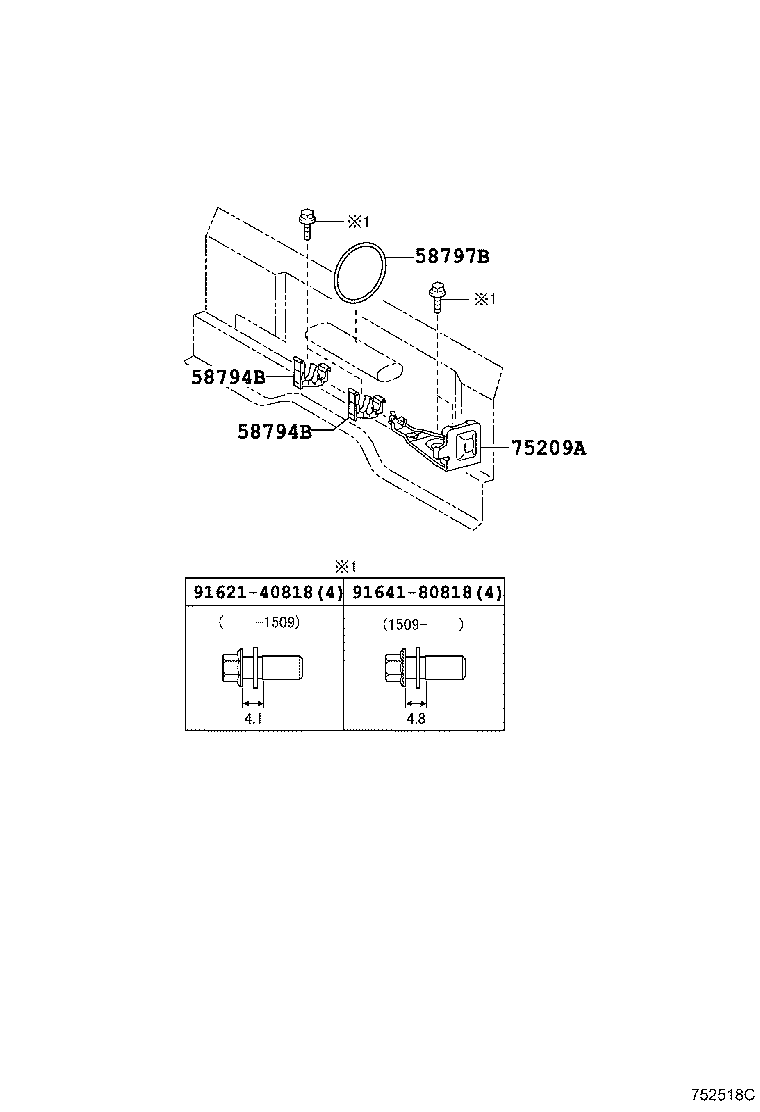

ILLUST NO. 1 OF 3(1107- )
Click highlighted areas on diagram
ﾂｰﾙﾊﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58794B - SUPPORT, JACK HANDLE | ||||
| 58794-37010 |
XKU700,710,720 |
2 | ||
| 58794B - SUPPORT, JACK HANDLE | ||||
| 58794-37010 |
XKU700,710,720 |
2 | ||
| 58797B - BAND, JACK CLAMP | ||||
| 58797-37010 |
XKU700,710,720 |
1 | ||
| 75209A - BASE SUB ASSY, JACK HOLDER | ||||
| 75209-37011 |
XKU700,710,720 |
1 | ||
| Common parts | ||||
| 91621-40818 | ||||
| 91641-80818 | ||||

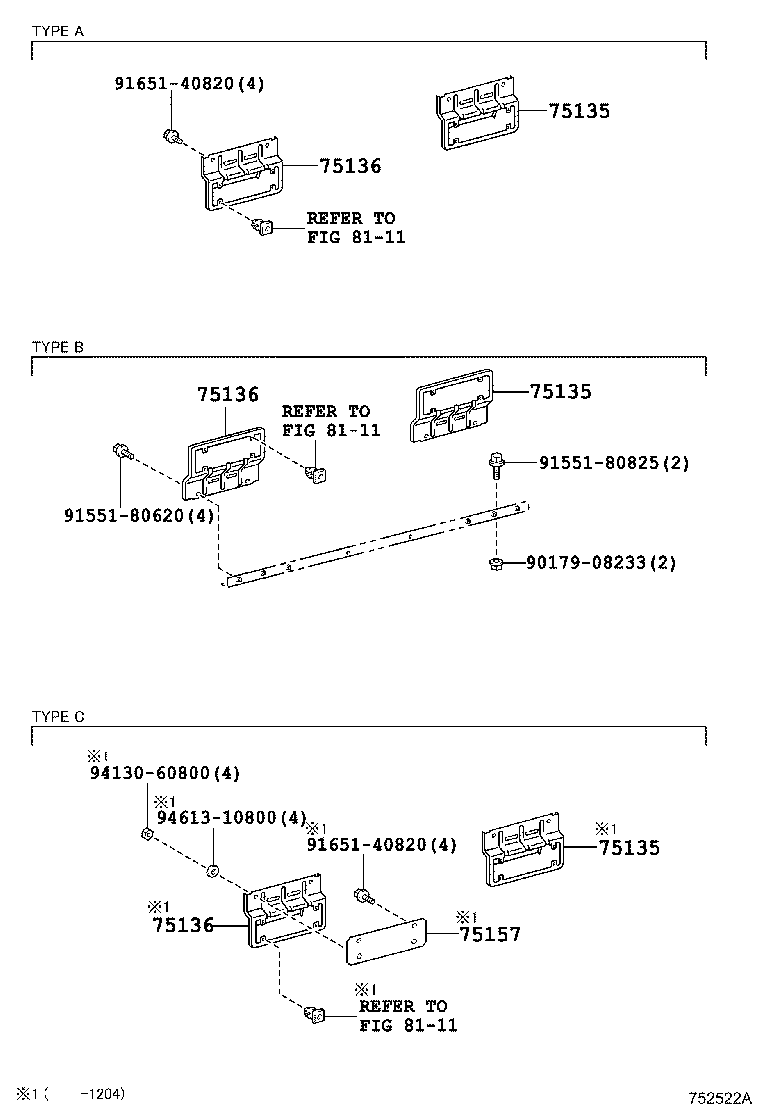

ILLUST NO. 3 OF 3(1107- )
Click highlighted areas on diagram
ﾘﾔﾗﾝﾌﾟﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75105-37070 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75105-37071 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75105-37070 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75105-37071 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75105-37070 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75105-37071 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75105-37071 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75105-37070 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75105-37071 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75105-37070 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75105-37071 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 75105-37070 |
XKU700,710,720..IV3 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||
| 91651-40820 | ||||
| 94130-60800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8111 | ||||

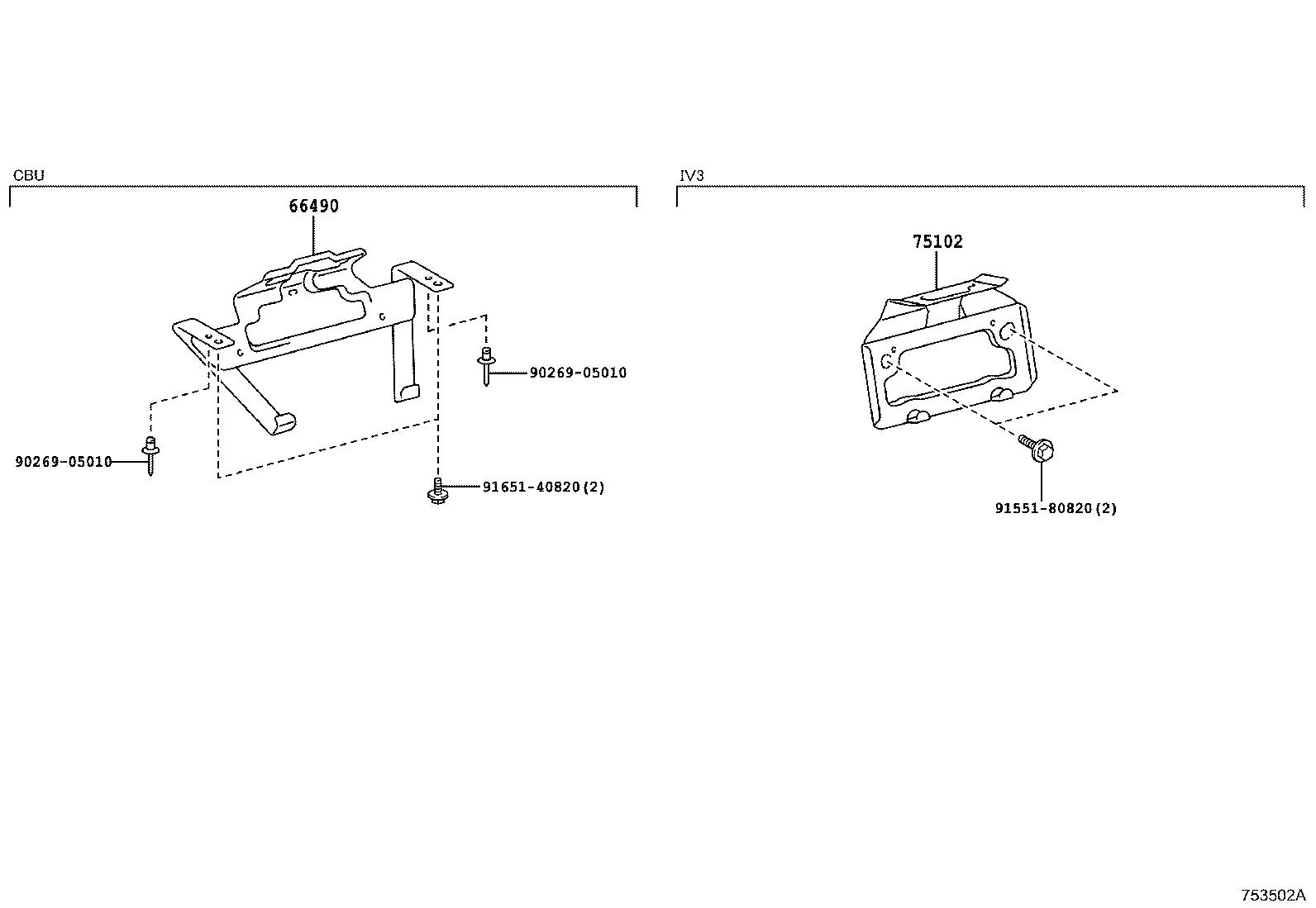

ILLUST NO. 2 OF 3(1107- )
Click highlighted areas on diagram
ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 75102-37050 |
XKU700,710,720..IV3 |
1 | ||
| Common parts | ||||
| 90269-05010 | ||||
| 91551-80820 | ||||
| 91651-40820 | ||||
