XKU720-TPUMC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCRTK

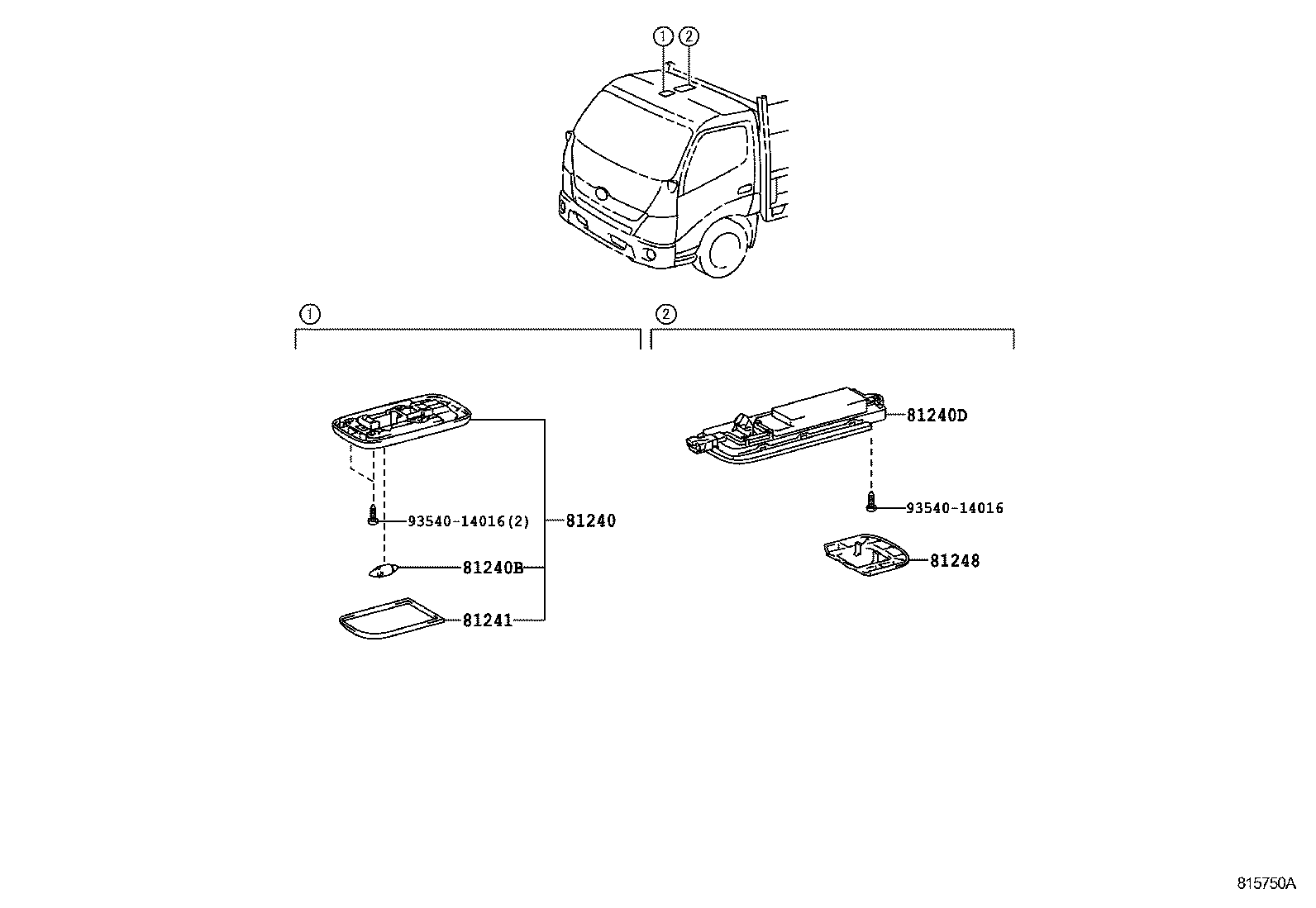

Click highlighted areas on diagram

diagram 81240 81240B 81240D 81241 81248 9354014016 9354014016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-E0090

XKU700,710,720

 1
81240B - BULB, ROOM LAMP, NO.1
SZ980-32045

XKU700,710,720

24V 10W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-37090B0

XKU700,710,720

室内灯−有り(LEDﾗﾝﾌﾟ),GRAY,TRIM1#

 1
81241 - LENS, ROOM LAMP, NO.1
S8124-11140

XKU700,710,720

 1
81248 - COVER, ROOM LAMP, NO.1
87834-37040B0

XKU700,710,720

室内灯−有り(LEDﾗﾝﾌﾟ),GRAY,TRIM1#

 1
Common parts
93540-14016
