XKU720-TPUMC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )XKU71#,72#..DCRTK ; (1905- )XKU71#,72#..DCRWD ; (2103- )XKU71#,72#

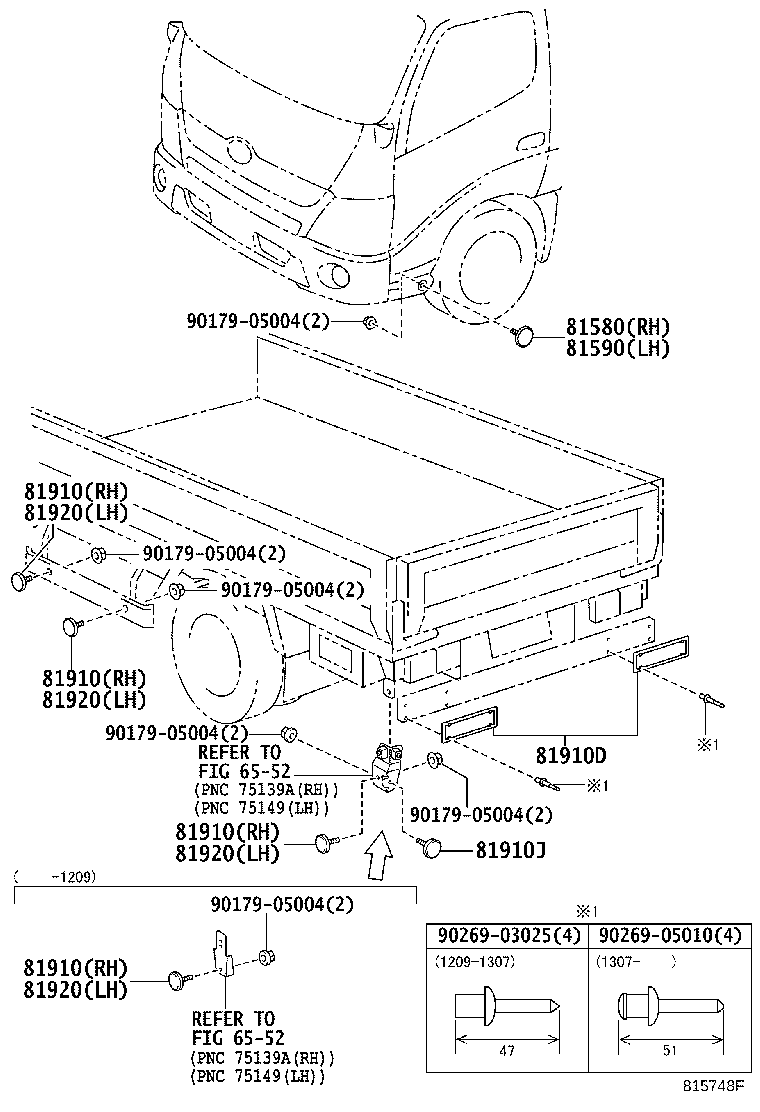

Click highlighted areas on diagram

diagram 6552 6552 81580 81590 81910 81910 81910 81910 81910D 81910J 81920 81920 81920 81920 9017905004 9017905004 9017905004 9017905004 9017905004 9017905004 9026903025 9026905010
Part # Description Qty Price
81580 - REFLECTOR ASSY, REFLEX SIDE, RH
81910-37070

XKU710,720

 1
81590 - REFLECTOR ASSY, REFLEX SIDE, LH
81910-37070

XKU710,720

 1
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XKU720

 3
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XKU720

 3
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XKU720

 3
81910 - REFLECTOR ASSY, REFLEX, RH
81910-37070

XKU720

 3
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XKU720

 3
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XKU720

 3
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XKU720

 3
81920 - REFLECTOR ASSY, REFLEX, LH
81910-37070

XKU720

 3
Common parts
90179-05004
90269-03025
90269-05010
Linked diagrams
6552
