XKU720-TPUMC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

Click highlighted areas on diagram

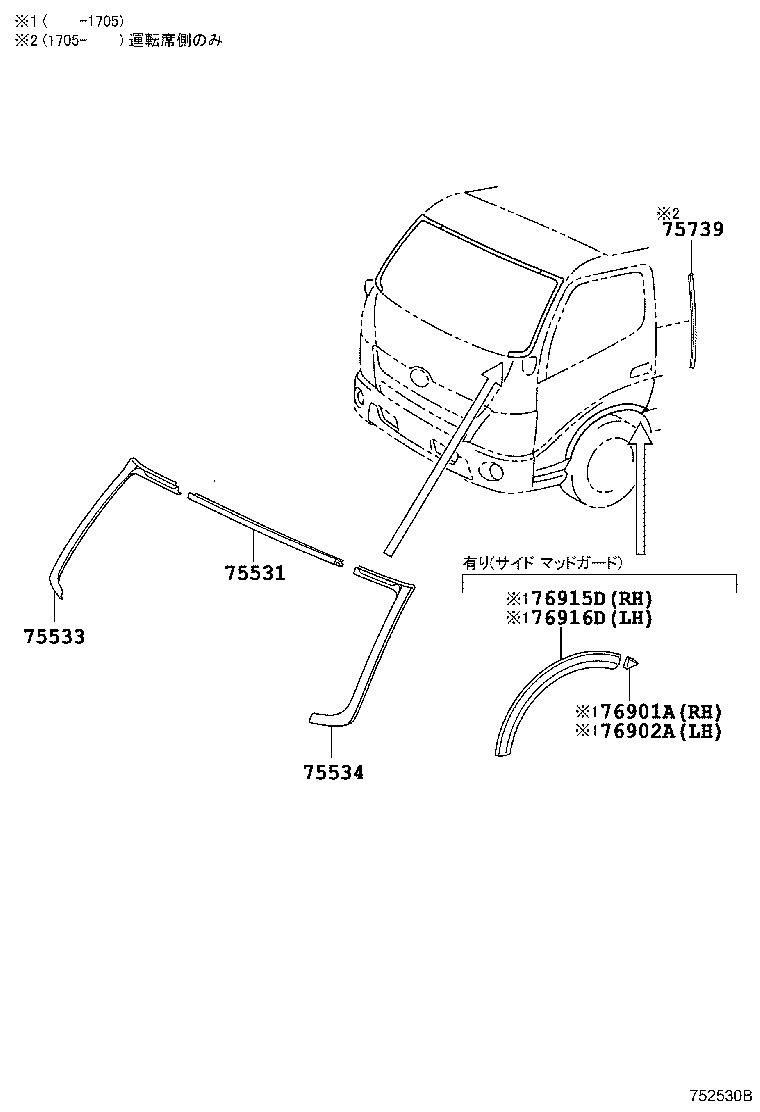

diagram 75531 75533 75534 75739 76901A 76902A 76915D 76916D
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-37010

XKU700,710,720

塗装不要

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-37010

XKU700,710,720

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-37010

XKU700,710,720

 1
