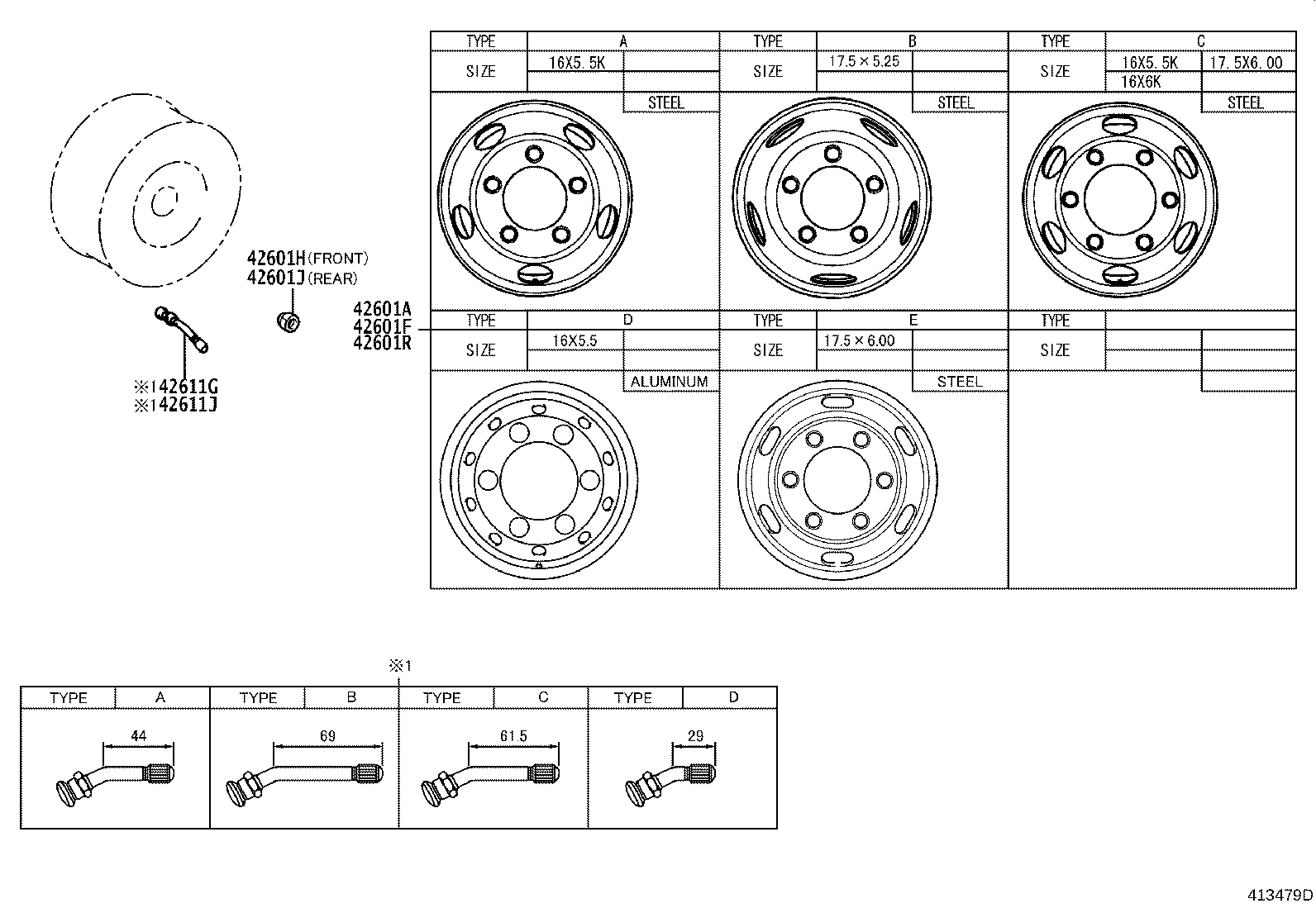

Toyota Dyna/toyoace hv XKU720 DISC WHEEL & WHEEL CAP

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42611-37010	XKU720..T5 16X5.5J,#,ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ 16X5.5J,TYPE D:ｲﾗｽﾄ参照	05/2015 - 05/2016	1
42601-37250	XKU720..T5 16X5.5K,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1
42601-37250	XKU720..T5 16X5.5K,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16 ﾘﾌﾞ,低転がり抵Rﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1
42601-37240	XKU710,720..T5 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1
42601F - WHEEL, DISC (FOR FRONT)
42611-37010	XKU720..T5 16X5.5J,#,ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ 16X5.5J,TYPE D:ｲﾗｽﾄ参照	05/2015 - 05/2016	2
42601-37250	XKU720..T5 16X5.5K,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	2
42601-37240	XKU710,720..T5 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	2
42601-37250	XKU720..T5 16X5.5K,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16 ﾘﾌﾞ,低転がり抵Rﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	2
42601H - NUT,HUB (FOR FRONT AXLE)
43522-37010	XKU710,720..20T 右側	07/2011 - 05/2017	5
43522-37020	XKU710,720..20T 左側	07/2011 - 05/2017	5
42601J - NUT,HUB (FOR REAR AXLE)
42633-37020	XKU710,720..20T 右側	07/2011 - 05/2017	5
42634-37020	XKU710,720..20T 左側	07/2011 - 05/2017	5
42601R - WHEEL, DISC (FOR REAR)
42611-37010	XKU720..T5 16X5.5J,#,ﾎｲｰﾙｷｬｯﾌﾟ−ｱﾙﾐﾎｲｰﾙ 16X5.5J,TYPE D:ｲﾗｽﾄ参照	05/2015 - 05/2016	4
42601-37240	XKU710,720..T5 16X5.5K,#,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	4
42601-37250	XKU720..T5 16X5.5K,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16 ﾘﾌﾞ,低転がり抵Rﾀｲﾔ,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	4
42601-37250	XKU720..T5 16X5.5K,#,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05026	XKU710..30T,40T;XKU700,720..T3,T5;XKU710..(T3,T5)..(20T,35T) TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	6
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05026	XKU710,720..T5	07/2011 - 05/2017	1
90942-05026	XKU710,720..T5 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/85R16,ﾘﾌﾞ,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1
90942-05026	XKU720..T5 ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−205/85R16,TYPE A:ｲﾗｽﾄ参照	07/2011 - 05/2017	1

Part #	Description	Period	Qty	Price
Common parts
90942-03360
90942-03361
90942-03362
90942-03363
90942-03364
90942-03365
90942-03366
90942-03367
90942-03368
90942-03369

XKU720-TPUMC3 (2011)

ILLUST NO. 2 OF 3(1107- )

ILLUST NO. 1 OF 3(1107- )

ILLUST NO. 3 OF 3(1107- )
