XKU720-TPUMC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

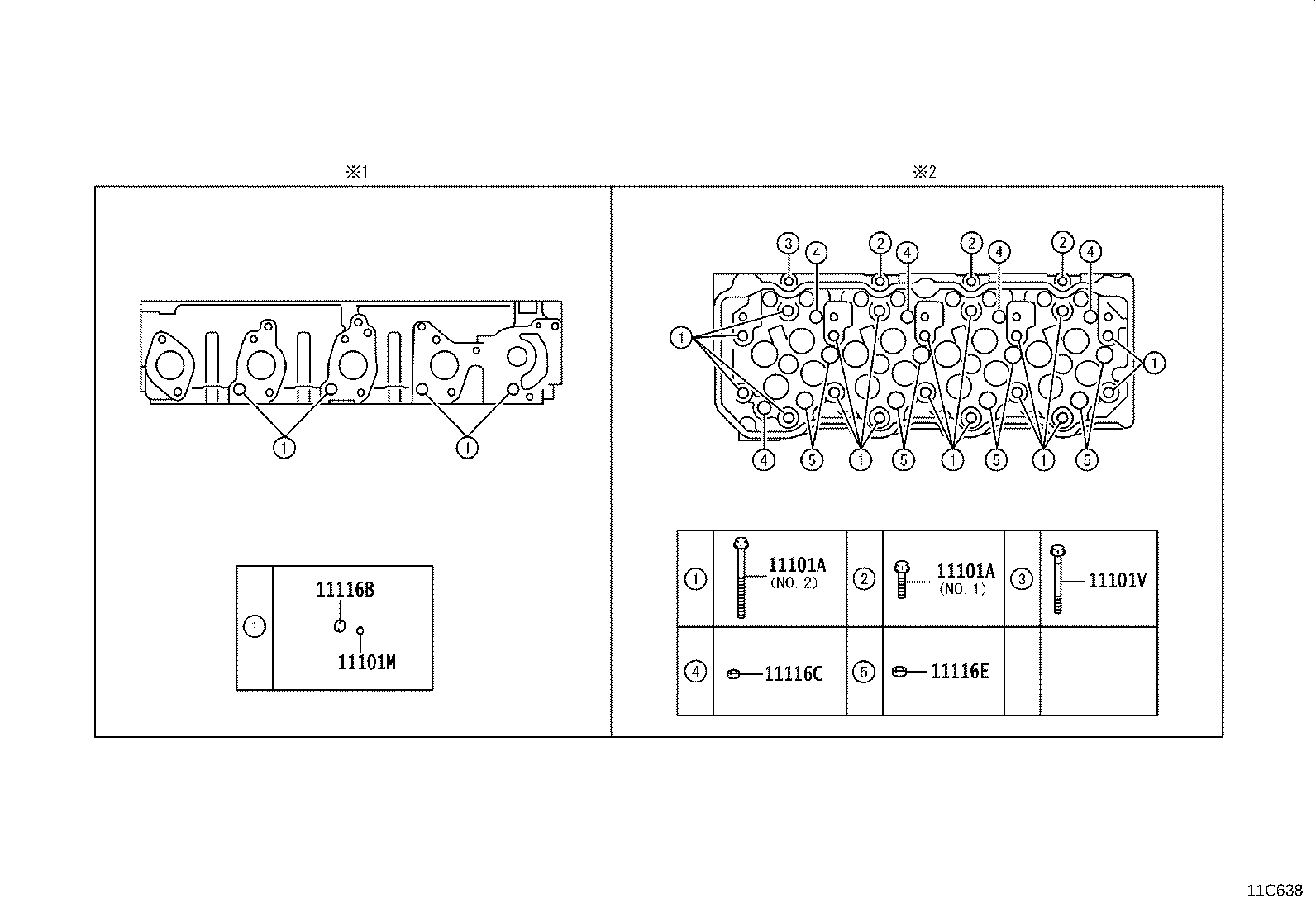

ILLUST NO. 2 OF 2(1107- )N04C..DCRTK

Click highlighted areas on diagram

diagram 11101A 11101A 11101M 11101V 11116B 11116C 11116E
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
S1118-52700

N04C..XKU700,710,720

NO.2

 18
SH552-11035

N04C..XKU700,710,720

NO.1

 3
11101A - BOLT(FOR CYLINDER HEAD SET)
S1118-52700

N04C..XKU700,710,720

NO.2

 18
SH552-11035

N04C..XKU700,710,720

NO.1

 3
11101M - BALL NO.1(FOR CYLINDER HEAD)
SN441-00508

N04C..XKU700,710,720

 4
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
SH552-11000

N04C..XKU700,710,720

 1
11116B - PLUG, TIGHT, NO.2
SN411-01412

N04C..XKU700,710,720

 4
11116C - PLUG, TIGHT, NO.3
SN411-01712

N04C..XKU700,710,720

 5
11116E - PLUG, TIGHT, NO.5
SN411-02216

N04C..XKU700,710,720

 11

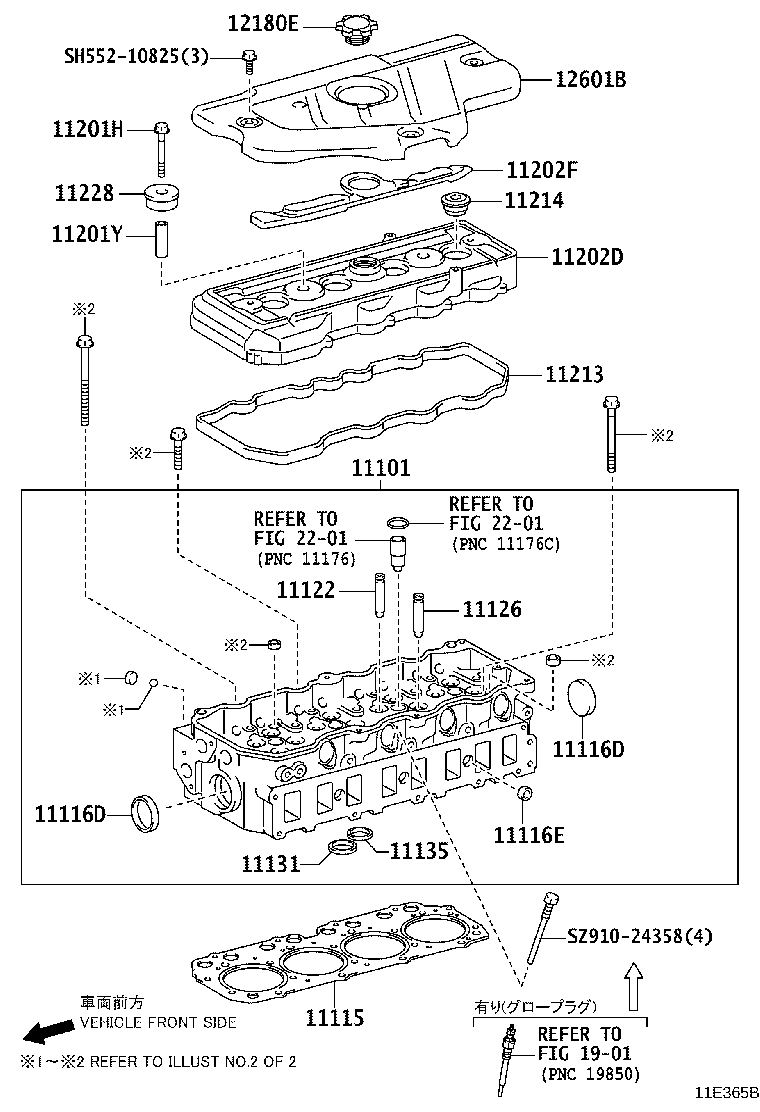

ILLUST NO. 1 OF 2(1107- )N04C..DCRTK

Click highlighted areas on diagram

diagram 11101 11115 11116D 11116D 11116E 11122 11126 11131 11135 11201H 11201Y 11202D 11202F 11213 11214 11228 12180E 12601B 1901 2201 2201 SH55210825 SZ91024358
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-78210

N04C..XKU700,710,720

 1
11115 - GASKET, CYLINDER HEAD
11115-E0030

N04C..XKU700,710,720

 1
11116D - PLUG, TIGHT, NO.4
SN411-05016

N04C..XKU700,710,720

 2
11116D - PLUG, TIGHT, NO.4
SN411-05016

N04C..XKU700,710,720

 2
11116E - PLUG, TIGHT, NO.5
SN411-02216

N04C..XKU700,710,720

 11
11122 - BUSH, INTAKE VALVE GUIDE
S1112-21220

N04C..XKU700,710,720

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
S1112-21220

N04C..XKU700,710,720

STD

 8
11131 - SEAT, INTAKE VALVE
S1113-11540

N04C..XKU700,710,720

STD

 8
11135 - SEAT, EXHAUST VALVE
11135-E0010

N04C..XKU700,710,720

STD

 8
11201H - BOLT(FOR CYLINDER HEAD COVER)
SH552-10865

N04C..XKU700,710,720

 2
11201Y - SPACER(FOR CYLINDER HEAD COVER)
SZ910-16303

N04C..XKU700,710,720

 2
11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2
11211-E0011

N04C..XKU700,710,720

 1
11202F - RUBBER, CUSHION(FOR CYLINDER HEAD COVER)
S1123-11090

N04C..XKU700,710,720

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-78060

N04C..XKU700,710,720

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
S1121-32092

N04C..XKU700,710,720

 4
11228 - CUSHION, CYLINDER HEAD COVER
11228-78050

N04C..XKU700,710,720

 2
12180E - CAP ASSY, OIL FILLER
12180-E0010

N04C..XKU700,710,720

 1
12601B - COVER SUB-ASSY, ENGINE, NO.1
12601-78011

N04C..XKU700,710,720

 1
12601-E0120

N04C..XKU700,710,720

 1
Common parts
SH552-10825
SZ910-24358
Linked diagrams
1901
2201
