XKU720-TKUQC3 (2011)
Toyota Dyna/Toyoace Hv

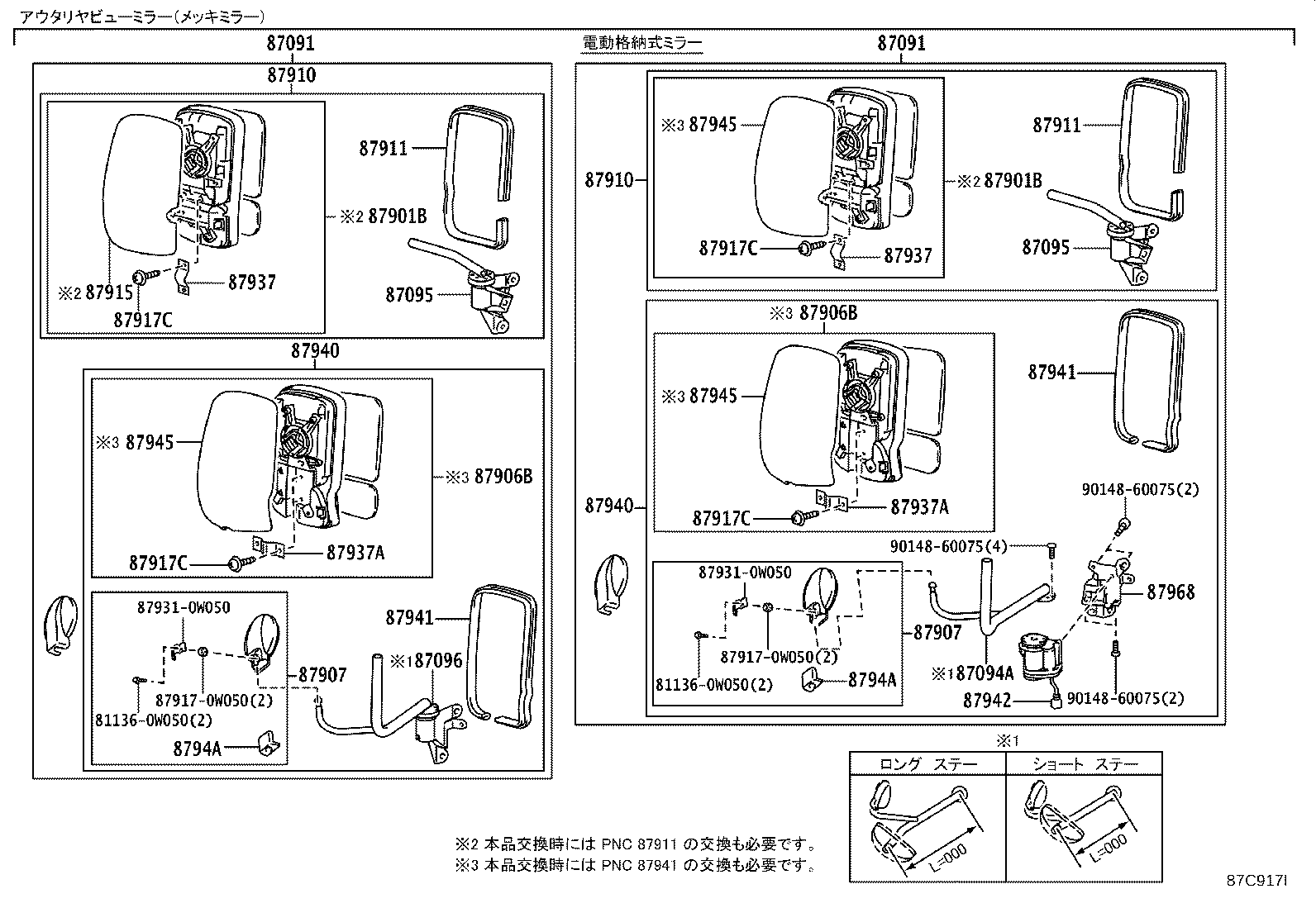

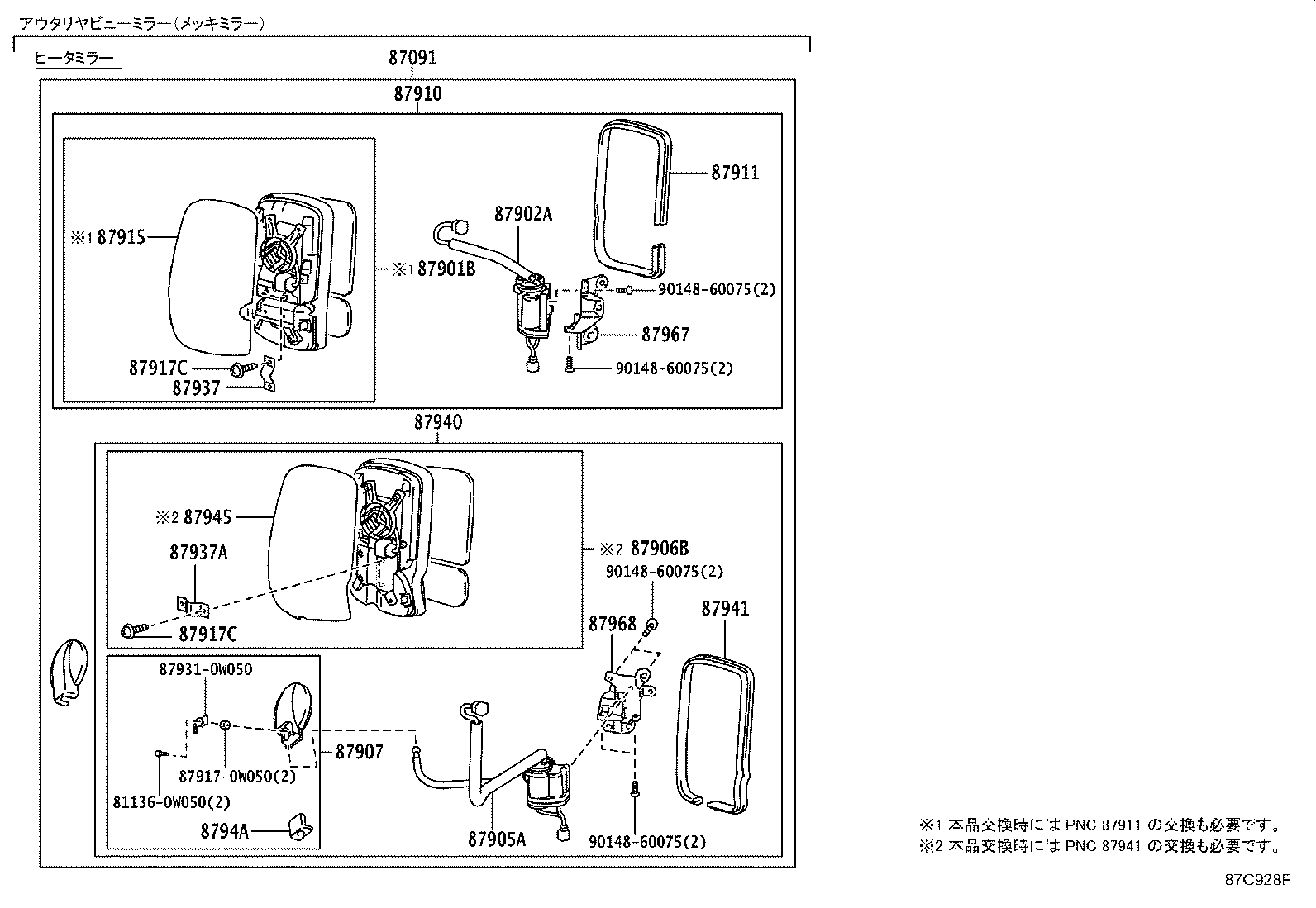

ILLUST NO. 2 OF 7(1107- )DCRTK
RHｱｳﾀﾐﾗｰ(ﾒｯｷﾐﾗｰﾉｿﾞｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87921-0W030 |
XKU700,710,720 |
1 | ||
| 87921-0W110 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W112 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87921-0W112 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W111 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W112 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87921-0W111 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87921-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87921-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87921-0W031 |
XKU700,710,720 |
1 | ||
| 87921-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W111 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87921-0W030 |
XKU700,710,720 |
1 | ||
| 87921-0W110 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W112 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87921-0W112 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W111 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W112 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87921-0W111 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87921-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87921-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87921-0W031 |
XKU700,710,720 |
1 | ||
| 87921-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87921-0W111 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87921-37011 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87921-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87921-37051 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87921-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37720 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37790 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87902-37080 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37721 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37A00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37A01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37722 |
XKU700,710,720 塗装不要 |
1 | ||
| 87902-37081 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37720 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37790 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87902-37080 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37721 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37A00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37A01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37722 |
XKU700,710,720 塗装不要 |
1 | ||
| 87902-37081 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37720 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37790 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87902-37080 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37721 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37A00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37A01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37722 |
XKU700,710,720 塗装不要 |
1 | ||
| 87902-37081 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87914B - COVER, OUTER MIRROR KNOB, RH | ||||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87915-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87915-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87967 - HOLDER, MIRROR, OUTER RH | ||||
| 87967-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87967-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| Common parts | ||||
| 90119-08C00 | ||||
| 90148-60075 | ||||
ILLUST NO. 3 OF 7(1107- )DCRTK
LHｱｳﾀﾐﾗｰ(ﾒｯｷﾐﾗｰﾉｿﾞｸ) 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-37A20 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87094-37A40 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W080 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W082 |
XKU700,710,720 L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87922-0W081 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R45 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87094-37A21 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87094-37A41 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W290 |
XKU700,710,720 長さ=360 |
1 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87905A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87922-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)),L=36R |
1 | ||
| 87922-37051 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)),L=36R |
1 | ||
| 87922-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH),L=363 |
1 | ||
| 87922-37031 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH),L=363 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| Common parts | ||||
| 81136-0W050 | ||||
| 87917-0W050 | ||||
| 87931-0W050 | ||||
| 90119-08C00 | ||||
| 90148-60075 | ||||
ILLUST NO. 5 OF 7(1107- )DCRTK
LHｱｳﾀﾐﾗｰ(ﾒｯｷﾐﾗｰﾉｿﾞｸ) 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-37A20 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87094-37A40 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W080 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W082 |
XKU700,710,720 L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87922-0W081 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R45 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87094-37A21 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87094-37A41 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W290 |
XKU700,710,720 長さ=360 |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-37A20 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87094-37A40 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W080 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W082 |
XKU700,710,720 L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87922-0W081 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R45 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87094-37A21 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87094-37A41 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W290 |
XKU700,710,720 長さ=360 |
1 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87914C - COVER, OUTER MIRROR KNOB, LH | ||||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87914-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87914-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87942 - MOTOR, MIRROR, LH | ||||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| Common parts | ||||
| 81136-0W050 | ||||
| 87917-0W050 | ||||
| 87931-0W050 | ||||
| 90119-08C00 | ||||
| 90148-60075 | ||||
ILLUST NO. 6 OF 7(1107- )DCRTK
ｱｳﾀﾐﾗｰ(ﾒｯｷﾐﾗｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87091 - MIRROR SET, OUTER REAR VIEW, NO.1 | ||||
| 87091-37471 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37480 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37591 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37481 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37472 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37590 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37491 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87091-37470 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37482 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37490 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87091-37483 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091 - MIRROR SET, OUTER REAR VIEW, NO.1 | ||||
| 87091-37471 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37480 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37591 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37481 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37472 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37590 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37491 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87091-37470 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37482 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37490 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87091-37483 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-37A20 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87094-37A40 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W080 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W082 |
XKU700,710,720 L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87922-0W081 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R45 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87094-37A21 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87094-37A41 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W290 |
XKU700,710,720 長さ=360 |
1 | ||
| 87095 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LOWER RH | ||||
| 87095-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87095-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87095 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LOWER RH | ||||
| 87095-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87095-37060 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87096 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LOWER LH | ||||
| 87096-37170 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP),k=363 |
1 | ||
| 87096-37172 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP),k=363 |
1 | ||
| 87096-37171 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP),k=363 |
1 | ||
| 87096-37210 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP),k=363 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37720 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37790 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87902-37080 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37721 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37A00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37A01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37722 |
XKU700,710,720 塗装不要 |
1 | ||
| 87902-37081 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37720 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37790 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87902-37080 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37721 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37A00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37A01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37722 |
XKU700,710,720 塗装不要 |
1 | ||
| 87902-37081 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87915-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87942 - MOTOR, MIRROR, LH | ||||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| Common parts | ||||
| 81136-0W050 | ||||
| 87917-0W050 | ||||
| 87931-0W050 | ||||
| 90148-60075 | ||||
ILLUST NO. 7 OF 7(1107- )DCRTK
ｱｳﾀﾐﾗｰ(ﾋｰﾀﾂｷﾒｯｷﾐﾗｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87091 - MIRROR SET, OUTER REAR VIEW, NO.1 | ||||
| 87091-37471 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37480 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37591 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37481 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37472 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37590 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37491 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87091-37470 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DOP) |
1 | ||
| 87091-37482 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87091-37490 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87091-37483 |
XKU700,710,720 ***,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87901-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87901-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87901-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87902A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 87921-37011 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87921-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87921-37051 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87921-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87905A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87922-37050 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)),L=36R |
1 | ||
| 87922-37051 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)),L=36R |
1 | ||
| 87922-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH),L=363 |
1 | ||
| 87922-37031 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH),L=363 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-37720 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37890 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37790 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37792 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37791 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87902-37080 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37721 |
XKU700,710,720 塗装不要 |
1 | ||
| 87910-37A00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37A01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87910-37793 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37891 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87910-37722 |
XKU700,710,720 塗装不要 |
1 | ||
| 87902-37081 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87910-37794 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87910-37892 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87915-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87915-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87937 - HOLDER, MIRROR, RH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 87967 - HOLDER, MIRROR, OUTER RH | ||||
| 87967-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87967-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| Common parts | ||||
| 81136-0W050 | ||||
| 87917-0W050 | ||||
| 87931-0W050 | ||||
| 90148-60075 | ||||
ILLUST NO. 4 OF 7(1107- )DCRTK
LHｱｳﾀﾐﾗｰ(ﾒｯｷﾐﾗｰﾉｿﾞｸ) 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87094-37A20 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87094-37A40 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W080 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A60 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W082 |
XKU700,710,720 L=363 |
1 | ||
| 87922-0W120 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87922-0W081 |
XKU700,710,720 L=363 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=345 |
1 | ||
| 87094-37A61 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=349 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R45 |
1 | ||
| 87922-0W121 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R45 |
1 | ||
| 87094-37A21 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),L=363 |
1 | ||
| 87094-37A41 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP),L=363 |
1 | ||
| 87922-0W290 |
XKU700,710,720 長さ=360 |
1 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87823 - WASHER, INNER REAR VIEW MIRROR BODY JOINT | ||||
| 87823-37010 |
XKU700,710,720 |
4 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-37230 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87906-0W100 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87906-0W140 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87901-37130 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87901-37231 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87901-37201 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87906-0W101 |
XKU700,710,720 塗装不要 |
1 | ||
| 87906-0W110 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87906-0W150 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87906-0W141 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-0W050 |
XKU700,710,720 |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=25 |
4 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM),長さ=35 |
2 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)),長さ=25 |
2 | ||
| 87917-0W160 |
XKU700,710,720 右側ﾐﾗｰ用 |
4 | ||
| 87929-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠Q5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)),長さ=R5 |
2 | ||
| 87929-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)),長さ≠R5 |
2 | ||
| 87937A - HOLDER, MIRROR, LH | ||||
| 87931-0W160 |
XKU700,710,720 |
2 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVM)) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87937-37010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87937-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87919-E0120 |
XKU700,710,720 |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-37E50 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87940-37E30 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F11 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37F10 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87940-37J00 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87940-37G81 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37070 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37G80 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87905-37050 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37G82 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37G90 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87905-37100 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87940-37G91 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*LOS&*TM(*WVMj) |
1 | ||
| 87905-37051 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37K20 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37E51 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*LOS&*TM(*WVM)j |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(魔vVM)) |
1 | ||
| 87940-37G92 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87940-37K40 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87905-37052 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87940-37E31 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37F12 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(手動式&*LOS&*WVM) |
1 | ||
| 87905-37101 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*vVM)) |
1 | ||
| 87905-37071 |
XKU700,710,720 塗装不要,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87940-37K21 |
XKU700,710,720 塗装不要 |
1 | ||
| 87940-37K41 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 87940-37J01 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87911-37030 |
XKU700,710,720 |
1 | ||
| 87942 - MOTOR, MIRROR, LH | ||||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87942-37070 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*bR(DOP) |
1 | ||
| 87945-0W020 |
XKU700,710,720 塗装不要 |
1 | ||
| 87945-0W040 |
XKU700,710,720 ﾒｯｷ,ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(手動式&*LOS),*CR(DnP) |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794A-0W050 |
XKU700,710,720 |
1 | ||
| 87965 - GROMMET, OUTER MIRROR | ||||
| 87965-37020 |
XKU700,710,720 |
2 | ||
| 87965-37030 |
XKU700,710,720 |
2 | ||
| 87968 - HOLDER, MIRROR, OUTER LH | ||||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 87968-0W020 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| Common parts | ||||
| 81136-0W050 | ||||
| 87917-0W050 | ||||
| 87931-0W050 | ||||
| 90119-08C00 | ||||
| 90148-60075 | ||||
ILLUST NO. 1 OF 7(1107- )
ｲﾝﾅﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W180 |
XKU700,710,720 |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0W180 |
XKU700,710,720 |
1 | ||
| Common parts | ||||
| 90152-60015 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
