Toyota Dyna/toyoace hv XKU720 FREE TRONIC

Part #	Description	Period	Qty
19202A - CAP KIT(FOR CLUTCH ACTUATOR)
19202-EV010	N04C..XKU700,710,720	07/2011 - 05/2015	1
19202-EV010	N04C..XKU700,710,720	05/2015 - 05/2017	1
31039 - SUPPORT SUB-ASSY, CLUTCH RELEASE SECTOR
31039-37010	XKU700,710,720	07/2011 - 05/2017	1
31360D - ACTUATOR ASSY, CLUTCH
31360-37011	XKU700,710,720	07/2011 - 07/2013	1
31360-37012	XKU700,710,720	08/2013 - 02/2014	1
31360-37015	XKU700,710,720	02/2015 - 05/2015	1
31360-37013	XKU700,710,720	02/2014 - 09/2014	1
31360-37018	XKU700,710,720	05/2015 - 05/2017	1
31360-37014	XKU700,710,720	10/2014 - 01/2015	1
31363G - MOTOR, CLUTCH ACTUATOR
31363-EV011	XKU700,710,720 NO.1	08/2013 - 02/2014	1
31363-EV032	XKU700,710,720 NO.2	02/2014 - 10/2014	1
31363-EV010	XKU700,710,720 NO.1	07/2011 - 08/2013	1
31363-EV030	XKU700,710,720 NO.2	07/2011 - 08/2013	1
31363-EV014	XKU700,710,720 NO.1	05/2015 - 05/2017	1
31363-EV110	XKU700,710,720 NO.2	04/2017 - 05/2017	1
31363-EV012	XKU700,710,720 NO.1	02/2014 - 10/2014	1
31363-EV033	XKU700,710,720 NO.2	10/2014 - 05/2015	1
31363-EV031	XKU700,710,720 NO.2	08/2013 - 02/2014	1
31363-EV013	XKU700,710,720 NO.1	10/2014 - 05/2015	1
31363-EV034	XKU700,710,720 NO.2	05/2015 - 04/2017	1
31363G - MOTOR, CLUTCH ACTUATOR
31363-EV011	XKU700,710,720 NO.1	08/2013 - 02/2014	1
31363-EV032	XKU700,710,720 NO.2	02/2014 - 10/2014	1
31363-EV010	XKU700,710,720 NO.1	07/2011 - 08/2013	1
31363-EV030	XKU700,710,720 NO.2	07/2011 - 08/2013	1
31363-EV014	XKU700,710,720 NO.1	05/2015 - 05/2017	1
31363-EV110	XKU700,710,720 NO.2	04/2017 - 05/2017	1
31363-EV012	XKU700,710,720 NO.1	02/2014 - 10/2014	1
31363-EV033	XKU700,710,720 NO.2	10/2014 - 05/2015	1
31363-EV031	XKU700,710,720 NO.2	08/2013 - 02/2014	1
31363-EV013	XKU700,710,720 NO.1	10/2014 - 05/2015	1
31363-EV034	XKU700,710,720 NO.2	05/2015 - 04/2017	1
31422B - BRACKET, CLUTCH RESERVOIR
31422-37010	XKU700,710,720	07/2011 - 05/2017	1
31482E - TUBE, CLUTCH RELEASE, NO.1
31482-37401	XKU700,710,720 ﾏｰｸ無し	07/2011 - 05/2017	1
35634L - PLATE, CLUTCH, NO.1
35634-37020	XKU700,710,720	07/2011 - 05/2017	1
51448H - PROTECTOR, MOTOR UNDER SIDE
51448-37160	XKU700,710,720	07/2011 - 05/2017	1
55105E - SUPPORT SUB-ASSY, CLUTCH MASTER CYLINDER
55105-37081	XKU700,710,720	07/2011 - 05/2017	1
55173C - BRACKET, ELECTRICAL PART
55173-37270	XKU700,710,720	07/2011 - 05/2017	1
55173D - BRACKET, ELECTRICAL PART, NO.2
55173-37281	XKU700,710,720	10/2011 - 05/2014	1
55173-37280	XKU700,710,720	07/2011 - 09/2011	1
55173-37282	XKU700,710,720	06/2014 - 05/2017	1
82711P - CLAMP, WIRING HARNESS
82711-35280	XKU700,710,720	07/2011 - 05/2017	1
89457A - STROKE SENSOR, CLUTCH
89457-37020	XKU700,710,720	07/2011 - 05/2017	1
S4705 - REPAIR KIT, CUP
S4705-91370	XKU700,710,720	07/2011 - 05/2017	1
Common parts
90031-05030
90032-09021
90119-08873
90959-01595
91551-80616
91551-80816
91552-81025
91552-E1225
94151-81201
S3441-21430
S471J-EV010
S471J-EV020
S9007-00420
S9007-00421
S9007-10175
S9007-56266
S9007-56267
SZ010-28002
SZ010-28006
SZ010-61013

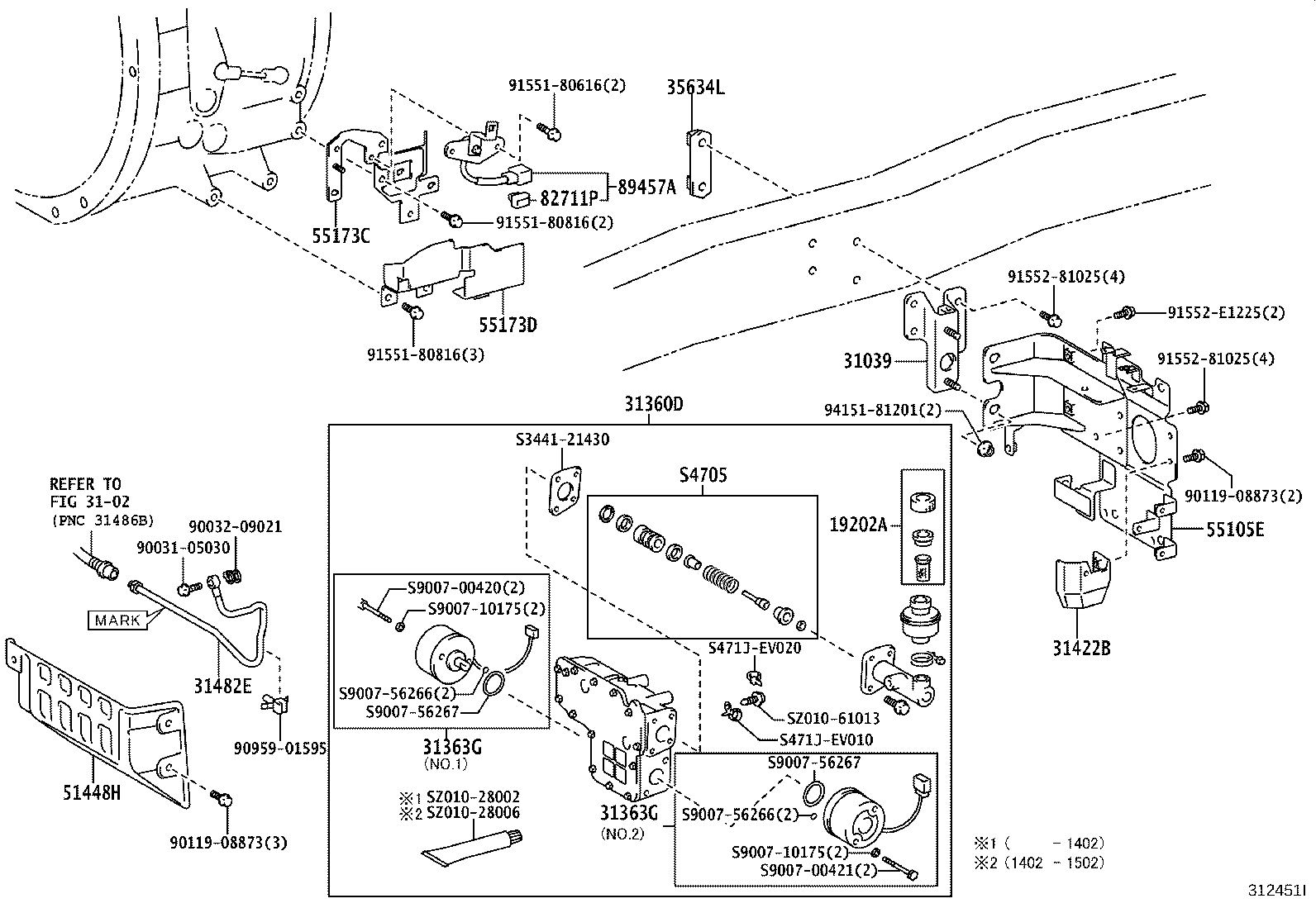

Linked diagrams
3102

XKU720-TKUQC3 (2011)

(1107- )DCRTK
