XKU720-TKUQC3 (2017)
Toyota Dyna/Toyoace Hv
Production
May 2017
-
May 2019
Engine
N04C
Transmission
5F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(1705-1905)

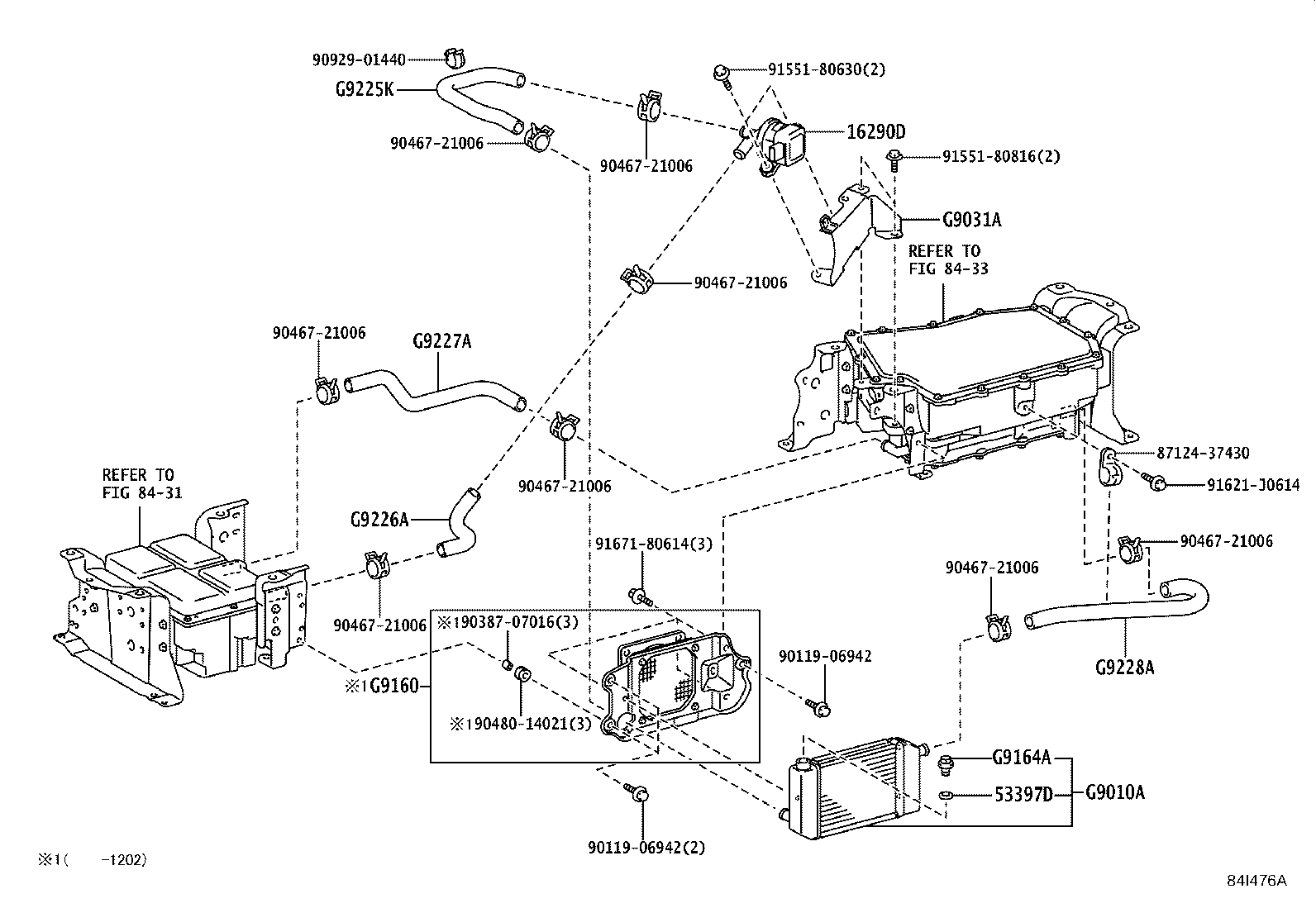

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16290D - PUMP ASSY, WATER W/MOTOR | ||||
| G9040-37030 |
N04C..XKU700,710,720 |
1 | ||
| G9040-E0010 |
N04C..XKU700,710,720..5F |
1 | ||
| 53397D - SEAL, RADIATOR, UPPER | ||||
| 53397-37030 |
XKU700,710,720..5F |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-37010 |
XKU700,710,720..5F |
1 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9141-37020 |
XKU700,710,720..5F |
1 | ||
| G9141-37010 |
XKU700,710,720 |
1 | ||
| G9160 - FAN ASSY, INVERTER COOLING W/MOTOR & BRACKET | ||||
| G9160-37011 |
XKU700,710,720..5F |
1 | ||
| G9164A - CAP, INVERTER RADIATOR | ||||
| G9164-37010 |
XKU700,710,720..5F |
1 | ||
| G9225K - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-37020 |
XKU700,710,720..5F |
1 | ||
| G9225-37010 |
XKU700,710,720 |
1 | ||
| G9226A - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-37020 |
XKU700,710,720..5F |
1 | ||
| G9226-37010 |
XKU700,710,720 |
1 | ||
| G9227A - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-37010 |
XKU700,710,720 |
1 | ||
| G9227-37030 |
XKU700,710,720..5F |
1 | ||
| G9228A - HOSE, INVERTER COOLING, NO.4 | ||||
| G9228-37010 |
XKU700,710,720..5F |
1 | ||
| Common parts | ||||
| 87124-37430 | ||||
| 90119-06942 | ||||
| 90387-07016 | ||||
| 90467-21006 | ||||
| 90480-14021 | ||||
| 90929-01440 | ||||
| 91551-80630 | ||||
| 91551-80816 | ||||
| 91621-J0614 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8431 | ||||
| 8433 | ||||
