XKU720-TKUQC3 (2017)
Toyota Dyna/Toyoace Hv

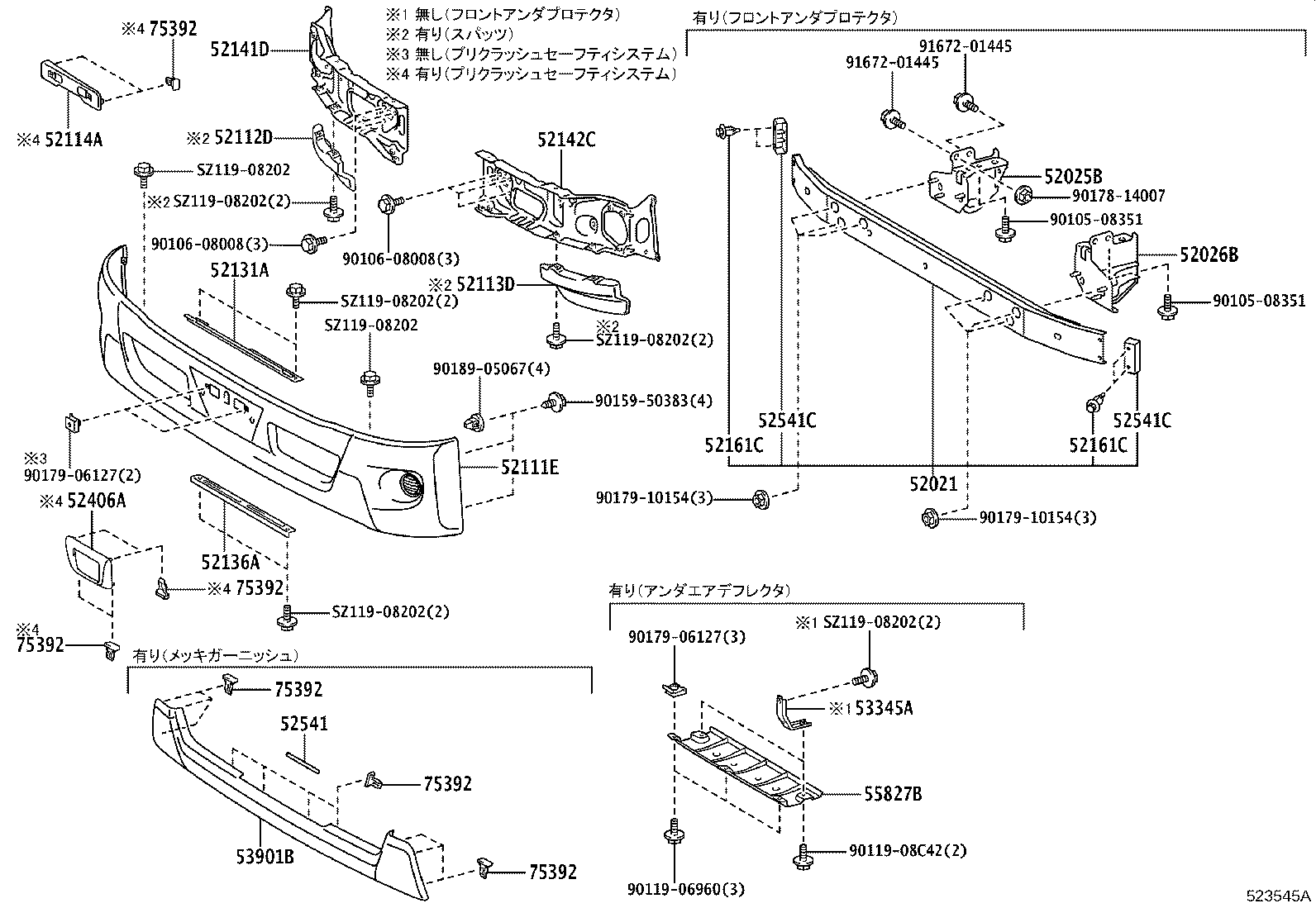

ILLUST NO. 1 OF 2(1705- )DCRTK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-37023 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
1 | ||
| 52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH | ||||
| 52025-37011 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
1 | ||
| 52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH | ||||
| 52026-37011 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-37360 |
XKU700,710,720..5F 塗装不要,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し |
1 | ||
| 52111-37360 |
XKU700,710,720..30T,35T,40T 塗装不要,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(tﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
1 | ||
| 52111-37390A0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),WHITE,058 |
1 | ||
| 52111-37390A0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),WHITE,058 |
1 | ||
| 52111-37390B1 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),SILVER ME.,199 |
1 | ||
| 52111-37380 |
XKU700,710,720..5F 塗装不要,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52111-37390J0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),BLUE,8P0 |
1 | ||
| 52111-37390B1 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),SILVER ME.,199 |
1 | ||
| 52111-37400A0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37390H0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),TURQUOISE,766 |
1 | ||
| 52111-37400B1 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37400A0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37380 |
XKU700,710,720..30T,35T,40T 塗装不要,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(tﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52111-37390J0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),BLUE,8P0 |
1 | ||
| 52111-37390H0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),TURQUOISE,766 |
1 | ||
| 52111-37400J0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37400B1 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37400H0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37400H0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37400J0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37410A0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52111-37410B1 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52111-37410H0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,TURQUOISE,766 |
1 | ||
| 52111-37420A0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37410J0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,BLUE,8P0 |
1 | ||
| 52111-37420B1 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37420B1 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37420A0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37410A0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52111-37420H0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37410B1 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52111-37410J0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,BLUE,8P0 |
1 | ||
| 52111-37410H0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,TURQUOISE,766 |
1 | ||
| 52111-37570 |
XKU700,710,720..5F 塗装不要 |
1 | ||
| 52111-37420H0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37420J0 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37580 |
XKU700,710,720..5F 塗装不要,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52111-37600A0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37590H0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),TURQUOISE,766 |
1 | ||
| 52111-37590A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),WHITE,058 |
1 | ||
| 52111-37590H0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),TURQUOISE,766 |
1 | ||
| 52111-37580 |
XKU700,710,720..30T,35T,40T 塗装不要,ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&tﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52111-37590J0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),BLUE,8P0 |
1 | ||
| 52111-37590B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),SILVER ME.,199 |
1 | ||
| 52111-37600J0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37600B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37590J0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),BLUE,8P0 |
1 | ||
| 52111-37420J0 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37590A0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),WHITE,058 |
1 | ||
| 52111-37600B1 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37600H0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37600J0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37610A0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52111-37610B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52111-37590B1 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),SILVER ME.,199 |
1 | ||
| 52111-37600A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37610H0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,TURQUOISE,766 |
1 | ||
| 52111-37610B1 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52111-37600H0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37620B1 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37610J0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,BLUE,8P0 |
1 | ||
| 52111-37620A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37610J0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,BLUE,8P0 |
1 | ||
| 52111-37620H0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37610A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52111-37620B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52111-37620H0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52111-37620A0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52111-37620J0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37620J0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52111-37610H0 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,TURQUOISE,766 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-37130 |
XKU700,710,720..5F 塗装不要 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-37050 |
XKU700,710,720..5F 塗装不要 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-37260 |
XKU700,710,720..5F |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-37111 |
XKU700,710,720..5F |
1 | ||
| 52136A - REINFORCEMENT, FRONT BUMPER | ||||
| 52136-37011 |
XKU700,710,720..5F |
1 | ||
| 52136-37010 |
XKU70#,71#,72# |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-37221 |
XKU700,710,720..5F |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-37201 |
XKU700,710,720..5F |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
4 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
4 | ||
| 52406A - GARNISH SUB-ASSY, FRONT BUMPER GUARD | ||||
| 52406-37030 |
XKU700,710,720..5F |
1 | ||
| 52406-37030 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂) |
1 | ||
| 52406-37030 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し |
1 | ||
| 52406-37030 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52406-37040B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),SILVER ME.,199 |
1 | ||
| 52406-37040B2 |
XKU700,720..5F;XKU710..35T,40T;XKU710..5F..(20T,30T)..CBU ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),GRAY,766 ,8P0 |
1 | ||
| 52406-37040B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52406-37040A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂),WHITE,058 |
1 | ||
| 52406-37040A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52406-37040B2 |
XKU700,720..5F;XKU710..35T,40T;XKU710..5F..(20T,30T)..CBU ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,GRAY,766 ,8P0 |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-35030 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52541-35030 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52541-35030 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52541-35030 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52541-35030 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541-35030 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541-35030 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541-35030 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541C - PROTECTOR, FRONT BUMPER, NO.1 | ||||
| 52541-37010 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
2 | ||
| 52541C - PROTECTOR, FRONT BUMPER, NO.1 | ||||
| 52541-37010 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ) |
2 | ||
| 53345A - BRACKET, AIR DEFLECTOR, NO.2 RH | ||||
| 53345-37040 |
XKU700,710,720..5F |
2 | ||
| 53901B - PANEL SUB-ASSY, FRONT VALANCE | ||||
| 53901-37010 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 53901-37010 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 53901-37010 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 53901-37010 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 55827B - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37070 |
XKU700,710,720..5F |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..5F |
7 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..5F |
7 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..5F |
7 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..5F |
7 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..5F |
7 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..5F |
7 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
10 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
10 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
17 | ||
| 75392-35220 |
XKU700,710,720..30T,35T,40T ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
17 | ||
| Common parts | ||||
| 90105-08351 | ||||
| 90106-08008 | ||||
| 90119-06960 | ||||
| 90119-08C42 | ||||
| 90159-50383 | ||||
| 90178-14007 | ||||
| 90179-06127 | ||||
| 90179-10154 | ||||
| 90189-05067 | ||||
| 91672-01445 | ||||
| SZ119-08202 | ||||
ILLUST NO. 2 OF 2(1705- )
ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ(DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52001 - FRONT BUMPER SET | ||||
| 52001-37240A0 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 52001-37240H0 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 52001-37240J0 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 52001-37240B1 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),SILVER ME.,199 |
1 | ||
| 52001-37240H0 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 52001-37240A0 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 52001-37240J0 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 52001-37240B1 |
XKU700,710,720..5F ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),SILVER ME.,199 |
1 | ||
| 52102C - EXTENSION SUB-ASSY, FRONT BUMPER | ||||
| 52102-37050B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),SILVER ME.,199 |
1 | ||
| 52102-37050J0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 52102-37050B1 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),SILVER ME.,199 |
1 | ||
| 52102-37050A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 52102-37050J0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 52102-37050H0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 52102-37050A0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 52102-37050H0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 52115B - RETAINER, FRONT BUMPER EXTENSION, NO.1 | ||||
| 52115-37020 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
2 | ||
| 52115-37020 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
2 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-37010 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52130-37010 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-37080 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52133-37080 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52134-37030 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52134-37030 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52135C - BRACKET, FRONT BUMPER ARM MOUNTING | ||||
| 52135-37030 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
2 | ||
| 52135-37030 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
2 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-37010 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52140-37010 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-37060C0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLACK,766 ,8P0 |
2 | ||
| 52711-37060B0 |
XKU700,720..5F;XKU710..35T,40T;XKU710..5F..(20T,30T)..CBU ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),GRAY,058 ,199 |
2 | ||
| 52711-37060C0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLACK,766 ,8P0 |
2 | ||
| 52711-37060B0 |
XKU700,720..5F;XKU710..35T,40T;XKU710..5F..(20T,30T)..CBU ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),GRAY,058 ,199 |
2 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-37060C0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLACK,766 ,8P0 |
2 | ||
| 52711-37060B0 |
XKU700,720..5F;XKU710..35T,40T;XKU710..5F..(20T,30T)..CBU ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),GRAY,058 ,199 |
2 | ||
| 52711-37060C0 |
XKU700,710,720..5F ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLACK,766 ,8P0 |
2 | ||
| 52711-37060B0 |
XKU700,720..5F;XKU710..35T,40T;XKU710..5F..(20T,30T)..CBU ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),GRAY,058 ,199 |
2 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| Linked diagrams | ||||
| 5851 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
