XKU712-TQVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )

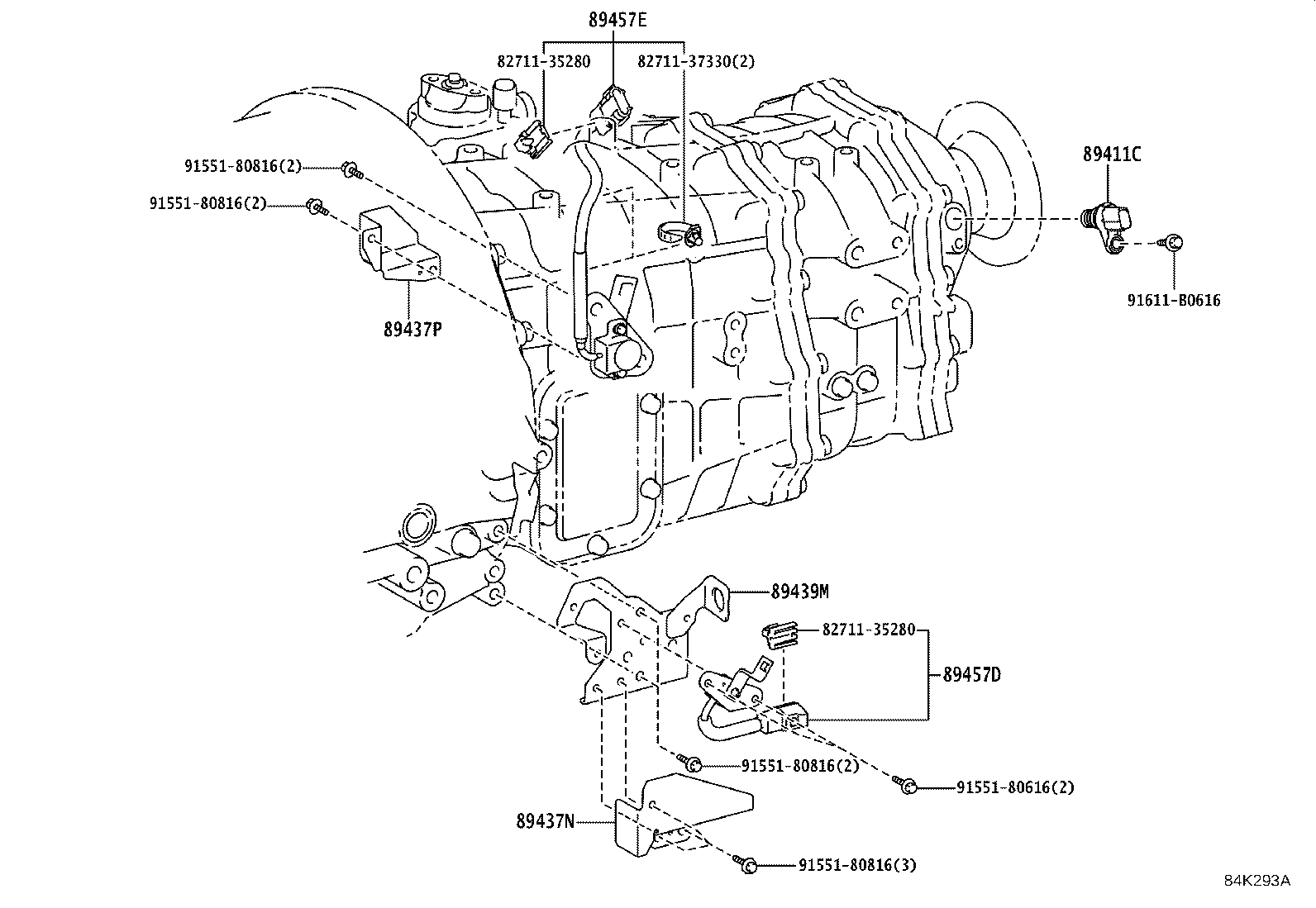

Click highlighted areas on diagram

diagram 8271135280 8271135280 8271137330 89411C 89437N 89437P 89439M 89457D 89457E 9155180616 9155180816 9155180816 9155180816 9155180816 91611B0616
Part # Description Qty Price
89411C - SENSOR, SPEED
89411-37020

XKU702,71#,72#..DCRWD

 1
89437N - COVER, SENSOR, NO.1
89437-37030

XKU702,71#,72#..DCRWD

 1
89437P - COVER, SENSOR, NO.2
89437-37040

XKU702,71#,72#..DCRWD

 1
89439M - BRACKET, SENSOR, NO.1
89439-37500

XKU702,71#,72#..DCRWD

 1
89457D - SENSOR, TRANSMISSION STROKE, NO.1
89457-37020

XKU702,71#,72#..DCRWD

 1
89457E - SENSOR, TRANSMISSION STROKE, NO.2
89457-37030

XKU702,71#,72#..DCRWD

 1
Common parts
82711-35280
82711-37330
91551-80616
91551-80816
91611-B0616
