XKU712-TQVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )

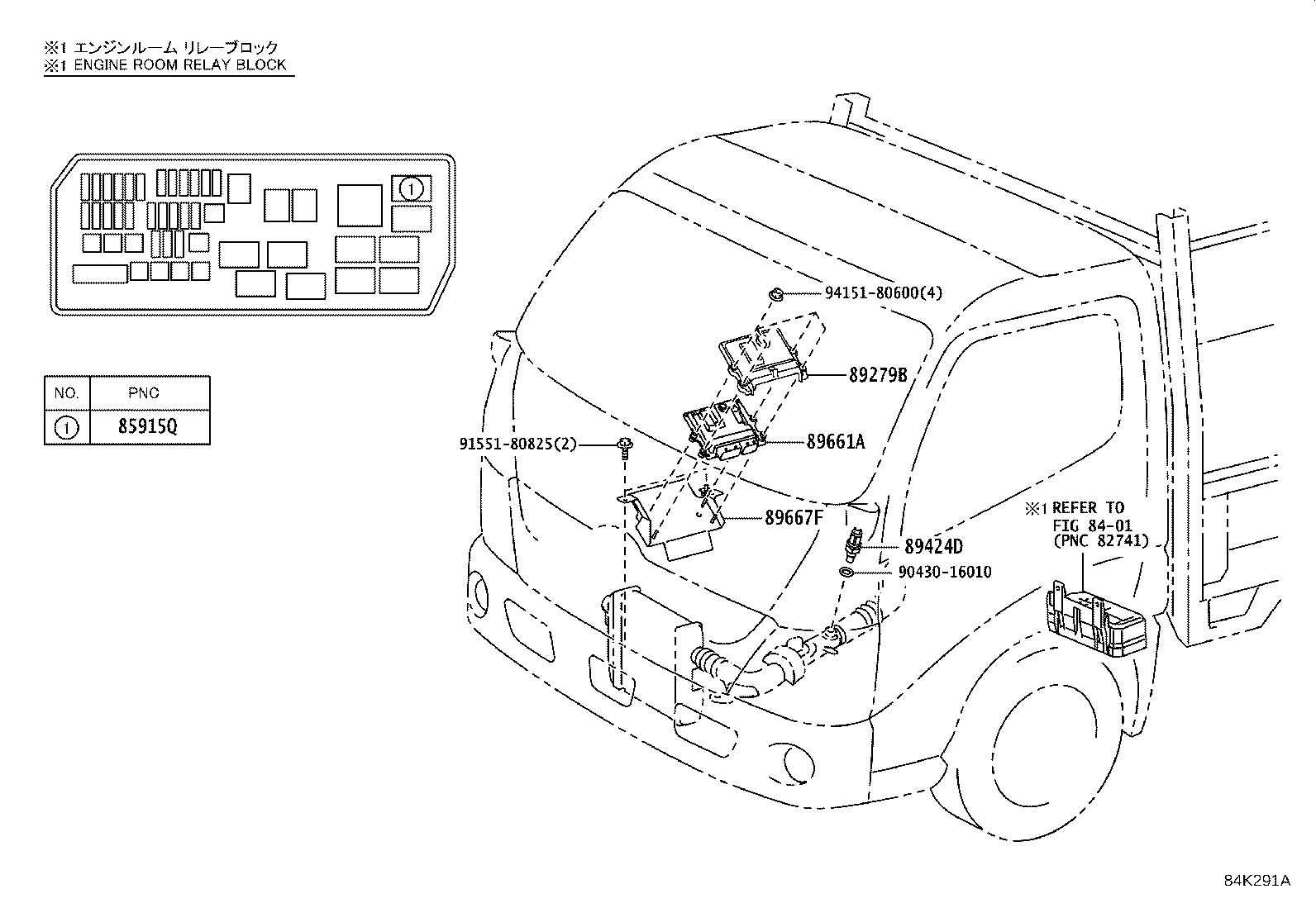

Click highlighted areas on diagram

diagram 8401 85915Q 89279B 89424D 89661A 89667F 9043016010 9155180825 9415180600
Part # Description Qty Price
85915Q - RELAY, COMPUTER (FOR DIESEL)
85900-37150

XKU702,71#,72#..DCRWD

 1
89279B - COVER, DIESEL ENGINE CONTROL COMPUTOR
F1712-37060

XKU702,71#,72#..DCRWD

 1
89661A - COMPUTER, ENGINE CONTROL
89661-37U20

XKU702,71#,72#

DENSO

 1
89661-37U21

XKU702,71#,72#

DENSO

 1
89661-37T80

XKU702,71#,72#..DCRWD

DENSO,ﾃﾞｭﾄﾛ専用

 1
89661-37U22

XKU702,71#,72#

DENSO

 1
89661-37U23

XKU702,71#,72#..DCRWD

DENSO

 1
89667F - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-37210

XKU702,71#,72#..DCRWD

 1
Common parts
90430-16010
91551-80825
94151-80600
Linked diagrams
8401
