XKU712-TQVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

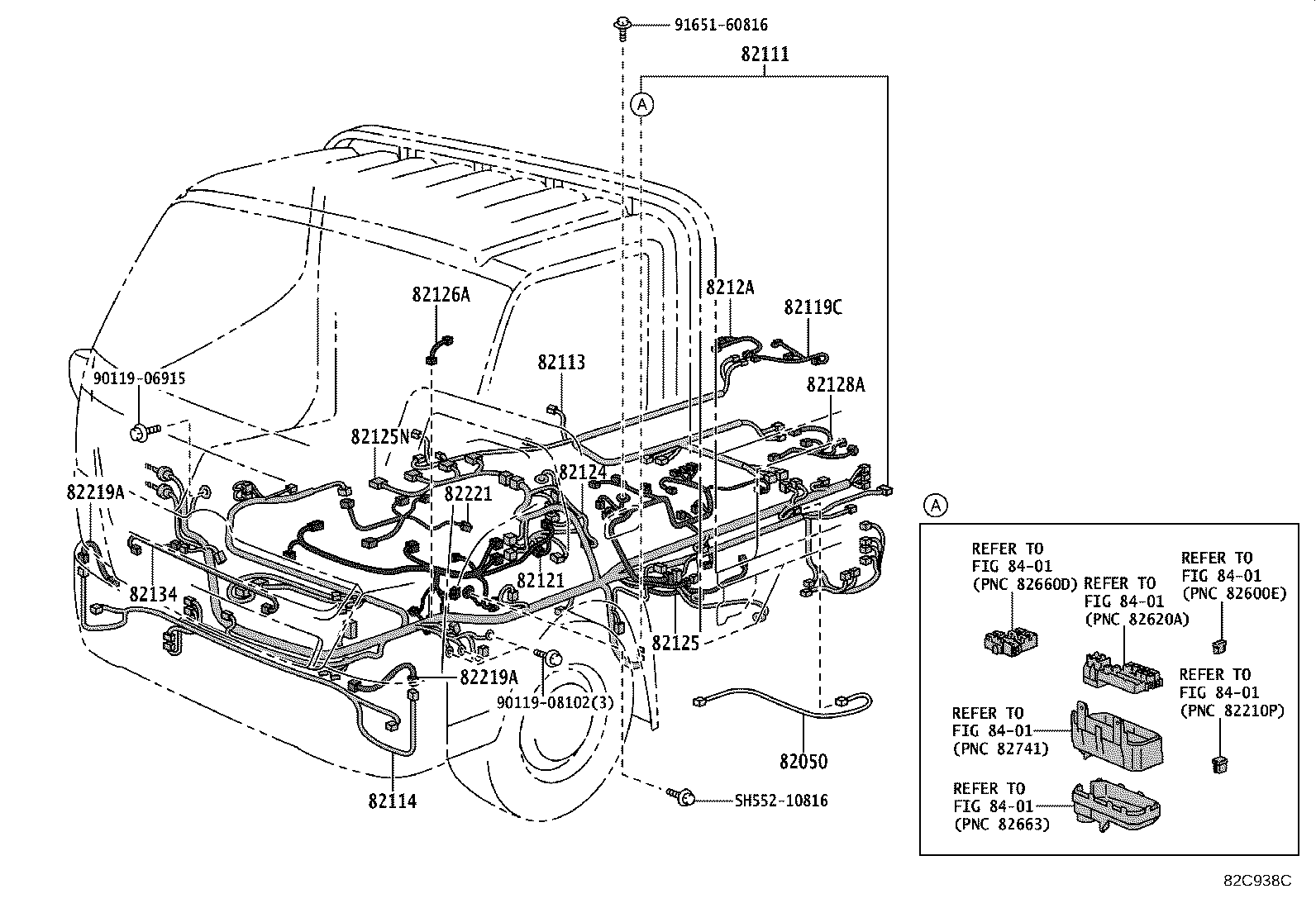

ILLUST NO. 1 OF 7(1905- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

diagram 82050 82111 82113 82114 82119C 82121 82124 82125 82125N 82126A 82128A 8212A 82134 82219A 82219A 82221 8401 8401 8401 8401 8401 8401 9011906915 9011908102 9165160816 SH55210816
Part # Description Qty Price
82050 - WIRE ASSY, ENGINE
82050-37010

XKU702,71#,72#..DCRWD

ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)

 1
82111 - WIRE, ENGINE ROOM MAIN
82116-37P60

XKU702,71#,72#

 1
82116-37P61

XKU702,71#,72#..DCRWD

 1
82113 - WIRE, ENGINE ROOM, NO.3
82113-37Q71

XKU702,71#,72#..DCRWD

 1
82113-37Q70

XKU702,71#,72#..DCRWD

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37330

XKU702,71#,72#..DCRWD

 1
82114-37310

XKU702,71#,72#..DCRWD

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
82119C - WIRE, ENGINE ROOM, NO.5
82119-37050

XKU702,71#,72#..DCRWD

 1
82121 - WIRE, ENGINE
82121-37K20

XKU702,71#,72#..DCRWD

 1
82124 - WIRE, ENGINE, NO.4
82121-37K60

XKU702,71#,72#..DCRWD

 1
82121-37K70

XKU702,71#,72#..DCRWD

寒冷地仕様

 1
82125 - WIRE, TRANSMISSION
82125-37660

XKU702,71#,72#..DCRWD

 1
82125N - WIRE, ENGINE, NO.5
82121-37L50

XKU702,71#,72#..DCRWD

 1
82126A - WIRE, ENGINE, NO.6
82121-37M00

XKU702,71#,72#..DCRWD

 1
82128A - WIRE, ENGINE, NO.8
82128-37010

XKU702,71#,72#..DCRWD

 1
8212A - WIRE, ENGINE, NO.9
8212A-37010

XKU702,71#,72#..DCRWD

 1
82134 - WIRE, COWL, NO.4
82134-37020

XKU702,71#,72#..DCRWD

 1
82219A - WIRE, SENSOR
82219-37040

XKU702,71#,72#..DCRWD

 2
82219A - WIRE, SENSOR
82219-37040

XKU702,71#,72#..DCRWD

 2
82221 - WIRE, OIL PRESSURE SWITCH
82221-37221

XKU702,71#,72#..DCRWD

 1
Common parts
90119-06915
90119-08102
91651-60816
SH552-10816
Linked diagrams
8401
