XKU712-TQVQX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

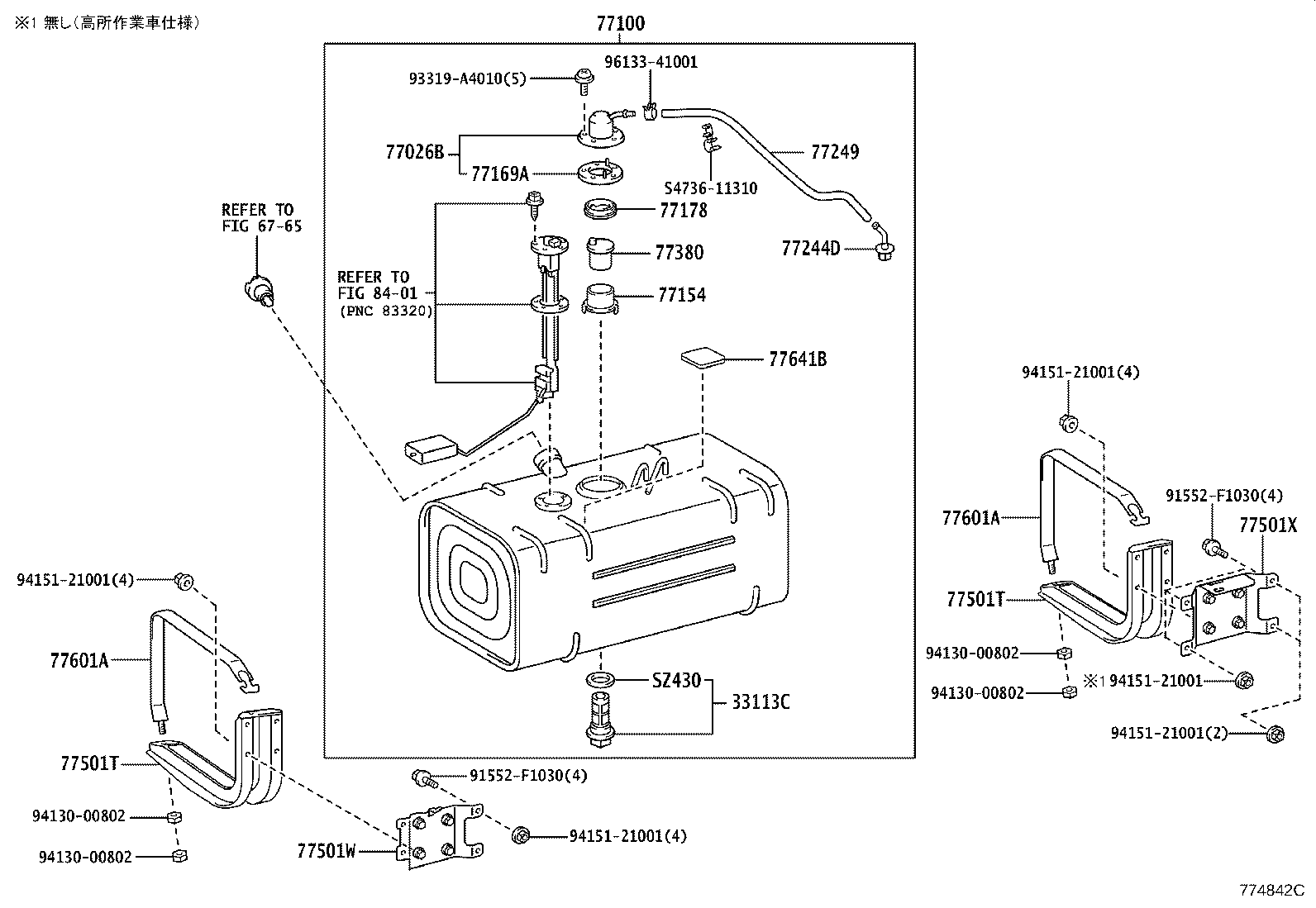

ILLUST NO. 1 OF 2(1905- )DCRWD ; (2103- )DCWDO

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

diagram 33113C 6765 77026B 77100 77154 77169A 77178 77244D 77249 77380 77501T 77501T 77501W 77501X 77601A 77601A 77641B 8401 91552F1030 91552F1030 93319A4010 9413000802 9413000802 9413000802 9413000802 9415121001 9415121001 9415121001 9415121001 9415121001 9613341001 S473611310 SZ430
Part # Description Qty Price
33113C - PLUG, DRAIN
33113-37130

XKU702,71#,72#..DCRWD

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XKU702,71#,72#..DCRWD

 1
77100 - TANK ASSY, FUEL
77100-37B01

XKU702,71#,72#..DCRWD

 1
77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT
77154-25010

XKU702,71#,72#..DCRWD

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

XKU702,71#,72#..DCRWD

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XKU702,71#,72#..DCRWD

 1
77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1
77244-37030

XKU702,71#,72#..DCRWD

 1
77249 - HOSE, FUEL EMISSION
77249-37520

XKU702,71#,72#..DCRWD

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XKU702,71#,72#..DCRWD

 1
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37800

XKU702,71#,72#..DCRWD

 2
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37800

XKU702,71#,72#..DCRWD

 2
77501W - BRACKET SUB-ASSY, FUEL TANK, FRONT
77501-37650

XKU702,71#,72#..DCRWD

 1
77501X - BRACKET SUB-ASSY, FUEL TANK, REAR
77501-37661

XKU702,71#,72#..DCRWD

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37111

XKU702,71#,72#..DCRWD

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37111

XKU702,71#,72#..DCRWD

 2
77641B - COVER, FUEL TANK
77641-37100

XKU702,71#,72#..DCRWD

 1
SZ430 - WASHER, SOFT, NO.1
SZ430-30004

XKU702,71#,72#..DCRWD

 1
Common parts
91552-F1030
93319-A4010
94130-00802
94151-21001
96133-41001
S4736-11310
Linked diagrams
6765
8401

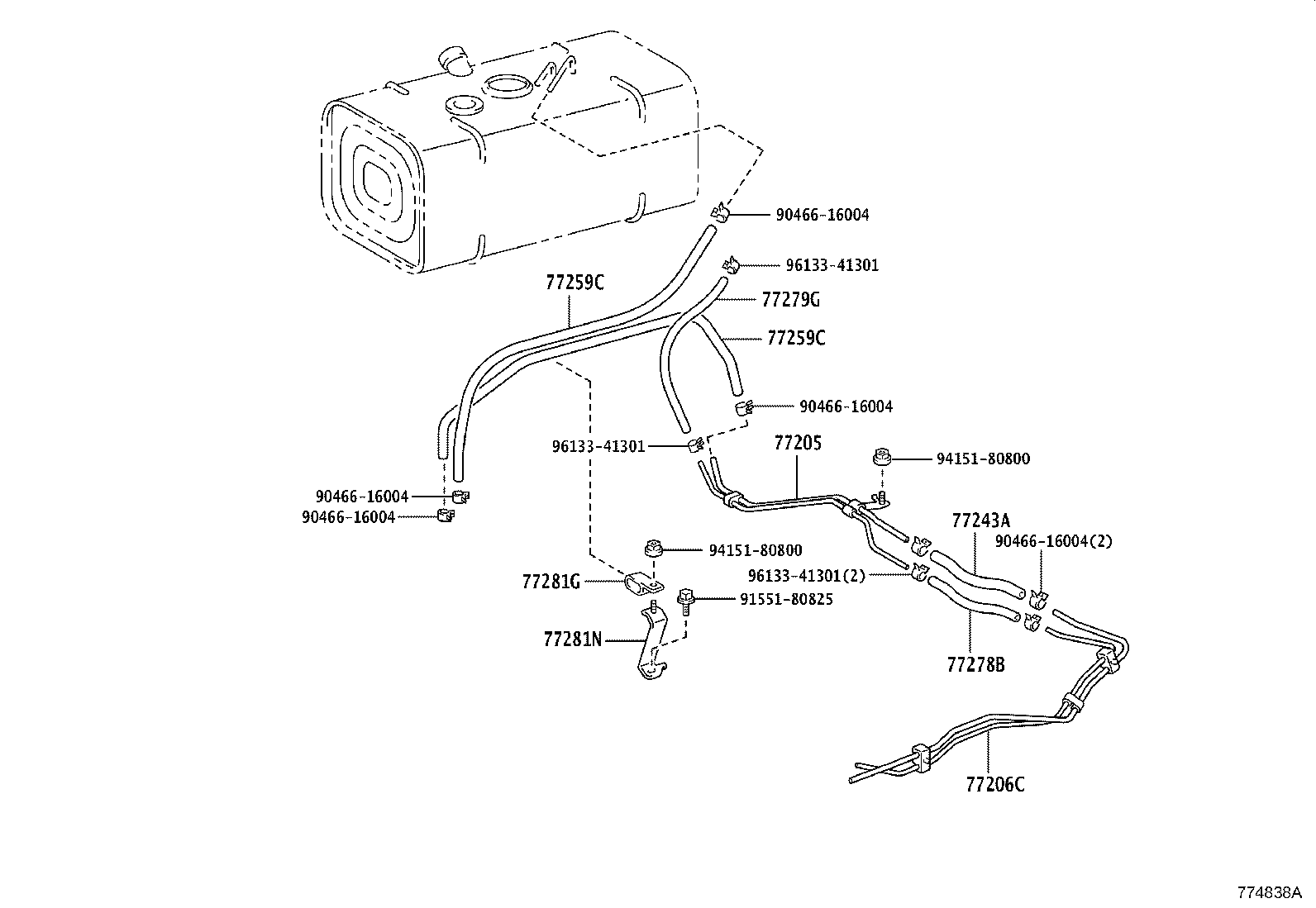

ILLUST NO. 2 OF 2(1905- )DCRWD ; (2103- )DCWDO

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 77205 77206C 77243A 77259C 77259C 77278B 77279G 77281G 77281N 9046616004 9046616004 9046616004 9046616004 9046616004 9155180825 9415180800 9415180800 9613341301 9613341301 9613341301
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37K90

XKU702,71#,72#..DCRWD

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37P10

XKU702,71#,72#..DCRWD

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
SM331-10030

XKU702,71#,72#..DCRWD

長さ=160

 1
77259C - HOSE, FUEL
77259-37B10

XKU702,71#,72#..DCRWD

 1
77259C - HOSE, FUEL
77259-37B10

XKU702,71#,72#..DCRWD

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08020

XKU702,71#,72#..DCRWD

長さ=160

 1
77279G - HOSE, FUEL, NO.2
77279-37630

XKU702,71#,72#..DCRWD

 1
77281G - CLAMP, FUEL HOSE
SZ461-17002

XKU702,71#,72#..DCRWD

 1
77281N - CLAMP, FUEL HOSE
77281-37680

XKU702,71#,72#..DCRWD

 1
Common parts
90466-16004
91551-80825
94151-80800
96133-41301
