XKU712-TQVQX3 (2019)
Toyota Dyna/Toyoace Hv

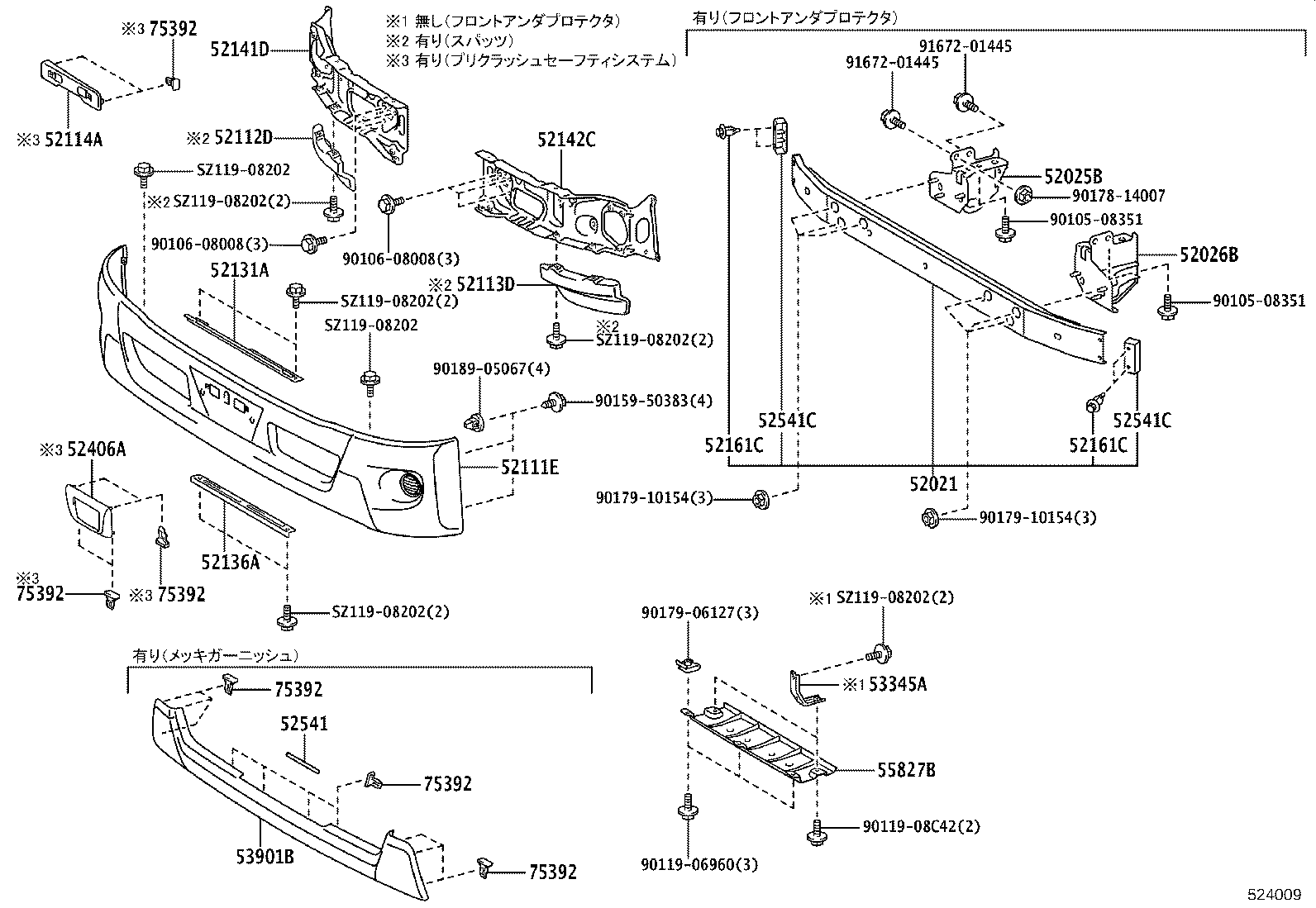

ILLUST NO. 1 OF 2(1905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-37080 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
1 | ||
| 52021-37080 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
1 | ||
| 52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH | ||||
| 52025-37011 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
1 | ||
| 52025-37011 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
1 | ||
| 52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH | ||||
| 52026-37011 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
1 | ||
| 52026-37011 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52110-37B90 |
XKU702,71#,72#..DCRWD 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−ﾞ料着色(樹脂)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52110-37B80 |
XKU702,71#,72# 塗装不要,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52110-37B90 |
XKU702,71#,72# 塗装不要,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌHｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52110-3VM10 |
XKU702,71#,72# 塗装不要,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52110-3VM20A0 |
XKU702,71#,72#..DCRWD WHITE,058 |
1 | ||
| 52110-3VM20B1 |
XKU702,71#,72#..DCRWD SILVER ME.,199 |
1 | ||
| 52110-3VM30H0 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VM20F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM20H0 |
XKU702,71#,72#..DCRWD TURQUOISE,766 |
1 | ||
| 52110-3VM40A0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-3VM40B1 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VM20J0 |
XKU702,71#,72#..DCRWD BLUE,8P0 |
1 | ||
| 52110-3VM40J0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-3VM40H0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VM40F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM00 |
XKU702,71#,72# 塗装不要,ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂) |
1 | ||
| 52110-3VM30F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM30A0 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VM30B1 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VM50A0 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-3VM50J0 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-3VM50F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM50B1 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VM50H0 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VM30J0 |
XKU702,71#,72#..DCRWD ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VM60B1 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52110-3VM60F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM60H0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,TURQUOISE,766 |
1 | ||
| 52110-3VM70B1 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VM90F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM70A0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VM80B1 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-3VM90A0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-3VM60A0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52110-3VM70H0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VM70J0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VM60J0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,BLUE,8P0 |
1 | ||
| 52110-3VM70F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM80F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-3VM80H0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-3VM90J0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-3VM80A0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-3VM90H0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-37U10H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ),TURQUOISE,766 |
1 | ||
| 52110-37U10B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ),SILVER ME.,199 |
1 | ||
| 52110-37B80 |
XKU702,71#,72#..DCRWD 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−ﾞ料着色(樹脂)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52110-3VM80J0 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-37U20F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-37U30A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-37U20A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-3VM90B1 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-37U10A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ),WHITE,058 |
1 | ||
| 52110-37U30H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-37U30F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-37V00A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-37V00B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-37V00F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-37U10F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ),SEINO YELLOW,9E2 |
1 | ||
| 52110-37U30B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-37U20J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-37U20H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-37V00J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-37U20B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-37V00H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-37V10H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,TURQUOISE,766 |
1 | ||
| 52110-37V10A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,WHITE,058 |
1 | ||
| 52110-37V10J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,BLUE,8P0 |
1 | ||
| 52110-37U30J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-37V10B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SILVER ME.,199 |
1 | ||
| 52110-37V20B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SILVER ME.,199 |
1 | ||
| 52110-37V20A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,WHITE,058 |
1 | ||
| 52110-37V30F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-37V30J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-37V10F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ,SEINO YELLOW,9E2 |
1 | ||
| 52110-37V30A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-37V30H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-37V20J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,BLUE,8P0 |
1 | ||
| 52110-3VM00 |
XKU702,71#,72#..DCRWD 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−ﾞ料着色(樹脂) |
1 | ||
| 52110-37V40B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52110-37V40H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,TURQUOISE,766 |
1 | ||
| 52110-37V20H0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,TURQUOISE,766 |
1 | ||
| 52110-37V40A0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,WHITE,058 |
1 | ||
| 52110-37U10J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ),BLUE,8P0 |
1 | ||
| 52110-3VM10 |
XKU702,71#,72#..DCRWD 塗装不要,ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−ﾞ料着色(樹脂)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52110-37V40J0 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,BLUE,8P0 |
1 | ||
| 52110-37V20F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-37V40F0 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SEINO YELLOW,9E2 |
1 | ||
| 52110-37V30B1 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り,SILVER ME.,199 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-37130 |
XKU702,71#,72#..DCRWD 塗装不要 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-37050 |
XKU702,71#,72#..DCRWD 塗装不要 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-37260 |
XKU702,71#,72#..DCRWD |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-37111 |
XKU702,71#,72#..DCRWD |
1 | ||
| 52136A - REINFORCEMENT, FRONT BUMPER | ||||
| 52136-37011 |
XKU702,71#,72#..DCRWD |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-37222 |
XKU702,71#,72#..DCRWD |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-37202 |
XKU702,71#,72#..DCRWD |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
4 | ||
| 52161-16010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
4 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
4 | ||
| 52161-16010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
4 | ||
| 52406A - GARNISH SUB-ASSY, FRONT BUMPER GUARD | ||||
| 52406-37030 |
XKU702,71#,72#..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り&有り(ｿﾅｰ:ﾌﾞﾗｯｸ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂) |
1 | ||
| 52406-37040B2 |
XKU71#..T4..(20T,30T)..DCRWD..IV3 GRAY,766 ,8P0 ,9E2 |
1 | ||
| 52406-37040A0 |
XKU702,71#,72#..DCRWD WHITE,058 |
1 | ||
| 52406-37040B1 |
XKU702,71#,72#..DCRWD SILVER ME.,199 |
1 | ||
| 52406-37030 |
XKU702,71#,72# ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−材料着色(樹脂) |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-35030 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52541-35030 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541-35030 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541-35030 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52541-35030 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 52541-35030 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 52541-35030 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541-35030 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 52541C - PROTECTOR, FRONT BUMPER, NO.1 | ||||
| 52541-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
2 | ||
| 52541-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
2 | ||
| 52541C - PROTECTOR, FRONT BUMPER, NO.1 | ||||
| 52541-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−無し |
2 | ||
| 52541-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&牽引ﾌｯｸ−ﾌﾛﾝﾄ&ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ無し) |
2 | ||
| 53345A - BRACKET, AIR DEFLECTOR, NO.2 RH | ||||
| 53345-37040 |
XKU702,71#,72#..DCRWD |
2 | ||
| 53901B - PANEL SUB-ASSY, FRONT VALANCE | ||||
| 53901-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 53901-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 53901-37010 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
1 | ||
| 53901-37010 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 53901-37010 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 53901-37010 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 55827B - DUCT, VENTILATOR AIR GUIDE | ||||
| 55827-37070 |
XKU702,71#,72#..DCRWD |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD |
6 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD |
6 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD |
6 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD |
6 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD |
6 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,712,722..DCRWD ﾌﾛﾝﾄｱﾝﾀﾞﾌﾟﾛﾃｸﾀ−有り(ﾌﾛﾝﾄﾊﾞﾝﾊﾟ&ﾘｲﾝﾌｫｰｽﾒﾝﾄ)&ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD ﾌﾛﾝﾄﾊﾞﾝﾊﾟ−塗装(樹脂)&ﾒｯｷｶﾞｰﾆｯｼｭ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
16 | ||
| 75392-35220 |
XKU702,71#,72#..DCRWD |
6 | ||
| Common parts | ||||
| 90105-08351 | ||||
| 90106-08008 | ||||
| 90119-06960 | ||||
| 90119-08C42 | ||||
| 90159-50383 | ||||
| 90178-14007 | ||||
| 90179-06127 | ||||
| 90179-10154 | ||||
| 90189-05067 | ||||
| 91672-01445 | ||||
| SZ119-08202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
