XKU712-TQVQX3 (2019)
Toyota Dyna/Toyoace Hv

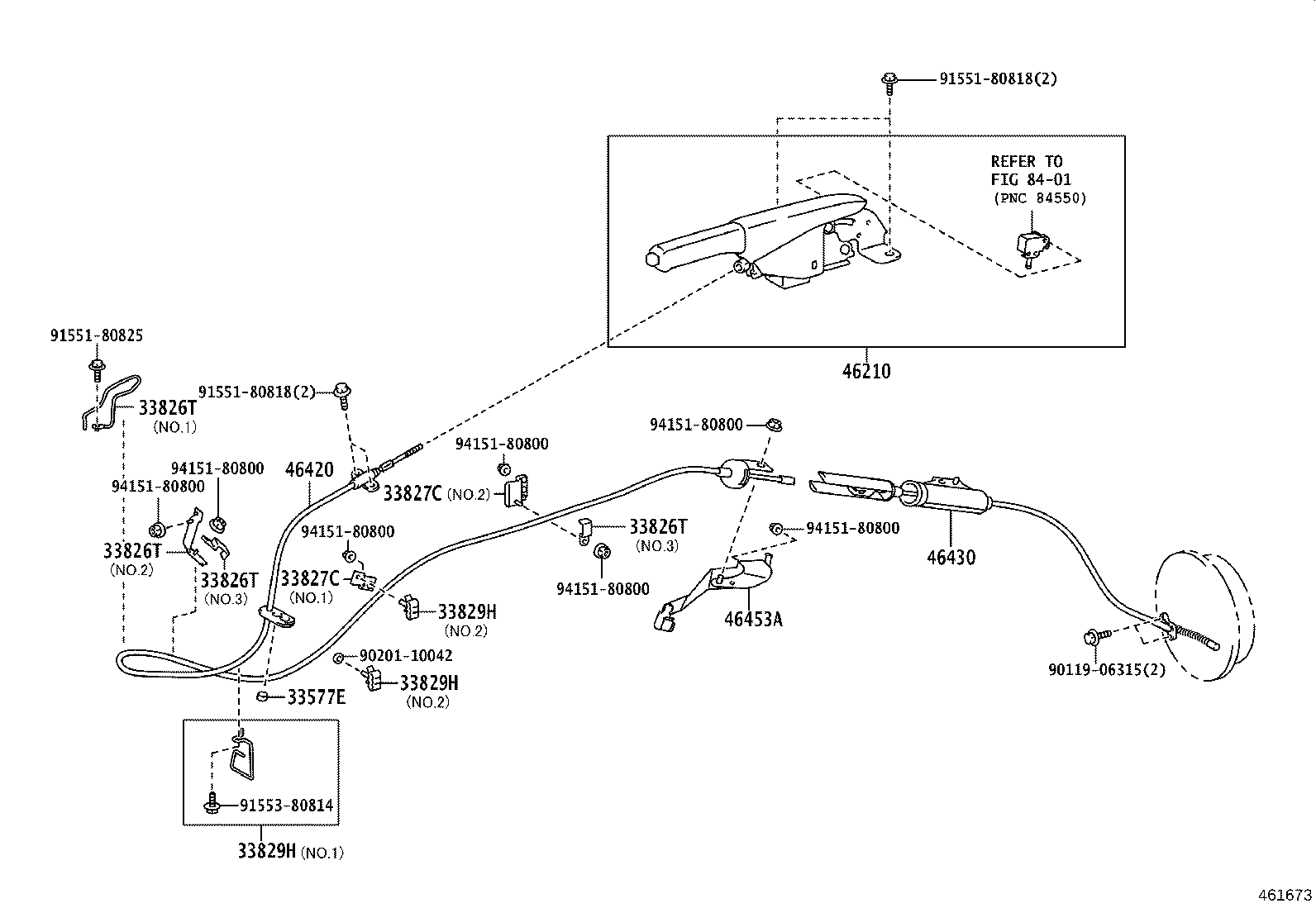

ILLUST NO. 1 OF 2(1905- )DCRWD
ﾅｼ(ﾃﾞﾝﾄﾞｳ ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37160 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33827-37320 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37160 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33827-37320 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU702,71#,72#..DCRWD NO.2 |
2 | ||
| 33829-37340 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU702,71#,72#..DCRWD NO.2 |
2 | ||
| 33829-37340 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU702,71#,72#..DCRWD NO.2 |
2 | ||
| 33829-37340 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37130C0 |
XKU702,71#,72#..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A42 |
XKU702,71#,72#..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420-37C31 |
XKU702,71#,72#..DCRWD |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37K40 |
XKU702,71#,72#..DCRWD |
1 | ||
| 46430-37K30 |
XKU702,71#,72#..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37471 |
XKU702,71#,72#..DCRWD |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90201-10042 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91553-80814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

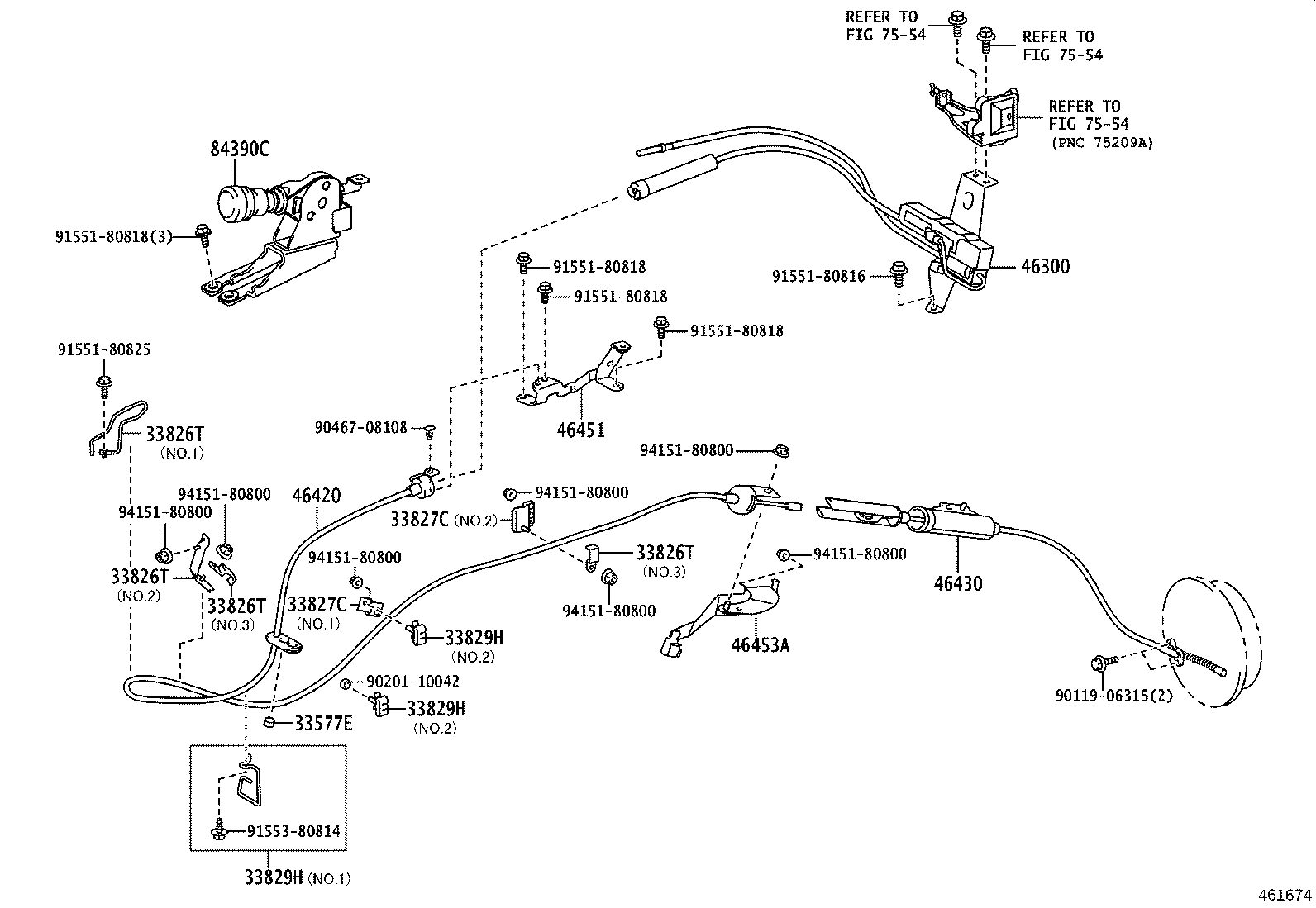

ILLUST NO. 1 OF 2(1905- )
ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37A50 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33826-37580 |
XKU702,71#,72#..DCRWD NO.3 |
2 | ||
| 33826-37B90 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37160 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33827-37320 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33827C - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37160 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33827-37320 |
XKU702,71#,72#..DCRWD NO.2 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU702,71#,72#..DCRWD NO.2 |
2 | ||
| 33829-37340 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU702,71#,72#..DCRWD NO.2 |
2 | ||
| 33829-37340 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 33829H - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XKU702,71#,72#..DCRWD NO.2 |
2 | ||
| 33829-37340 |
XKU702,71#,72#..DCRWD NO.1 |
1 | ||
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37073 |
XKU702,71#,72# |
1 | ||
| 46300-37074 |
XKU702,71#,72#..DCRWD |
1 | ||
| 46300-37073 |
XKU702,71#,72# ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37074 |
XKU702,71#,72# ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A42 |
XKU702,71#,72#..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420-37C31 |
XKU702,71#,72#..DCRWD |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37K40 |
XKU702,71#,72#..DCRWD |
1 | ||
| 46430-37K30 |
XKU702,71#,72#..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37090 |
XKU702,71#,72# ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46451-37090 |
XKU702,71#,72#..DCRWD |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37471 |
XKU702,71#,72#..DCRWD |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37040C0 |
XKU702,71#,72# ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 84390-37040C0 |
XKU702,71#,72#..DCRWD BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90201-10042 | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 91551-80825 | ||||
| 91553-80814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7554 | ||||
