XKU712-TQVQX3 (2019)
Toyota Dyna/Toyoace Hv
(1905- )
RE62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

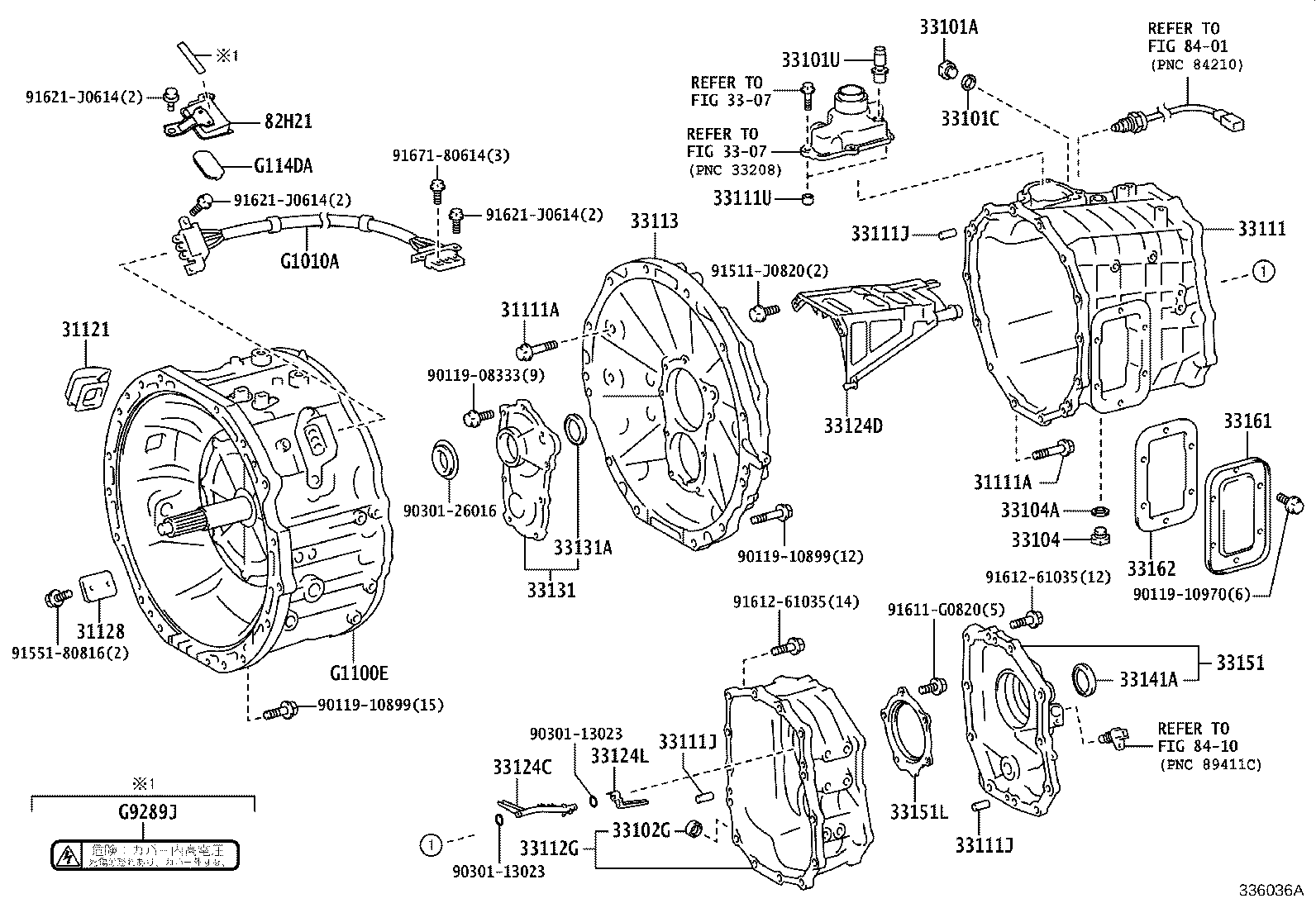

| 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) | ||||
| 91612-61045 |
XKU702,71#,72#..DCRWD |
14 | ||
| 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) | ||||
| 91612-61045 |
XKU702,71#,72#..DCRWD |
14 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XKU702,71#,72#..DCRWD |
1 | ||
| 31128 - COVER, CLUTCH HOUSING UNDER | ||||
| 31128-37020 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33102G - SEAL, TYPE T OIL(FOR MANUAL TRANSMISSION CASE) | ||||
| 90311-12002 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-37120 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
XKU702,71#,72#..DCRWD 長さ=15,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
XKU702,71#,72#..DCRWD 長さ=15,外径=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
XKU702,71#,72#..DCRWD 長さ=15,外径=8 |
6 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11021 |
XKU702,71#,72#..DCRWD 長さ=8,外径=11 |
2 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-37020 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33113 - ADAPTER, TRANSMISSION CASE, FRONT | ||||
| 33113-37090 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-37070 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-37080 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-37100 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-37080 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-52021 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-37110 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33151L - RETAINER, BEARING, REAR | ||||
| 33151-37120 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-37060 |
XKU702,71#,72#..DCRWD |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-37060 |
XKU702,71#,72#..DCRWD |
1 | ||
| 82H21 - COVER, CONNECTOR | ||||
| 82821-37270 |
XKU702,71#,72#..DCRWD |
1 | ||
| G1010A - WIRE ASSY, MOTOR STATOR | ||||
| G1010-37100 |
XKU702,71#,72#..DCRWD |
1 | ||
| G1100E - MOTOR ASSY, HYBRID VEHICLE | ||||
| G1100-37091 |
XKU702,71#,72#..DCRWD |
1 | ||
| G1100-37090 |
XKU702,71#,72#..DCRWD |
1 | ||
| G114DA - CAP, MOTOR CABLE TERMINAL | ||||
| G114D-37020 |
XKU702,71#,72#..DCRWD |
1 | ||
| G9289J - LABEL, BATTERY CAUTION, NO.7 | ||||
| G9289-37160 |
XKU702,71#,72#..DCRWD |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 90119-10899 | ||||
| 90119-10970 | ||||
| 90301-13023 | ||||
| 90301-26016 | ||||
| 91511-J0820 | ||||
| 91551-80816 | ||||
| 91611-G0820 | ||||
| 91612-61035 | ||||
| 91621-J0614 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
| 8410 | ||||
