XKU712-TQVQX3 (2019)
Toyota Dyna/Toyoace Hv

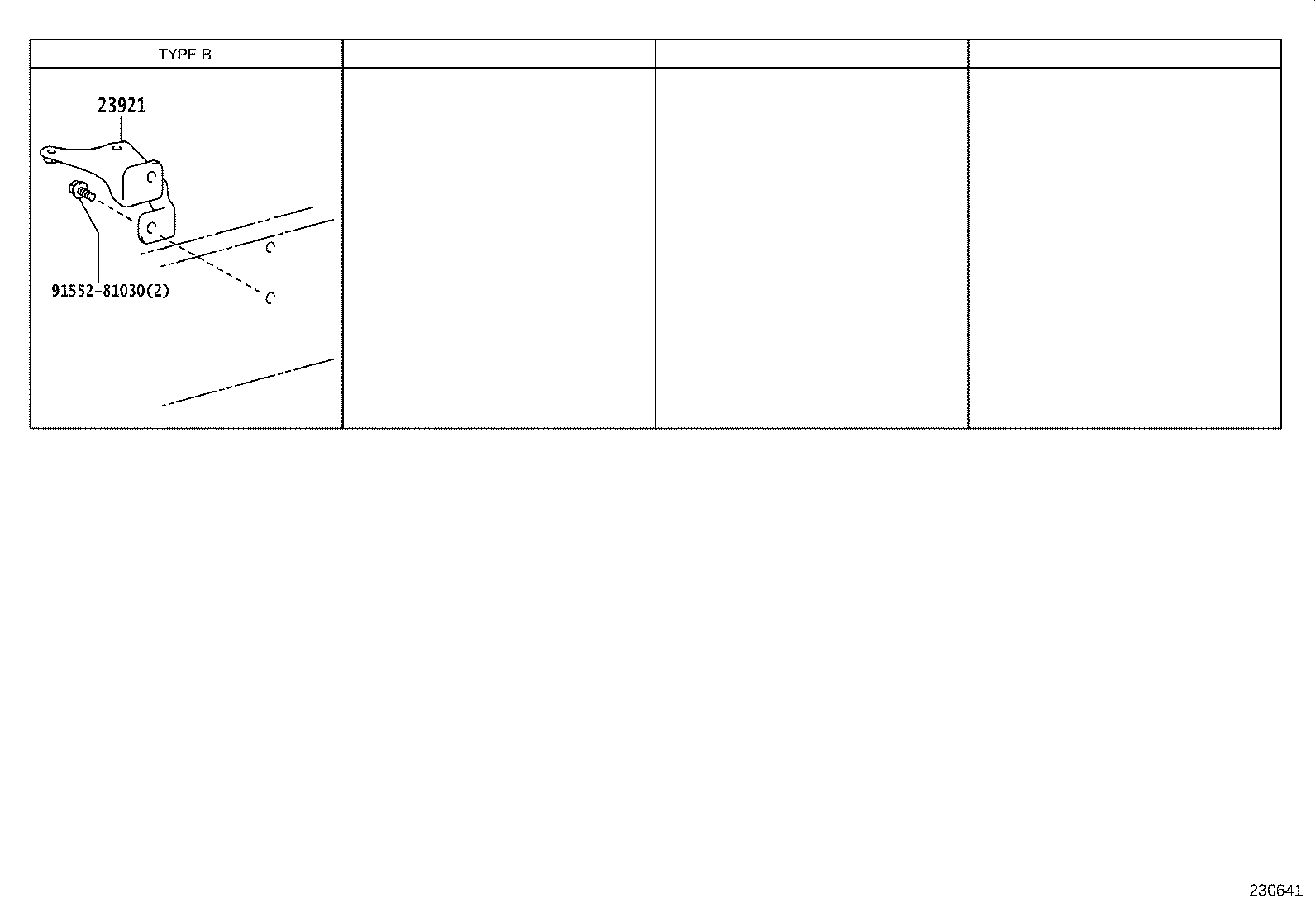

ILLUST NO. 2 OF 2(1905- )
ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-78680 |
N04C..XKU702,71#,72#..DCRWD TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 91552-81030 | ||||

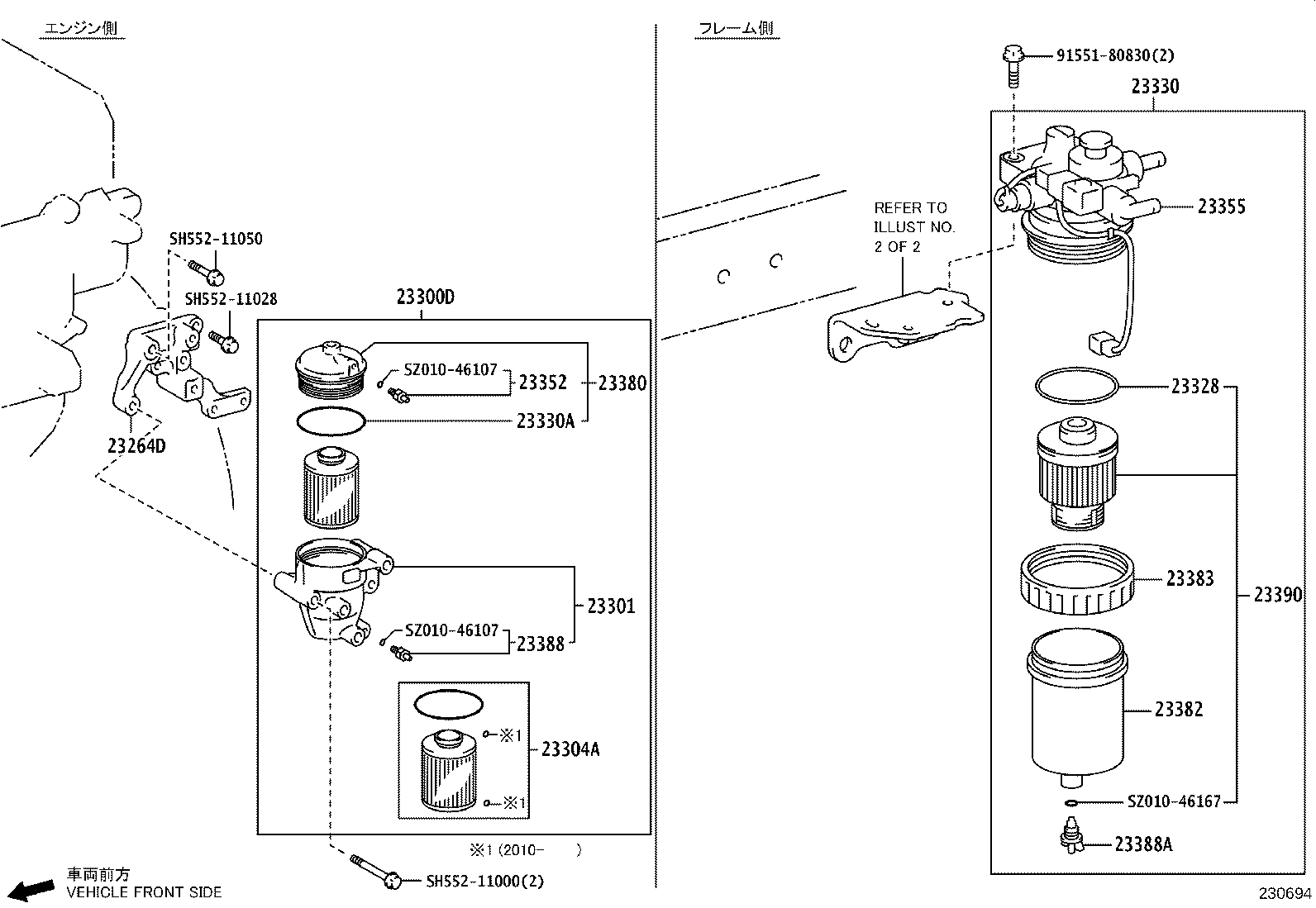

ILLUST NO. 1 OF 2(1905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23264D - BRACKET, FUEL FILTER | ||||
| 23264-78090 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-78500 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23300-78501 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23301 - BODY SUB-ASSY, FUEL FILTER | ||||
| 23301-78501 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23301-78500 |
N04C..XKU702,71#,72# |
1 | ||
| 23304A - ELEMENT SET, FUEL FILTER | ||||
| 23304-78500 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23304-EV570 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23328 - GASKET(FOR FUEL FILTER) | ||||
| 23385-78150 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23330 - PREFILTER ASSY, FUEL | ||||
| 23330-78201 |
N04C..XKU702,71#,72#..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23330-78192 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23330-78202 |
N04C..XKU702,71#,72#..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23330-78191 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23330A - GASKET | ||||
| 23386-78500 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| SZ010-46251 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23352 - PLUG, BLEEDER | ||||
| 23388-EV020 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23355 - ELEMENT, PREFILTER | ||||
| 23355-78200 |
N04C..XKU702,71#,72#..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23355-78190 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23355-78191 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23355-78201 |
N04C..XKU702,71#,72#..DCRWD ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-78500 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23380-78501 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23382 - CASE, FUEL FILTER | ||||
| 23382-78151 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23382-78152 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23383 - UNION, FUEL FILTER | ||||
| 23383-78150 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-EV020 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23388A - PLUG, FUEL FILTER DRAIN | ||||
| 23388-EV060 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23304-78150 |
N04C..XKU702,71#,72#..DCRWD |
1 | ||
| Common parts | ||||
| 91551-80830 | ||||
| SH552-11000 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| SZ010-46107 | ||||
| SZ010-46167 | ||||
