XKU712-TQVQX (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

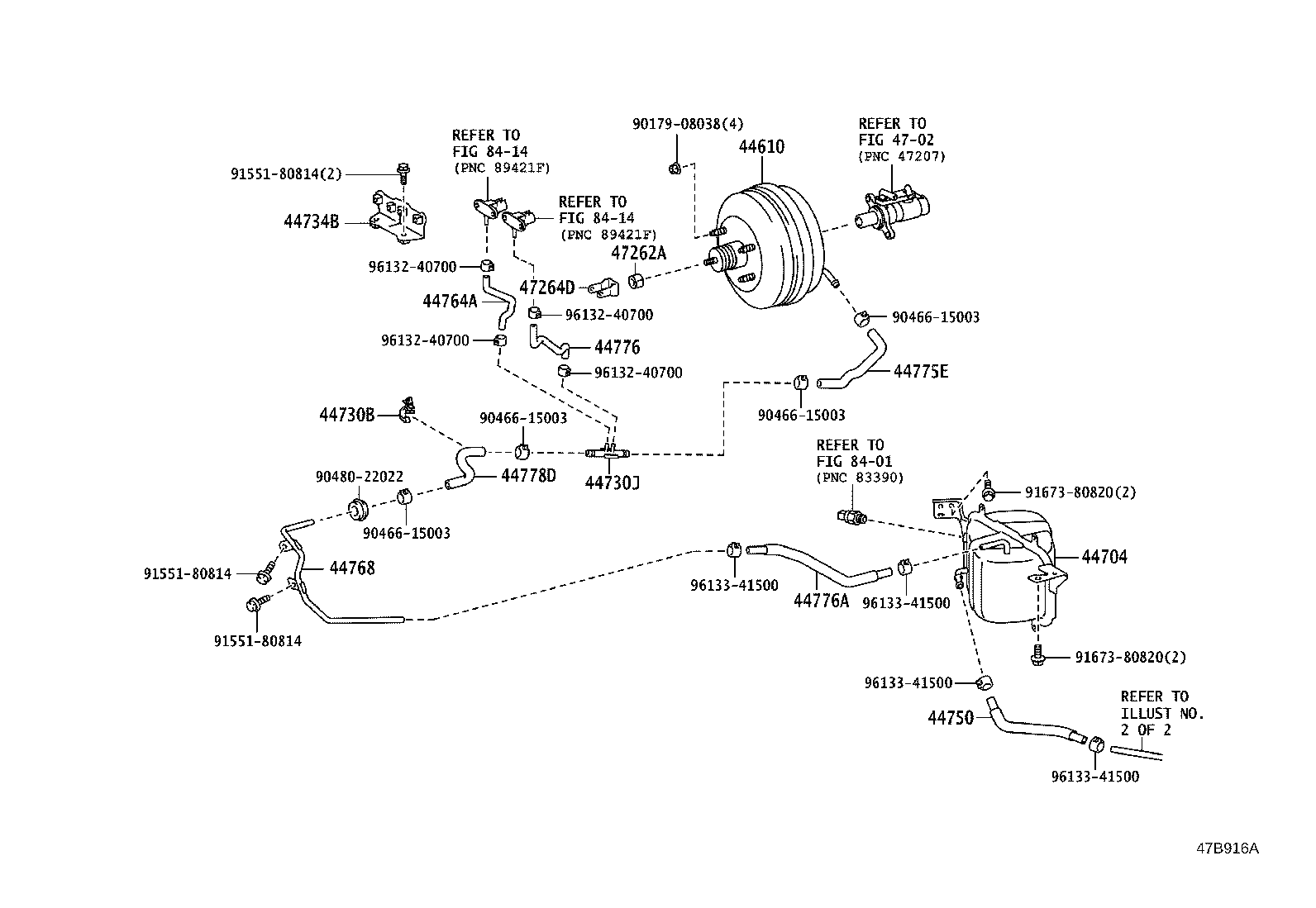

ILLUST NO. 1 OF 2(1905- )

Click highlighted areas on diagram

diagram 44610 44704 44730B 44730J 44734B 44750 44764A 44768 44775E 44776 44776A 44778D 4702 47262A 47264D 8401 8414 8414 9017908038 9046615003 9046615003 9046615003 9046615003 9048022022 9155180814 9155180814 9155180814 9167380820 9167380820 9613240700 9613240700 9613240700 9613240700 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37300

XKU702,712,722..DCRWD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37330

XKU702,71#,72#..DCRWD

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XKU702,71#,72#..DCRWD

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043

XKU702,71#,72#..DCRWD

 1
44734B - BRACKET, BOOSTER SUPPORT
44734-37020

XKU702,71#,72#..DCRWD

 1
44750 - HOSE ASSY, VACUUM
44750-37400

XKU702,71#,72#..DCRWD

 1
44764A - HOSE, BOOSTER VACUUM
44776-37330

XKU702,71#,72#..DCRWD

 1
44768 - TUBE, BOOSTER VACUUM
44768-37220

XKU702,71#,72#..DCRWD

 1
44775E - HOSE, WAY TO CONNECTOR
44776-37340

XKU702,71#,72#..DCRWD

 1
44776 - HOSE, BRAKE BOOSTER
44776-37350

XKU702,71#,72#..DCRWD

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37470

XKU702,71#,72#..DCRWD

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37320

XKU702,71#,72#..DCRWD

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
90179-10065

XKU702,71#,72#..DCRWD

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010

XKU702,71#,72#..DCRWD

 1
Common parts
90179-08038
90466-15003
90480-22022
91551-80814
91673-80820
96132-40700
96133-41500
Linked diagrams
4702
8401
8414

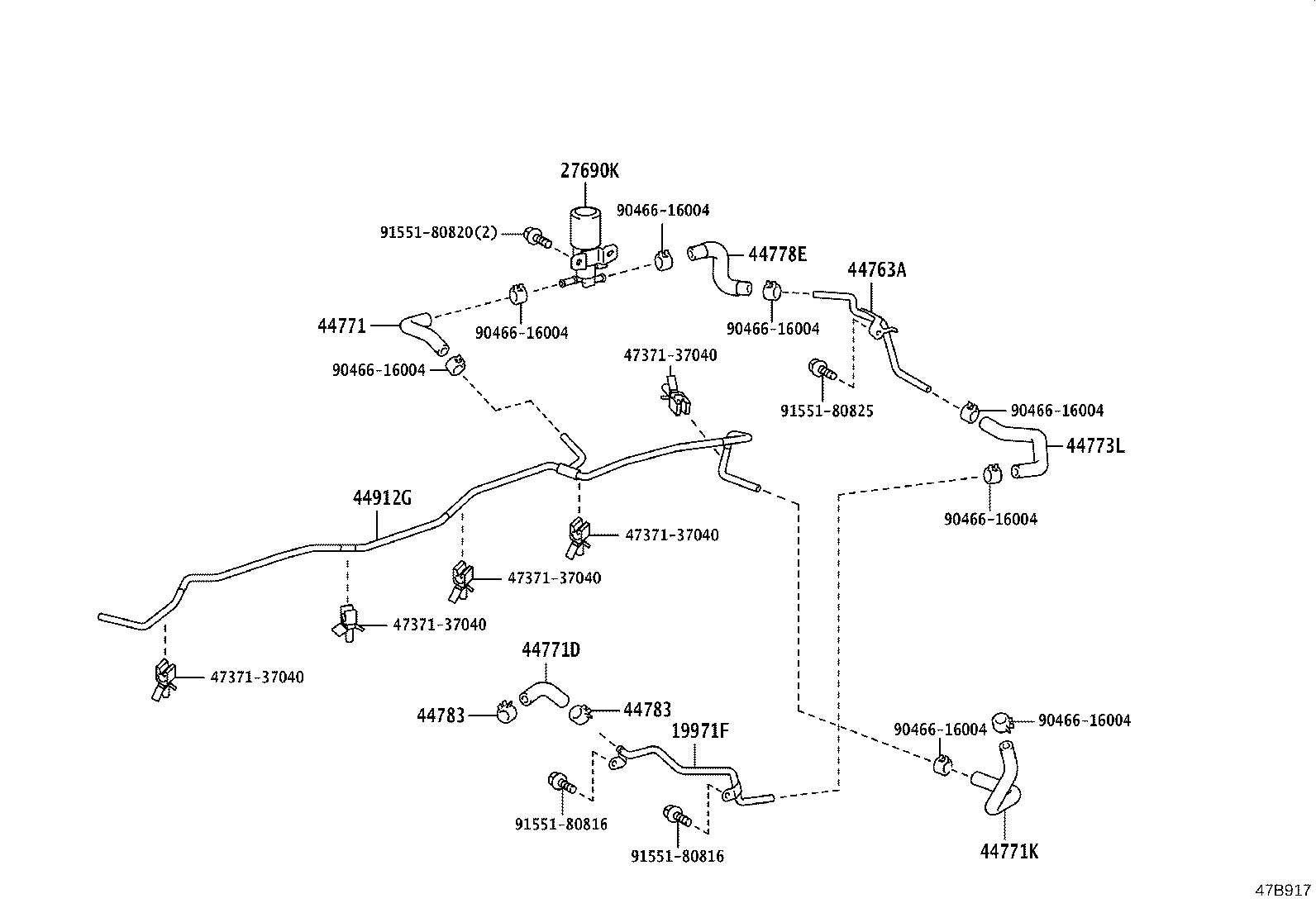

ILLUST NO. 2 OF 2(1905- )

Click highlighted areas on diagram

diagram 19971F 27690K 44763A 44771 44771D 44771K 44773L 44778E 44783 44783 44912G 4737137040 4737137040 4737137040 4737137040 4737137040 9046616004 9046616004 9046616004 9046616004 9046616004 9046616004 9046616004 9046616004 9155180816 9155180816 9155180820 9155180825
Part # Description Qty Price
19971F - PIPE, VACUUM
19971-78340

N04C..XKU702,71#,72#..DCRWD

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78180

N04C..XKU702,71#,72#..DCRWD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-37E20

XKU702,71#,72#..DCRWD

 1
44763-37E21

XKU702,71#,72#..DCRWD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37B40

XKU702,71#,72#..DCRWD

 1
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37A61

XKU702,71#,72#..DCRWD

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37E20

XKU702,71#,72#..DCRWD

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37400

XKU702,71#,72#..DCRWD

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37400

XKU702,71#,72#..DCRWD

 1
44778-37401

XKU702,71#,72#..DCRWD

 1
44783 - CLAMP, VACUUM HOSE
96138-51701

XKU702,71#,72#..DCRWD

 2
44783 - CLAMP, VACUUM HOSE
96138-51701

XKU702,71#,72#..DCRWD

 2
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37E11

XKU702,71#,72#..DCRWD

 1
Common parts
47371-37040
90466-16004
91551-80816
91551-80820
91551-80825
