XKU712-TKVSC3 (2017)
Toyota Dyna/Toyoace Hv
Production
Nov 2017
-
May 2019
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)

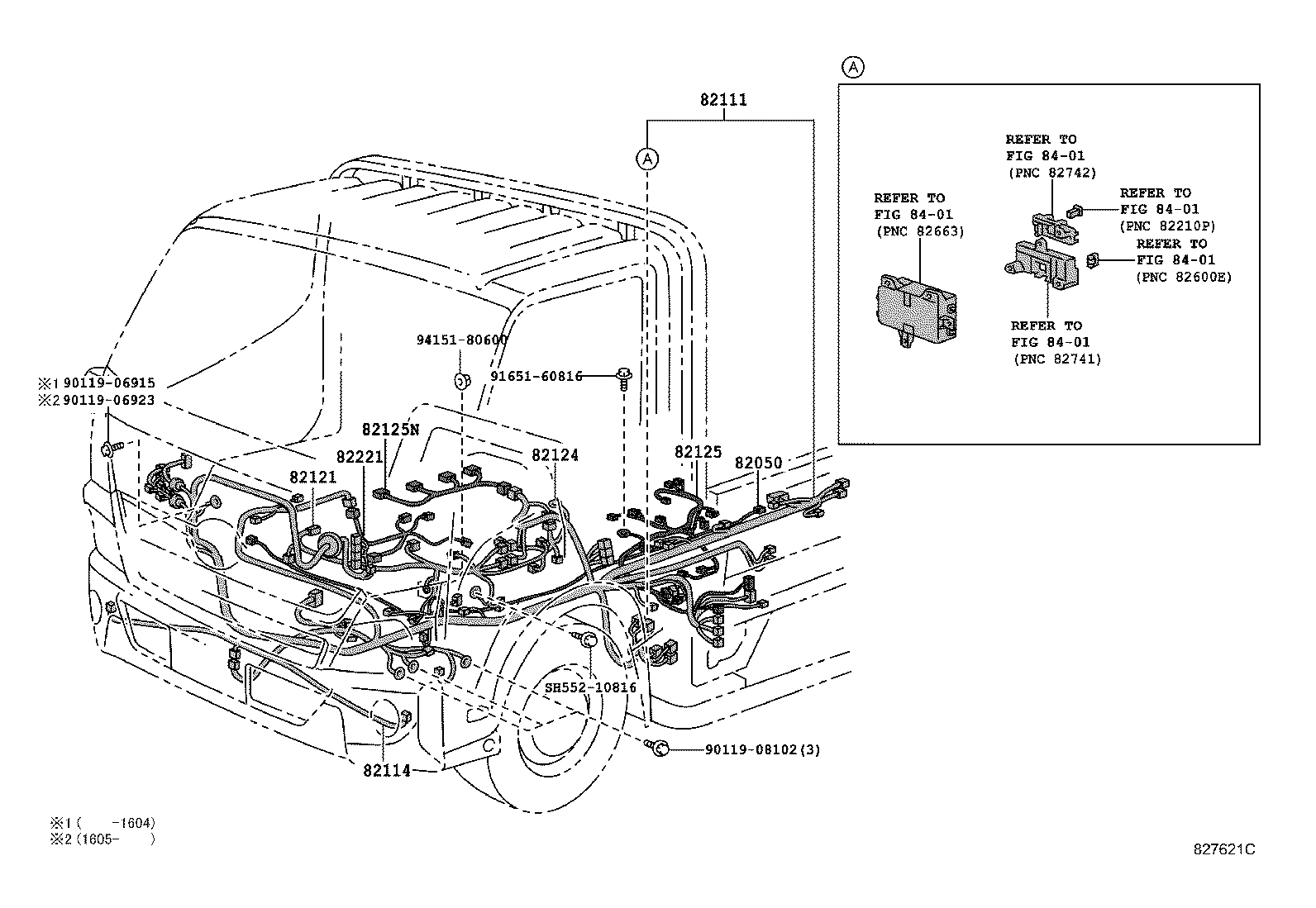

ILLUST NO. 1 OF 7(1107-1905)
Click highlighted areas on diagram
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-37V20 |
XKU702,71#,72#..6F |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-E1E73 |
XKU702,71#,72#..6F |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37530 |
XKU702,71#,72#..6F |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 90119-08102 | ||||
| 91651-60816 | ||||
| 94151-80600 | ||||
| SH552-10816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
