Toyota Dyna/toyoace hv XKU712 RADIATOR GRILLE

XKU712-TKVRX3 (2019)

Toyota Dyna/Toyoace Hv

Production May 2019 - Sep 9999

Engine N04C

Transmission 6F AMT

Displacement 2500cc

Power 168 HP (125 kW)

(1905- )

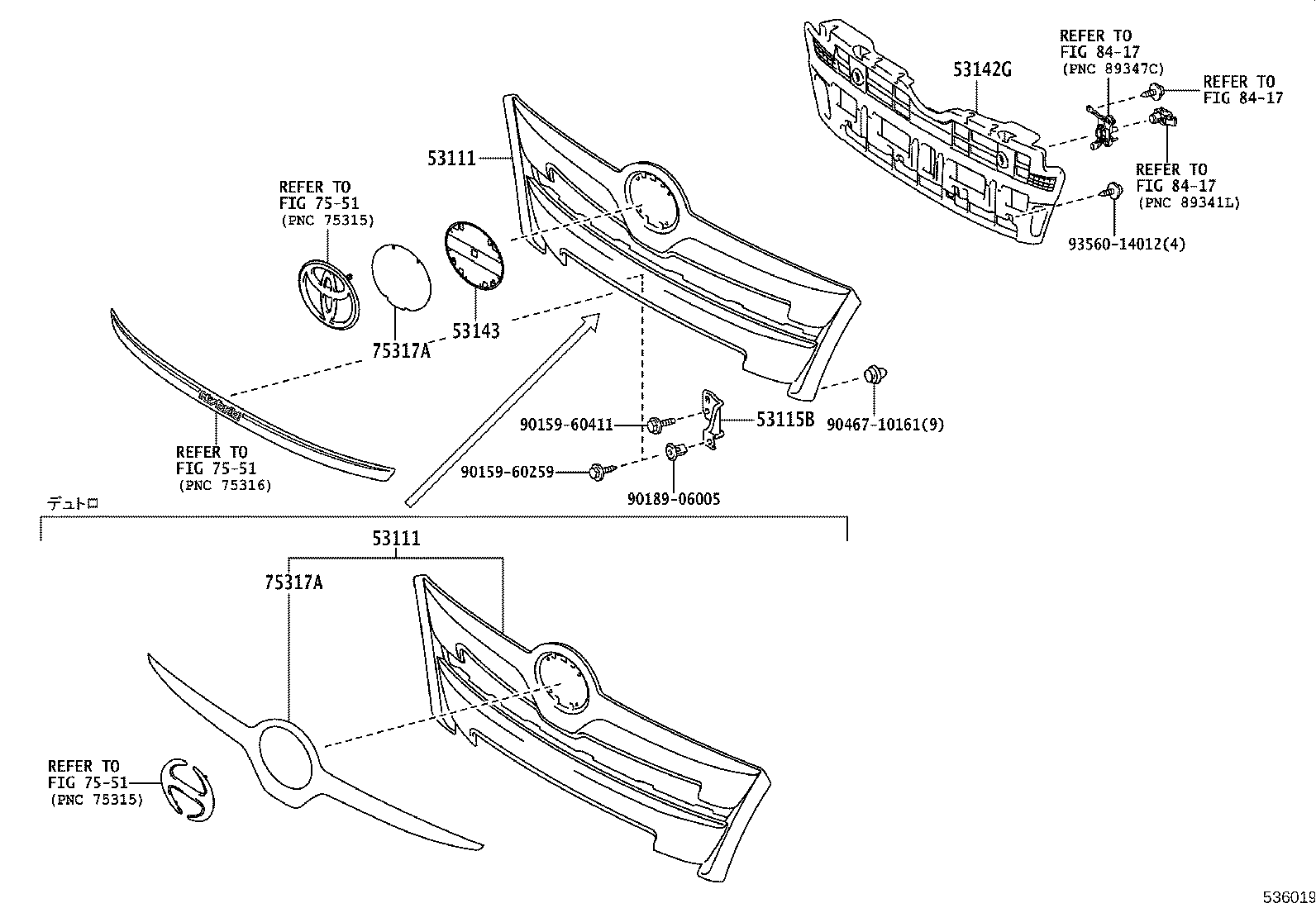

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-37B30H0	XKU702,71#,72#..DCRWD TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50A0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,WHITE,058	05/2019 - 12/2999	1
53111-37B30B1	XKU702,71#,72#..DCRWD SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
53111-37B50H0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50B0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 12/2999	1
53111-37B30A0	XKU702,71#,72#..DCRWD WHITE,058	05/2019 - 12/2999	1
53111-37B50J1	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,BLUE,8P0	05/2019 - 12/2999	1
53111-37B30J1	XKU702,71#,72#..DCRWD BLUE,8P0	05/2019 - 12/2999	1
53101-37170	XKU702,71#,72#..DCRWD ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	11/2020 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-37B30H0	XKU702,71#,72#..DCRWD TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50A0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,WHITE,058	05/2019 - 12/2999	1
53111-37B30B1	XKU702,71#,72#..DCRWD SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
53111-37B50H0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50B0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 12/2999	1
53111-37B30A0	XKU702,71#,72#..DCRWD WHITE,058	05/2019 - 12/2999	1
53111-37B50J1	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,BLUE,8P0	05/2019 - 12/2999	1
53111-37B30J1	XKU702,71#,72#..DCRWD BLUE,8P0	05/2019 - 12/2999	1
53101-37170	XKU702,71#,72#..DCRWD ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	11/2020 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37121	XKU702,71#,72#..DCRWD	06/2020 - 12/2999	1
53115-37110	XKU702,71#,72#..DCRWD	05/2019 - 05/2020	1
53142G - GARNISH, RADIATOR GRILLE, NO.2
53142-37020	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
53143 - GARNISH, RADIATOR GRILLE, NO.3
53143-37020	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
75317A - PLATE, RADIATOR GRILLE ORNAMENT
75317-37040	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
75317A - PLATE, RADIATOR GRILLE ORNAMENT
75317-37040	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
Common parts
90159-60259
90159-60411
90189-06005
90467-10161
93560-14012
Linked diagrams
7551
8417

(1905- )

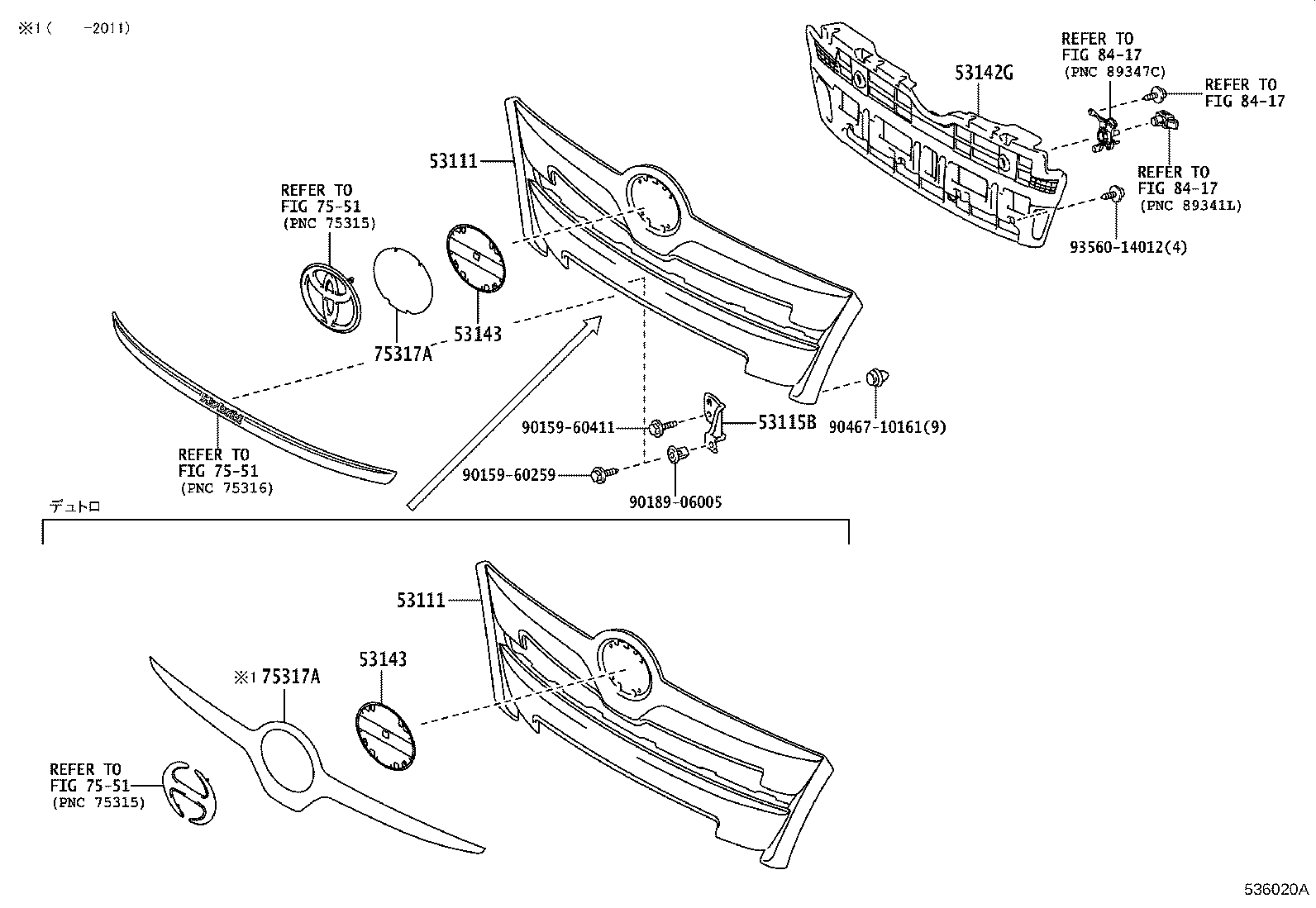

Click highlighted areas on diagram

ﾒｯｷｼﾖｳ

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-37B30H0	XKU702,71#,72#..DCRWD TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50A0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,WHITE,058	05/2019 - 12/2999	1
53111-37B30B1	XKU702,71#,72#..DCRWD SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
53111-37B50H0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50B0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 12/2999	1
53111-37B30A0	XKU702,71#,72#..DCRWD WHITE,058	05/2019 - 12/2999	1
53111-37B50J1	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,BLUE,8P0	05/2019 - 12/2999	1
53111-37B30J1	XKU702,71#,72#..DCRWD BLUE,8P0	05/2019 - 12/2999	1
53101-37170	XKU702,71#,72#..DCRWD ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	11/2020 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-37B30H0	XKU702,71#,72#..DCRWD TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50A0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,WHITE,058	05/2019 - 12/2999	1
53111-37B30B1	XKU702,71#,72#..DCRWD SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
53111-37B50H0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,TURQUOISE,766	05/2019 - 12/2999	1
53111-37B50B0	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,SILVER ME.,199	05/2019 - 12/2999	1
53111-37B40	XKU702,71#,72#..DCRWD ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 12/2999	1
53111-37B30A0	XKU702,71#,72#..DCRWD WHITE,058	05/2019 - 12/2999	1
53111-37B50J1	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用,BLUE,8P0	05/2019 - 12/2999	1
53111-37B30J1	XKU702,71#,72#..DCRWD BLUE,8P0	05/2019 - 12/2999	1
53101-37170	XKU702,71#,72#..DCRWD ﾒｯｷ,ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	11/2020 - 12/2999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37121	XKU702,71#,72#..DCRWD	06/2020 - 12/2999	1
53115-37110	XKU702,71#,72#..DCRWD	05/2019 - 05/2020	1
53142G - GARNISH, RADIATOR GRILLE, NO.2
53142-37020	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
53143 - GARNISH, RADIATOR GRILLE, NO.3
53143-37020	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
53143 - GARNISH, RADIATOR GRILLE, NO.3
53143-37020	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
75317A - PLATE, RADIATOR GRILLE ORNAMENT
75317-37040	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
75317A - PLATE, RADIATOR GRILLE ORNAMENT
75317-37040	XKU702,71#,72#..DCRWD	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用	05/2019 - 12/2999	1
75317-37060	XKU702,71#,72#..DCRWD ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	05/2019 - 11/2020	1
Common parts
90159-60259
90159-60411
90189-06005
90467-10161
93560-14012
Linked diagrams
7551
8417
