XKU710-TQURC (2011)
Toyota Dyna/Toyoace Hv
(1107- )XKU720..5F ; (1711- )XKU72#..DCRTK; (1905- )XKU71#,72#
ﾘﾔ

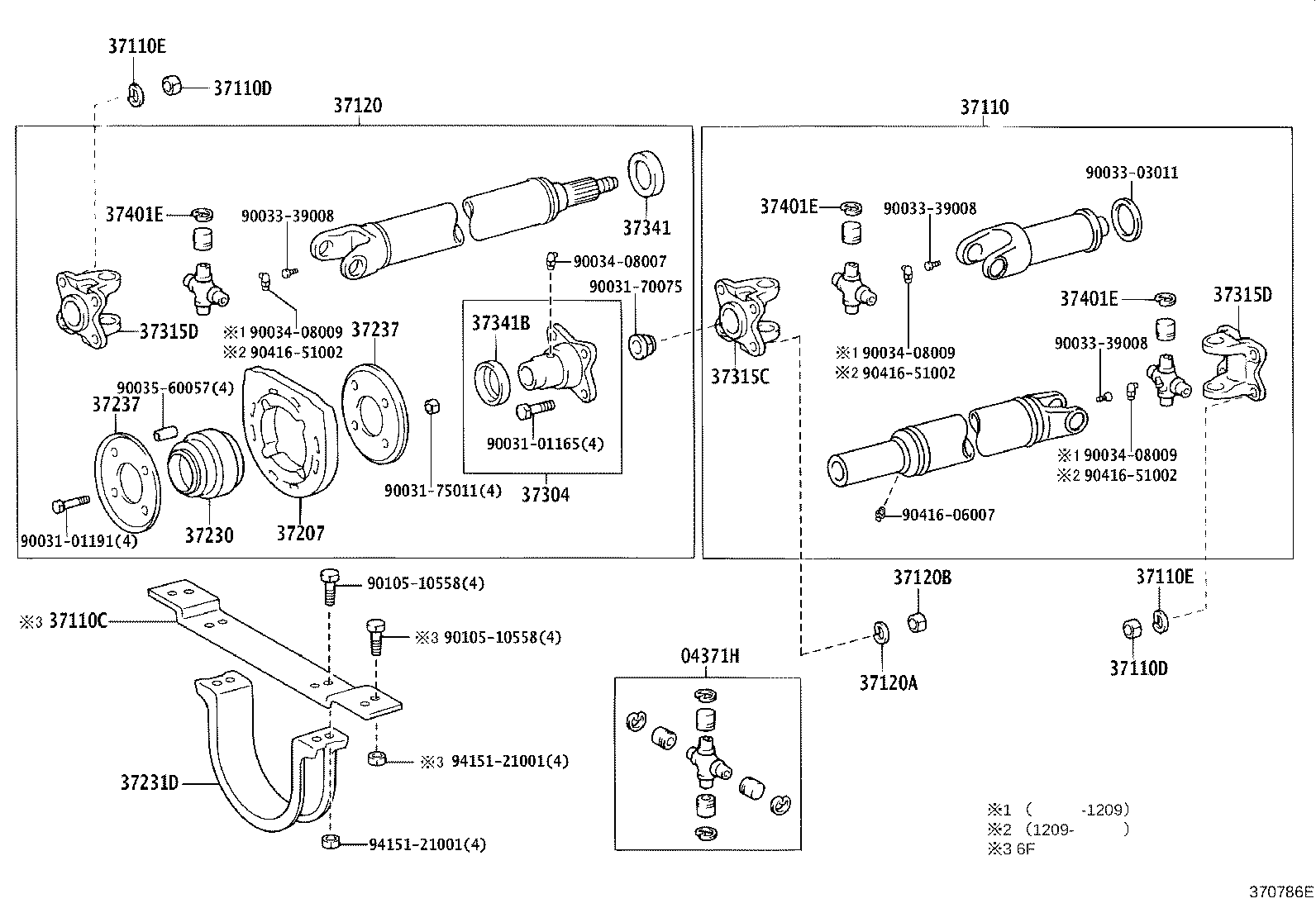

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
XKU700,710,720 |
1 | ||
| 04371-37110 |
XKU700,710,720 |
1 | ||
| 04371-37081 |
XKU700,710,720 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37F41 |
XKU710..20T,30T,35T |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKU700,710,720 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKU700,710,720 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKU700,710,720 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKU700,710,720 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37760 |
XKU710 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 94512-01200 |
XKU710,720 厚さ=3.6 |
4 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90170-12005 |
XKU710,720 |
4 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37030 |
XKU710,720 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37020 |
XKU710,720 |
1 | ||
| 37231D - BRACKET, CENTER SUPPORT BEARING | ||||
| 37231-37020 |
XKU710,720 |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XKU710,720 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XKU710,720 厚さ=3.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37040 |
XKU710,720 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU710,720 |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU710,720 |
2 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU710,720 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37030 |
XKU710,720 |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37030 |
XKU710,720 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKU700,710,720 厚さ=1.65 |
8 | ||
| 90035-21038 |
XKU700,710,720 厚さ=1.68 |
8 | ||
| 90035-21042 |
XKU700,710,720 厚さ=1.56 |
8 | ||
| 90035-21040 |
XKU700,710,720 厚さ=1.62 |
8 | ||
| 90035-21044 |
XKU700,710,720 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU700,710,720 厚さ=1.59 |
8 | ||
| 90035-21043 |
XKU700,710,720 厚さ=1.53 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKU700,710,720 厚さ=1.65 |
8 | ||
| 90035-21038 |
XKU700,710,720 厚さ=1.68 |
8 | ||
| 90035-21042 |
XKU700,710,720 厚さ=1.56 |
8 | ||
| 90035-21040 |
XKU700,710,720 厚さ=1.62 |
8 | ||
| 90035-21044 |
XKU700,710,720 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU700,710,720 厚さ=1.59 |
8 | ||
| 90035-21043 |
XKU700,710,720 厚さ=1.53 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKU700,710,720 厚さ=1.65 |
8 | ||
| 90035-21038 |
XKU700,710,720 厚さ=1.68 |
8 | ||
| 90035-21042 |
XKU700,710,720 厚さ=1.56 |
8 | ||
| 90035-21040 |
XKU700,710,720 厚さ=1.62 |
8 | ||
| 90035-21044 |
XKU700,710,720 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU700,710,720 厚さ=1.59 |
8 | ||
| 90035-21043 |
XKU700,710,720 厚さ=1.53 |
8 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08007 | ||||
| 90034-08009 | ||||
| 90035-60057 | ||||
| 90105-10558 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| 94151-21001 | ||||
(1107- )XKU710..5F ; (1711- )XKU71#..DCRTK
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37080 |
XKU700,710,720 |
1 | ||
| 04371-37110 |
XKU700,710,720 |
1 | ||
| 04371-37081 |
XKU700,710,720 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37F41 |
XKU710..20T,30T,35T |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKU700,710,720 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKU700,710,720 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKU700,710,720 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKU700,710,720 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37760 |
XKU710 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 94512-01200 |
XKU710,720 厚さ=3.6 |
4 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90170-12005 |
XKU710,720 |
4 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37030 |
XKU710,720 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37020 |
XKU710,720 |
1 | ||
| 37231D - BRACKET, CENTER SUPPORT BEARING | ||||
| 37231-37020 |
XKU710,720 |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XKU710,720 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XKU710,720 厚さ=3.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37040 |
XKU710,720 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU710,720 |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU710,720 |
2 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU710,720 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37030 |
XKU710,720 |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37030 |
XKU710,720 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKU700,710,720 厚さ=1.65 |
8 | ||
| 90035-21038 |
XKU700,710,720 厚さ=1.68 |
8 | ||
| 90035-21042 |
XKU700,710,720 厚さ=1.56 |
8 | ||
| 90035-21040 |
XKU700,710,720 厚さ=1.62 |
8 | ||
| 90035-21044 |
XKU700,710,720 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU700,710,720 厚さ=1.59 |
8 | ||
| 90035-21043 |
XKU700,710,720 厚さ=1.53 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKU700,710,720 厚さ=1.65 |
8 | ||
| 90035-21038 |
XKU700,710,720 厚さ=1.68 |
8 | ||
| 90035-21042 |
XKU700,710,720 厚さ=1.56 |
8 | ||
| 90035-21040 |
XKU700,710,720 厚さ=1.62 |
8 | ||
| 90035-21044 |
XKU700,710,720 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU700,710,720 厚さ=1.59 |
8 | ||
| 90035-21043 |
XKU700,710,720 厚さ=1.53 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKU700,710,720 厚さ=1.65 |
8 | ||
| 90035-21038 |
XKU700,710,720 厚さ=1.68 |
8 | ||
| 90035-21042 |
XKU700,710,720 厚さ=1.56 |
8 | ||
| 90035-21040 |
XKU700,710,720 厚さ=1.62 |
8 | ||
| 90035-21044 |
XKU700,710,720 厚さ=1.50 |
8 | ||
| 90035-21041 |
XKU700,710,720 厚さ=1.59 |
8 | ||
| 90035-21043 |
XKU700,710,720 厚さ=1.53 |
8 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08007 | ||||
| 90034-08009 | ||||
| 90035-60057 | ||||
| 90105-10558 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| 94151-21001 | ||||
