XKU710-TQUMC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

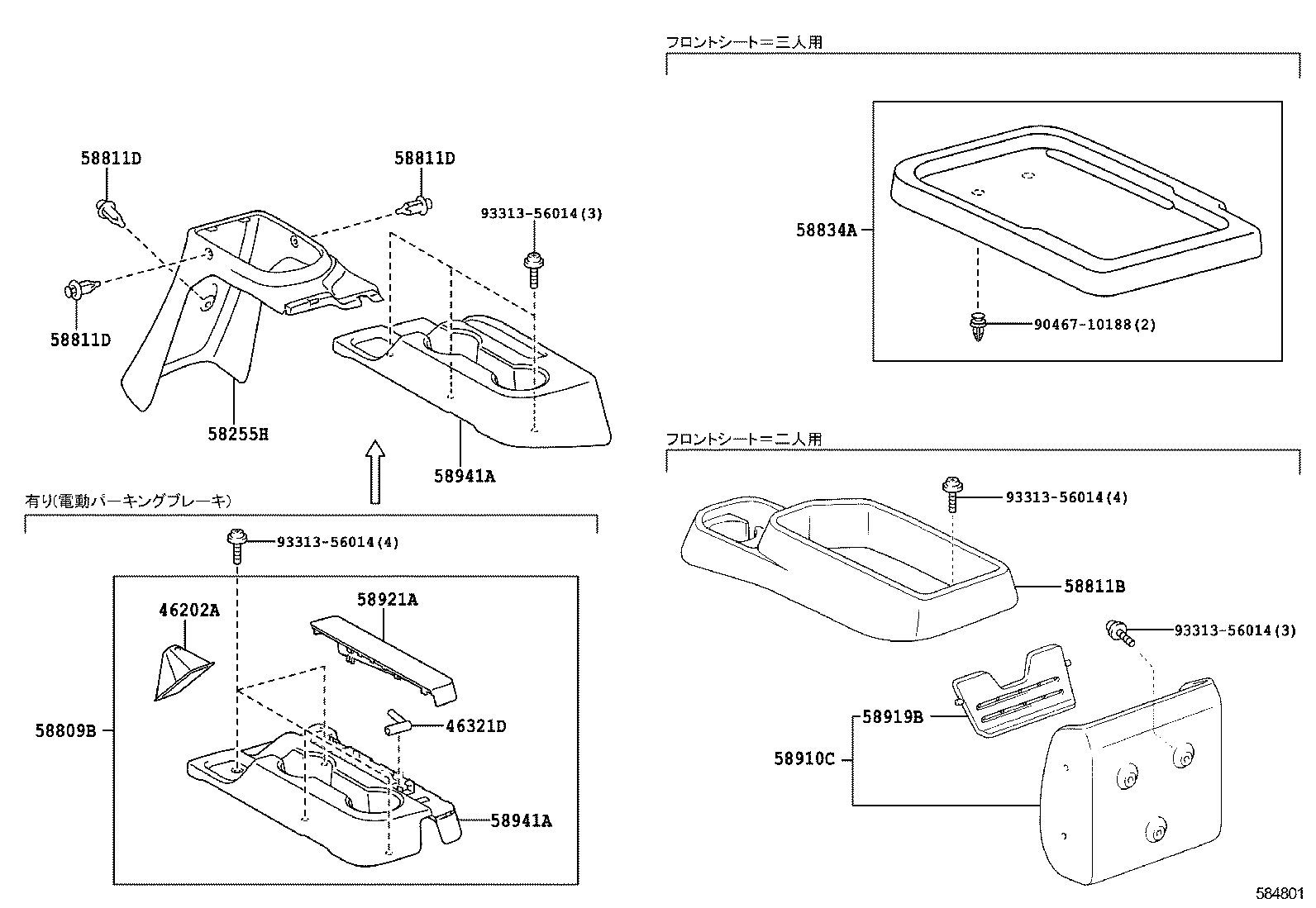

Click highlighted areas on diagram

diagram 46202A 46321D 58255H 58809B 58811B 58811D 58811D 58811D 58834A 58910C 58919B 58921A 58941A 58941A 9046710188 9331356014 9331356014 9331356014 9331356014
Part # Description Qty Price
46202A - BOOT SUB-ASSY, PARKING BRAKE LEVER
46202-37010C0

XKU700,710,720

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1#

 1
46321D - LEVER, PARKING BRAKE, CENTER
46321-37030

XKU700,710,720

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)

 1
58255H - COVER, SHIFT LEVER BOOT
58255-37090B0

XKU700,710,720

GRAY,TRIM1#

 1
58809B - COVER SUB-ASSY, PARKING BRAKE HOLE
58809-37020B0

XKU700,710,720

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1#

 1
58811B - BOX, CONSOLE
58811-37042B1

XKU700,710,720

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ,GRAY,TRIM1#

 1
58811-37041B1

XKU700,710,720

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ,GRAY,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-07191C1

XKU700,710,720

BLACK,TRIM1#

 3
58811D - CLIP(FOR CONSOLE BOX)
90467-07191C1

XKU700,710,720

BLACK,TRIM1#

 3
58811D - CLIP(FOR CONSOLE BOX)
90467-07191C1

XKU700,710,720

BLACK,TRIM1#

 3
58834A - COVER, CONSOLE, LOWER
58834-37040B0

XKU700,710,720

GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-37010B2

XKU700,710,720

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ,GRAY,TRIM1#

 1
58919B - PLATE, CONSOLE BOX
58919-37030B2

XKU700,710,720

ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ,GRAY,TRIM1#

 2
58921A - PANEL, REAR CONSOLE, UPPER
58921-37040B0

XKU700,710,720

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58941-37080B0

XKU700,710,720

GRAY,TRIM1#

 1
58941-37130B0

XKU700,710,720

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1#

 1
58941A - COVER, PARKING BRAKE HOLE
58941-37080B0

XKU700,710,720

GRAY,TRIM1#

 1
58941-37130B0

XKU700,710,720

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1#

 1
Common parts
90467-10188
93313-56014
