XKU710-TPUMC (2017)

Toyota Dyna/Toyoace Hv

Production May 2017 - May 2019
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1705-1905)

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

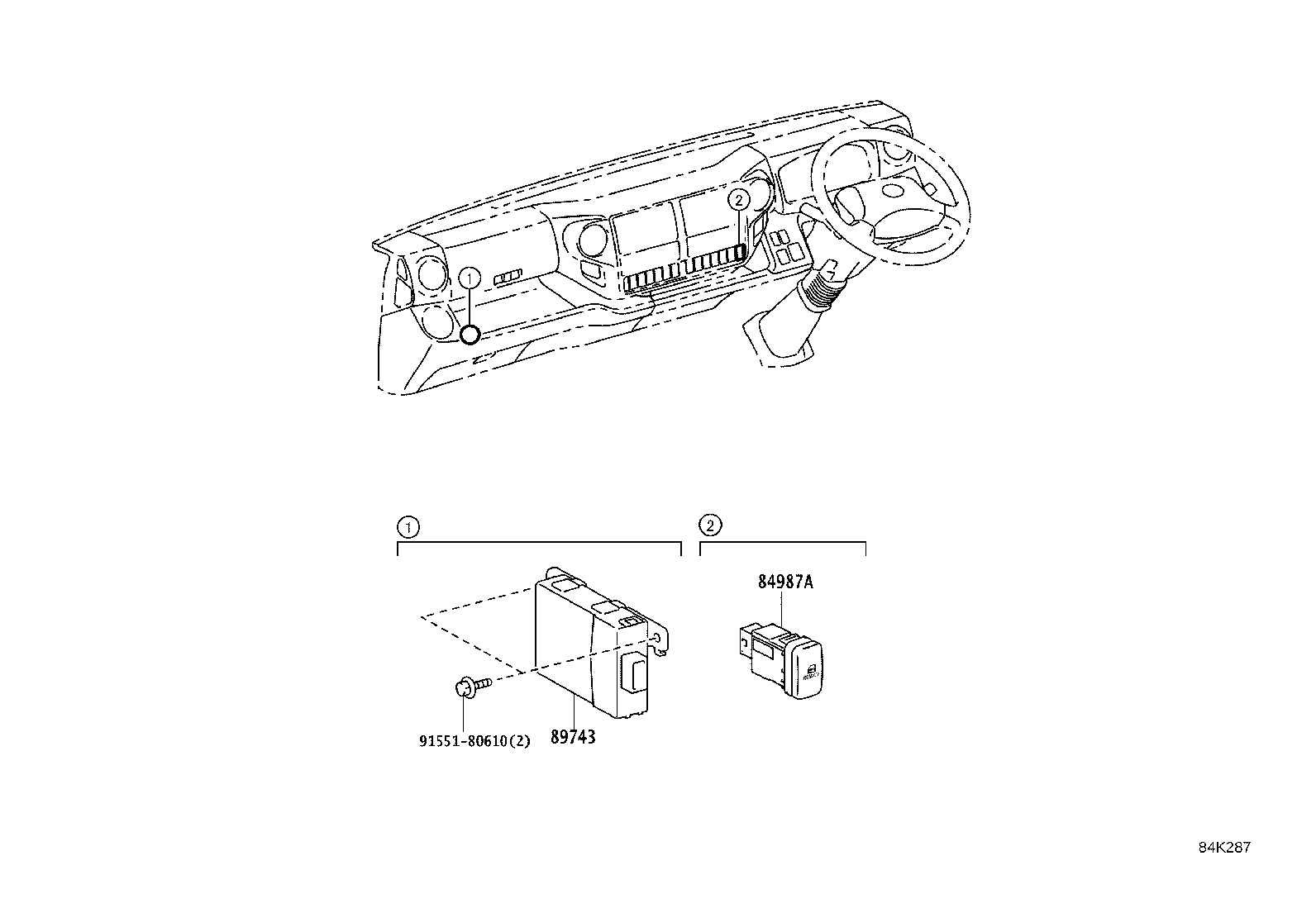

diagram 84987A 89743 9155180610
Part # Description Qty Price
84987A - SWITCH, KEYLESS ENTRY CANCEL
84987-37021

XKU700,710,720..5F

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89743 - RECEIVER, DOOR CONTROL
89741-37150

XKU700,710,720..5F

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
89741-37150

XKU700,710,720..5F

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)

 1
Common parts
91551-80610
