Toyota Dyna/toyoace hv XKU710 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

XKU710-TPUMC (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017

Engine N04C

Transmission 5F AMT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37140	XKU700,710,720	07/2011 - 05/2017	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37060	XKU700,710,720	07/2011 - 05/2017	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-37070	XKU700,710,720	07/2011 - 05/2017	1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-37010	XKU700,710,720	07/2011 - 05/2017	1
55950G - NOZZLE ASSY, DEFROSTER
55950-37110	XKU700,710,720	07/2011 - 05/2017	1
55967B - NOZZLE, DEFROSTER, LOWER
55967-37090	XKU700,710,720	07/2011 - 05/2017	1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-37090	XKU700,710,720	07/2011 - 05/2017	1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-37080	XKU700,710,720	07/2011 - 05/2017	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87214-37050	XKU700,710,720	07/2011 - 05/2017	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87213-37050	XKU700,710,720	07/2011 - 05/2016	1
87213-37051	XKU700,710,720	06/2016 - 05/2017	1
87201F - DUCT SUB-ASSY, AIR, NO.3
87214-37070	XKU700,710,720	07/2011 - 05/2017	1
87201L - DUCT SUB-ASSY, AIR, NO.4
87212-37050	XKU700,710,720	07/2011 - 05/2017	1
87211R - CLIP, AIR DUCT
90467-07041P5	XKU700,710,720 GRAY,TRIM1#	07/2011 - 05/2017	4
87211R - CLIP, AIR DUCT
90467-07041P5	XKU700,710,720 GRAY,TRIM1#	07/2011 - 05/2017	4
Common parts
90467-07117
93568-55014
Linked diagrams
8714

Click highlighted areas on diagram

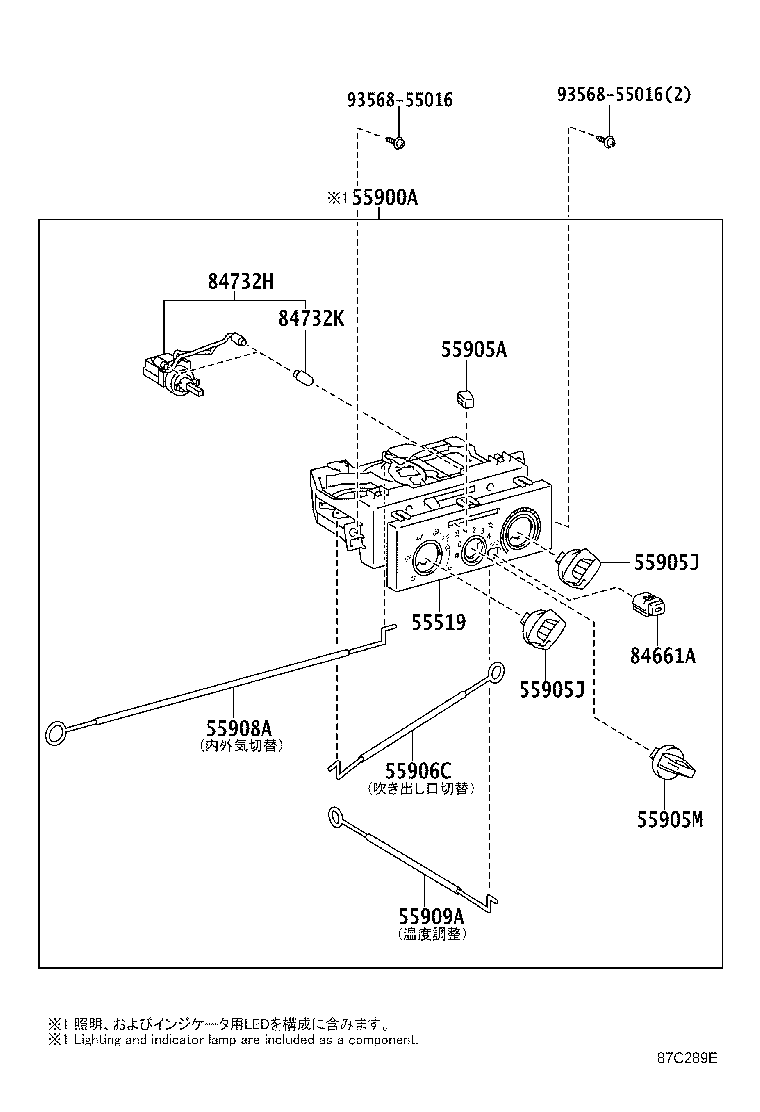

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ

Part #	Description	Period	Qty
55519 - PLATE, HEATER CONTROL NAME
55519-37170	XKU700,710,720	07/2011 - 05/2017	1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-37380	XKU700,710,720	07/2011 - 05/2017	1
55905A - KNOB, HEATER CONTROL
55925-37010	XKU700,710,720	07/2011 - 05/2017	1
55905J - KNOB SUB-ASSY, CONTROL
55905-37030	XKU700,710,720	07/2011 - 05/2017	2
55905J - KNOB SUB-ASSY, CONTROL
55905-37030	XKU700,710,720	07/2011 - 05/2017	2
55905M - KNOB SUB-ASSY, CONTROL
55905-37040	XKU700,710,720	07/2011 - 05/2017	1
55906C - CABLE SUB-ASSY, HEATER CONTROL, NO.1
55906-37100	XKU700,710,720	07/2011 - 05/2017	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37100	XKU700,710,720	07/2011 - 05/2017	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37110	XKU700,710,720	07/2011 - 05/2017	1
84661A - KNOB, COOLER CONTROL SWITCH
84661-37010	XKU700,710,720	07/2011 - 05/2017	1
84732H - SWITCH, HEATER BLOWER
84732-37070	XKU700,710,720	07/2011 - 05/2017	1
84732K - BULB, HEATER BLOWER SWITCH
90010-11014	XKU700,710,720 24V	07/2011 - 05/2017	2
Common parts
93568-55016
