XKU710-TPUMC (2011)
Toyota Dyna/Toyoace Hv

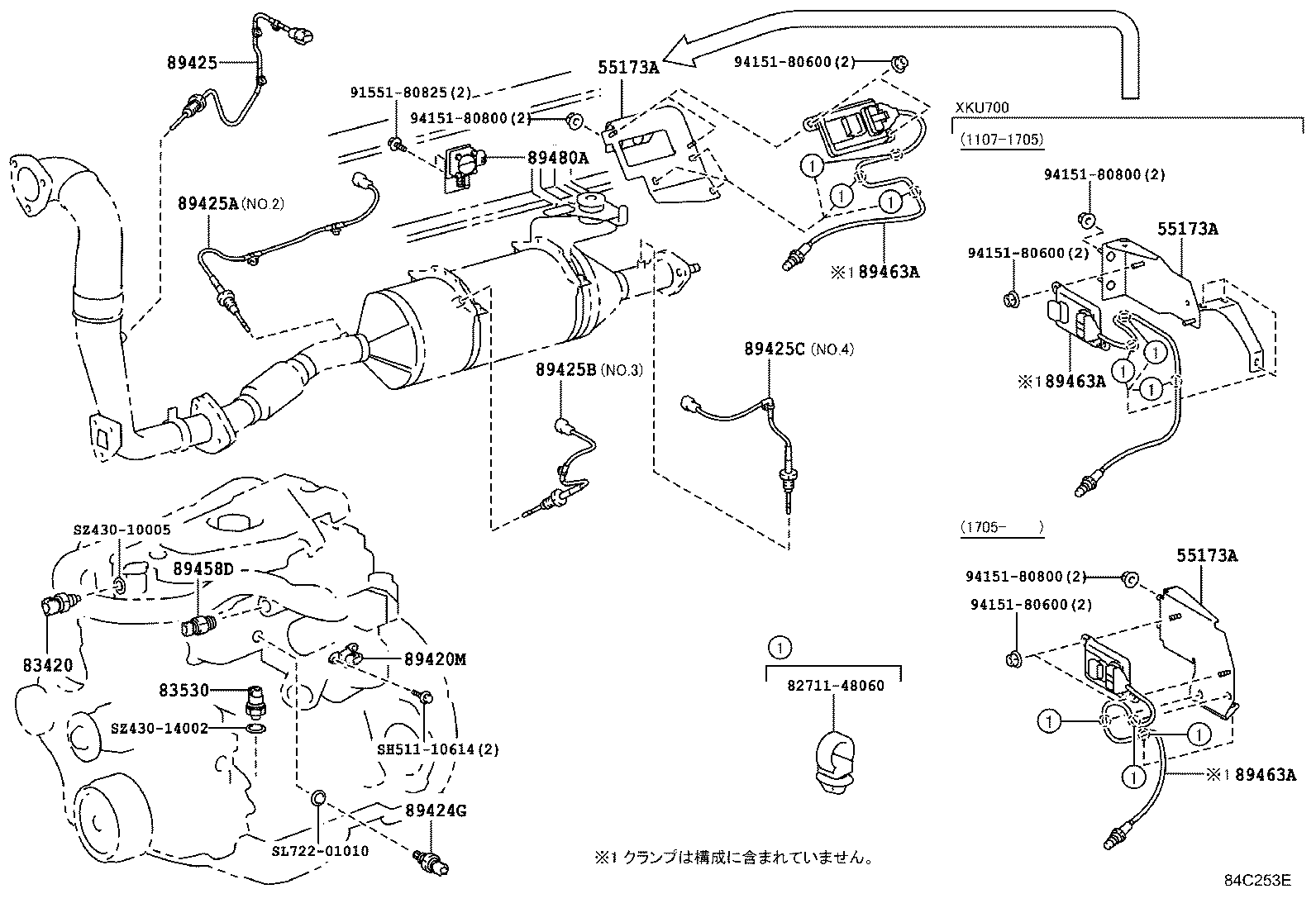

ILLUST NO. 1 OF10(1107- )DCRTK
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37110 |
XKU710,720 |
1 | ||
| 55173A - BRACKET | ||||
| 55173-37110 |
XKU710,720 |
1 | ||
| 55173A - BRACKET | ||||
| 55173-37110 |
XKU710,720 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XKU700,710,720 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0220 |
XKU700,710,720 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XKU700,710,720 |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XKU700,710,720 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37300 |
XKU700,710,720 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37080 |
XKU700,710,720 |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-37190 |
XKU700,710,720 |
1 | ||
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-37230 |
XKU700,710,720 |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0030 |
XKU700,710,720 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-37022 |
XKU700,710,720 ﾏｰｸ=89463−37022 |
1 | ||
| 89463-37021 |
XKU700,710,720 ﾏｰｸ=89463−37021 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-37022 |
XKU700,710,720 ﾏｰｸ=89463−37022 |
1 | ||
| 89463-37021 |
XKU700,710,720 ﾏｰｸ=89463−37021 |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-37022 |
XKU700,710,720 ﾏｰｸ=89463−37022 |
1 | ||
| 89463-37021 |
XKU700,710,720 ﾏｰｸ=89463−37021 |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37040 |
XKU700,710,720 |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||

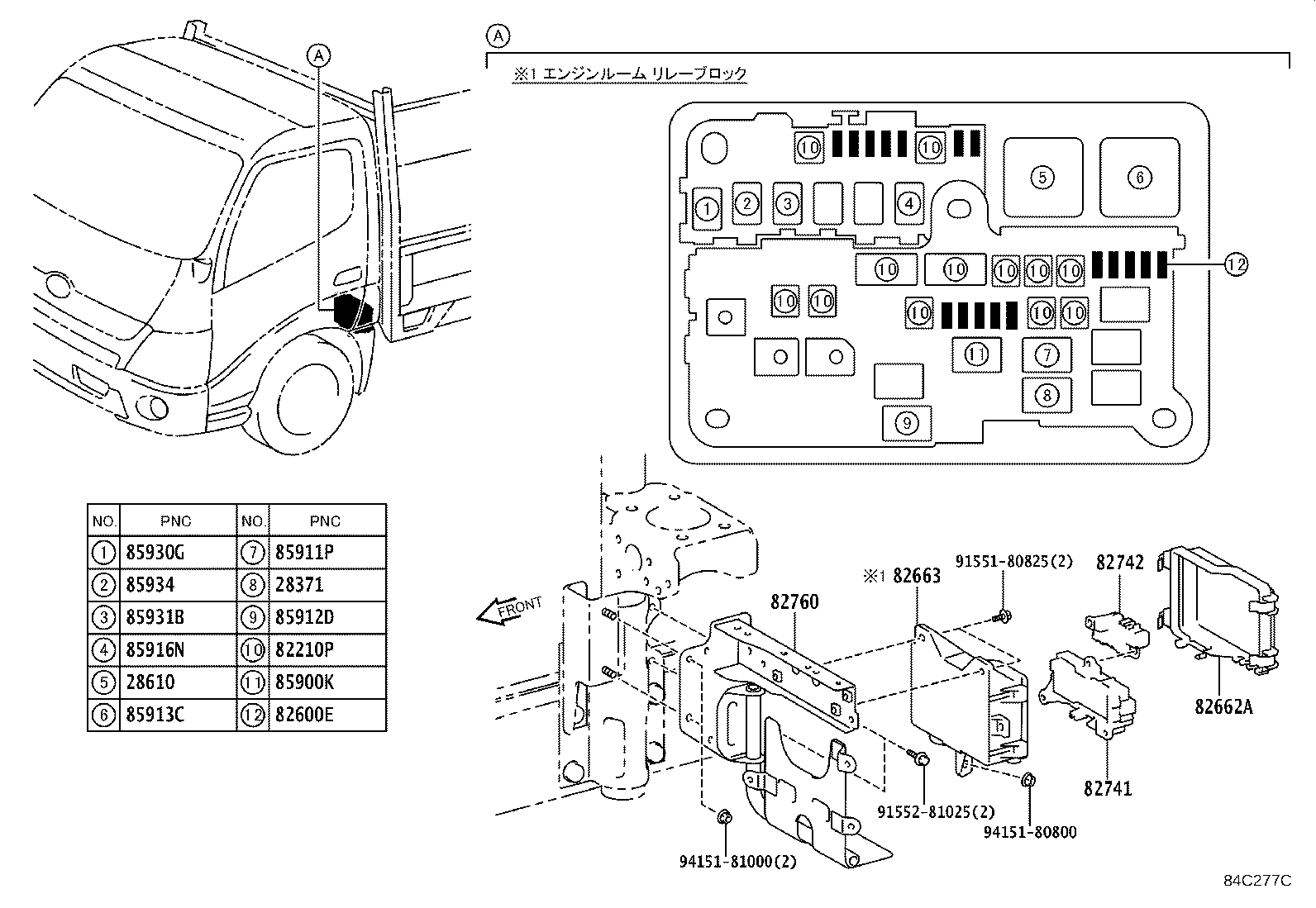

ILLUST NO. 4 OF10(1107- )DCRTK
ｴﾝｼﾞﾝﾙｰﾑﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XKU700,710,720 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XKU700,710,720 寒冷地仕様 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ),識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾌｭｰｴﾙﾋｰﾀ−有り,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&wｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗ塔v−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&tｭｰｴﾙﾋｰﾀ−有り,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&tｭｰｴﾙﾋｰﾀ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾌｭｰｴﾙﾋｰﾀ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&tｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),識別符号:58V |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&tｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞ宴塔v−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内a200ﾐﾘ),識別符号:58V |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&pｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&pｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ),識別符号:58V |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−fｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径20Oﾐﾘ) |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−d動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内a200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ,識別符号:58V |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ) |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 90982-08274 |
XKU700,710,720 120A,ｵｽ端子,白 |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾌｭｰｴﾙﾋｰﾀ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽ`ｬｰｼﾞ |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200~ﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−d動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08282 |
XKU700,710,720 50A,ﾒｽ端子,赤,識別符号:32V |
1 | ||
| 90982-08294 |
XKU700,710,720 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200~ﾘ) |
1 | ||
| 82627-37030 |
XKU700,710,720 20A,ﾒｽ端子 |
1 | ||
| 90982-08280 |
XKU700,710,720 30A,ﾒｽ端子,桃,識別符号:32V |
1 | ||
| 90982-08296 |
XKU700,710,720 50A,ﾒｽ端子,赤,識別符号:58V |
1 | ||
| 90982-08301 |
XKU700,710,720 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08203 |
XKU700,710,720 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08300 |
XKU700,710,720 50A−30A−30A,ﾒｽ端子,赤,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄ香[ﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径20Oﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 90982-08295 |
XKU700,710,720 30A,ﾒｽ端子,桃,識別符号:58V |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
XKU700,710,720 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XKU700,710,720 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XKU700,710,720 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09025 |
XKU700,710,720 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37461 |
XKU700,710,720 |
1 | ||
| 82662-37460 |
XKU700,710,720 |
1 | ||
| 82662-37462 |
XKU700,710,720 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82663-37130 |
XKU700,710,720 |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ) |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 82663-37131 |
XKU700,710,720 |
1 | ||
| 82663-37131 |
XKU700,710,720 ﾌｭｰｴﾙﾋｰﾀ−有り&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37050 |
XKU700,710,720 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-37030 |
XKU700,710,720 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37320 |
XKU700,710,720 |
1 | ||
| 82760-37270 |
XKU700,710,720 |
1 | ||
| 85900K - RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE) | ||||
| 85900-37150 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XKU700,710,720 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04007 |
XKU700,710,720 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 85900-37150 |
XKU700,710,720 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XKU700,710,720 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XKU700,710,720 ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XKU700,710,720 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 94151-80800 | ||||
| 94151-81000 | ||||

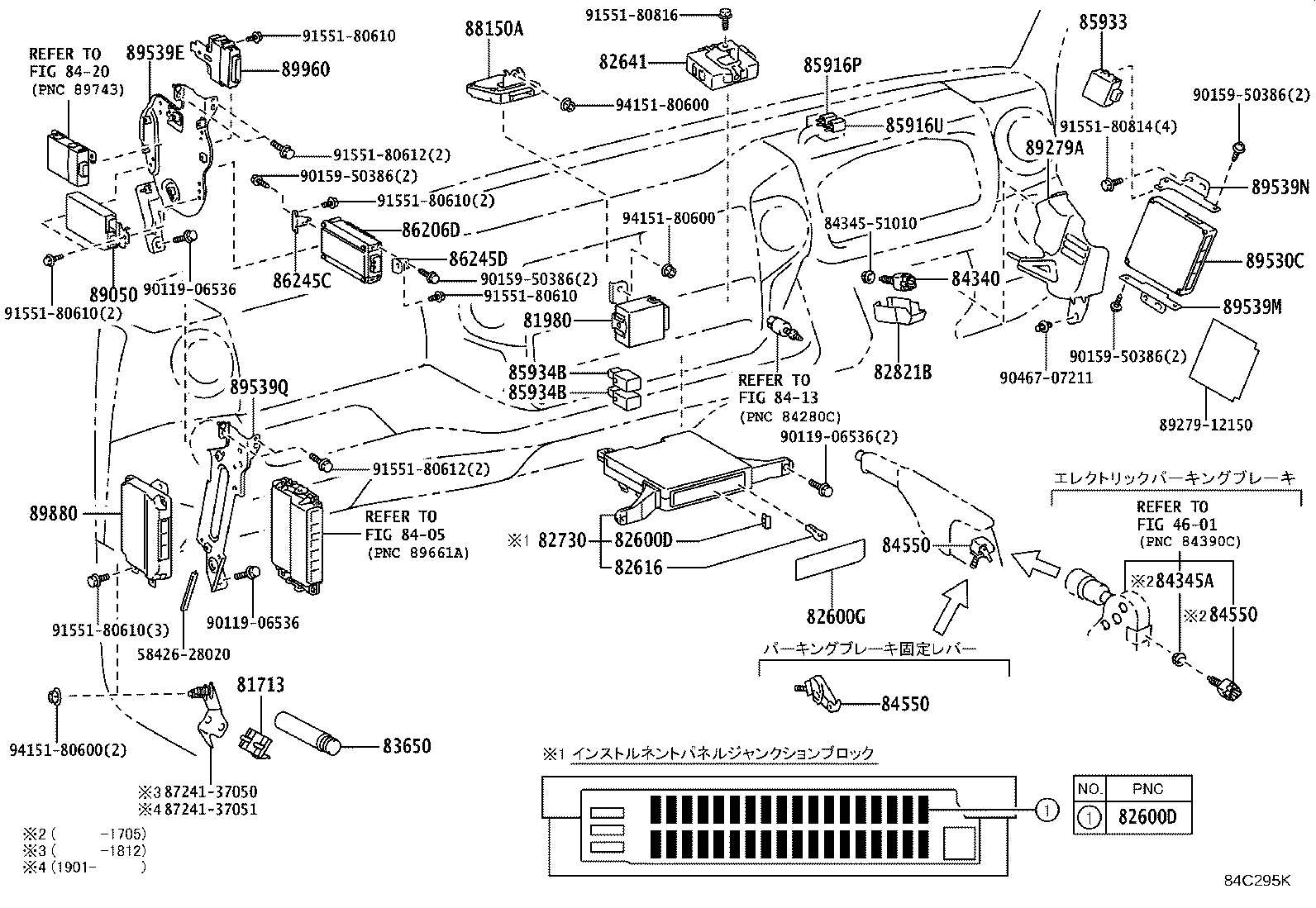

ILLUST NO. 5 OF10(1107- )DCRTK
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XKU700,710,720 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37271 |
XKU700,710,720 |
1 | ||
| 81980-37270 |
XKU700,710,720 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
XKU700,710,720 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
XKU700,710,720 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XKU700,710,720 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XKU700,710,720 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
XKU700,710,720 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
XKU700,710,720 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
XKU700,710,720 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XKU700,710,720 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09023 |
XKU700,710,720 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
XKU700,710,720 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37540 |
XKU700,710,720 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XKU700,710,720 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37010 |
XKU700,710,720 |
1 | ||
| 82641-37120 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82641-37020 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82641-37110 |
XKU700,710,720 |
1 | ||
| 82641-37021 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-37021 |
XKU700,710,720 |
1 | ||
| 82730-37020 |
XKU700,710,720 |
1 | ||
| 82730-37010 |
XKU700,710,720 |
1 | ||
| 82730-37040 |
XKU700,710,720 |
1 | ||
| 82730-37020 |
XKU700,710,720 VSC−有り |
1 | ||
| 82730-37010 |
XKU700,710,720 VSC−無し |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-37250 |
XKU700,710,720 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XKU700,710,720 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37050 |
XKU700,710,720 |
1 | ||
| 84345A - ADJUSTER, PARKING BRAKE SWITCH MOUNTING | ||||
| 84345-51010 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37090 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550-37070 |
XKU710,720..20T ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径177ﾐﾘ) |
1 | ||
| 84550-37050 |
XKU700,710,720 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37090 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550-37070 |
XKU710,720..20T ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径177ﾐﾘ) |
1 | ||
| 84550-37050 |
XKU700,710,720 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37090 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 84550-37070 |
XKU710,720..20T ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径177ﾐﾘ) |
1 | ||
| 84550-37050 |
XKU700,710,720 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XKU700,710,720 |
1 | ||
| 85916U - RELAY, HEADLAMP, NO.2 | ||||
| 85900-37150 |
XKU700,710,720 |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-37020 |
XKU700,710,720 |
1 | ||
| 85933-37020 |
XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ) |
1 | ||
| 85933-37020 |
XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XKU700,710,720 |
2 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XKU700,710,720 |
2 | ||
| 86206D - CONVERTER SUB-ASSY, VOLTAGE | ||||
| 86206-37150 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 86206-37151 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 86206-37150 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ |
1 | ||
| 86206-37131 |
XKU700,710,720 |
1 | ||
| 86206-37130 |
XKU700,710,720 |
1 | ||
| 86206-37151 |
XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾌﾛﾝﾄ ｼｰﾄ−助手席:1人掛けｼｰﾄ |
1 | ||
| 86245C - BRACKET, VOLTAGE CONVERTER | ||||
| 86245-37140 |
XKU700,710,720 |
1 | ||
| 86245D - BRACKET, VOLTAGE CONVERTER, NO.2 | ||||
| 86245-37130 |
XKU700,710,720 |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-37022 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37020 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37023 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37021 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37025 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37024 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89050-37026 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 55641-37021 |
XKU700,710,720 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-37244 |
XKU700,710,720 |
1 | ||
| 89530-37243 |
XKU700,710,720 |
1 | ||
| 89530-37247 |
XKU700,710,720 |
1 | ||
| 89530-37248 |
XKU700,710,720 |
1 | ||
| 89530-37242 |
XKU700,710,720 |
1 | ||
| 89530-37351 |
XKU700,710,720 |
1 | ||
| 89530-37290 |
XKU700,710,720 |
1 | ||
| 89530-37291 |
XKU700,710,720 |
1 | ||
| 89530-37246 |
XKU700,710,720 |
1 | ||
| 89530-37245 |
XKU700,710,720 |
1 | ||
| 89530-37321 |
XKU700,710,720 |
1 | ||
| 89530-37320 |
XKU700,710,720 |
1 | ||
| 89530-37350 |
XKU700,710,720 |
1 | ||
| 89530-37292 |
XKU700,710,720 |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37091 |
XKU700,710,720 |
1 | ||
| 89539-37090 |
XKU700,710,720 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-37041 |
XKU700,710,720 |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-37050 |
XKU700,710,720 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37081 |
XKU700,710,720 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37202 |
XKU700,710,720 |
1 | ||
| 89880-37011 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37271 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37271 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37270 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37201 |
XKU700,710,720 |
1 | ||
| 89880-37370 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37271 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37203 |
XKU700,710,720 |
1 | ||
| 89880-37271 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37271 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37204 |
XKU700,710,720 |
1 | ||
| 89880-37271 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37262 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37261 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37021 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37260 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37272 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37272 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37371 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37263 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37205 |
XKU700,710,720 |
1 | ||
| 89880-37272 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37272 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37272 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37272 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37262 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37263 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37261 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37372 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能)&ﾃﾚﾏﾃｨｸｽ−日野 ｺﾝﾊﾟｽ |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37740 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37460 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37273 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37621 |
XKU700,710,720 |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37620 |
XKU700,710,720 |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37741 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−有り(燃料消費情報記録機能) |
1 | ||
| 89880-37461 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1週間) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(140KM/H)&記録期間(1日) |
1 | ||
| 89880-37622 |
XKU700,710,720 |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1日) |
1 | ||
| 89880-37462 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾀｺｸﾞﾗﾌ−最高速度(120KM/H)&記録期間(1週間) |
1 | ||
| 89880-37742 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-37170 |
XKU710..20T,30T ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89960-37071 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89960-37072 |
XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 58426-28020 | ||||
| 84345-51010 | ||||
| 87241-37050 | ||||
| 87241-37051 | ||||
| 89279-12150 | ||||
| 90119-06536 | ||||
| 90159-50386 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4601 | ||||
| 8405 | ||||
| 8413 | ||||
| 8420 | ||||

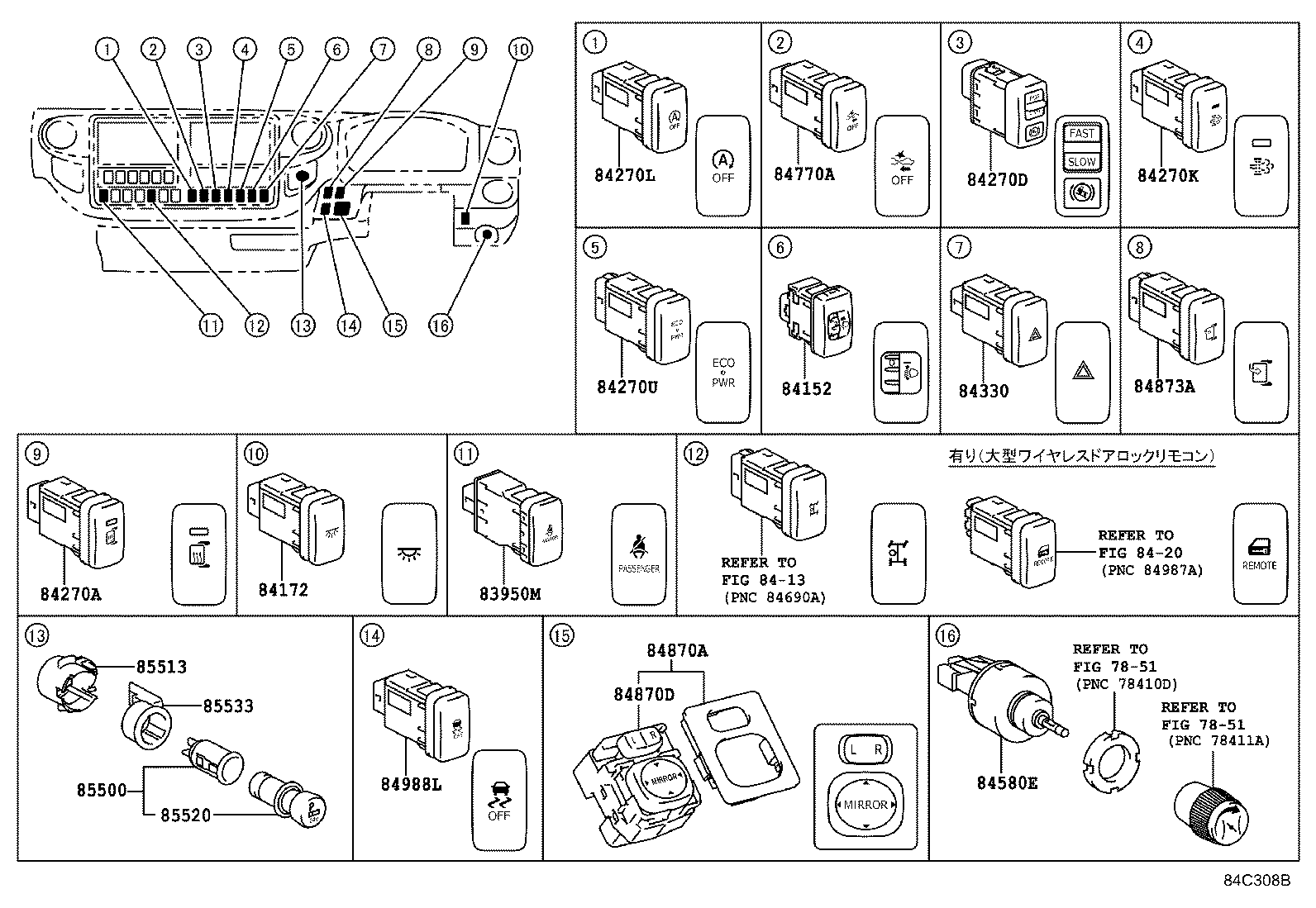

ILLUST NO. 7 OF10(1107- )DCRTK
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XKU700,710,720 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37041 |
XKU700,710,720 |
1 | ||
| 84152-37040 |
XKU700,710,720 |
1 | ||
| 84152-37041 |
XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84152-37040 |
XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37260 |
XKU700,710,720 室内灯−有り(LEDﾗﾝﾌﾟ) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84270-37240 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XKU700,710,720 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37230 |
XKU700,710,720 |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XKU700,710,720 |
1 | ||
| 84270U - SWITCH ASSY, ECO POWER | ||||
| 84270-37290 |
XKU700,710,720 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XKU700,710,720 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XKU700,710,720 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84870-34010 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH) |
1 | ||
| 84873-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRP(*273&*LOS&*WIH&*CR(DOP)) |
1 | ||
| 84873-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57&*LOS&*TM(*WVM)) |
1 | ||
| 84873-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM),*CR(DOP) |
1 | ||
| 84873-37030 |
XKU700,710,720 ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57&*LOS&*TM) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84270-37300 |
XKU700,710,720 VSC−有り |
1 | ||
| 84270-37300 |
XKU700,710,720 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37050 |
XKU700,710,720 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XKU700,710,720 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XKU700,710,720 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XKU700,710,720 |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
| 8413 | ||||
| 8420 | ||||

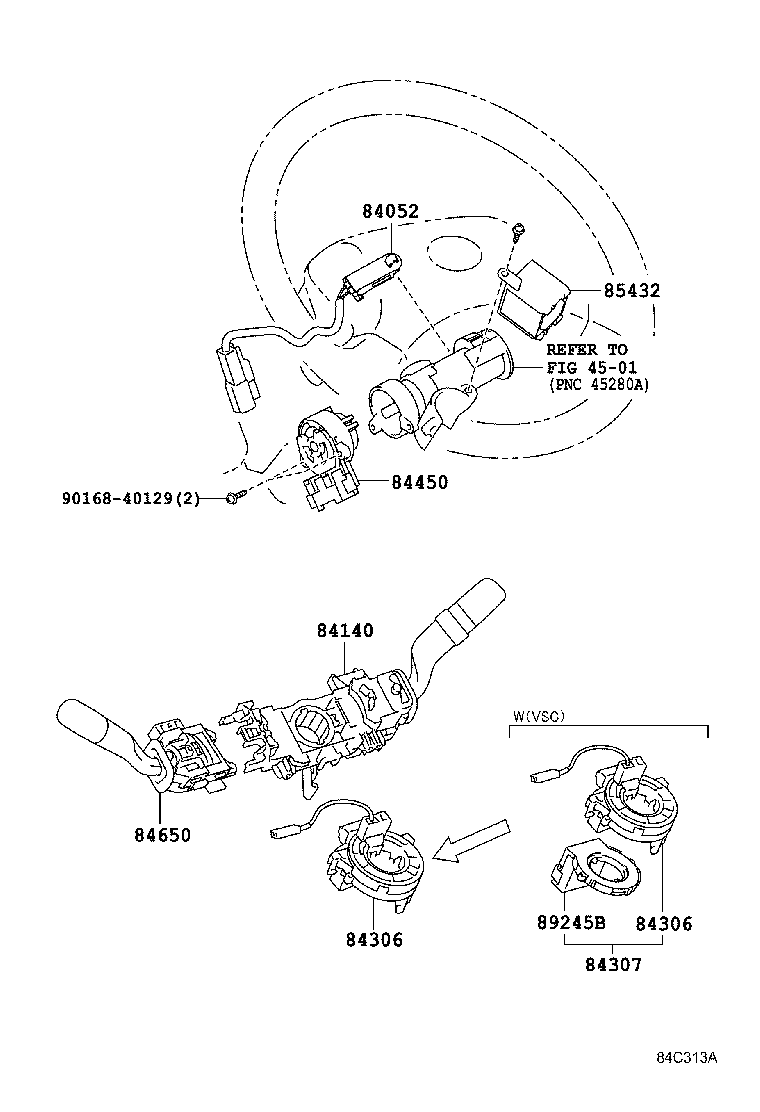

ILLUST NO. 8 OF10(1107- )DCRTK
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-37010 |
XKU700,710,720 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37121 |
XKU700,710,720 |
1 | ||
| 84140-37131 |
XKU700,710,720 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37030 |
XKU700,710,720 |
1 | ||
| 84306-37031 |
XKU700,710,720 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37030 |
XKU700,710,720 |
1 | ||
| 84306-37031 |
XKU700,710,720 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-37011 |
XKU700,710,720 |
1 | ||
| 84307-37011 |
XKU700,710,720 VSC−有り |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-E0020 |
XKU700,710,720 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37350 |
XKU700,710,720 |
1 | ||
| 84652-37300 |
XKU700,710,720 |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-37040 |
XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 85432-37030 |
XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ) |
1 | ||
| 85432-37040 |
XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 85432-37030 |
XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12020 |
XKU700,710,720 |
1 | ||
| 89245-12020 |
XKU700,710,720 VSC−有り |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 9 OF10(1107- )DCRTK
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾌﾛﾝﾄﾎﾞﾃﾞｨ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46453C - BRACKET, HOLDER | ||||
| 46453-37360 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37361 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453C - BRACKET, HOLDER | ||||
| 46453-37360 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453-37361 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XKU700,710,720 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XKU700,710,720 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XKU700,710,720 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XKU700,710,720 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37033 |
XKU700,710,720 |
1 | ||
| 86206F - CONVERTER SUB-ASSY, VOLTAGE, NO.2 | ||||
| 86206-37114 |
XKU700,710,720 |
1 | ||
| 86206-37113 |
XKU700,710,720 |
1 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| 88625M - THERMISTOR, COOLER | ||||
| 88625-32171 |
XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式(ﾄﾞﾗﾑ内径200ﾐﾘ) |
2 | ||
| Common parts | ||||
| 81973-37010 | ||||
| 90119-08827 | ||||
| 90164-30009 | ||||
| 90901-48003 | ||||
| 91551-80820 | ||||

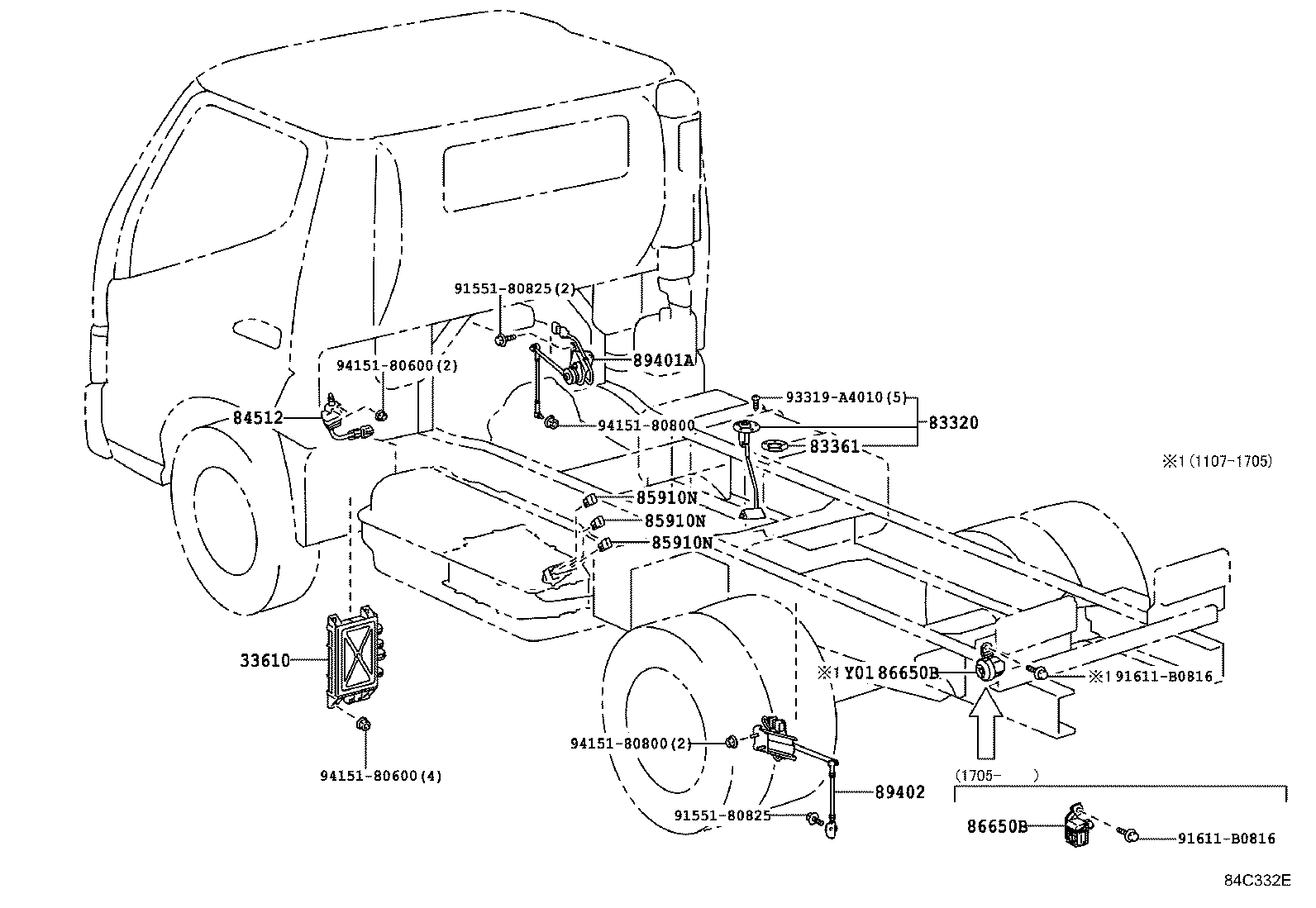

ILLUST NO.10 OF10(1107- )DCRTK
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33610 - CONTROL ASSY, TRANSMISSION, FRONT | ||||
| 33610-37021 |
XKU700,710,720 |
1 | ||
| 33610-37020 |
XKU700,710,720 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XKU700,710,720 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XKU700,710,720 |
1 | ||
| 84512 - SWITCH, TILT CAB CONTROL | ||||
| 84512-37010 |
XKU700,710,720 |
1 | ||
| 85910N - RELAY, EV CONTROL COMPUTER | ||||
| 90987-02017 |
XKU700,710,720 |
3 | ||
| 85910N - RELAY, EV CONTROL COMPUTER | ||||
| 90987-02017 |
XKU700,710,720 |
3 | ||
| 85910N - RELAY, EV CONTROL COMPUTER | ||||
| 90987-02017 |
XKU700,710,720 |
3 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XKU700,710,720 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XKU700,710,720 |
1 | ||
| 89401A - SENSOR, SUSPENSION STROKE, FRONT(FOR DISCHARGE HEADLAMP | ||||
| 89401-37030 |
XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89402 - SENSOR, SUSPENSION STROKE, REAR(FOR DISCHARGE HEADLAMP) | ||||
| 89402-37030 |
XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89402-37031 |
XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

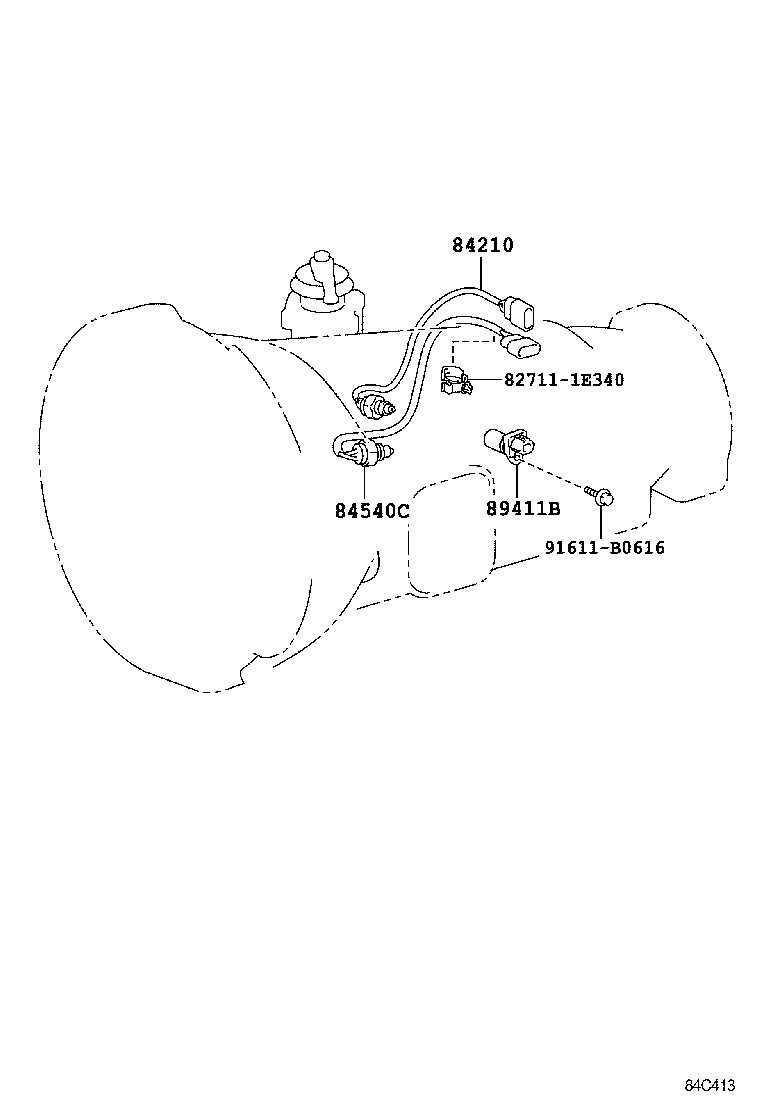

ILLUST NO. 2 OF10(1107- )DCRTK
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
XKU700,710,720 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37080 |
XKU700,710,720 |
1 | ||
| 89411B - SENSOR, SPEED | ||||
| 89411-E0060 |
XKU700,710,720 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 91611-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
