XKU710-TKURC3 (2011)

Toyota Dyna/Toyoace Hv

Production Jul 2011 - May 2017
Engine N04C
Transmission 5F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

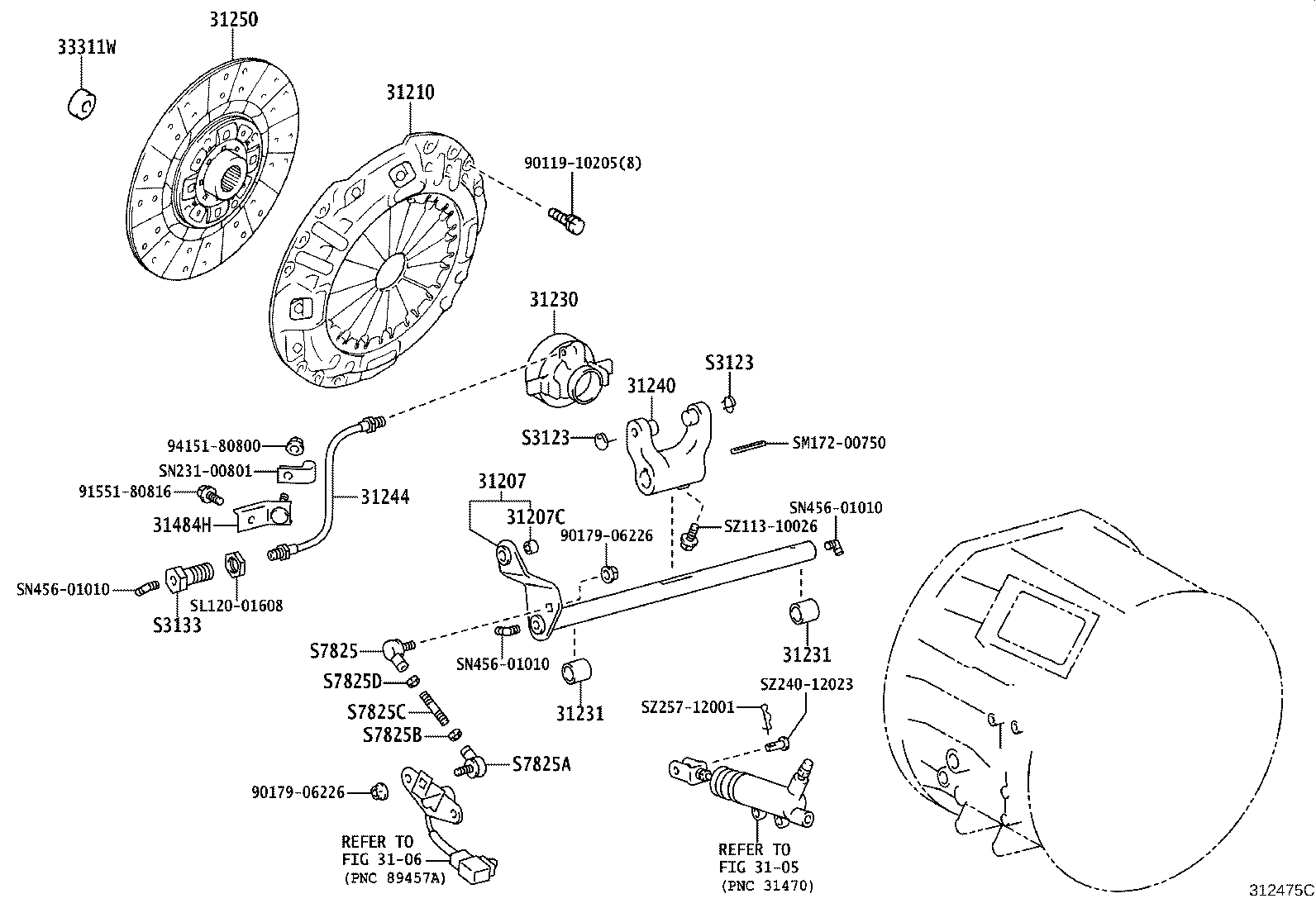

Click highlighted areas on diagram

diagram 3105 3106 31207 31207C 31210 31230 31231 31231 31240 31244 31250 31484H 33311W 9011910205 9017906226 9017906226 9155180816 9415180800 S3123 S3123 S3133 S7825 S7825A S7825B S7825C S7825D SL12001608 SM17200750 SN23100801 SN45601010 SN45601010 SN45601010 SZ11310026 SZ24012023 SZ25712001
Part # Description Qty Price
31207 - LEVER SUB-ASSY, CLUTCH RELEASE FORK
31207-37010

XKU700,710,720

 1
31207C - BUSH(FOR CLUTCH RELEASE FORK LEVER)
SZ383-12003

XKU700,710,720

 1
31210 - COVER ASSY, CLUTCH
31210-37190

XKU700,710,720

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-37070

XKU700,710,720

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-37080

XKU700,710,720

 2
31231 - HUB, CLUTCH RELEASE BEARING
31231-37080

XKU700,710,720

 2
31240 - FORK ASSY, CLUTCH RELEASE
31240-E0031

XKU700,710,720

 1
31244 - TUBE, RELEASE BEARING HUB TO UNION
31244-37040

XKU700,710,720

 1
31250 - DISC ASSY, CLUTCH
31250-37251

XKU700,710,720

 1
31250-37280

XKU700,710,720

 1
31250-37281

XKU700,710,720

 1
31484H - BRACKET, FLEXIBLE HOSE
31484-37380

XKU700,710,720

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-17037

XKU700,710,720

 1
S3123 - SPRING, RELEASE FORK ANTI-RATTLE
S3123-41031

XKU700,710,720

 2
S3123 - SPRING, RELEASE FORK ANTI-RATTLE
S3123-41031

XKU700,710,720

 2
S3133 - JOINT, CLUTCH GREASE HOSE
S3133-E0010

XKU700,710,720

 1
S7825 - JOINT ASSY, LINK ROD
S7825-01540

XKU700,710,720

 1
S7825A - JOINT ASSY, LINK ROD, NO.2
S7825-01550

XKU700,710,720

 1
S7825B - NUT, LOCK(FOR LINK ROD JOINT)
SL120-00604

XKU700,710,720

 1
S7825C - ROD, LINK
SZ127-30039

XKU700,710,720

 1
S7825D - NUT(FOR LINK ROD JOINT)
SZ170-06018

XKU700,710,720

 1
Common parts
90119-10205
90179-06226
91551-80816
94151-80800
SL120-01608
SM172-00750
SN231-00801
SN456-01010
SZ113-10026
SZ240-12023
SZ257-12001
