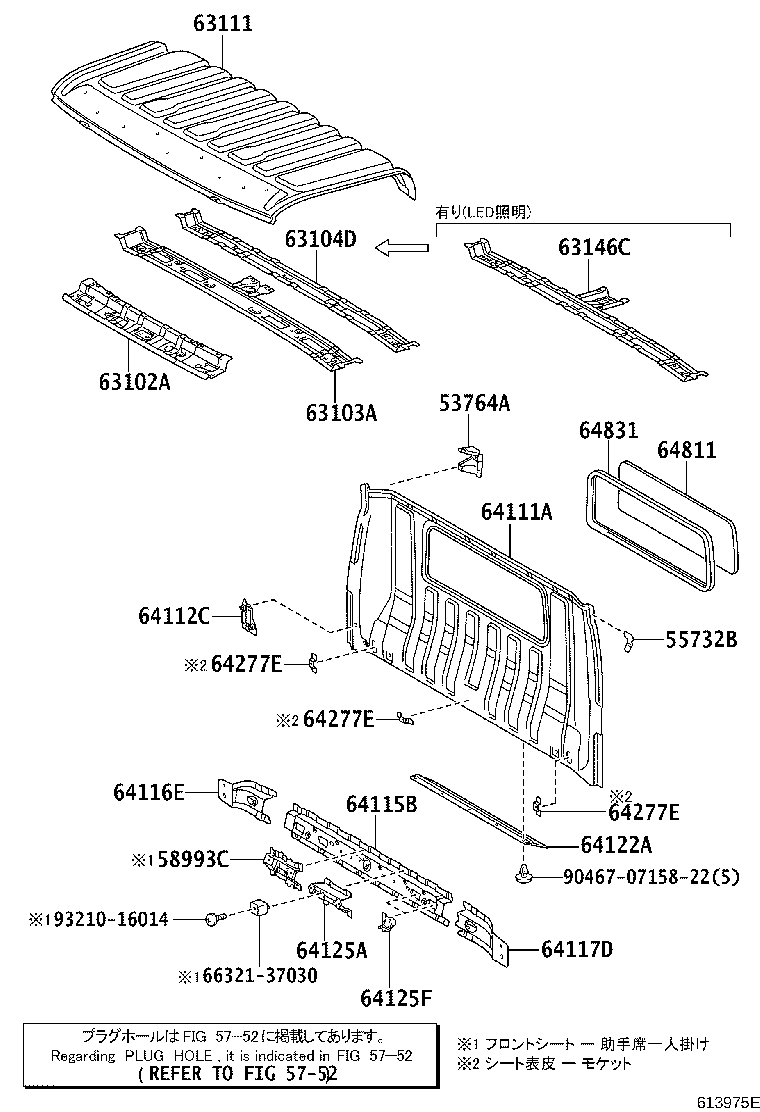

Toyota Dyna/toyoace hv XKU710 ROOF PANEL & BACK PANEL

Part #	Description	Period	Qty
53764A - BRACKET, AIR CLEANER INLET, NO.1
53764-37100	XKU700,710,720	07/2011 - 04/2016	1
53764-37120	XKU700,710,720	05/2016 - 05/2017	1
55732B - BRACKET, FRONT PANEL, NO.2
55732-37060	XKU700,710,720	07/2011 - 05/2017	2
58993C - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-37060	XKU700,710,720 ﾌﾛﾝﾄｼｰﾄ−助手席:1人掛けｼｰﾄ	07/2011 - 05/2017	1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-37080	XKU700,710,720	07/2011 - 05/2017	1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-37070	XKU700,710,720	07/2011 - 05/2017	1
63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63104-37060	XKU700,710,720	07/2011 - 05/2017	1
63111 - PANEL, ROOF
63111-37260	XKU700,710,720	07/2011 - 05/2017	1
63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63108-37010	XKU700,710,720 室内灯−有り(LEDﾗﾝﾌﾟ)	07/2011 - 05/2017	1
64111A - PANEL, BACK
64111-37570	XKU700,710,720	07/2011 - 05/2017	1
64112C - PANEL, UPPER BACK, INNER
64112-37031	XKU700,710,720	12/2011 - 04/2016	1
64112-37030	XKU700,710,720	07/2011 - 11/2011	1
64112-37040	XKU700,710,720	05/2016 - 05/2017	1
64115B - REINFORCEMENT, BACK PANEL
64115-37210	XKU700,710,720	07/2011 - 05/2017	1
64116E - REINFORCEMENT, UPPER BACK, RH
64116-37040	XKU700,710,720	07/2011 - 05/2017	1
64117D - REINFORCEMENT, UPPER BACK, LH
64117-37070	XKU700,710,720	07/2011 - 05/2017	1
64122A - BAFFLE, DUST REAR BODY
64122-37200	XKU700,710,720	07/2011 - 05/2017	1
64125A - BRACKET, UPPER BACK PANEL, RH
64125-37060	XKU700,710,720	07/2011 - 05/2017	1
64125F - BRACKET, UPPER BACK PANEL
64125-37030	XKU700,710,720	07/2011 - 05/2017	2
64277E - BRACKET, BACK PANEL TRIM, LOWER
64277-37010	XKU700,710,720 ｼｰﾄ表皮−ﾓｹｯﾄ	07/2011 - 05/2017	3
64277E - BRACKET, BACK PANEL TRIM, LOWER
64277-37010	XKU700,710,720 ｼｰﾄ表皮−ﾓｹｯﾄ	07/2011 - 05/2017	3
64277E - BRACKET, BACK PANEL TRIM, LOWER
64277-37010	XKU700,710,720 ｼｰﾄ表皮−ﾓｹｯﾄ	07/2011 - 05/2017	3
64811 - GLASS, BACK WINDOW
64811-37180	XKU700,710,720 *TEM,厚さ=3.5,ｸﾞﾘｰﾝ	07/2011 - 05/2017	1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-37070	XKU700,710,720	07/2011 - 05/2017	1
Common parts
66321-37030
90467-0715822
93210-16014
Linked diagrams
5752

Part #	Description	Period	Qty
63185A - BRACKET, ROOF RACK, FRONT RH
63185-37060	XKU700,710,720 ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
63186A - BRACKET, ROOF RACK, FRONT LH
63186-37060	XKU700,710,720 ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
63403 - DECK SUB-ASSY, ROOF RACK
63403-37040	XKU700,710,720 ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
63460 - RACK ASSY, ROOF
63460-37060	XKU700,710,720 ***,ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
63467 - BRACKET, ROOF RACK, REAR RH
63467-37040	XKU700,710,720 ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
63468 - BRACKET, ROOF RACK, REAR LH
63468-37020	XKU700,710,720 ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
63495A - COVER, ROOF RACK LEG, CENTER
63495-37040	XKU700,710,720 ﾙｰﾌﾗｯｸ−有り	07/2011 - 05/2017	1
Common parts
91111-80825

XKU710-TKURC (2011)

ILLUST NO. 1 OF 3(1107- )DCRTK

ILLUST NO. 2 OF 3(1107- )
