Toyota Dyna/toyoace hv XKU710 WIRING & CLAMP

XKU710-TKUQC3 (2017)

Toyota Dyna/Toyoace Hv

Production May 2017 - May 2019

Engine N04C

Transmission 5F AMT

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(1107-1905)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82050 - WIRE ASSY, ENGINE
82050-37010	XKU700,710,720..5F ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ)	05/2017 - 05/2018	1
82111 - WIRE, ENGINE ROOM MAIN
82115-37U08	XKU700,710,720..5F	05/2017 - 05/2018	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37171	XKU700,710,720..5F ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り	05/2017 - 05/2018	1
82121 - WIRE, ENGINE
82121-E1E72	XKU700,710,720	05/2017 - 10/2017	1
82121-E1E73	XKU700,710,720..5F	11/2017 - 05/2018	1
82124 - WIRE, ENGINE, NO.4
82121-E1M60	XKU700,710,720..5F	05/2017 - 05/2018	1
82121-E1E80	XKU700,710,720..5F 寒冷地仕様	05/2017 - 05/2018	1
82125 - WIRE, TRANSMISSION
82125-37410	XKU700,710,720..5F	05/2017 - 05/2018	1
82125N - WIRE, ENGINE, NO.5
82121-E1Y50	XKU700,710,720..5F	05/2017 - 05/2018	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-37221	XKU700,710,720..5F	05/2017 - 05/2018	1
Common parts
90119-06915
90119-06923
90119-08102
91651-60816
94151-80600
SH552-10816
Linked diagrams
8401

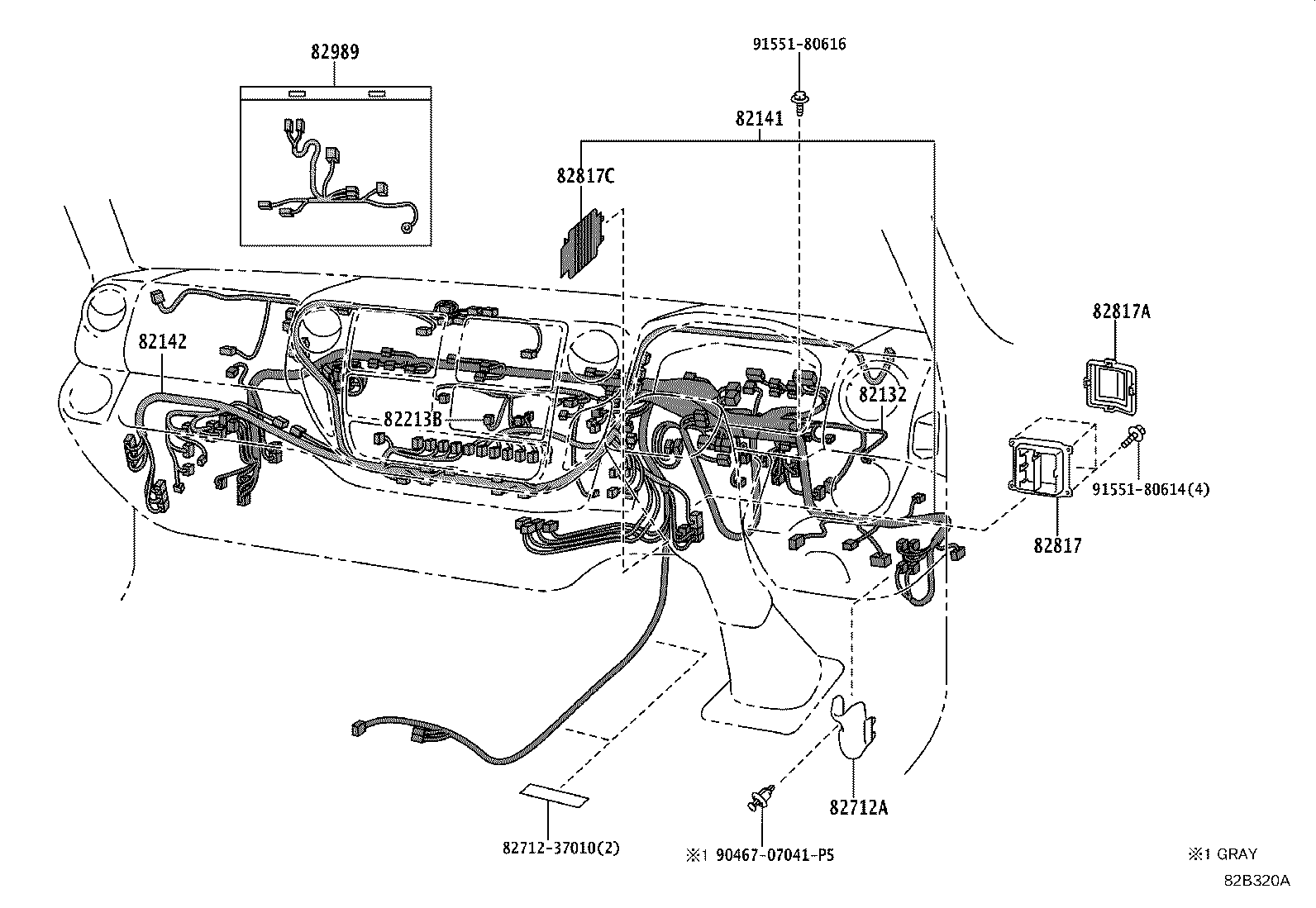

ILLUST NO. 3 OF 7(1705- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-37250	XKU700,710,720..5F	05/2017 - 05/2018	1
82141 - WIRE, INSTRUMENT PANEL
82141-37V94	XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り	05/2017 - 10/2017	1
82141-3V064	XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	05/2017 - 10/2017	1
82141-37Q45	XKU700,710,720	05/2017 - 10/2017	1
82141-3V381	XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 10/2017	1
82141-3V390	XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 10/2017	1
82141-3V382	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	11/2017 - 05/2018	1
82141-3V401	XKU700,710,720 ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 10/2017	1
82141-37Q46	XKU700,710,720..5F	11/2017 - 05/2018	1
82141-3V391	XKU700,710,720..5F ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	11/2017 - 05/2018	1
82141-3V065	XKU700,710,720..5F ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	11/2017 - 05/2018	1
82141-37V95	XKU700,710,720..5F ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り	11/2017 - 05/2018	1
82141-3V402	XKU700,710,720..5F ｼﾌﾄﾛｯｸｼｽﾃﾑ−有り(EPBﾎﾟｼﾞｼｮﾝ)&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	11/2017 - 05/2018	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-37C65	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37C65	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37L85	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	05/2017 - 07/2017	1
82142-37C65	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	05/2017 - 07/2017	1
82142-37Q62	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 07/2017	1
82142-37W81	XKU700,710,720	05/2017 - 07/2017	1
82142-37L85	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37X01	XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 07/2017	1
82142-37Q52	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 07/2017	1
82142-37X11	XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	05/2017 - 07/2017	1
82142-37W91	XKU700,710,720 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37W91	XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	05/2017 - 07/2017	1
82142-37L85	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37X11	XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37Q62	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37X11	XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	05/2017 - 07/2017	1
82142-37X21	XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37X11	XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37X01	XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37Q52	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37L85	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	05/2017 - 07/2017	1
82142-37C66	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37W91	XKU700,710,720 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 07/2017	1
82142-37X21	XKU700,710,720 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 07/2017	1
82142-37C66	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37C66	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	07/2017 - 05/2018	1
82142-37L86	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	07/2017 - 05/2018	1
82142-37Q53	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	07/2017 - 05/2018	1
82142-37L86	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37Y01	XKU700,710,720 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し	05/2017 - 07/2017	1
82142-37L86	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37L86	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	07/2017 - 05/2018	1
82142-37W92	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37W82	XKU700,710,720..5F	07/2017 - 05/2018	1
82142-37Q53	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37W92	XKU700,710,720..5F ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37X12	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37Q63	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37Q63	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	07/2017 - 05/2018	1
82142-37X12	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	07/2017 - 05/2018	1
82142-37X02	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	07/2017 - 05/2018	1
82142-37X22	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	07/2017 - 05/2018	1
82142-37X12	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37X22	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82142-37X12	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	07/2017 - 05/2018	1
82142-37Y02	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し	07/2017 - 05/2018	1
82142-37W92	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	07/2017 - 05/2018	1
82142-37X02	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	07/2017 - 05/2018	1
82213B - WIRE, HEATER
82213-37050	XKU700,710,720..5F	05/2017 - 05/2018	1
82213-37190	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 05/2018	1
82712A - SUPPORT, WIRING HARNESS
82712-37420	XKU700,710,720..5F	05/2017 - 05/2018	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37310	XKU700,710,720..5F	05/2017 - 05/2018	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-37320	XKU700,710,720..5F	05/2017 - 05/2018	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-37440	XKU700,710,720..5F	05/2017 - 05/2018	1
82989 - WIRE, CONNECTING REPAIR
82989-37350	XKU700,710,720..5F	05/2017 - 05/2018	1
Common parts
82712-37010
90467-07041P5
91551-80614
91551-80616

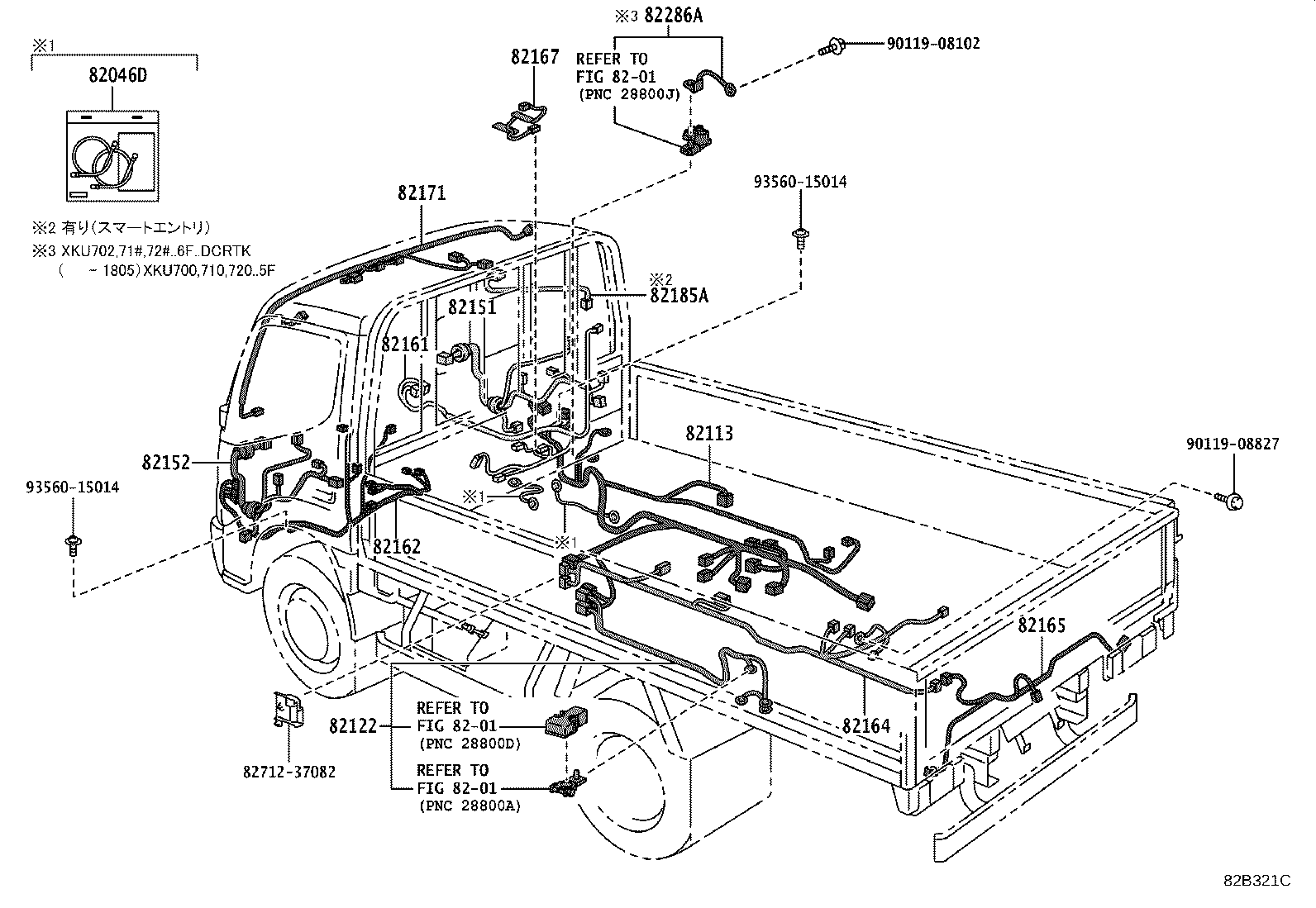

ILLUST NO. 4 OF 7(1705- )

Click highlighted areas on diagram

ﾄﾞｱ,ﾌﾛｱ,ﾌﾚｰﾑ & ﾙｰﾌ

Part #	Description	Period	Qty
82046D - WIRE, BODY GROUND
82046-37192	XKU700,710,720..5F	05/2017 - 05/2018	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-37J21	XKU710,720..5F	05/2017 - 05/2018	1
82122 - WIRE, ENGINE, NO.2
82122-37G20	XKU710,720..5F	05/2017 - 05/2018	1
82151 - WIRE, FRONT DOOR, RH
82151-37D81	XKU700,710,720..5F	05/2017 - 05/2018	1
82151-37E82	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	05/2017 - 05/2018	1
82151-37E82	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 05/2018	1
82152 - WIRE, FRONT DOOR, LH
82152-37D70	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)	05/2017 - 05/2018	1
82152-37C80	XKU700,710,720..5F	05/2017 - 05/2018	1
82161 - WIRE, FLOOR
82161-37G70	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｼｰﾄ表皮−ﾓｹｯﾄ	05/2017 - 05/2018	1
82161-37M80	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	05/2017 - 05/2018	1
82161-37D30	XKU700,710,720..5F	05/2017 - 05/2018	1
82161-37N20	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｼｰﾄ表皮−ﾓｹｯﾄ	05/2017 - 05/2018	1
82161-37G80	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 05/2018	1
82161-37M90	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 05/2018	1
82162 - WIRE, FLOOR, NO.2
82162-37750	XKU700,710,720 VSC−無し	05/2017 - 08/2017	1
82162-37770	XKU700,710,720..5F	05/2017 - 05/2018	1
82162-37D50	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)	05/2017 - 05/2018	1
82162-37761	XKU700,710,720..5F VSC−無し&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席)	09/2017 - 05/2018	1
82162-37D40	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&VSC−無し&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席)	05/2017 - 05/2018	1
82162-37D40	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&VSC−無し	05/2017 - 05/2018	1
82162-37751	XKU700,710,720..5F VSC−無し	09/2017 - 05/2018	1
82162-37760	XKU700,710,720 VSC−無し&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席)	05/2017 - 08/2017	1
82164 - WIRE, FRAME
82164-3VA80	XKU710..5F ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 05/2018	1
82164-3VA80	XKU710..5F ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ)	05/2017 - 05/2018	1
82164-3VA70	XKU710..5F	05/2017 - 05/2018	1
82164-3VA80	XKU710..5F ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG(ﾌﾗﾝｼﾞ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ	05/2017 - 05/2018	1
82165 - WIRE, FRAME, NO.2
82165-37730	XKU700,710,720..5F..IV3	05/2017 - 05/2018	1
82167 - WIRE, SEAT, NO.1
82167-37020	XKU700,710,720..5F ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｼｰﾄ表皮−ﾓｹｯﾄ	05/2017 - 05/2018	1
82167-37020	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｼｰﾄ表皮−ﾓｹｯﾄ	05/2017 - 05/2018	1
82171 - WIRE, ROOF, NO.1
82171-37B81	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し&室内灯−有り(LEDﾗﾝﾌﾟ)	05/2017 - 05/2018	1
82171-37B61	XKU700,710,720..5F ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−無し	05/2017 - 05/2018	1
82171-37G50	XKU700,710,720..5F 室内灯−有り(LEDﾗﾝﾌﾟ)	05/2017 - 05/2018	1
82171-37G30	XKU700,710,720..5F	05/2017 - 05/2018	1
82185A - WIRE, SMART DOOR, FRONT RH
82185-37080	XKU700,710,720..5F ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)	05/2017 - 05/2018	1
82286A - WIRE, EARTH, NO.2
82286-37010	XKU700,710,720..5F	05/2017 - 05/2018	1
Common parts
82712-37082
90119-08102
90119-08827
93560-15014
Linked diagrams
8201

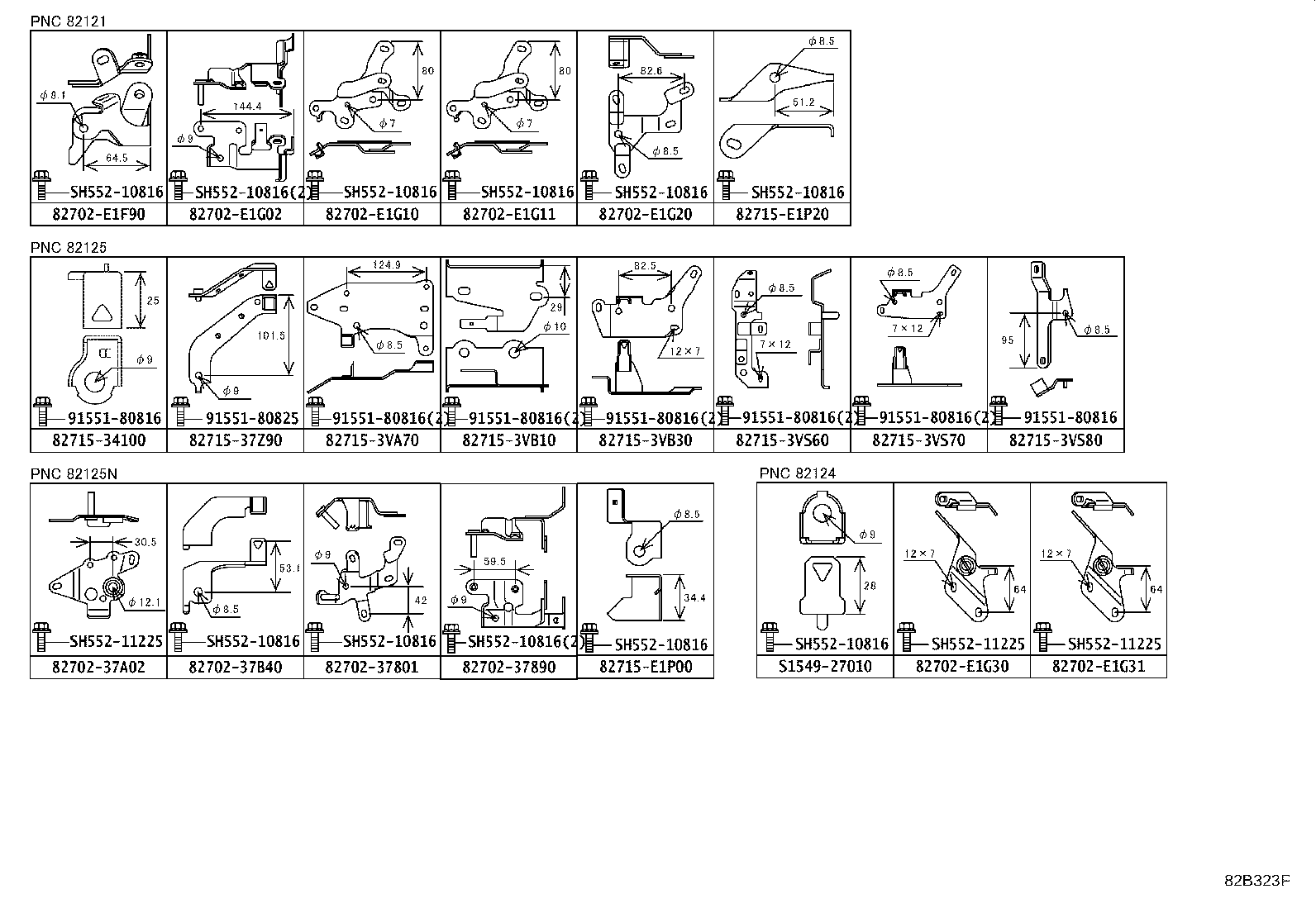

ILLUST NO. 6 OF 6(1705- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 2/2

Part #	Description	Period	Qty	Price
Common parts
82702-37801
82702-37890
82702-37A02
82702-37B40
82702-E1F90
82702-E1G02
82702-E1G10
82702-E1G11
82702-E1G20
82702-E1G30
82702-E1G31
82715-34100
82715-37Z90
82715-3VA70
82715-3VB10
82715-3VB30
82715-3VS60
82715-3VS70
82715-3VS80
82715-E1P00
82715-E1P20
91551-80816
91551-80825
S1549-27010
SH552-10816
SH552-11225
