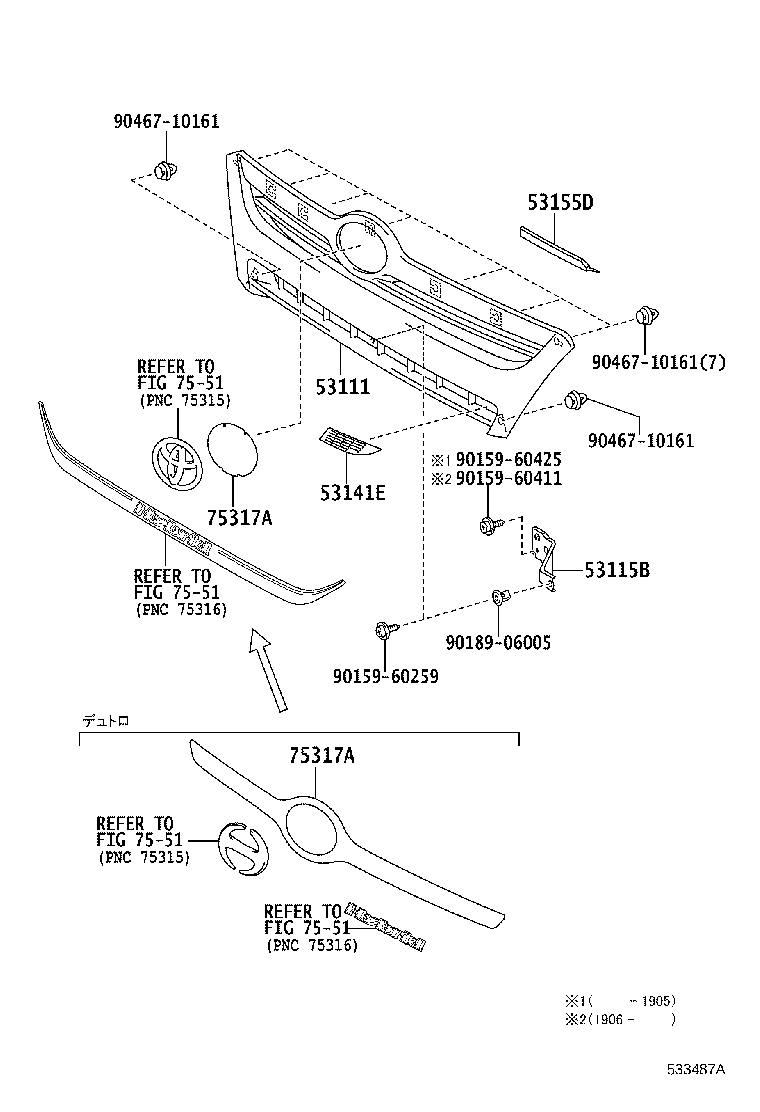

Toyota Dyna/toyoace hv XKU710 RADIATOR GRILLE

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-37A40	XKU700,710,720 ﾒｯｷ,ﾃﾞｭﾄﾛ専用	07/2011 - 10/2013	1
53111-37A20	XKU700,710,720 塗装不要	07/2011 - 05/2017	1
53111-37A30H0	XKU700,710,720 ﾃﾞｭﾄﾛ専用,TURQUOISE,766	07/2011 - 05/2017	1
53111-37A30H0	XKU700,710,720 TURQUOISE,766	07/2011 - 05/2017	1
53111-37A30A0	XKU700,710,720 WHITE,058	07/2011 - 05/2017	1
53111-37A30J0	XKU710..(20T,30T)..IV3 SEINOU BLUE,9E2	07/2011 - 05/2017	1
53111-37A30J1	XKU700,710,720 ﾃﾞｭﾄﾛ専用,BLUE,8P0	07/2011 - 05/2017	1
53111-37A30A0	XKU700,710,720 ﾃﾞｭﾄﾛ専用,WHITE,058	07/2011 - 05/2017	1
53111-37A50	XKU700,710,720 ﾒｯｷ,ﾃﾞｭﾄﾛ専用	11/2013 - 05/2017	1
53111-37A30B1	XKU700,710,720 ﾃﾞｭﾄﾛ専用,SILVER ME.,199	07/2011 - 05/2017	1
53111-37A30B1	XKU700,710,720 SILVER ME.,199	07/2011 - 05/2017	1
53111-37A30J0	XKU710..(20T,30T)..IV3 ﾃﾞｭﾄﾛ専用,SEINOU BLUE,9E2	07/2011 - 05/2017	1
53111-37A40	XKU700,710,720 ﾒｯｷ	07/2011 - 10/2013	1
53111-37A30J1	XKU700,710,720 BLUE,8P0	07/2011 - 05/2017	1
53111-37A50	XKU700,710,720 ﾒｯｷ	11/2013 - 05/2017	1
53115B - BRACKET, RADIATOR GRILLE
53115-37090	XKU700,710,720	07/2011 - 05/2017	1
53141E - COVER, RADIATOR, NO.1
53141-37090	XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	07/2011 - 05/2017	1
53141-37080	XKU700,710,720	07/2011 - 05/2017	1
53141-37090	XKU700,710,720 ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	07/2011 - 05/2017	1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-37030	XKU700,710,720	07/2011 - 05/2017	1
75317A - PLATE, RADIATOR GRILLE ORNAMENT
75317-37030	XKU700,710,720 ﾃﾞｭﾄﾛ専用	07/2011 - 05/2017	1
75317-37030	XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	07/2011 - 05/2017	1
75317-37030	XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−塗装	07/2011 - 05/2017	1
75317-37040	XKU700,710,720	07/2011 - 05/2017	1
75317A - PLATE, RADIATOR GRILLE ORNAMENT
75317-37030	XKU700,710,720 ﾃﾞｭﾄﾛ専用	07/2011 - 05/2017	1
75317-37030	XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ	07/2011 - 05/2017	1
75317-37030	XKU700,710,720 ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−塗装	07/2011 - 05/2017	1
75317-37040	XKU700,710,720	07/2011 - 05/2017	1
Common parts
90159-60259
90159-60411
90159-60425
90189-06005
90467-10161
Linked diagrams
7551

XKU710-TKUQC3 (2011)

(1107- )DCRTK
